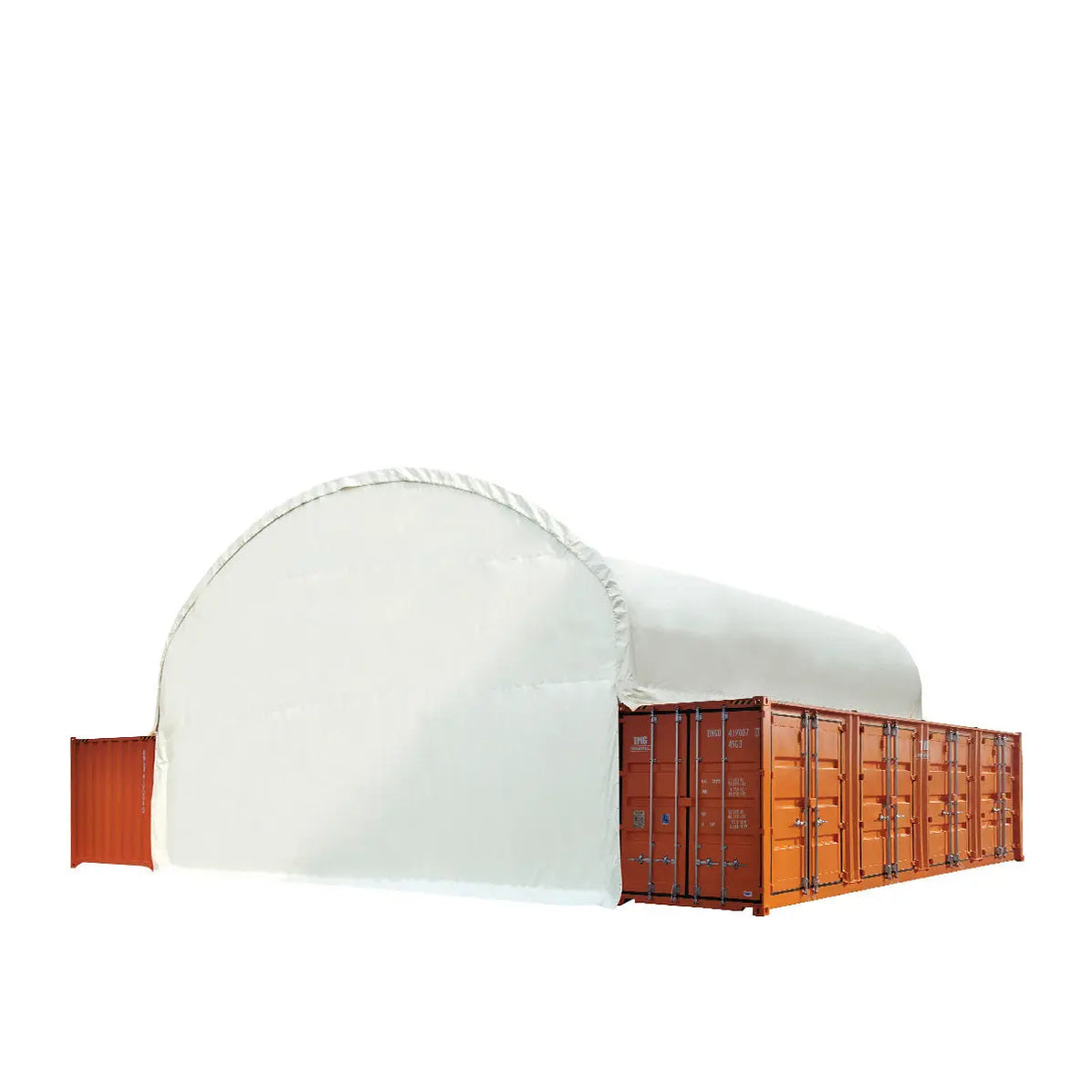

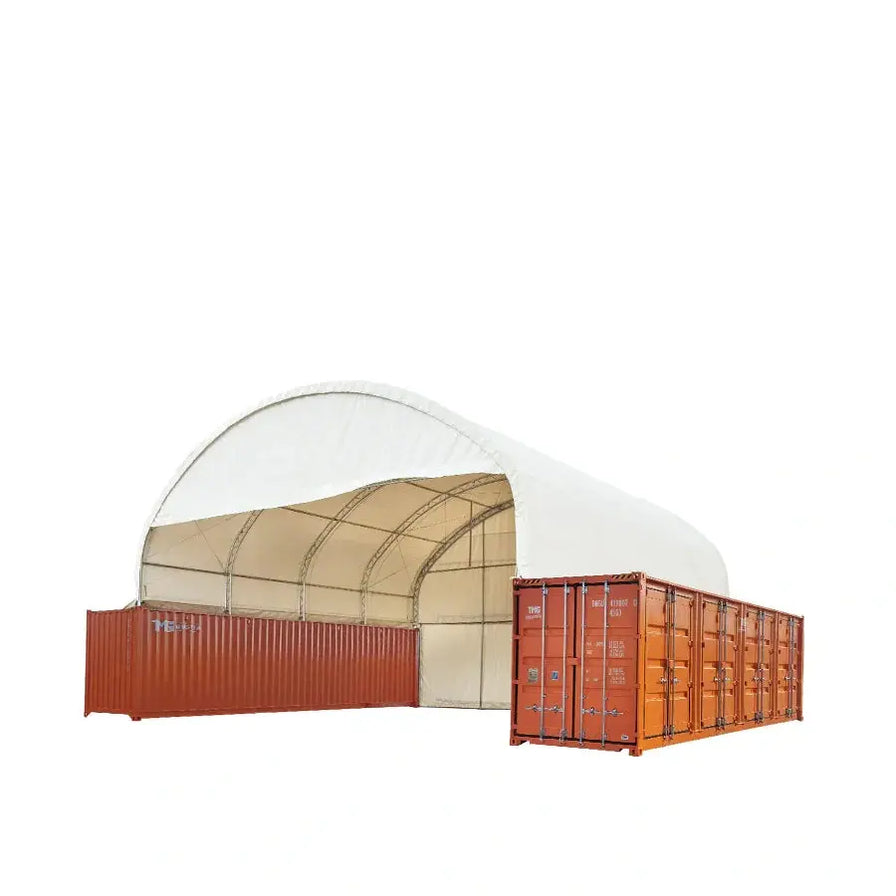

TMG-DT4041CF 40′ x 40′ Dual Truss Container Peak Roof Shelter

Key Features

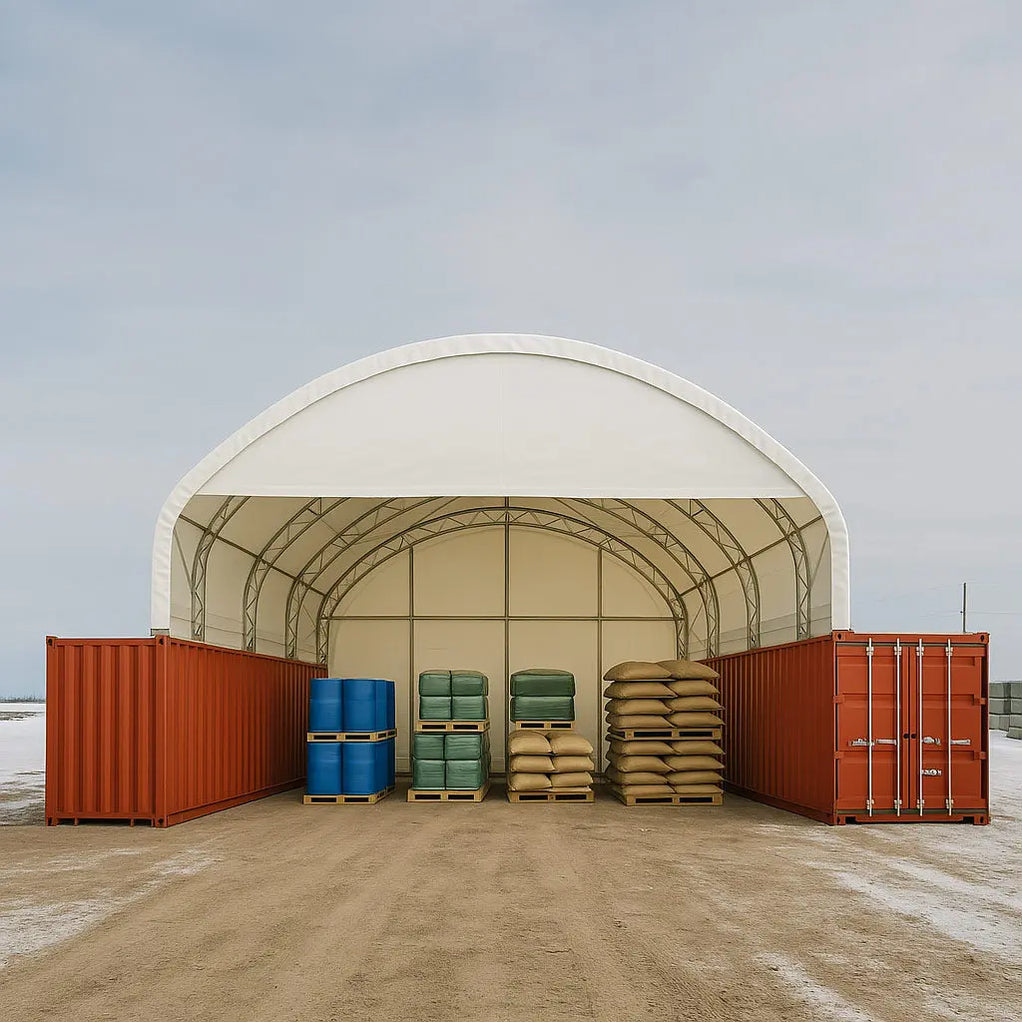

• Massive Open-Span Workspace: Supplies roughly 1,600 sq-ft of high-clearance interior footprint, offering an efficient layout to park heavy equipment, conduct maintenance, or stockpile bulk assets.

• Premium 21 oz PVC Protective Canopy: Fabricated from commercial-grade, triple-layered white PVC tarpaulin that is highly tear-resistant, 100% waterproof, and naturally fire-retardant.

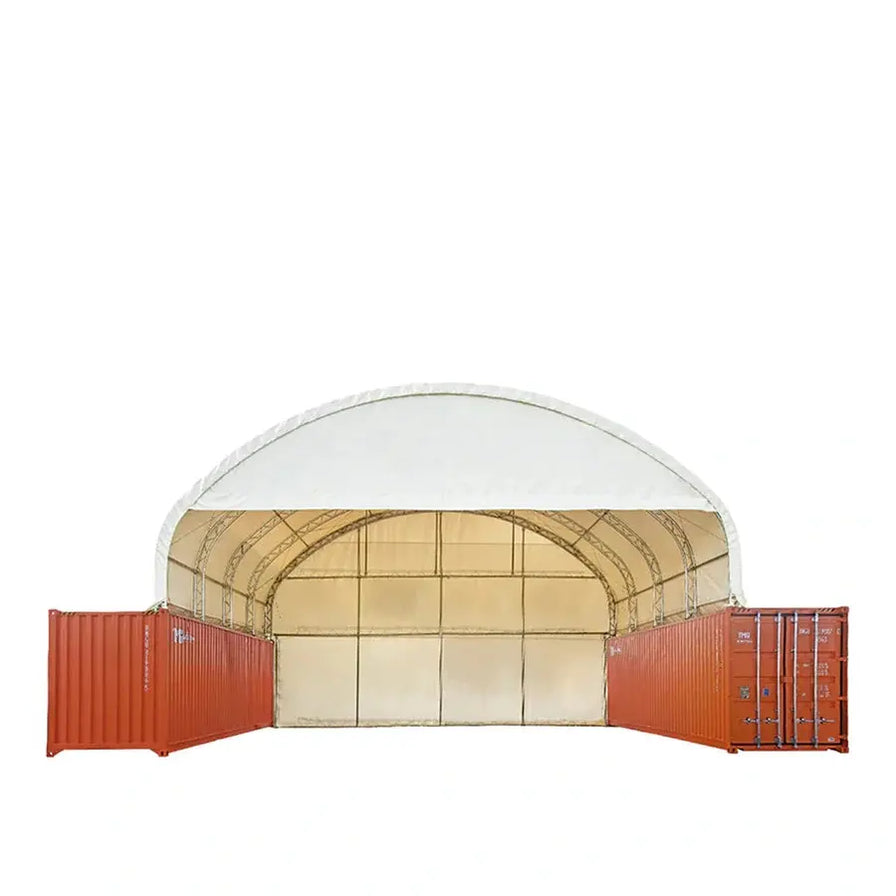

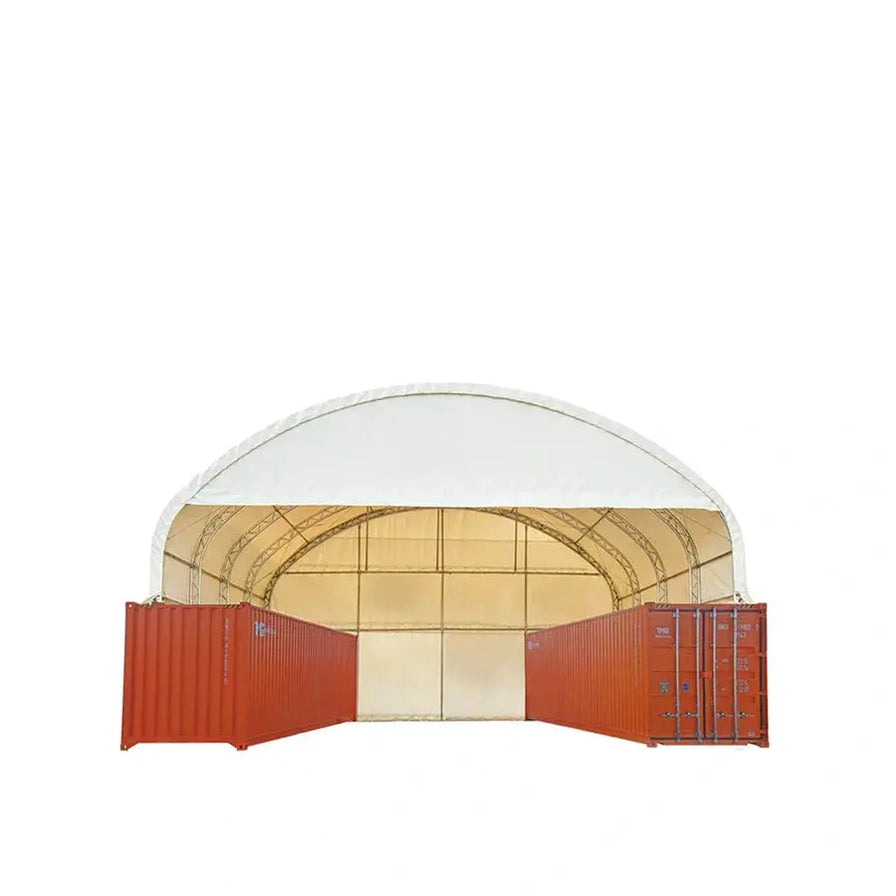

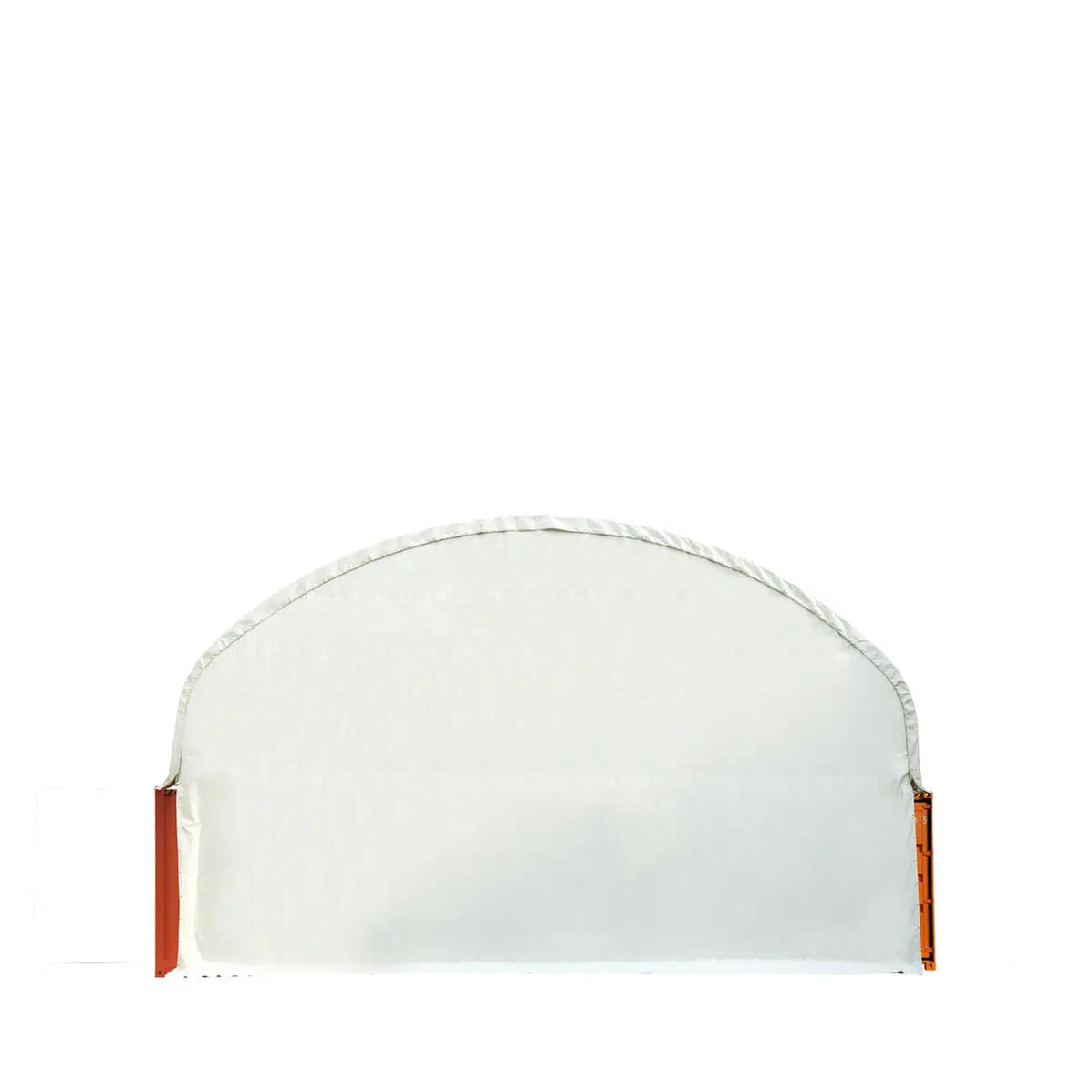

• Enclosed End Wall & Front Drop: Designed with a built-in rear enclosure wall and a targeted front drop panel to minimize weather exposure and safeguard weather-sensitive cargo from blowing debris.

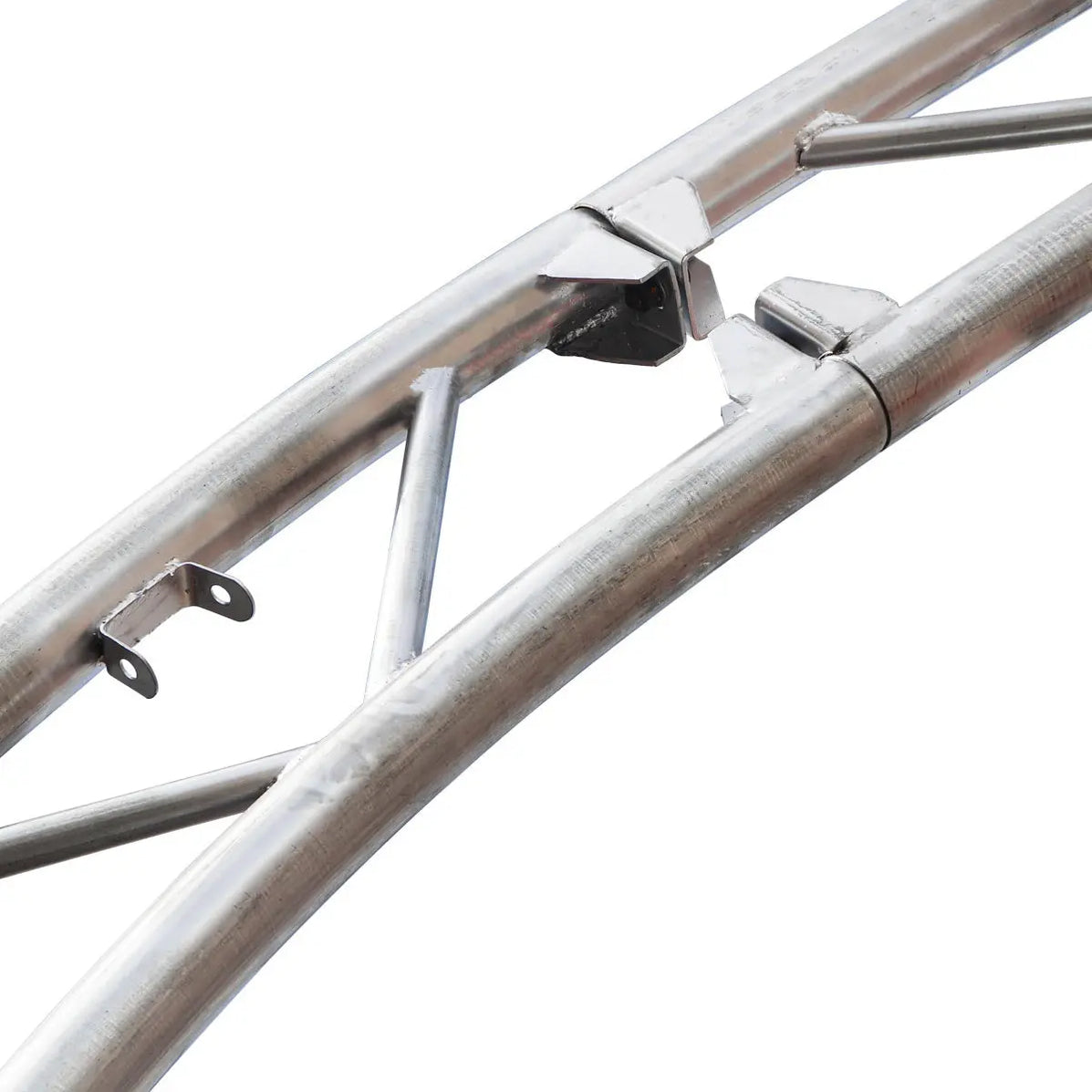

• Reinforced Dual-Truss Engineering: Supported by a robust, 3-layer galvanized steel framework utilizing double trusses, tight 10-foot arch spacing, and a quad-tension cable system for superior structural rigidity.

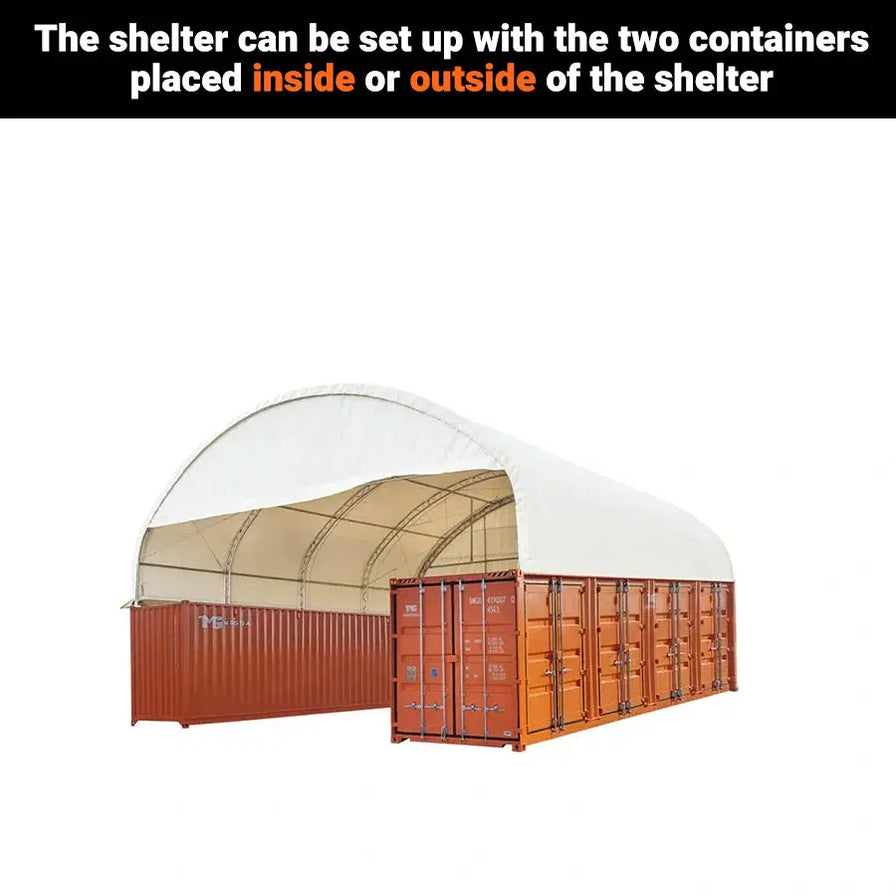

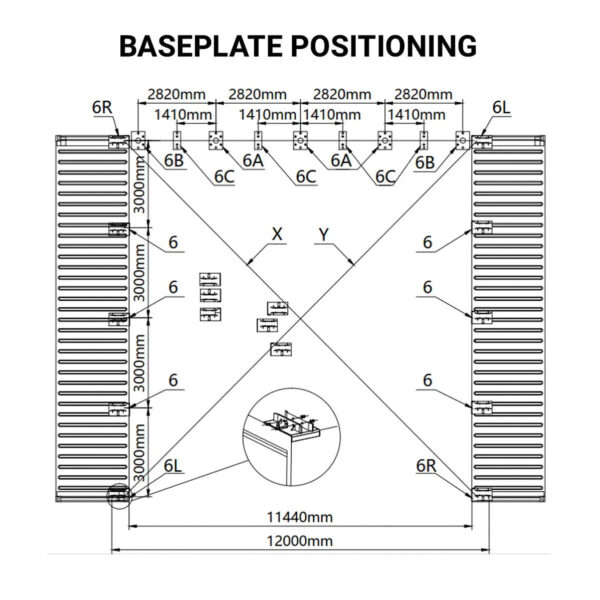

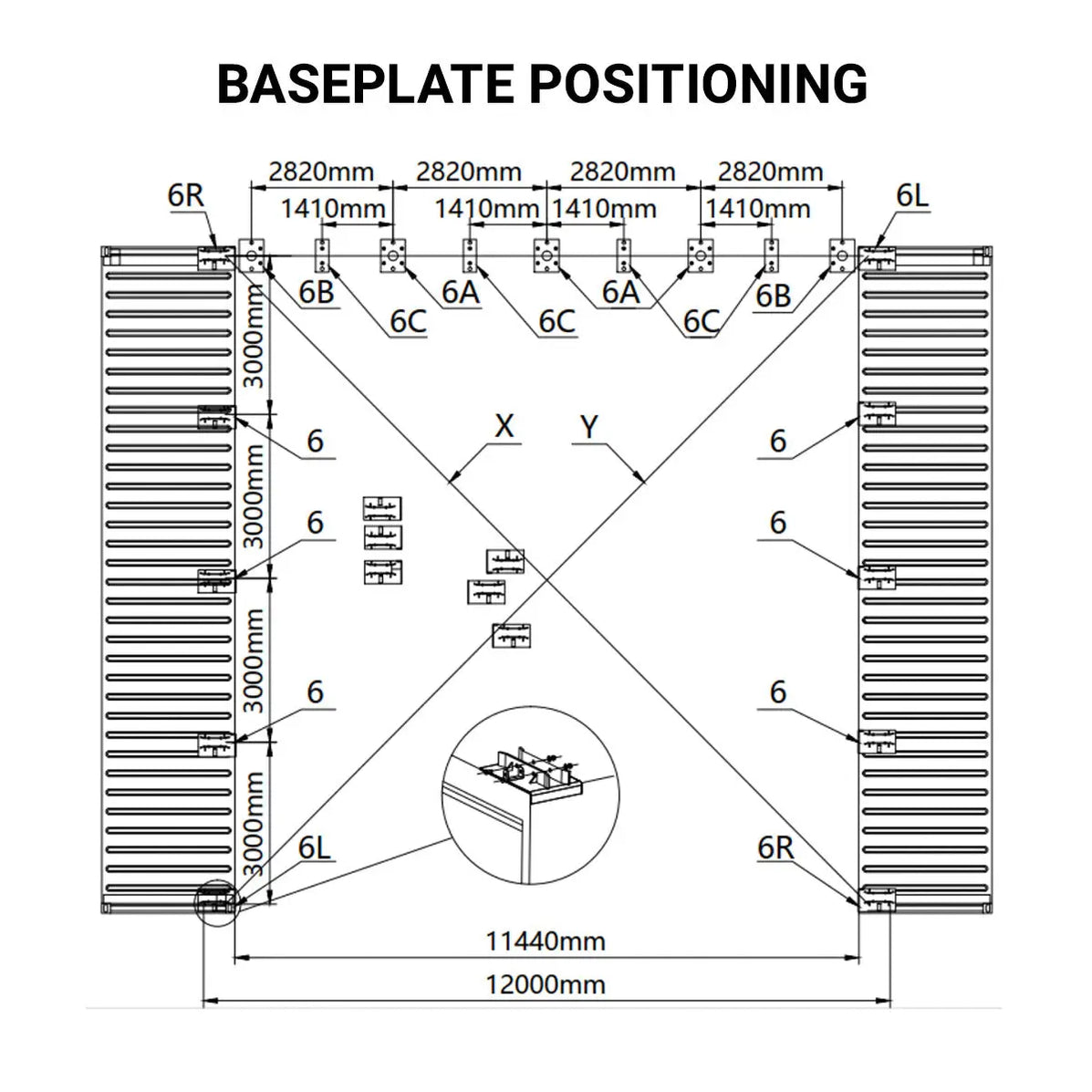

• Versatile Baseplate Configurations: Footplates can be welded to either the inner container edges to maximize interior square footage, or the outer container edges to optimize drainage and prevent snow buildup.

• Cost-Effective Utility Illumination: The translucent white fabric reflects aggressive UV rays to minimize ambient heat while allowing soft, natural daytime lighting to filter through, lowering supplemental energy expenses.

Technical Specifications

• Model: TMG-DT4041CF (Previously DT4040CF)

• Alternate Configuration Options: Also available in alternative sizing footprints (ranging from 20’x40′ up to 50’x40′) and a Grey fabric variant.

• Exact Base Footprint: 39’5” W x 39’5” L (12.0 m x 12.0 m)

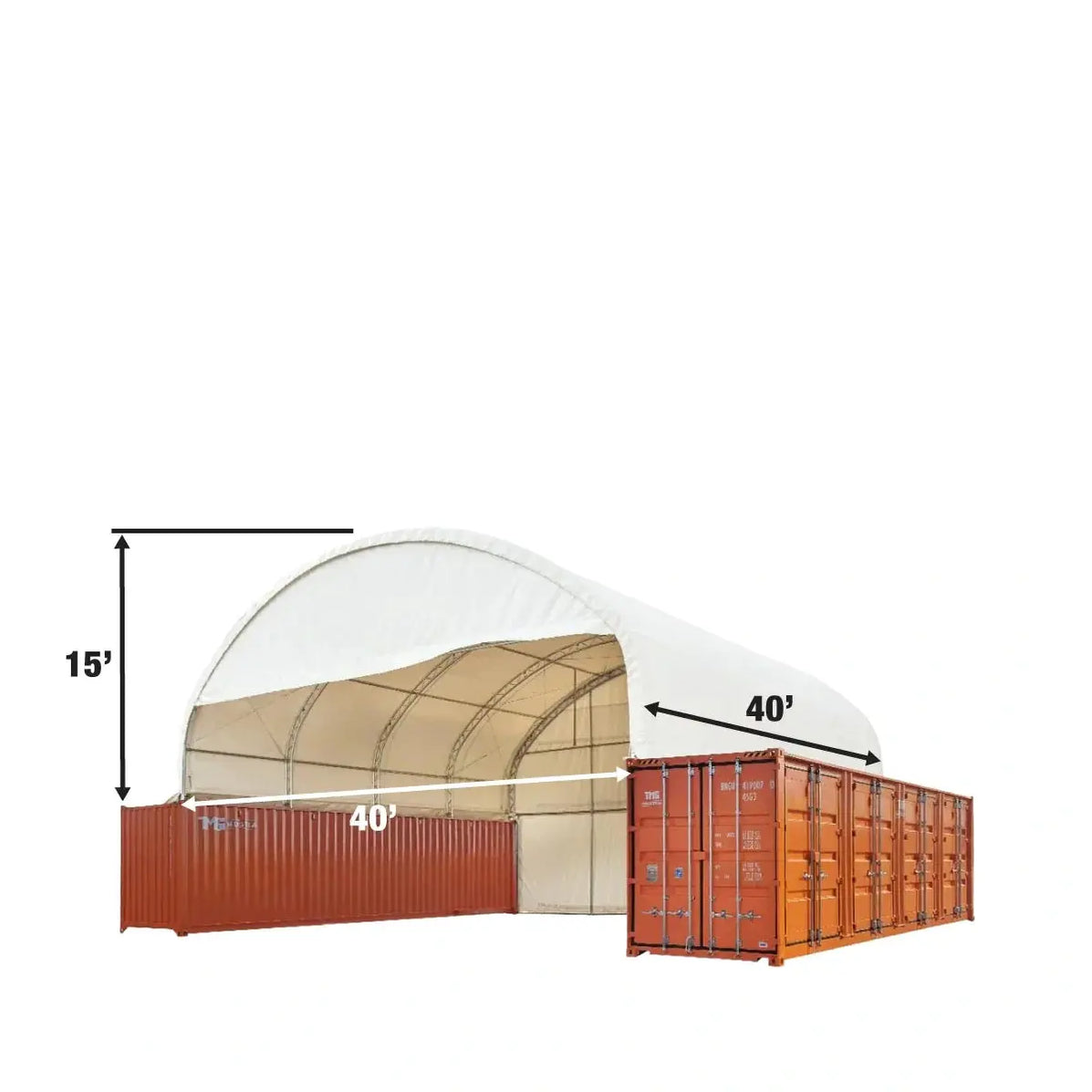

• Vertical Clearances (Mounted on Standard 8’6″ Containers):

  • Peak Ceiling Height from Ground: 23’ Total

  • Peak Ceiling Height from Container Top: 15’

  • Front Drop Vertical Clearance: 15’

  • Structural Sidewall Rise: 3’6” above container mounting plane

• Structural Framework Composition: 3-layer rust-resistant galvanized steel

  • Main Truss & Purlin Tubing: 2-½” diameter (Approx. 15-gauge wall thickness)

• Structural Layout: Double-truss arches set at 10-foot spacing intervals

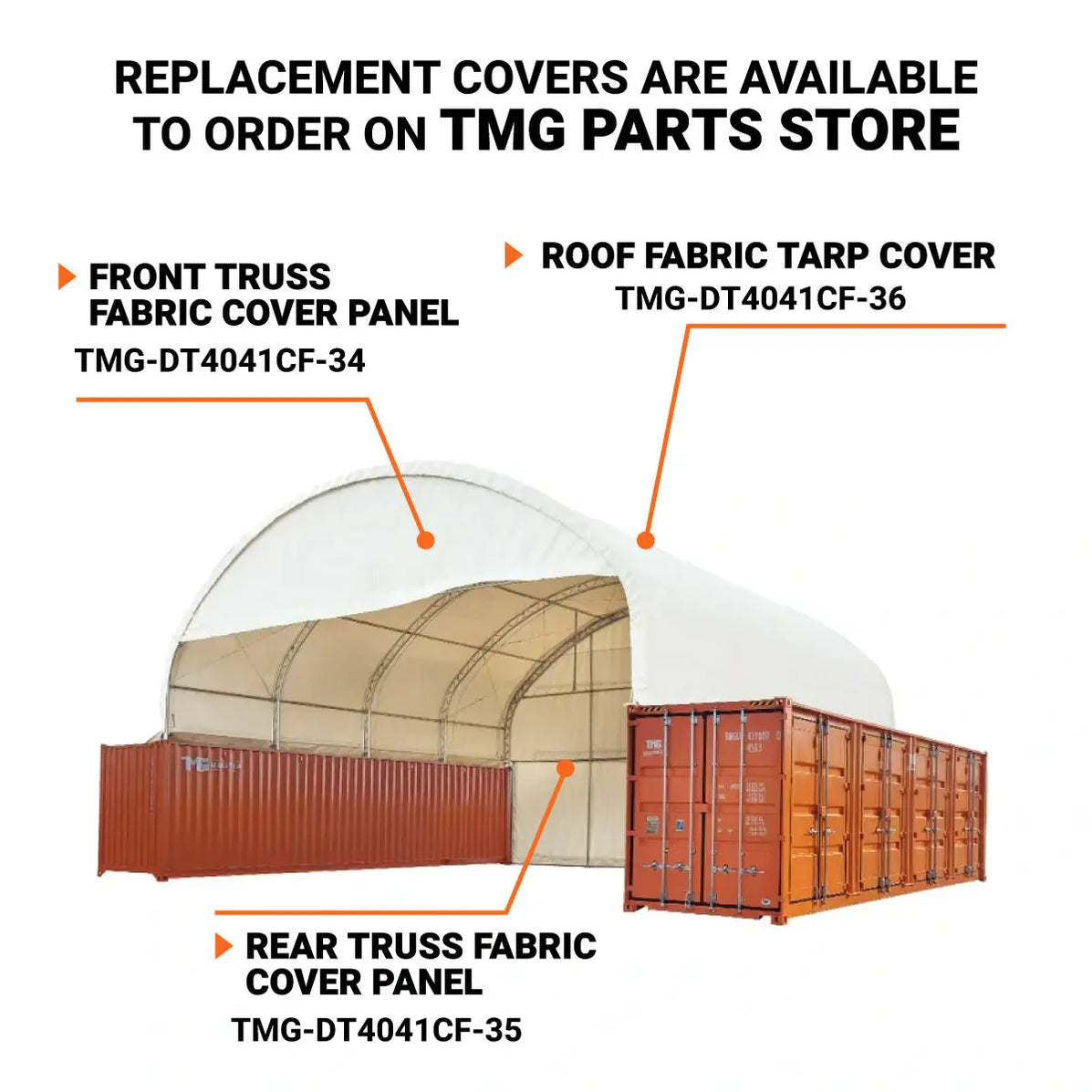

• Canopy Material: 21 oz commercial-grade triple-layer ripstop PVC fabric (White)

• End Wall Adaptability: Standard rear end wall is configured for standard 40′ GP containers (requires a localized 14″ baseline extension if adapting to high-cube 9’6″ containers).

• Installation Criteria: Footplates require direct welding to the supporting shipping containers (shipping containers are NOT included).

Shipping & Delivery

• Processing Time: 2–3 business days under normal logistics parameters

• Delivery: This TMG Industrial Products ships free by standard LTL to delivery addresses in the contiguous United States, with no order minimum. Free local pickup by appointment is also available at 706 N Main St, Gravois Mills, MO 65037. Standard delivery does not include unloading, liftgate, appointment, limited-access, or other accessorial service.

• Unloading Requirements: Product is exceptionally large, oversized, and heavy. Standard tailgate/liftgate delivery is strictly unavailable. A commercial forklift, telehandler, or equivalent mechanical lifting machinery is absolutely required at the destination address to safely offload the metal shipping crate.

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 122” L x 45” W x 49” H

• Combined Shipping Weight: 3,290 lbs
