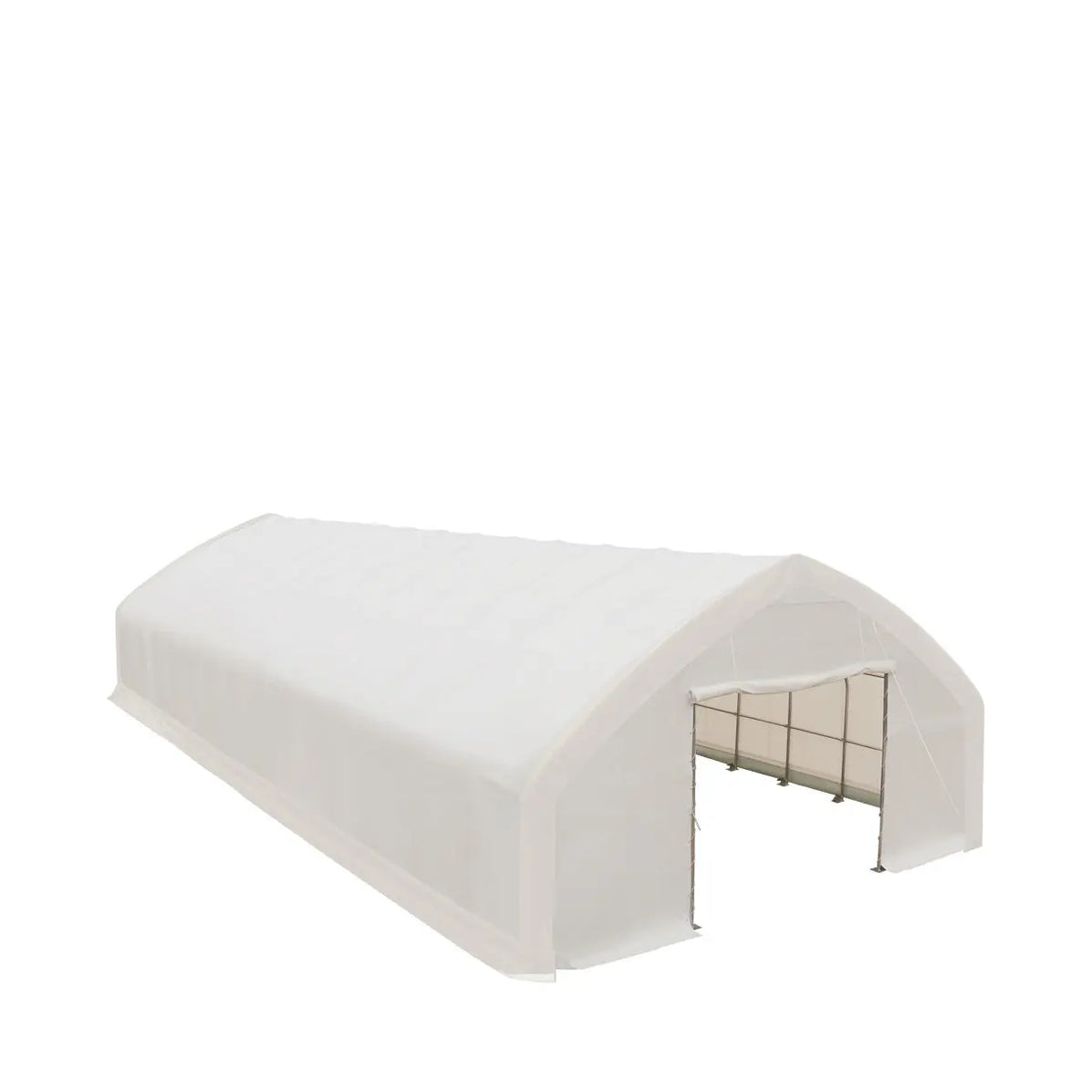

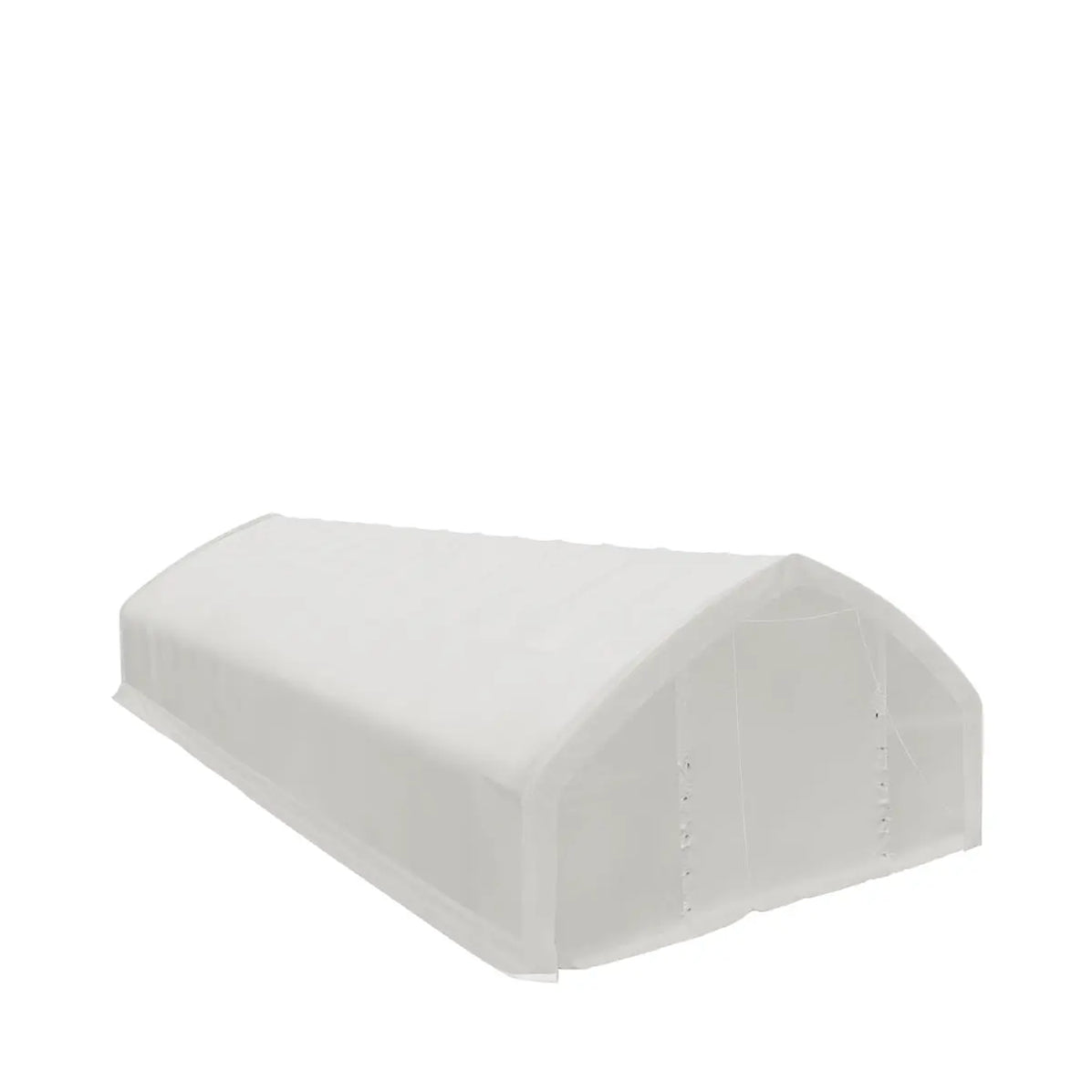

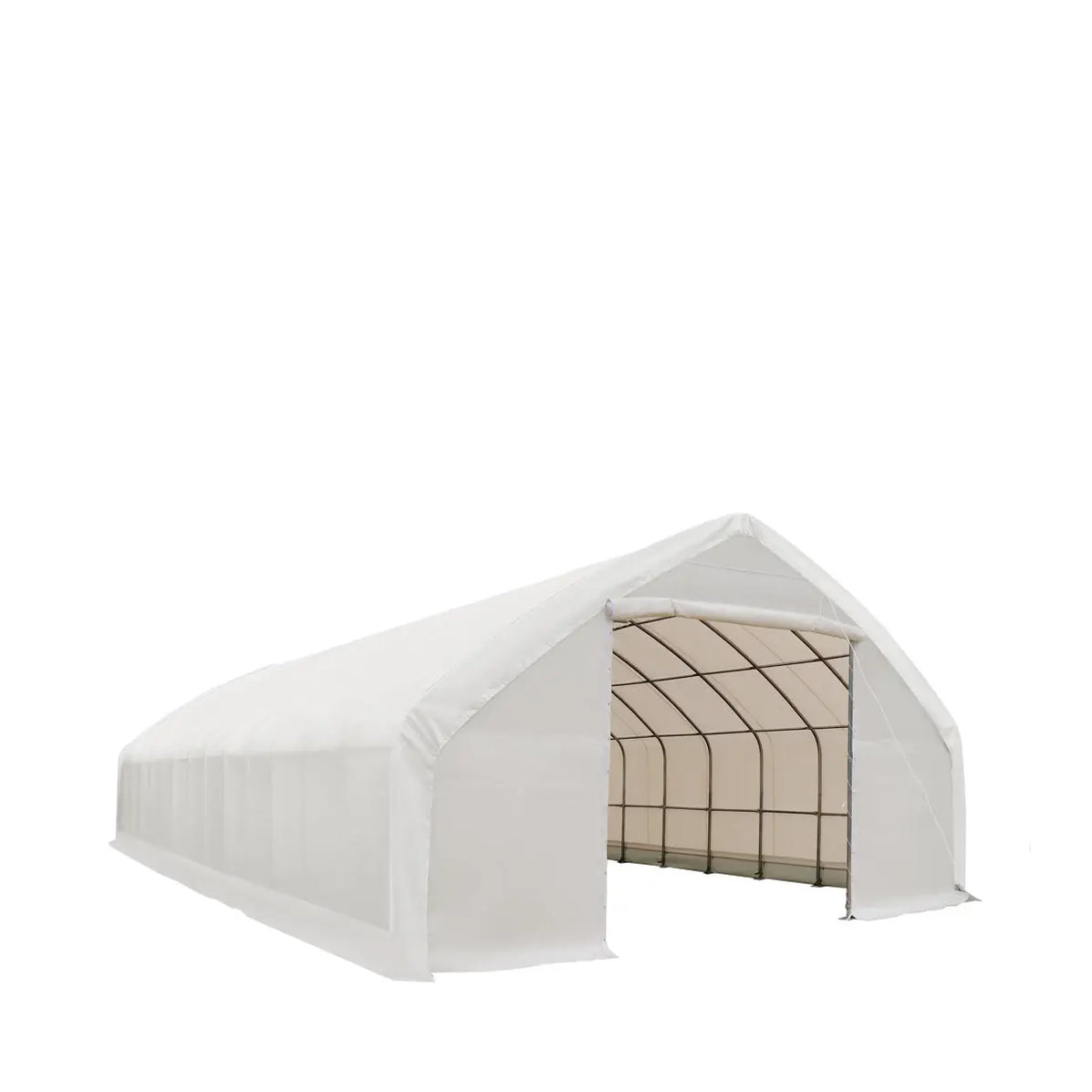

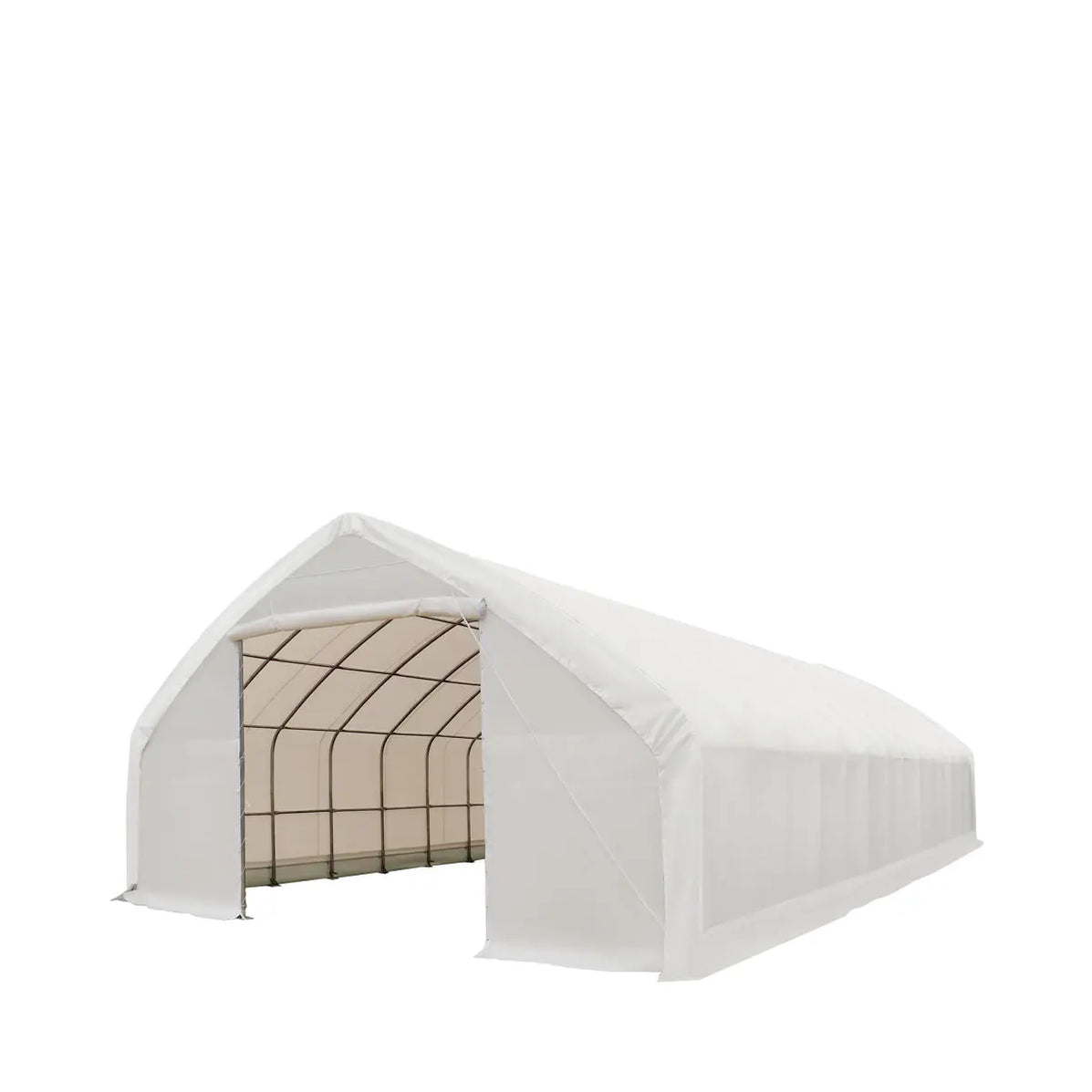

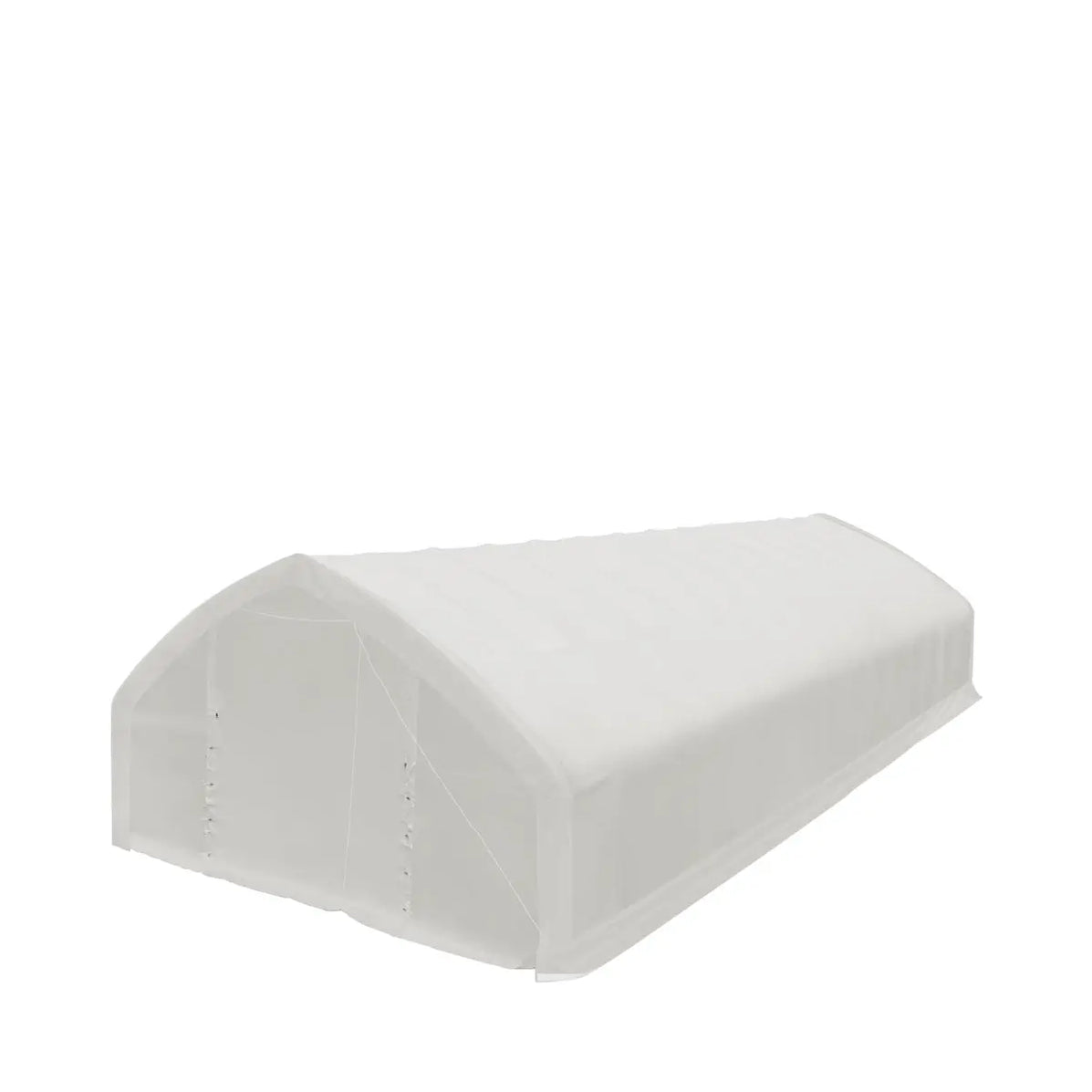

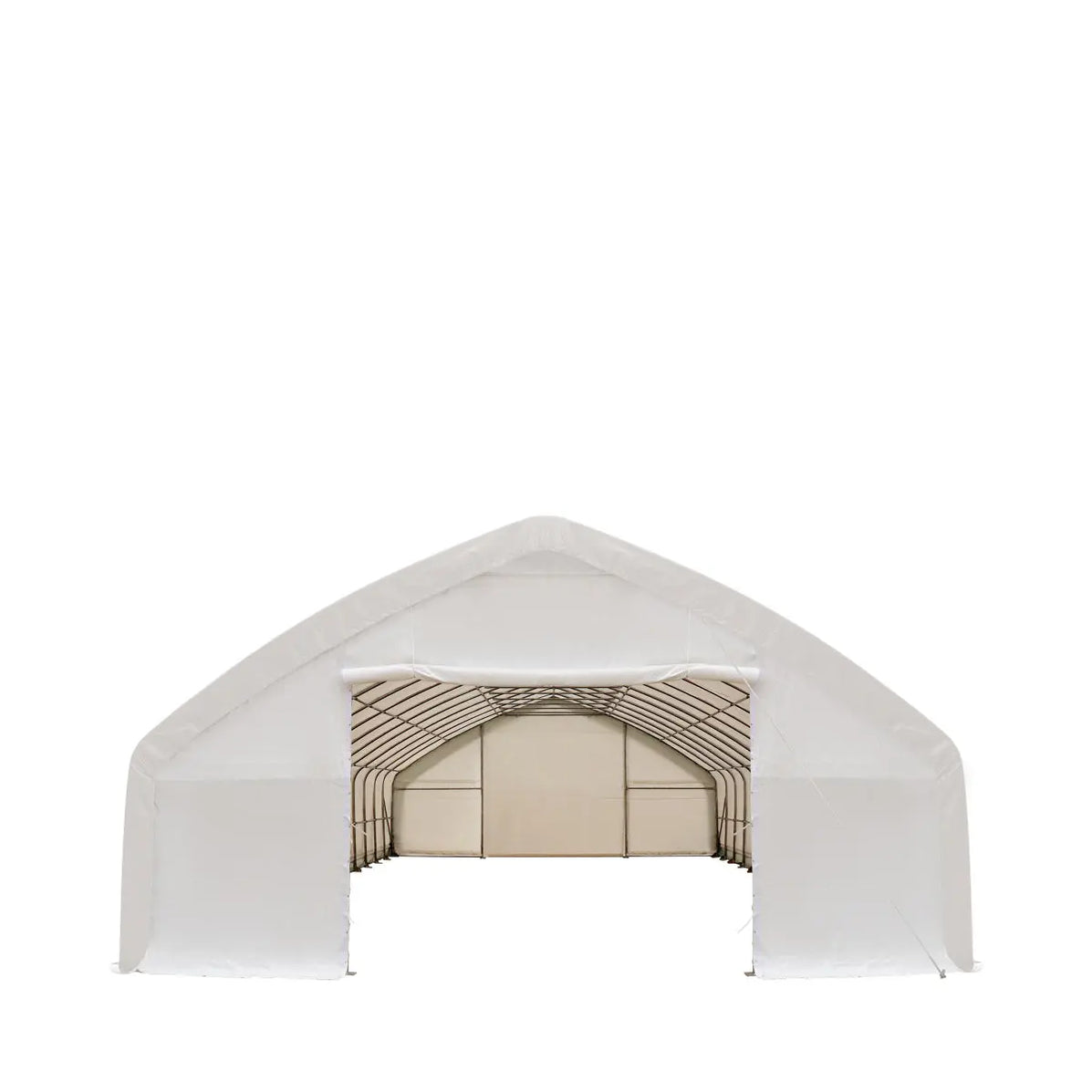

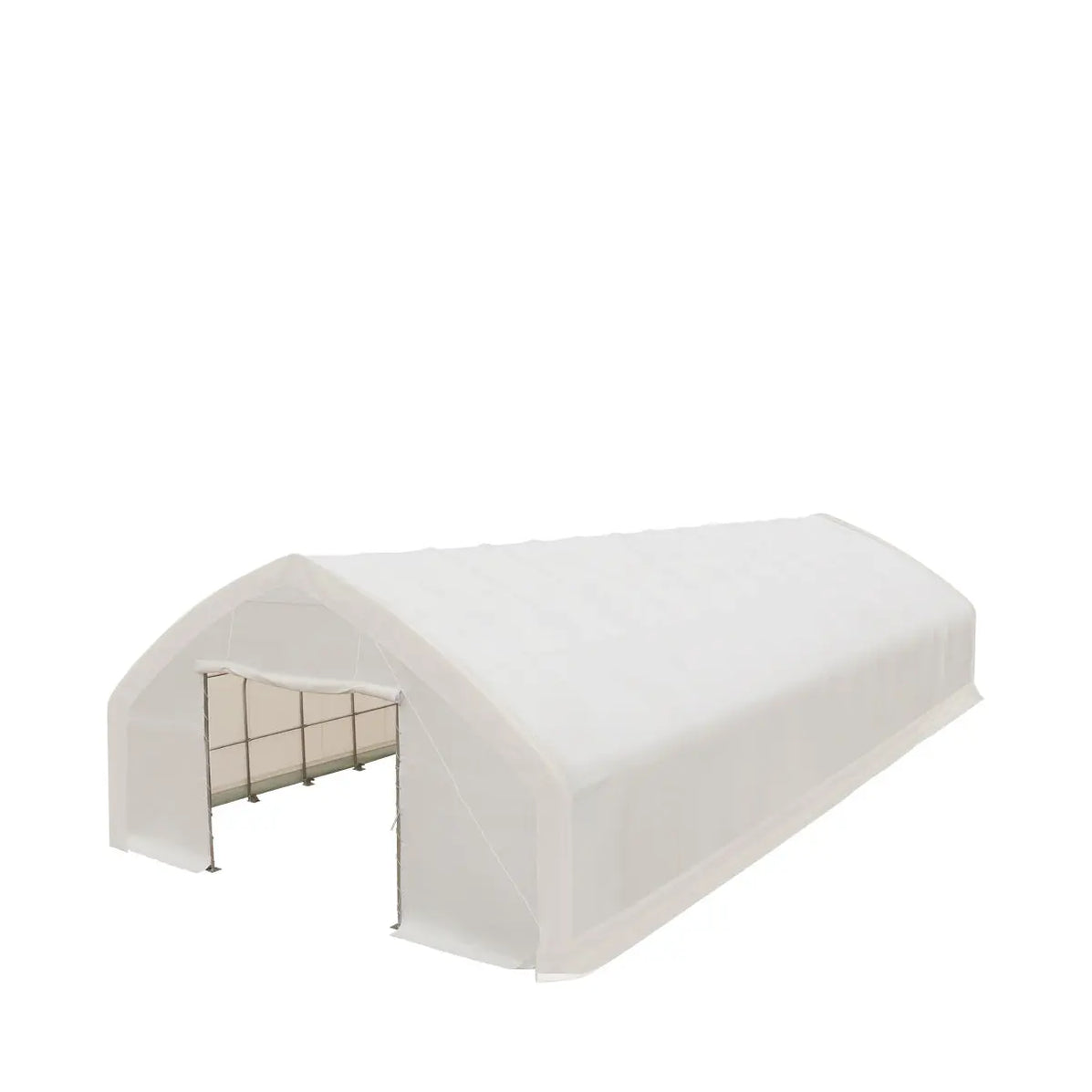

TMG-ST3070E 30′ x 70′ Peak Ceiling Storage Shelter (PE)

Key Features

• Commercial-Grade Canopy: Triple-layer, 11 oz ripstop polyethylene (PE) fabric is fire, oil, and chemical resistant, delivering 100% waterproof and UV-protected coverage.

• Heavy-Duty Framework: Constructed with a 3-layer galvanized steel frame featuring 15 GA (2.3″) truss tubes and 140 roof purlins to guarantee exceptional structural rigidity.

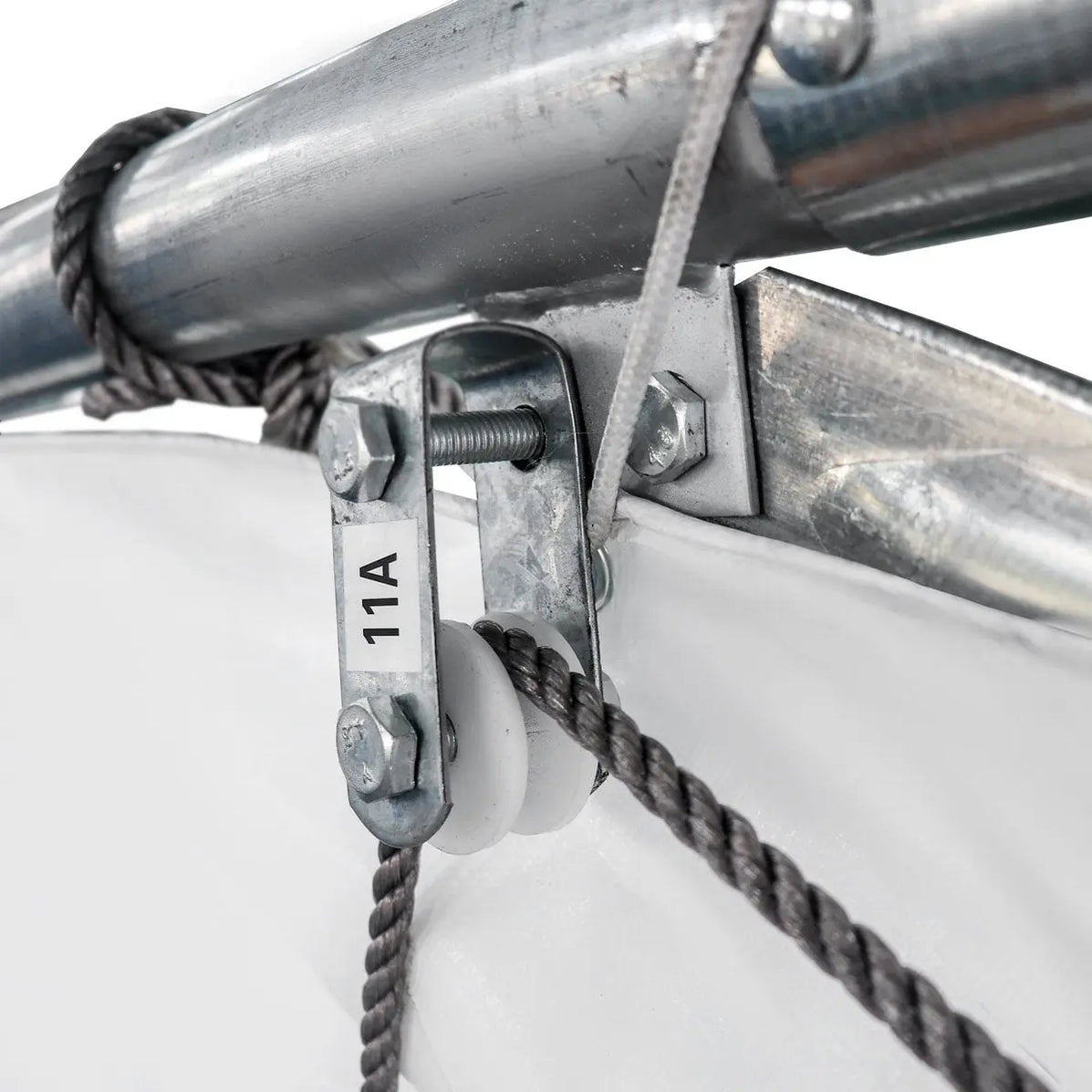

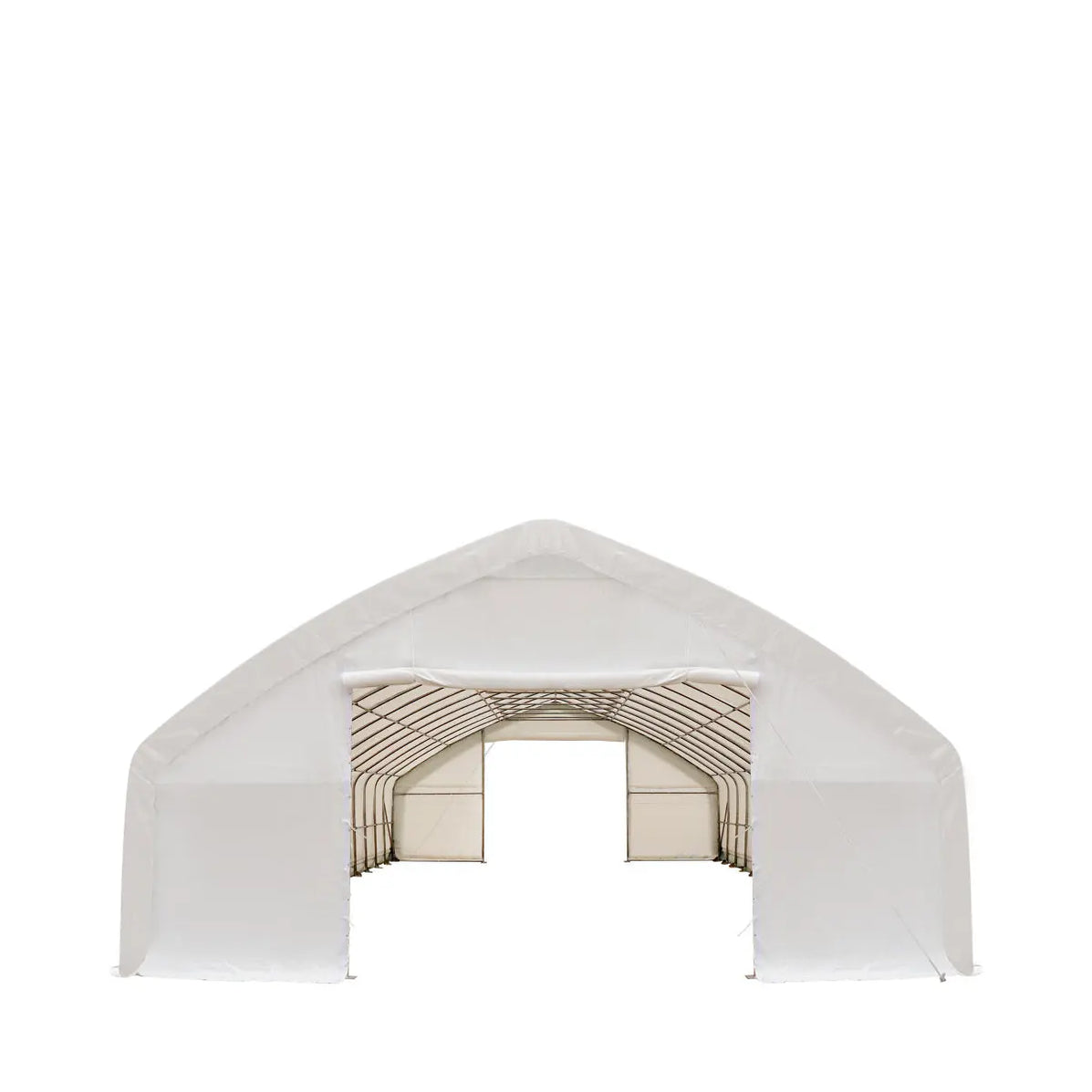

• Optimized Accessibility: Dual endwall roll-up doors provide 13′ W x 13′ H clearance for seamless heavy machinery drive-through access and dynamic workflow.

• Natural Illumination: The light-permeable white PE fabric diffuses natural sunlight, maintaining a brightly lit interior while bypassing the need for complex artificial lighting installations.

• All-Weather Stability: A peaked roof design combined with straight 80″ side walls and integrated dirt skirts maximizes edge clearance and secures the interior environment against harsh elements.

Technical Specifications

• Model: TMG-ST3070

• Alternate Options: Also available with a heavy-duty PVC cover (TMG-ST3070V)

• Floor Footprint: Approx. 2,100 sq-ft

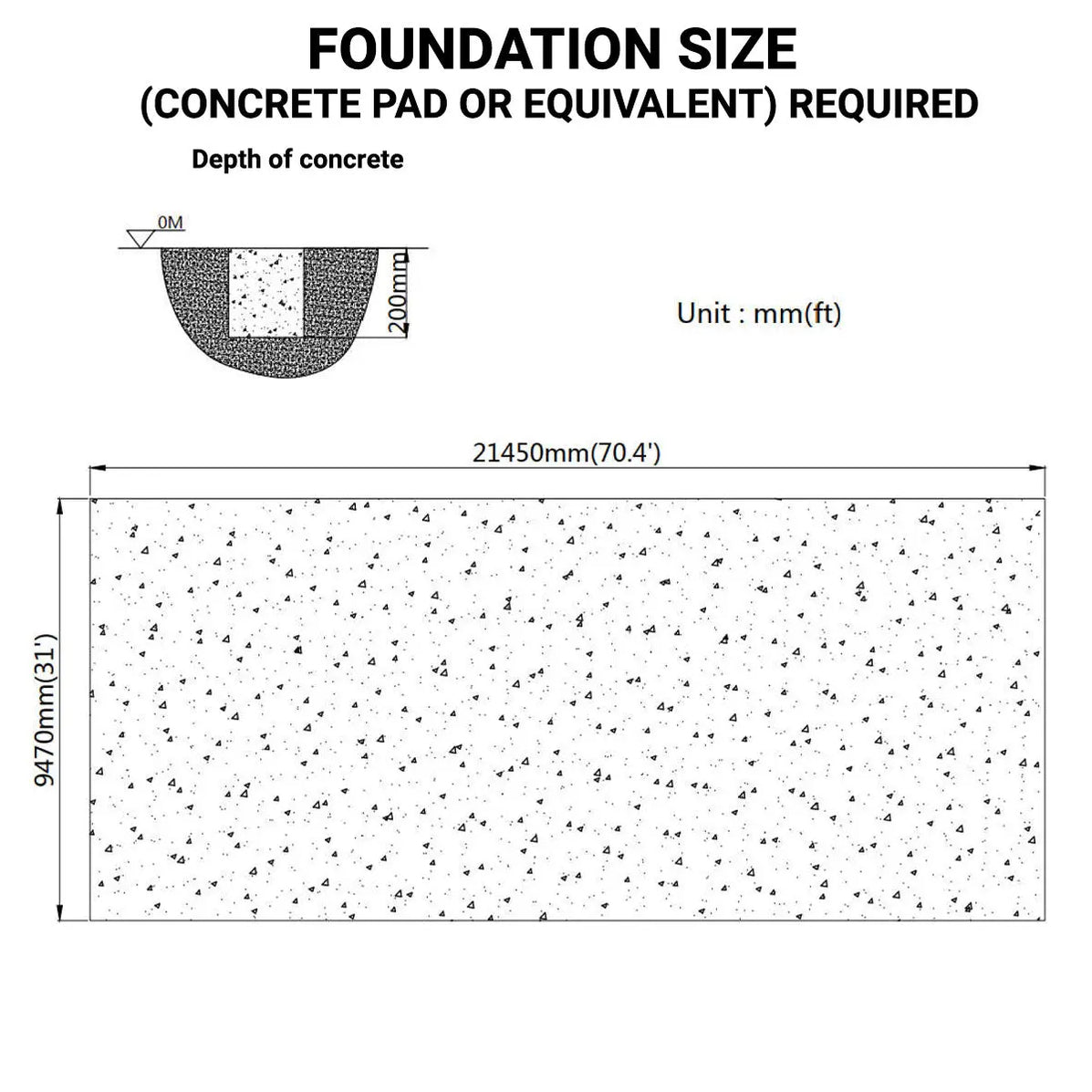

• Foundation Required: Minimum 31’ W x 70.4’ L (Concrete slab or equivalent)

• Peak Ceiling Height: 16’ (Side-wall height: 80″)

• Door Clearance: 13’ W x 13’ H (Both ends)

• Frame Structure: 15 GA (2.3″) trusses; 15 truss groups at 59” spacing

• Purlin Tubes: 17 GA (1.65″); 140 total purlins across 14 rows

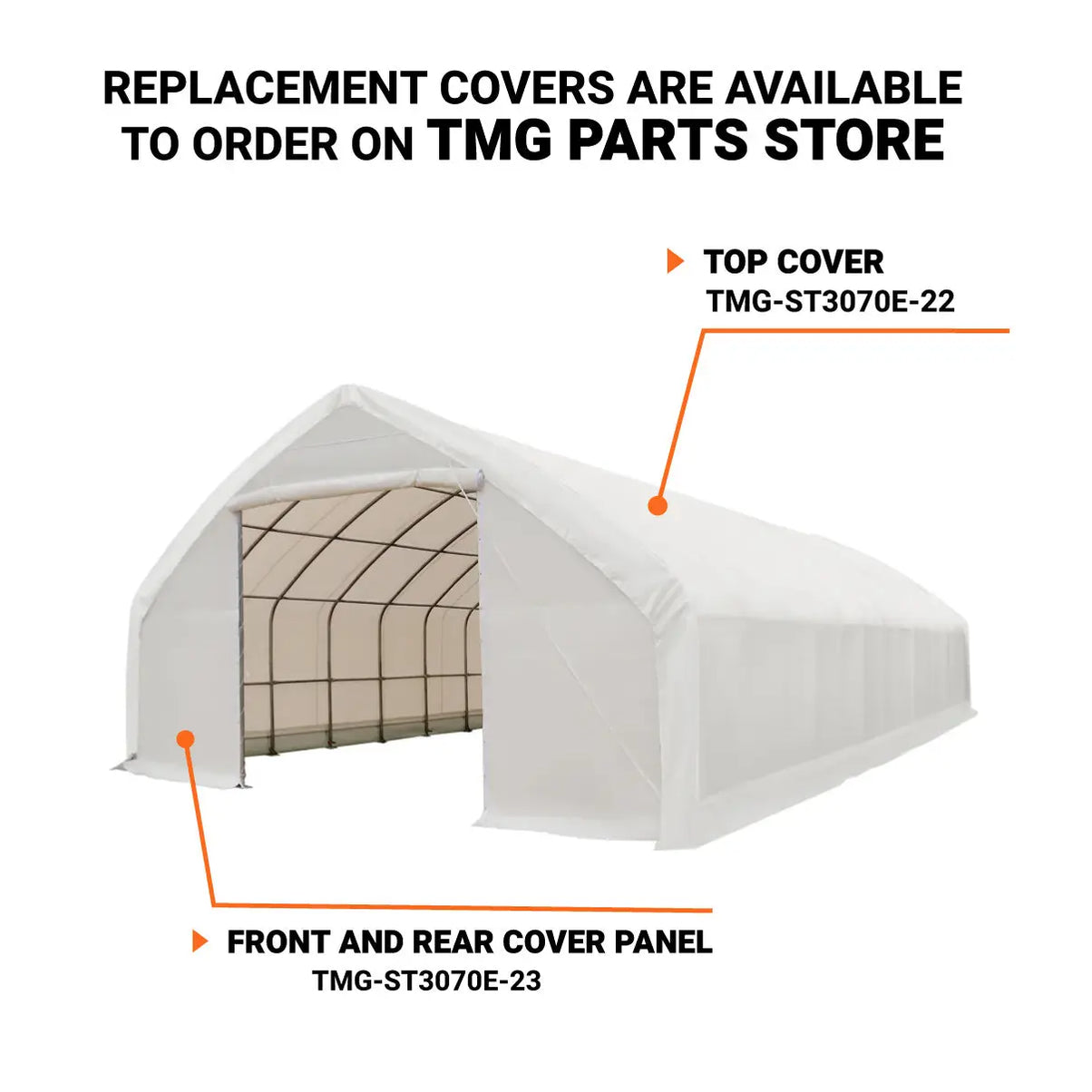

• Cover Material: 11 oz PE fabric, 14 x 14 weave, 20 mil (Replacement covers available)

• Hardware Included: Heavy-duty footplates with pre-drilled holes (Anchor bolts not included)

• Site Compliance: Sold as a DIY installation. Purchaser is responsible for verifying local municipal regulations (Engineered drawings and snow/wind load certifications are not provided).

Shipping & Delivery

• Processing Time: 2–3 business days

• Transit Time: 10–15 business days (subject to location and site accessibility)

• Unloading Requirements: Product is too large for liftgate delivery. A forklift or equivalent equipment is strictly required for receiving.

• Packaging Type: Secure metal shipping crate

• Shipping Dimensions: 115” L x 29” W x 49” H

• Shipping Weight: 3,055 lbs
