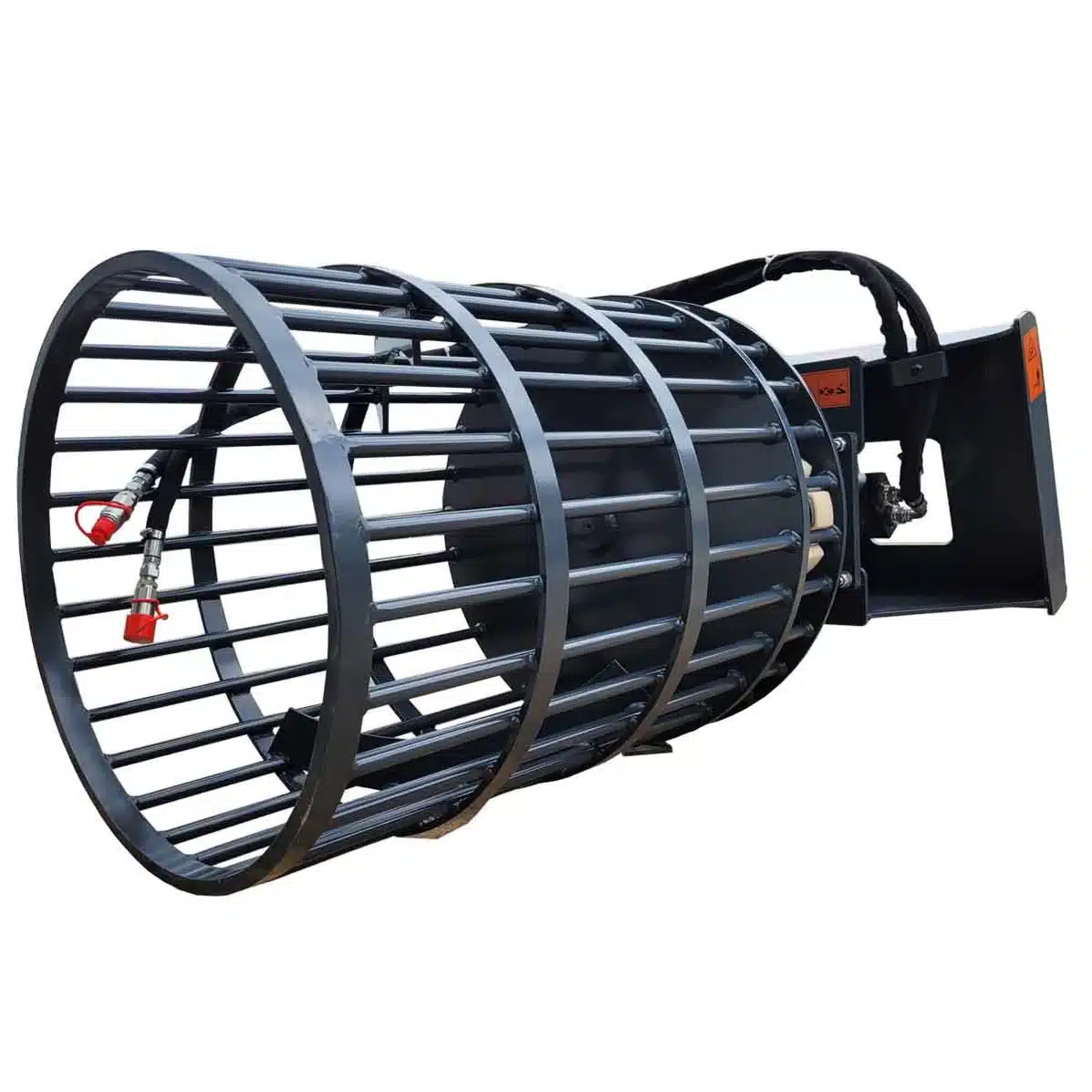

TMG-SRP32 30″ Skid Steer Rotary Rock Picker Attachment

Key Features

• High-Volume Rotary Drum: Features a massive 30-inch diameter caged barrel with a 39-inch digging depth, allowing operators to scoop, tumble, and collect up to 1,300 lbs of heavy debris in a single continuous pass.

• Precision Topsoil Sifting: Engineered with strict 2½-inch (64 mm) spacing between the robust 22mm (0.9″) solid rod bars, guaranteeing that rich dirt, sand, and small gravel sift right through while rocks, concrete chunks, and roots remain trapped.

• Extreme Wear-Resistant Steel: Built to endure brutal, abrasive conditions; the heavy-impact barrel opening and primary spindles are forged from premium NM400 wear-resistant steel, while the main body utilizes high-strength Q345B structural steel.

• Direct-Drive Hydraulic Power: Outfitted with a heavy-duty, direct-drive hydraulic motor operating efficiently on standard flow systems (10–20 GPM) to deliver a consistent, high-torque barrel rotation of 20 to 30 RPM.

• Massive 10-Ton Bearing Rating: The rotary core is supported by an oversized 3.5-inch main drive axle and commercial-grade bearings rated for up to 10 tons, easily absorbing the shock of massive 28-inch boulders.

• Universal Quick Attach Mount: Features an industry-standard universal skid steer backing plate, ensuring rapid hookup and full compatibility with mid-sized to large skid steers and compact track loaders in the 40–75 HP class.

Technical Specifications

• Model: TMG-SRP32

• Recommended Machine Power: 40–75 HP Skid Steers / Compact Track Loaders

• Maximum Load Capacity: Approx. 1,300 lbs (590 kg)

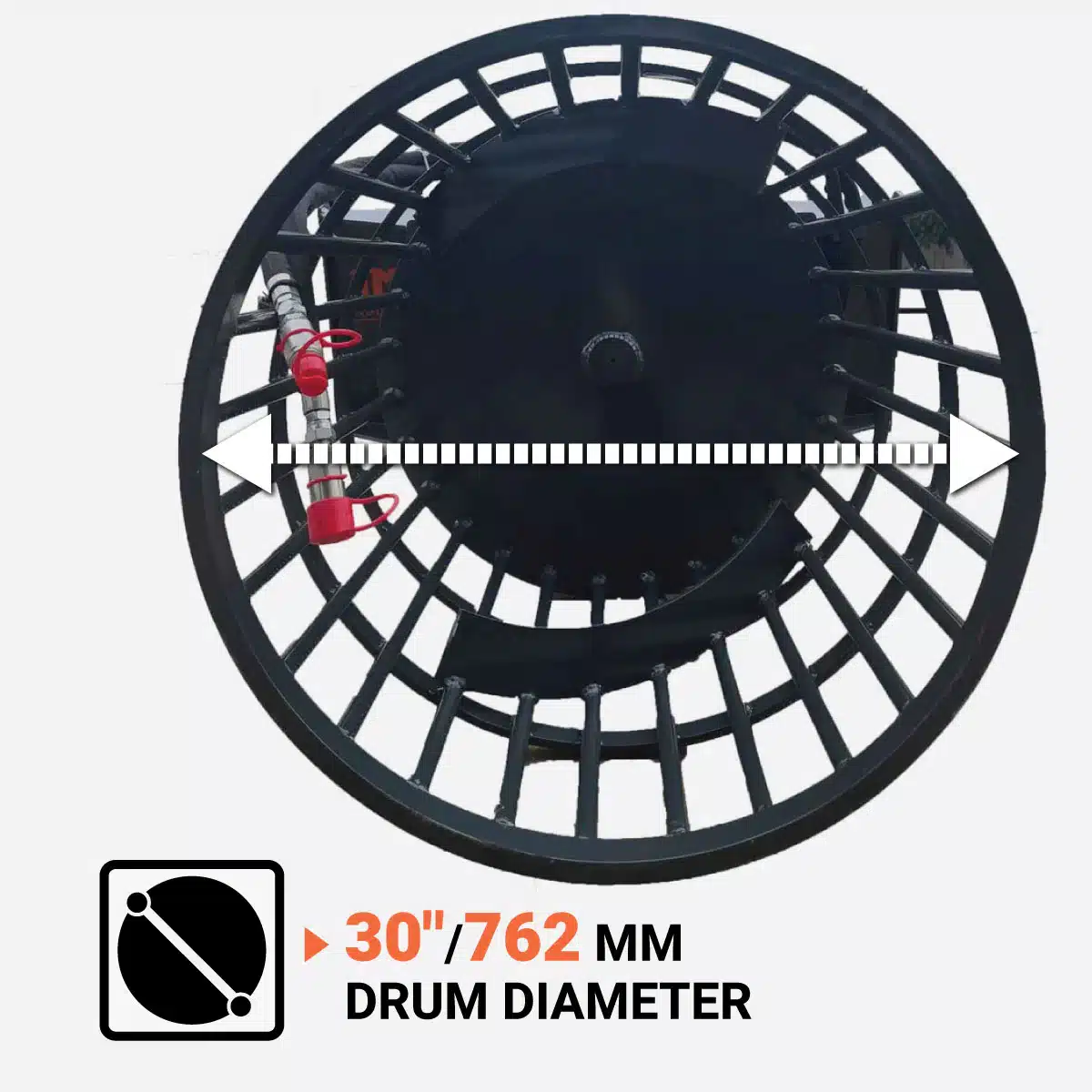

• Drum Dimensions: 30” Diameter (762 mm) x 39” Depth (990 mm)

• Maximum Accommodated Rock Diameter: 28” (712 mm)

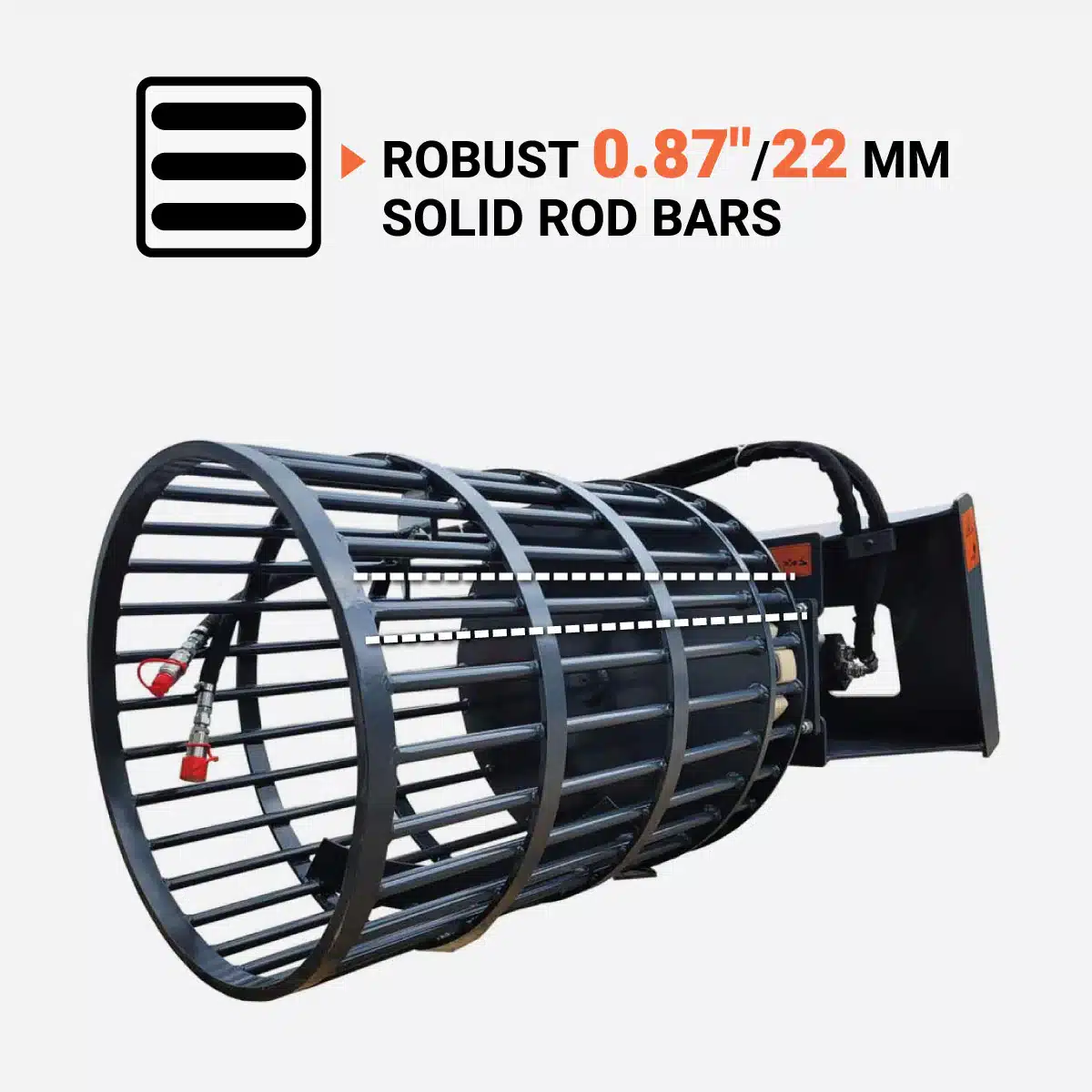

• Barrel Bar Specifications: 0.9” (22 mm) solid steel rod construction

• Barrel Bar Spacing: 2½” (64 mm) gaps for optimal soil sifting

• Bottom Plate Thickness: 0.8” (20 mm) reinforced steel

• Required Auxiliary Hydraulic Flow: 10 – 20 GPM (Standard Flow)

• Hydraulic Operating Pressure: 2,300 – 3,500 PSI

• Barrel Rotation Speed: 20 – 30 RPM

• Main Drive Axle Diameter: 3.5” (89 mm) with a 10-Ton bearing rating

• Material Construction: NM400 Steel (Spindles & Opening) / Q345B Steel (Barrel & Mount)

• Mounting Interface: Universal Skid Steer Quick Attach Mount

Shipping & Delivery

• Processing Time: 2–3 business days under normal commercial logistics schedules

• Delivery: This TMG Industrial Products ships free by standard LTL to delivery addresses in the contiguous United States, with no order minimum. Free local pickup by appointment is also available at 706 N Main St, Gravois Mills, MO 65037. Standard delivery does not include unloading, liftgate, appointment, limited-access, or other accessorial service.

• Unloading Requirements: Product arrives as highly dense, heavy freight. A commercial forklift, tractor loader, or skid steer outfitted with heavy-duty pallet forks is strictly required at the destination address to safely offload the heavy transport crate.

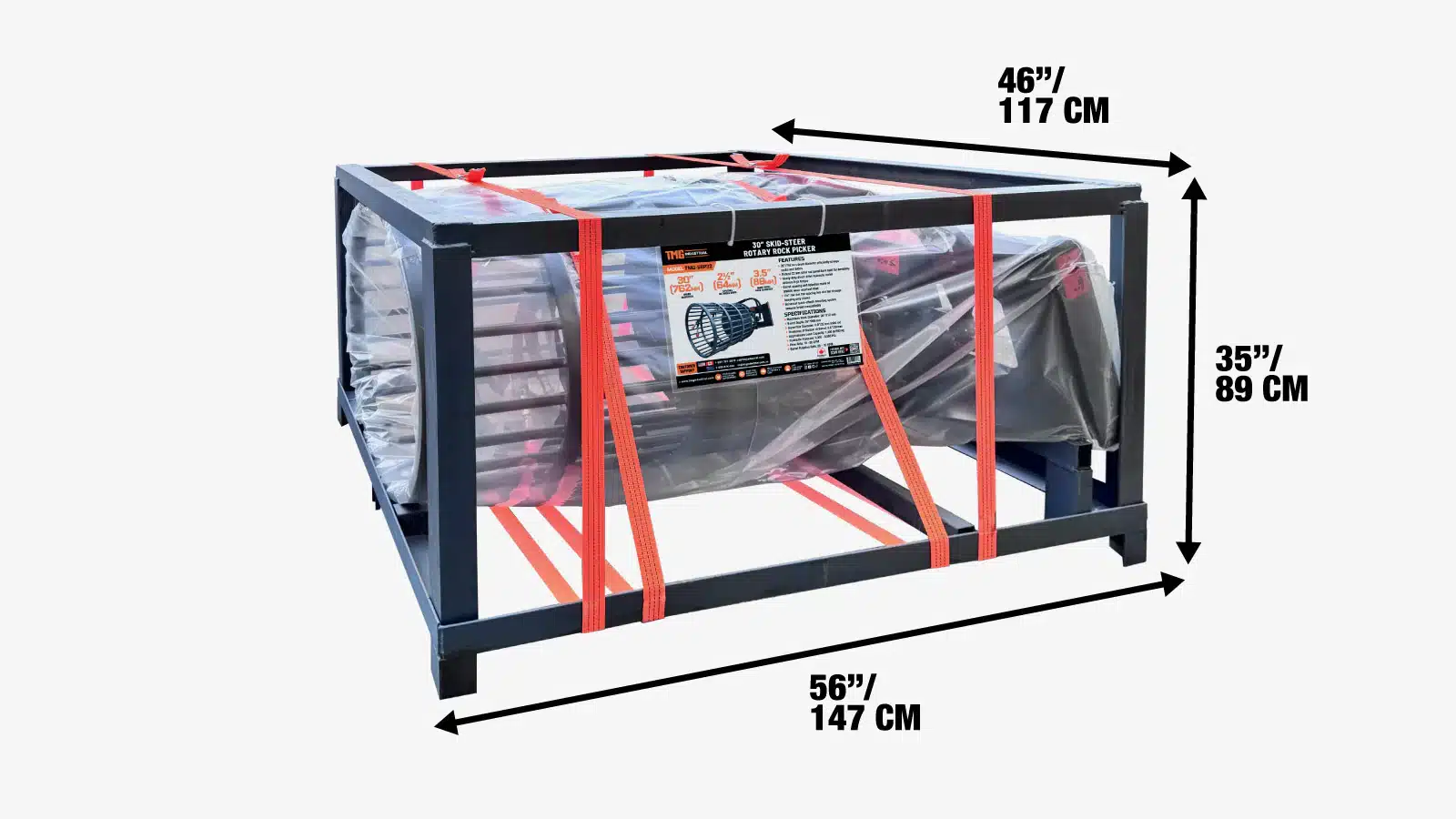

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 56” L x 46” W x 35” H (147 x 117 x 89 cm)

• Combined Shipping Weight: 1,035 lbs (470 kg)
