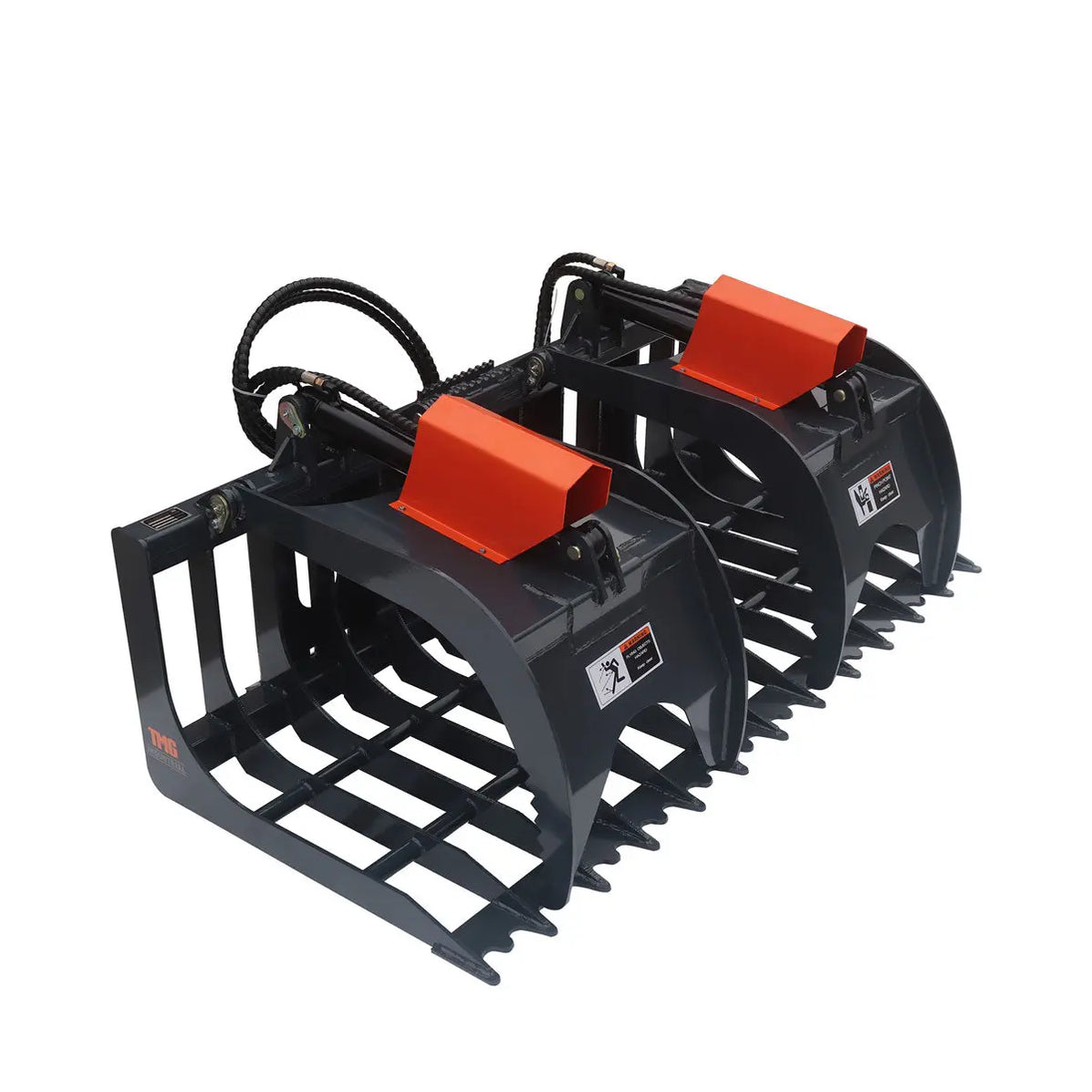

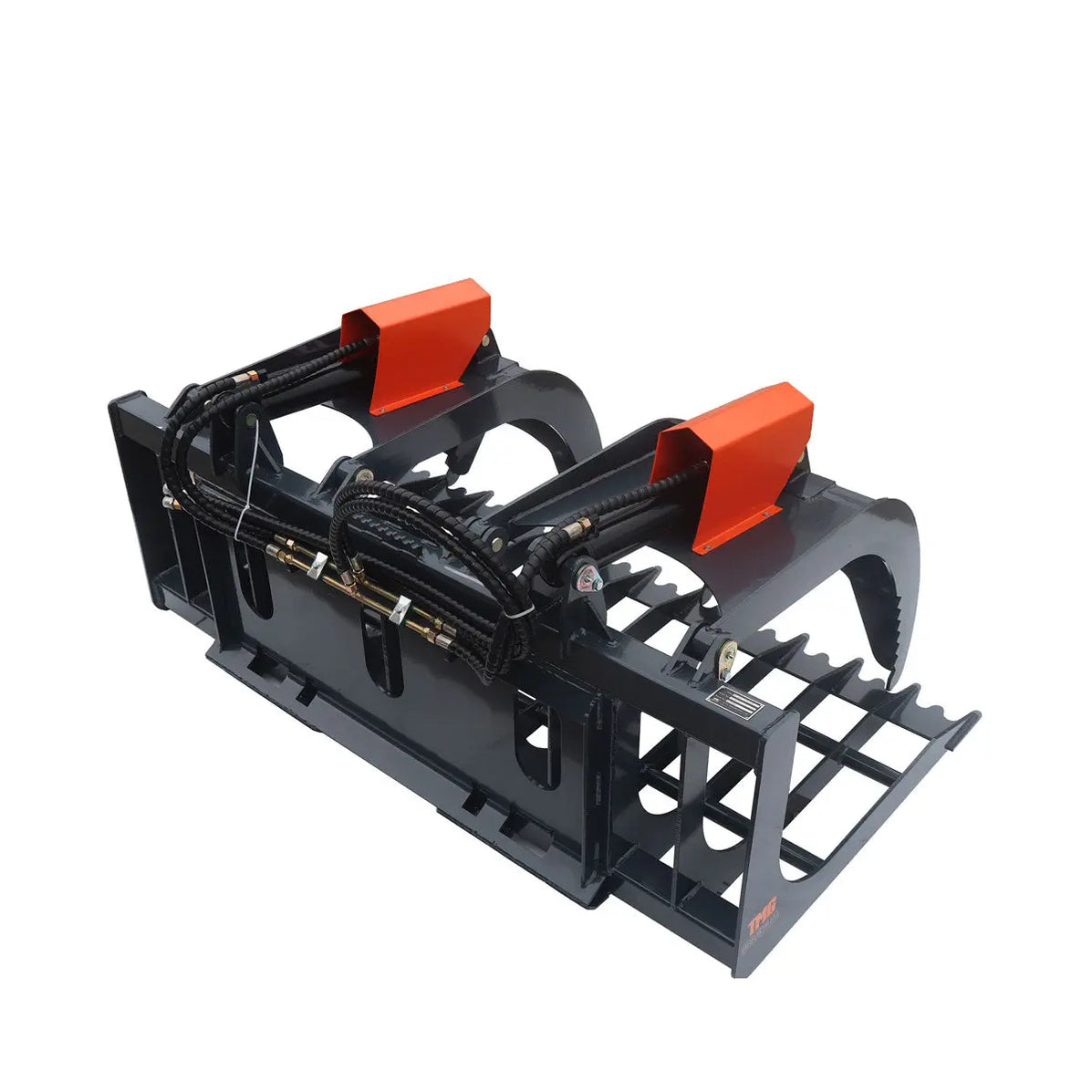

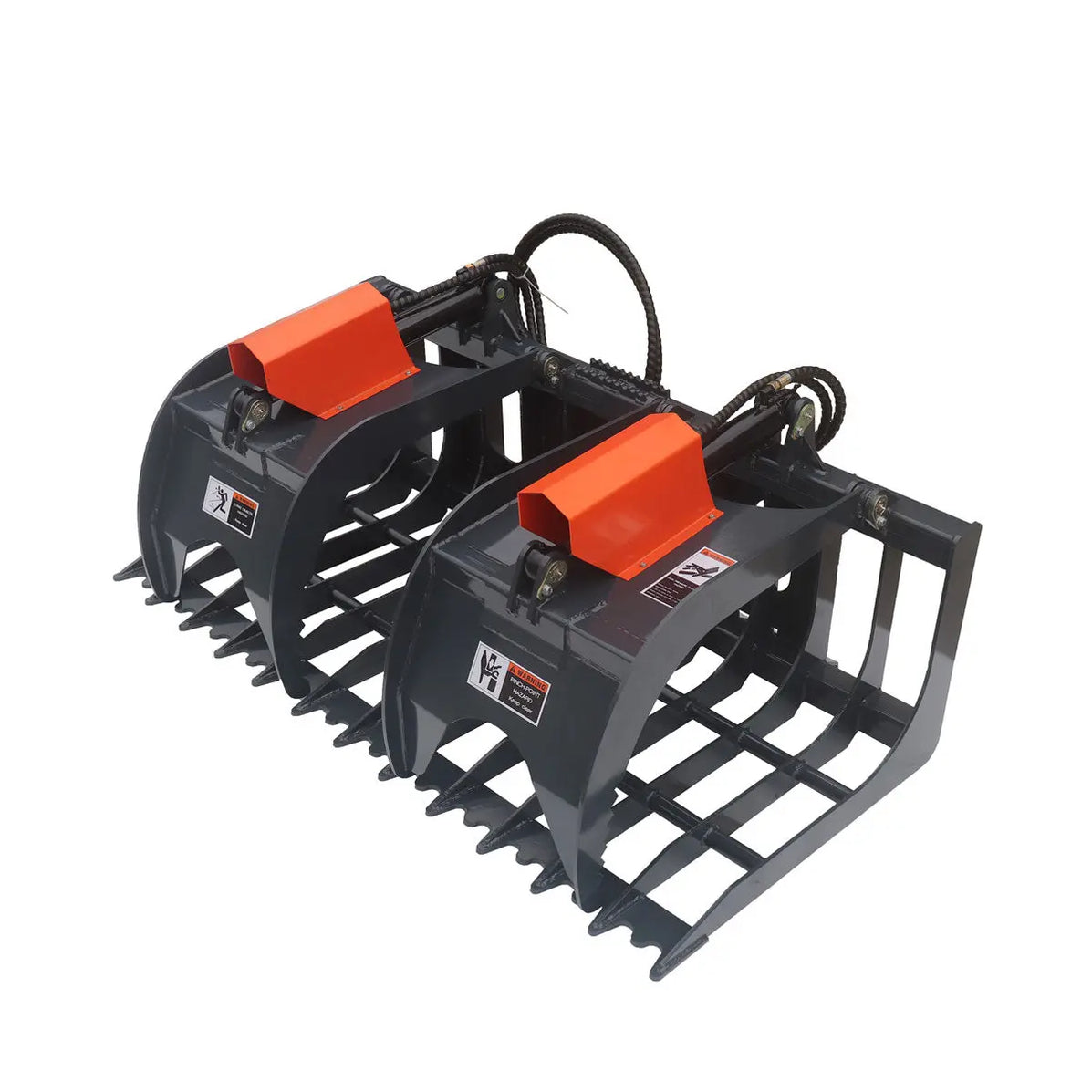

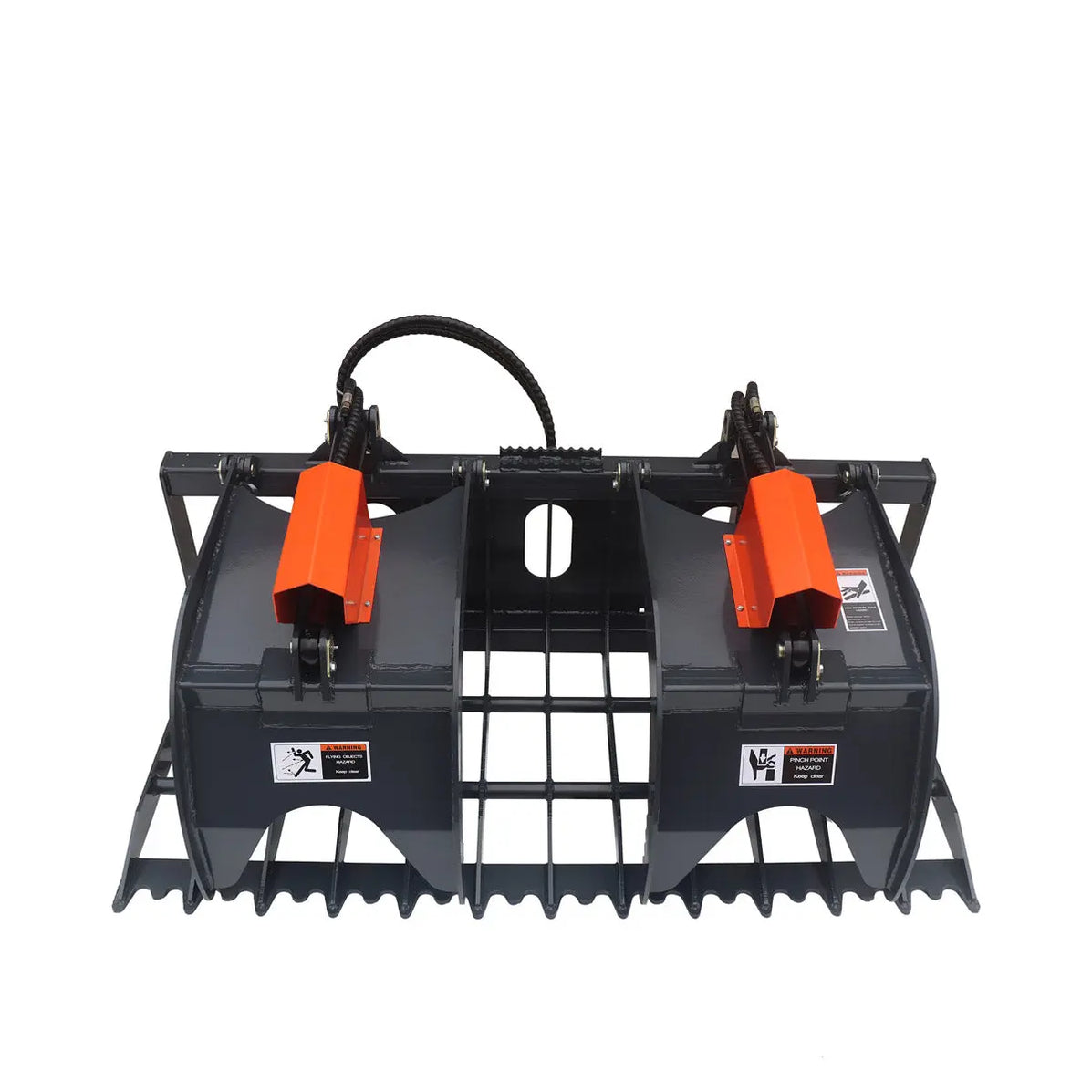

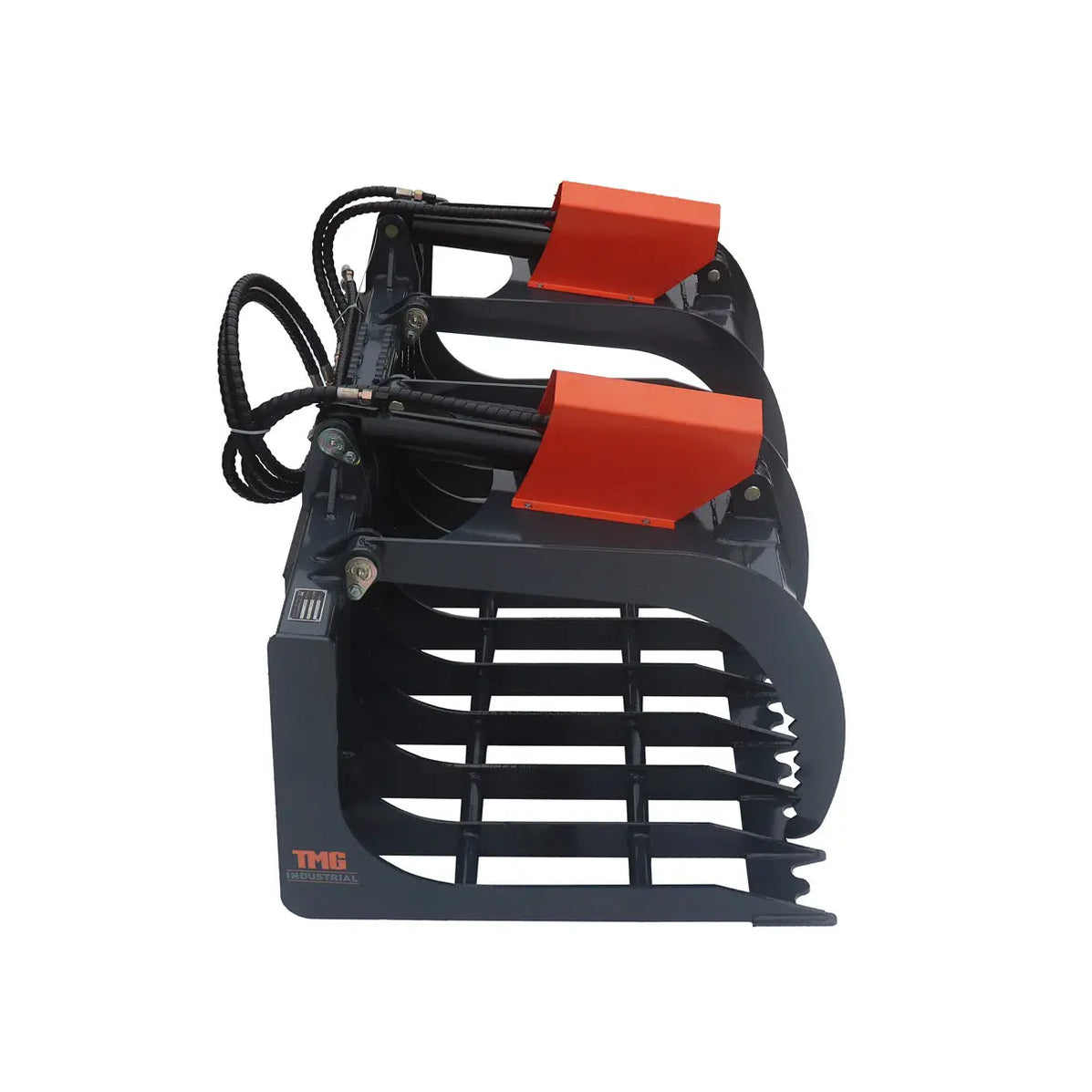

TMG-SG84 84″ Skid Steer Rock Skeleton Grapple Attachment
$3,295.00
Execute large-scale land clearing, demolition cleanup, and material sorting with the TMG-SG84 Skid Steer Rock Skeleton Grapple Attachment.
Engineered with an expansive 84-inch working width and a 2,500 lb load capacity, this heavy-duty implement uses twin hydraulic cylinders to clamp awkward, bulky debris.
The open-end frame design and skeleton tine bottom with 6-inch spacing allow soil, gravel, and small loose debris to sift through, maximizing payload efficiency for aggressive agricultural, forestry, and job-site preparation tasks.
Key Features
-
High-Capacity Clamping Power: Twin 2.5” bore hydraulic cylinders generate independent clamping force to firmly secure irregular logs, brush piles, concrete blocks, and scrap metal up to 2,500 lbs.
-
Efficient Debris Sifting: Built with a skeleton tine bottom featuring a 6″ tine spacing and ½” serrated cutting edges, allowing loose sediment to fall through to lower dump weight and focus on bulky cargo.
-
Heavy-Duty Structural Frame: Constructed with rugged 3″ x 3″ structural steel primary frame beams and ⅜” thick tines to deliver rigidity and combat torsional twisting under high breakdown force.
-
Universal Skid Steer Mount: Outfitted with a standard universal quick-attach mounting system, providing immediate compatibility across a broad fleet of 30–70 HP skid steers and track loaders.
-
Sustained Commercial Lifespan: Features fully enshrouded cylinder guards to insulate hydraulic components from job-site impacts, alongside greaseable pivot pins and bushings for straightforward maintenance.
Technical Specifications
-
Model: TMG-SG84
-
Alternate Options: Also available in a smaller 72″ configuration (TMG-SG72)
-
Working Width: 84”
-
Grapple Lift Capacity: 2,500 lbs
-
Maximum Jaw Opening: 36” Height
-
Tine Profile: 6” Tine spacing with ⅜” thickness
-
Cutting Edge: ½” Serrated steel
-
Hydraulic System Requirements: 12–24 GPM flow rate at 3,000 PSI maximum operating pressure
-
Cylinder Architecture: Dual 2.5” bore x 8” stroke hydraulic rams
-
Host Machine Compatibility: 30–70 HP skid steers with a universal quick-attach mechanism
-
Note: Hydraulic hoses are included; standard hydraulic quick couplers are not included and must be sourced separately.
Shipping & Delivery
-
Processing Time: 2–3 business days
-
Transit Time: 10–15 business days (subject to regional freight terminal parameters and site accessibility)
Packaging Specifications
-
Packaging Type: Heavy-duty protective metal shipping crate
-
Shipping Dimensions: 89” L x 42” W x 34” H
-
Combined Shipping Weight: 880 lbs
