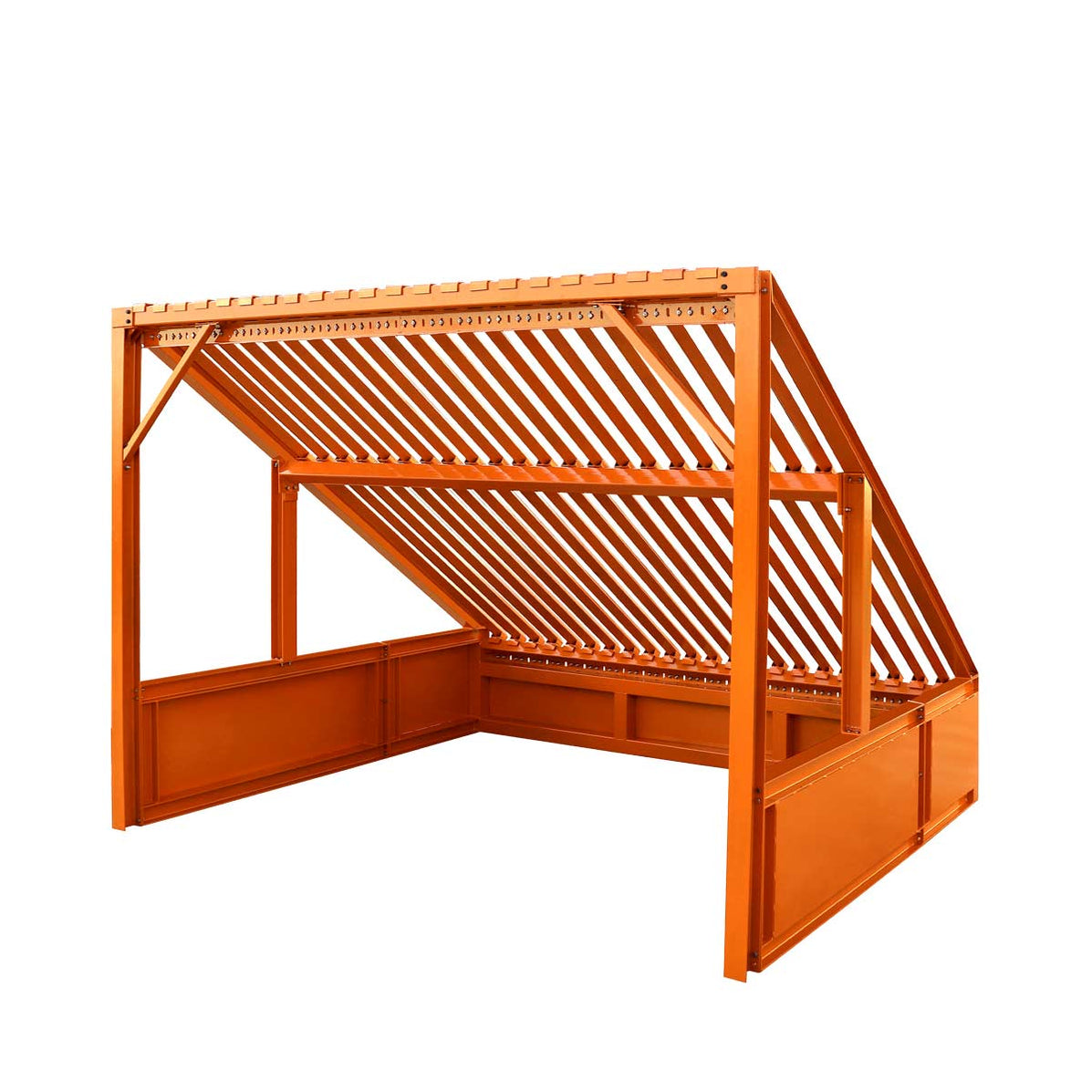

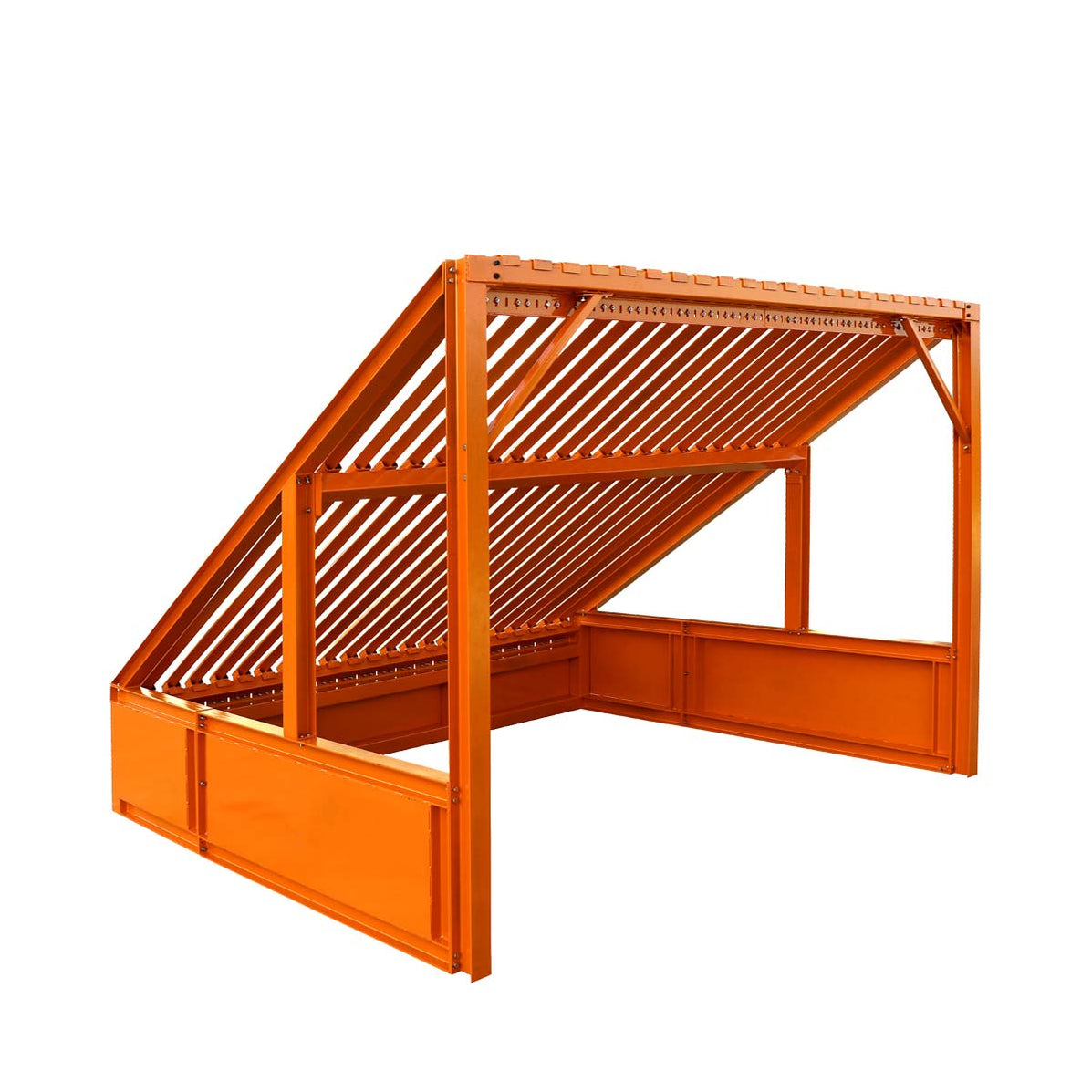

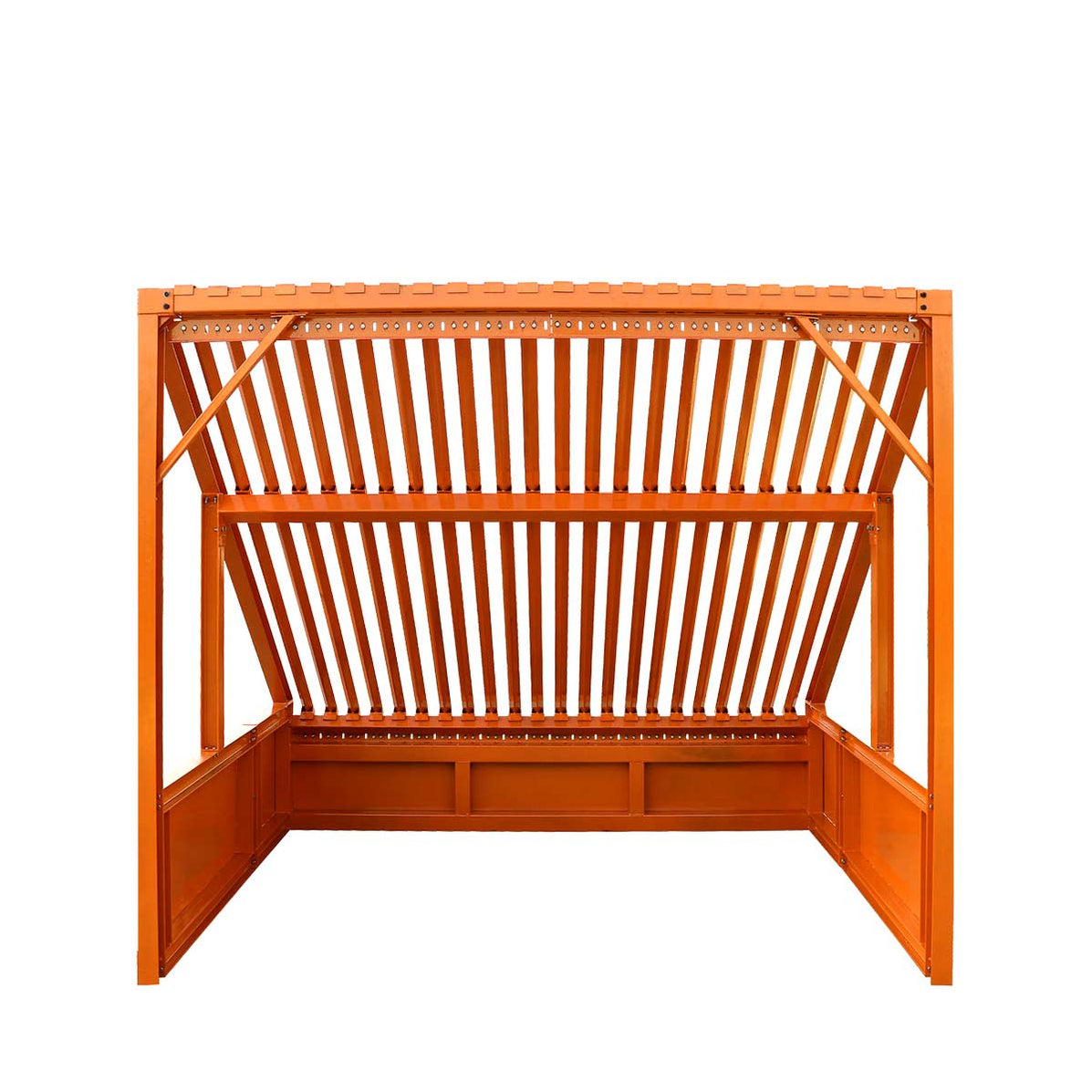

TMG-RS12 12′ Heavy Duty Static Grizzly Rock Screen

Key Features

• High-Volume Load Capacity: Robust structural design sustains up to 5,000 lbs of heavy, mixed materials for rigorous commercial aggregate and recycling tasks.

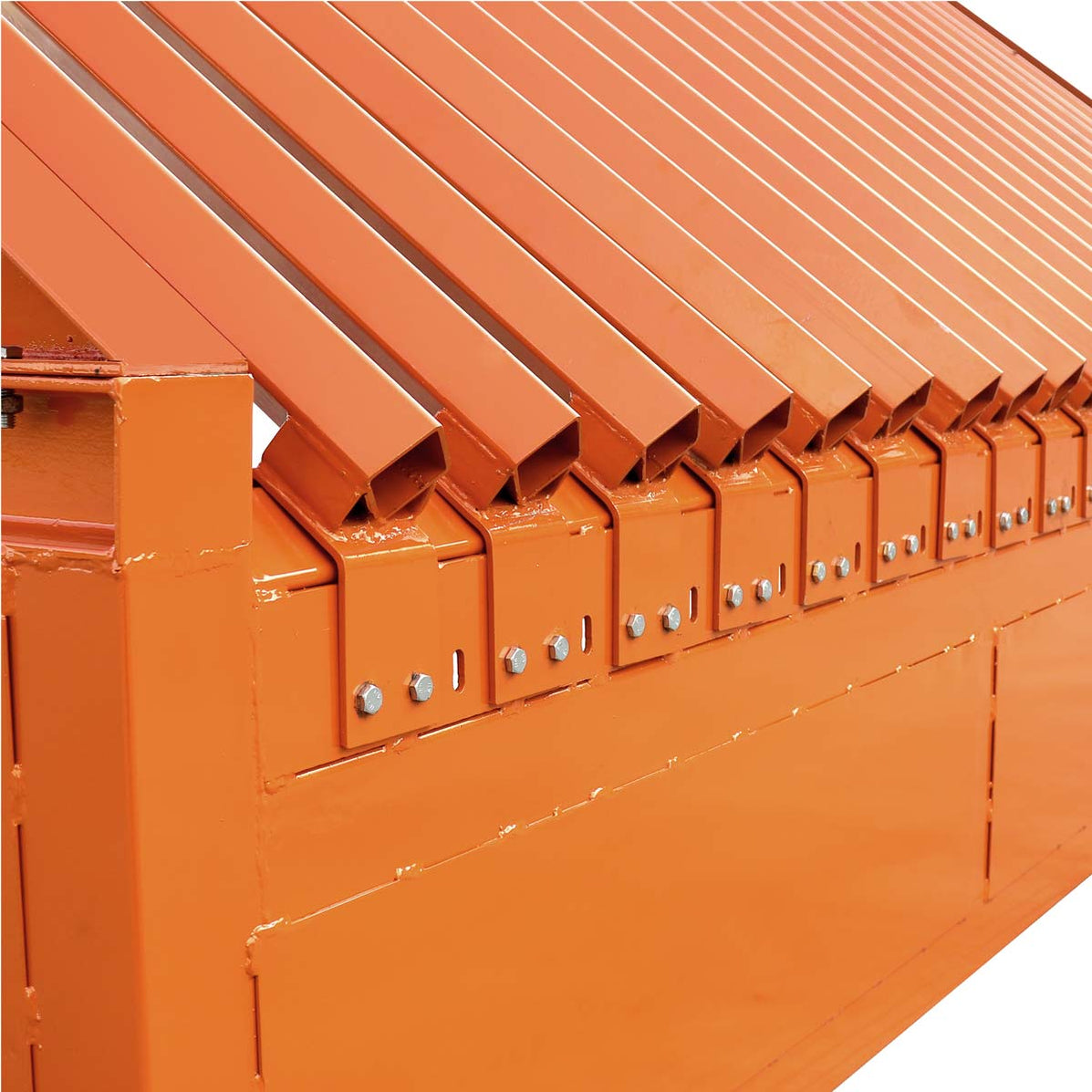

• Adjustable Sifting Profiles: Features bolt-on, 8-gauge deck bars with customizable spacing from 1″ to 5″ (3″ standard) to match specific job-site sorting requirements.

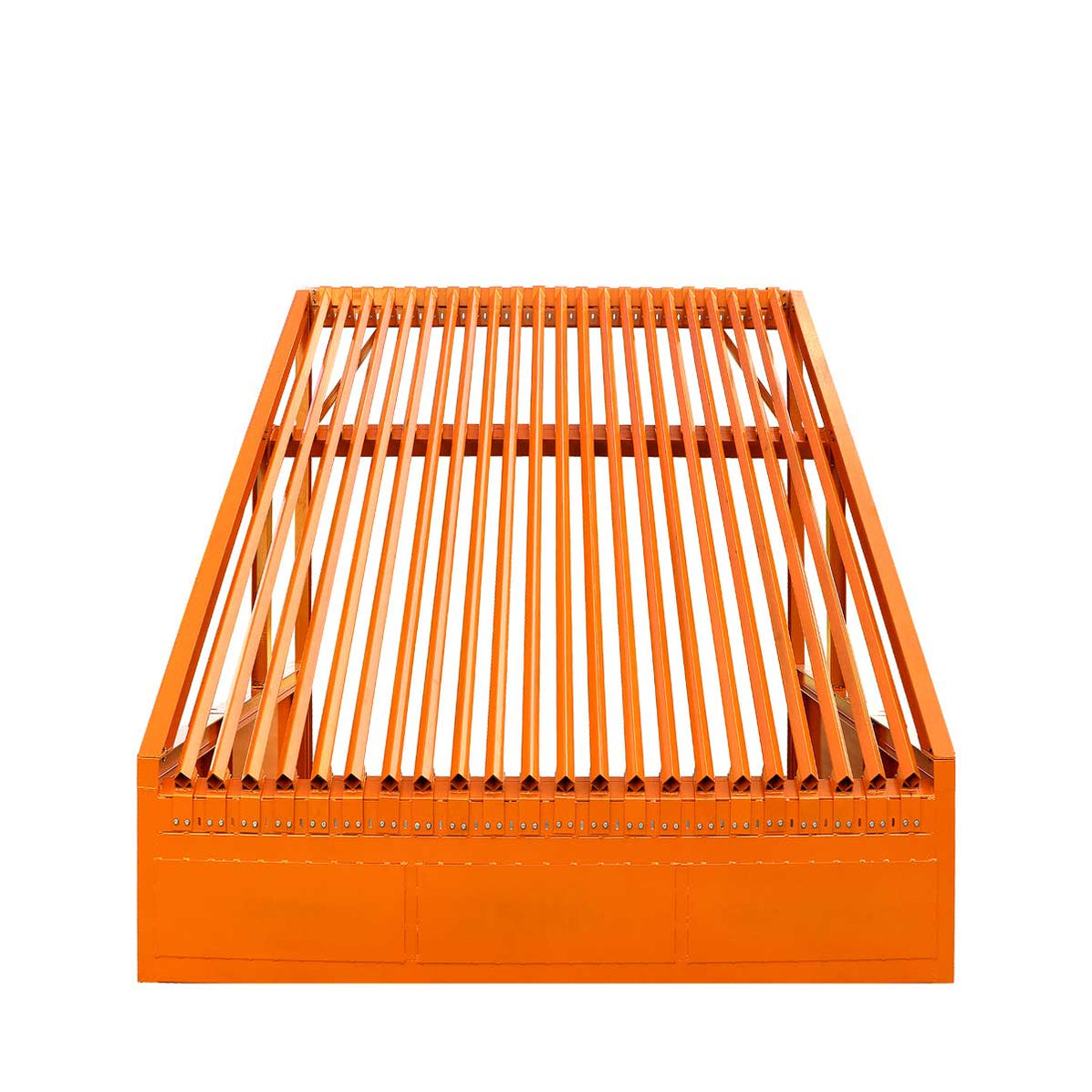

• Self-Cleaning Architecture: Deck bars are installed in a diamond-shaped configuration with tapered openings, minimizing material clogging and bridging for long-term, maintenance-free screening.

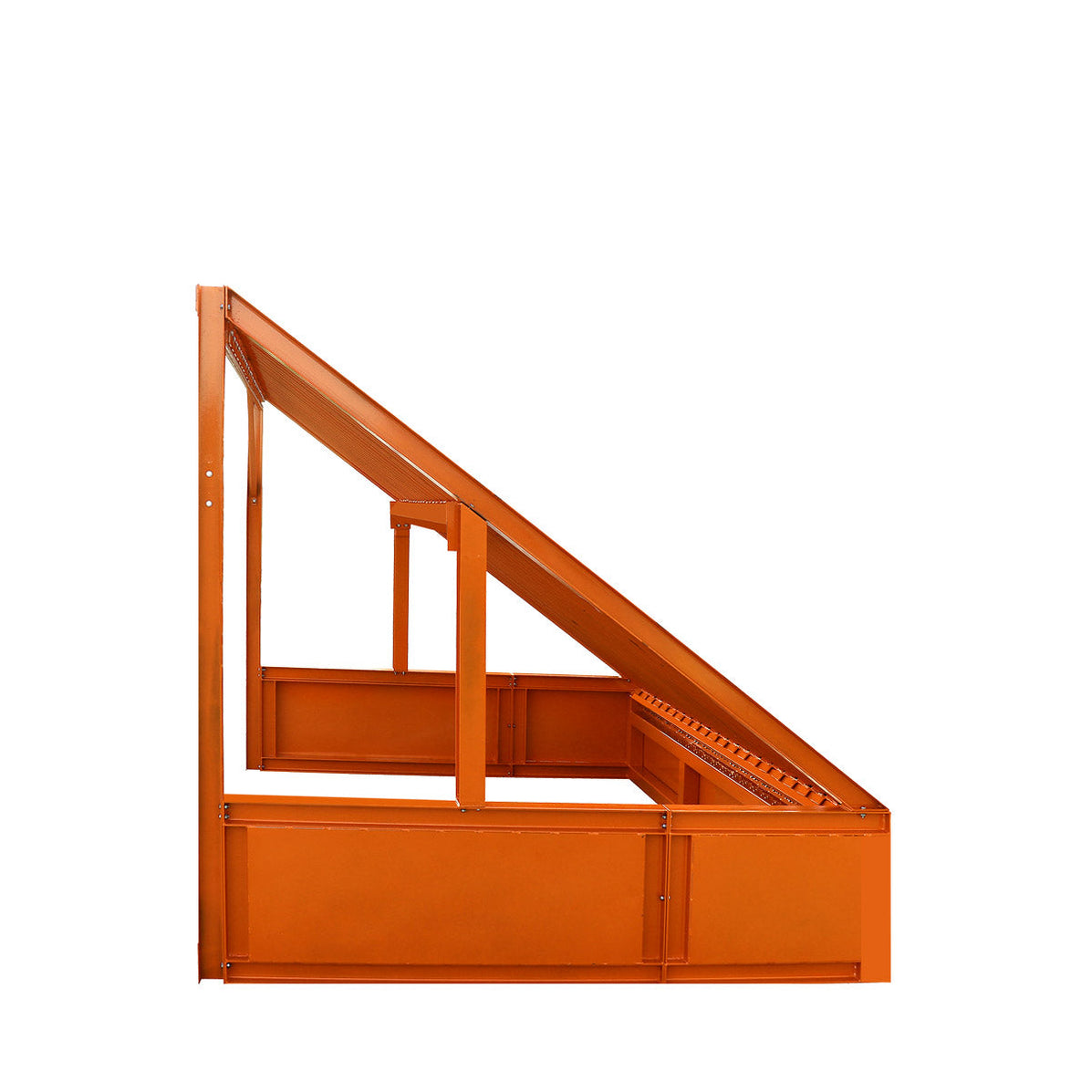

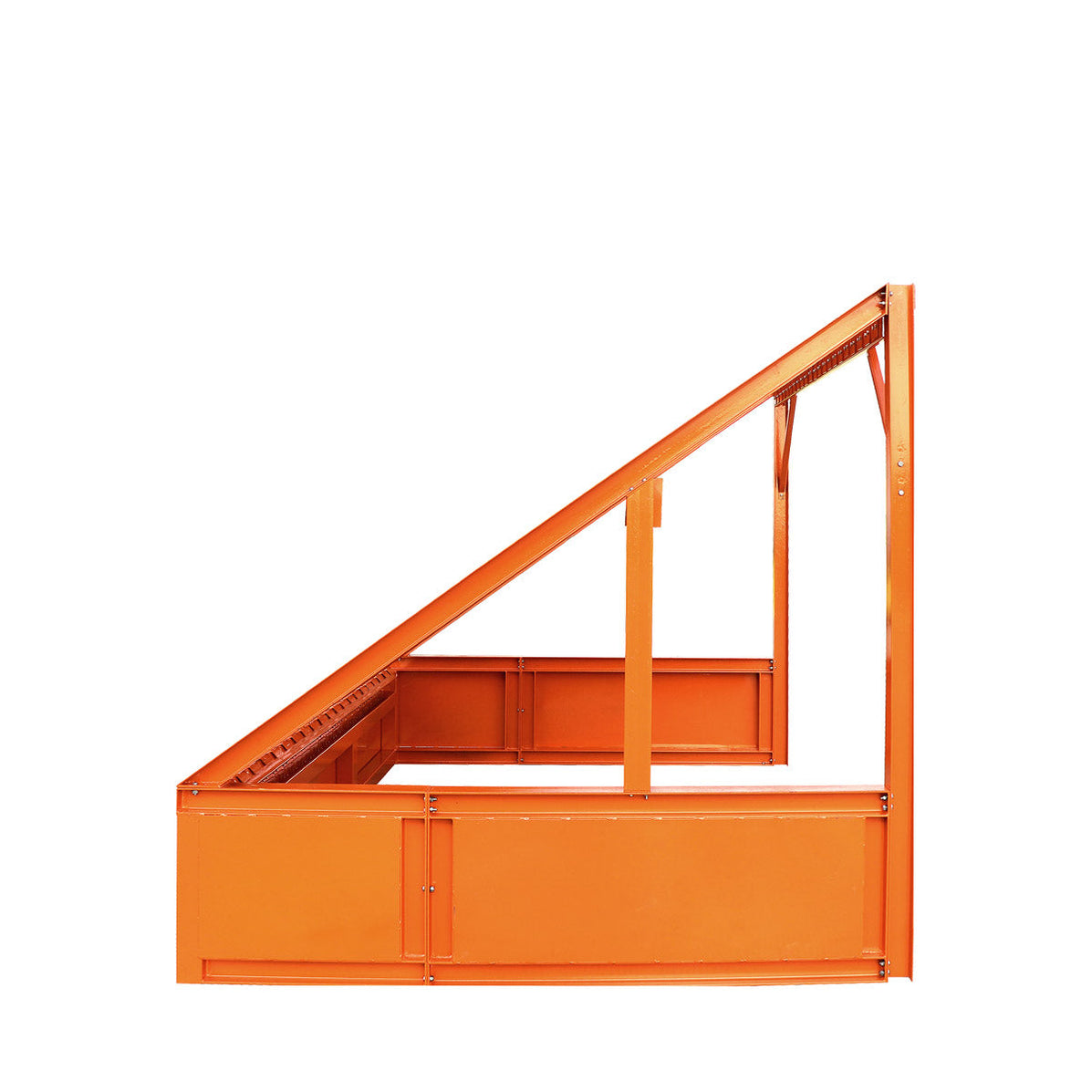

• Optimized Sloped Discharge: A precision 37° slope angle ensures sorted rocks and debris slide efficiently to the ground, preventing material pile-ups and equipment jams.

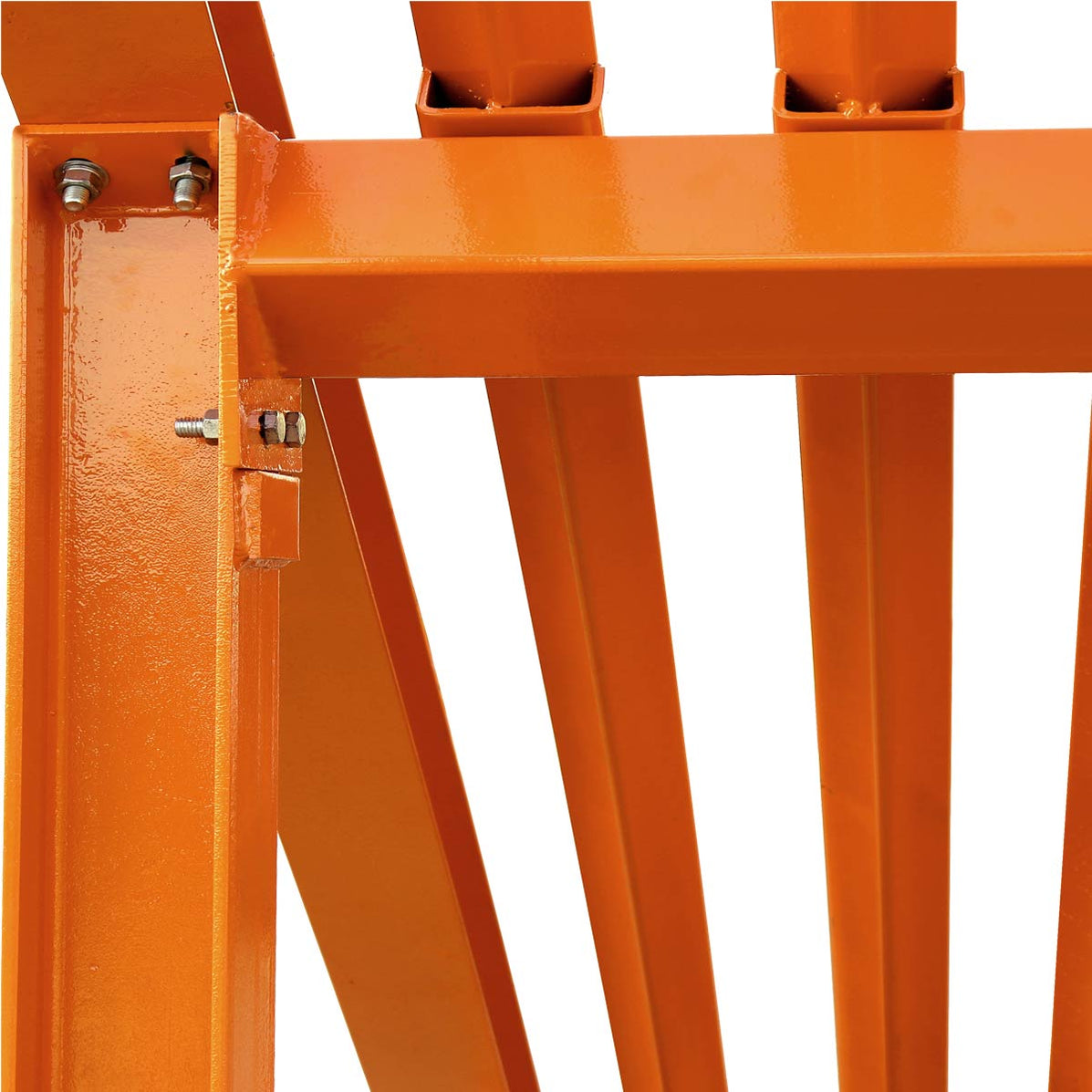

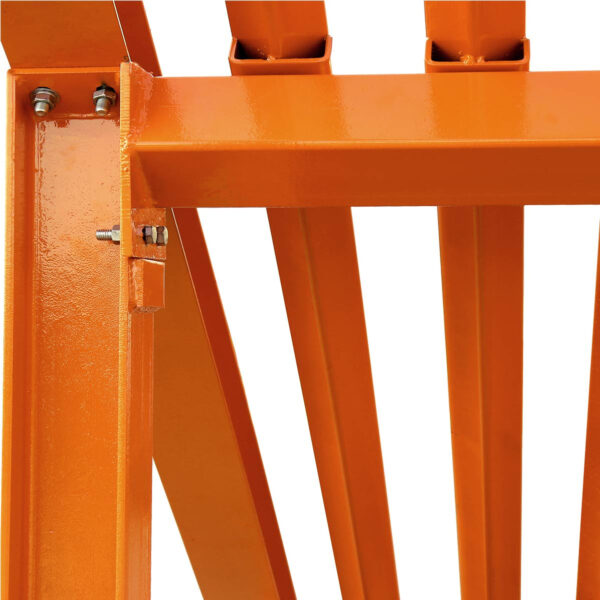

• Heavy-Duty Framework: Constructed with 4″ x 4″ I-beam posts, thick 10-gauge steel plate sidewalls, and a rust-resistant powder-coated finish to endure abrasive, harsh environments.

Technical Specifications

• Model: TMG-RS12

• Alternate Options: Also available in a smaller 10′ configuration (TMG-RS10)

• Working Load Capacity: 5,000 lbs (2,200 kg)

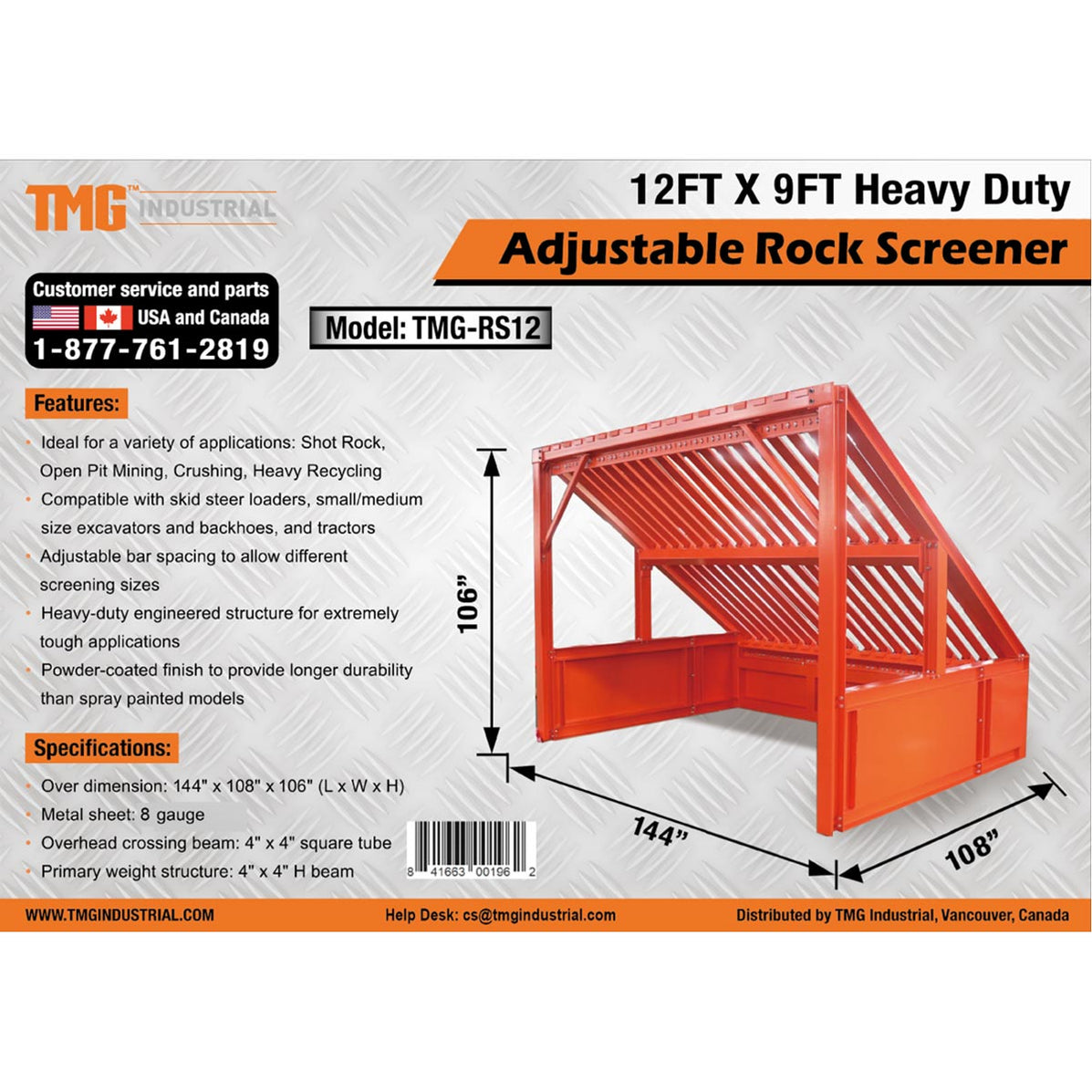

• Overall Structure Dimensions: 12’ L x 9’ W x 8.9’ H

• Sifting Area Footprint: 12’ x 9’ (3.6 m x 2.7 m)

• Frame Construction: 4” x 4” I-beam posts and square cross-tubing

• Sidewall / Front Wall Plating: 10-Gauge steel

• Deck Bar Specs: 11′ length, 8-gauge (1.6″ x 1.6″ square tubing)

• Bar Spacing Configuration: 3″ Standard (Adjustable 1″ to 5″; Note: tighter spacing requires purchasing spare deck bars)

• Screen Slope Angle: 37°

• Assembly Requirement: Minor assembly required (Approx. 2–3 hours for two personnel)

Shipping & Delivery

• Processing Time: 2–3 business days

• Transit Time: 10–15 business days (subject to regional freight terminal parameters and site accessibility)

• Unloading Requirements: Product is too large for liftgate delivery. A forklift, wheel loader, or equivalent heavy equipment is strictly required for receiving.

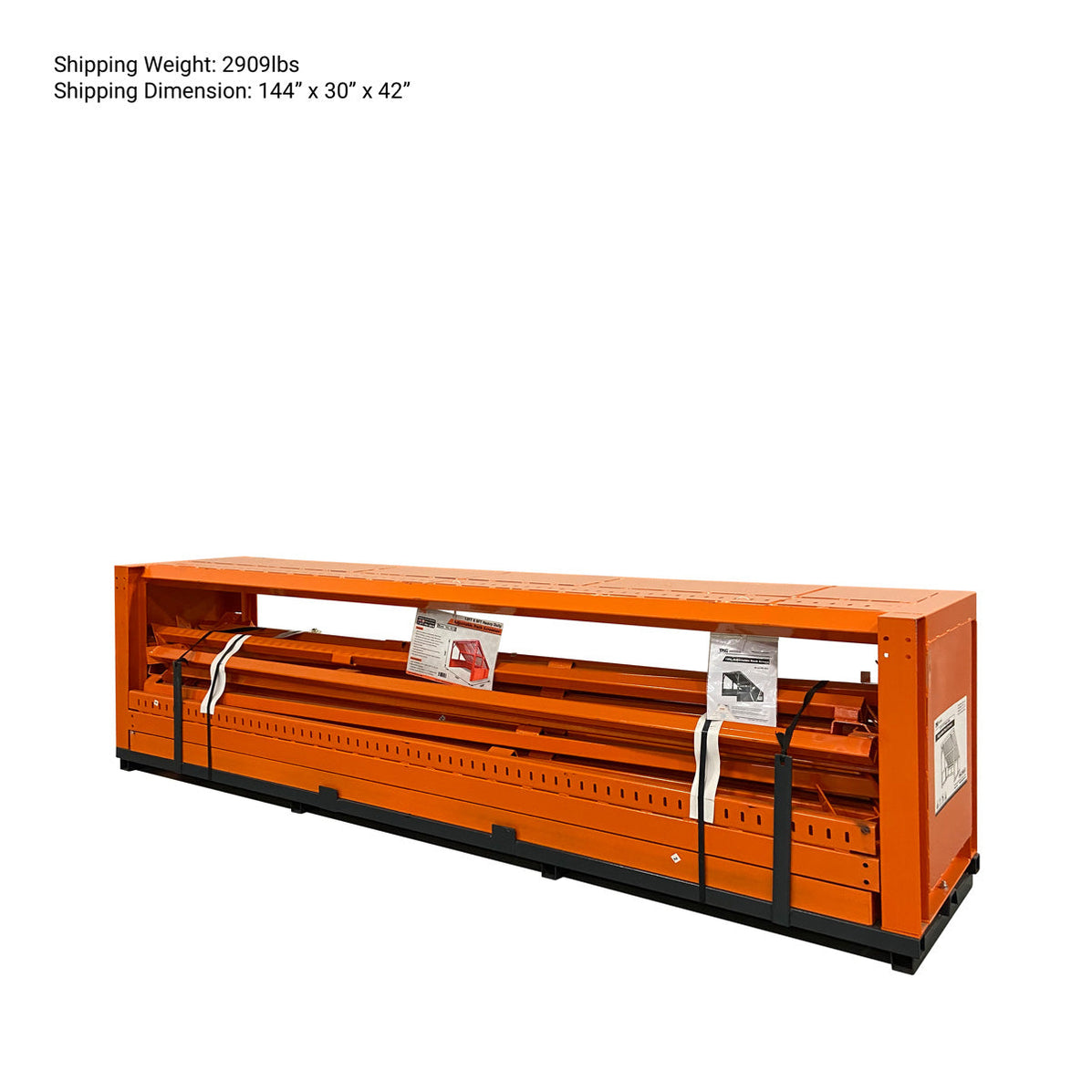

• Packaging Type: Heavy-duty metal shipping crate

• Shipping Dimensions: 144” L x 30” W x 42” H

• Combined Shipping Weight: 3,075 lbs
