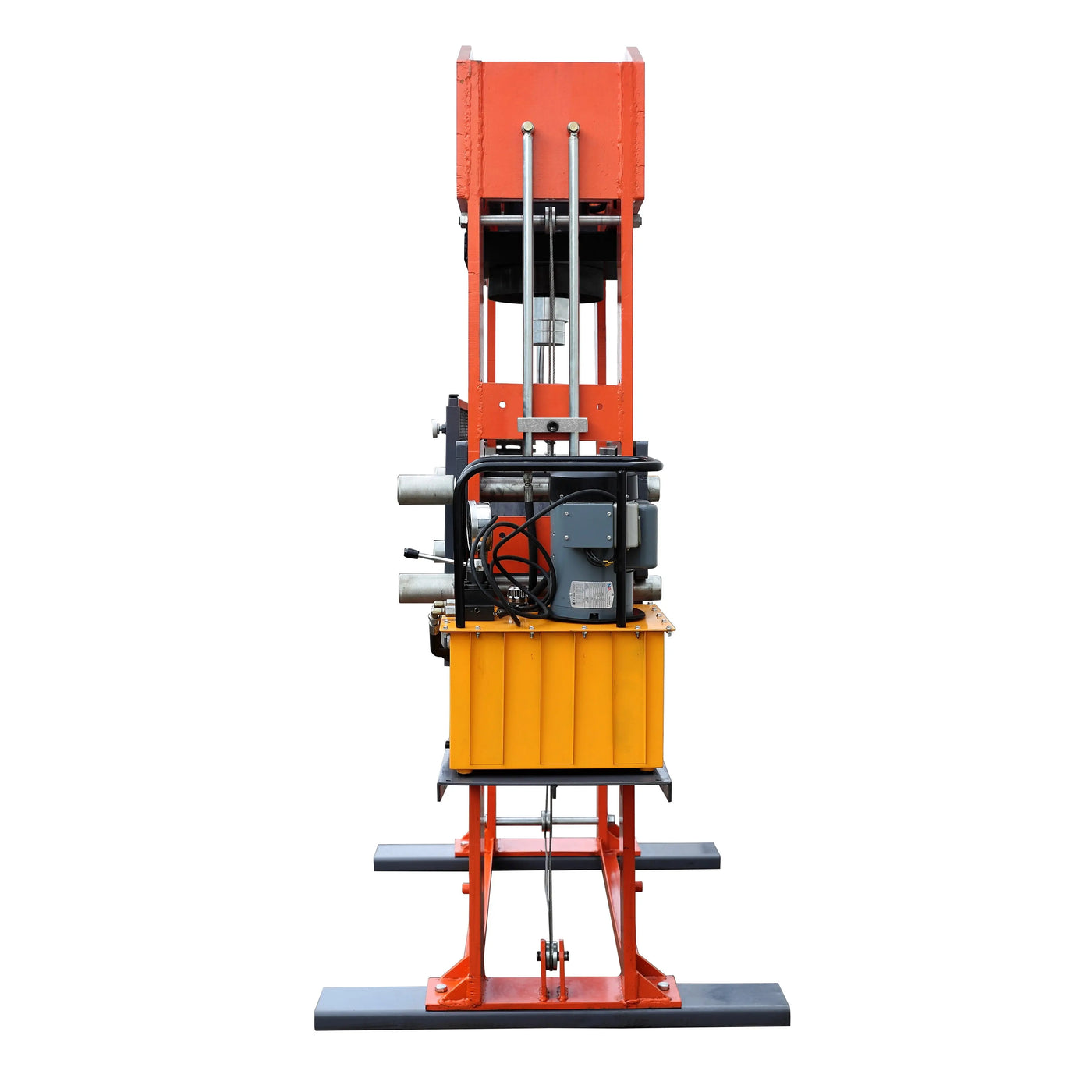

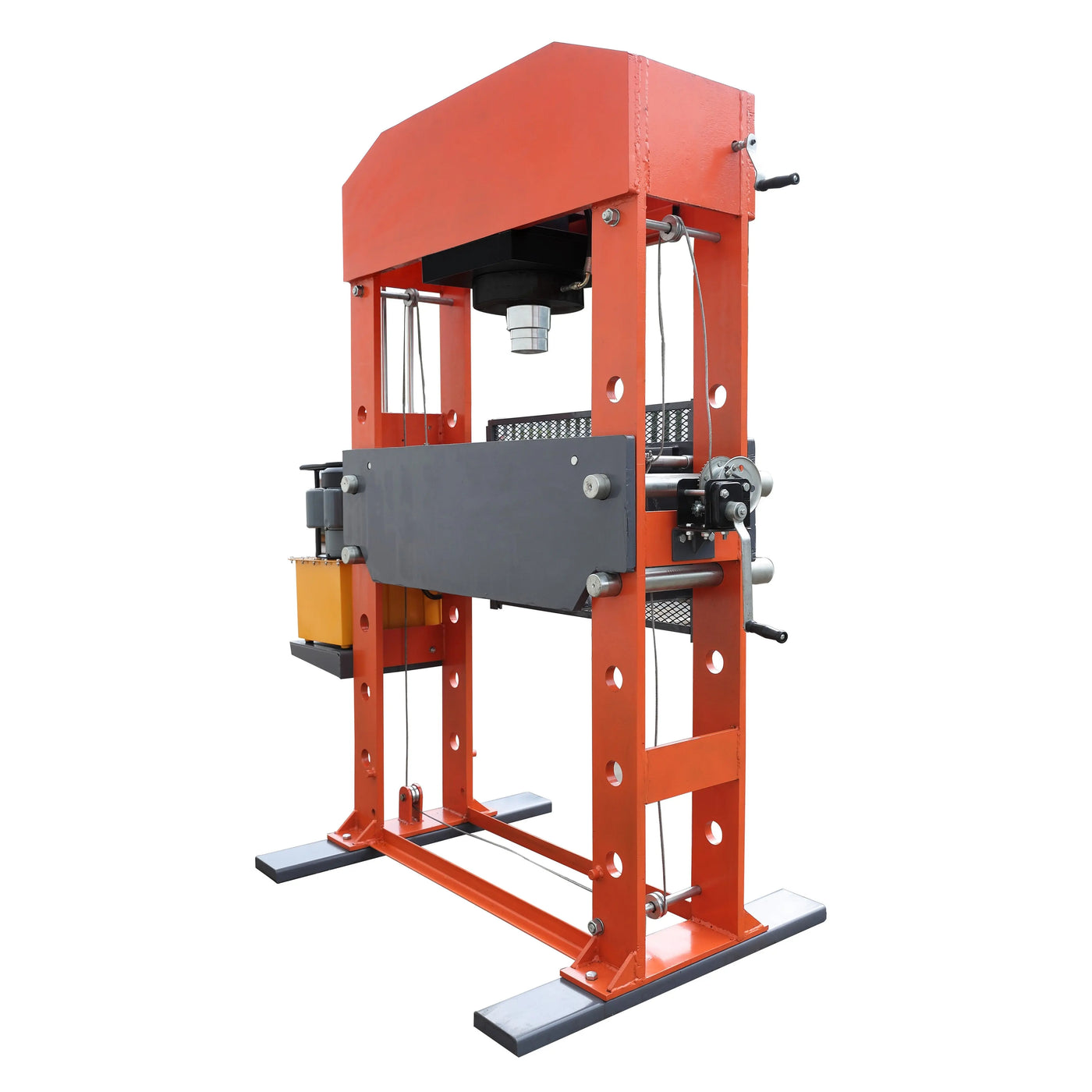

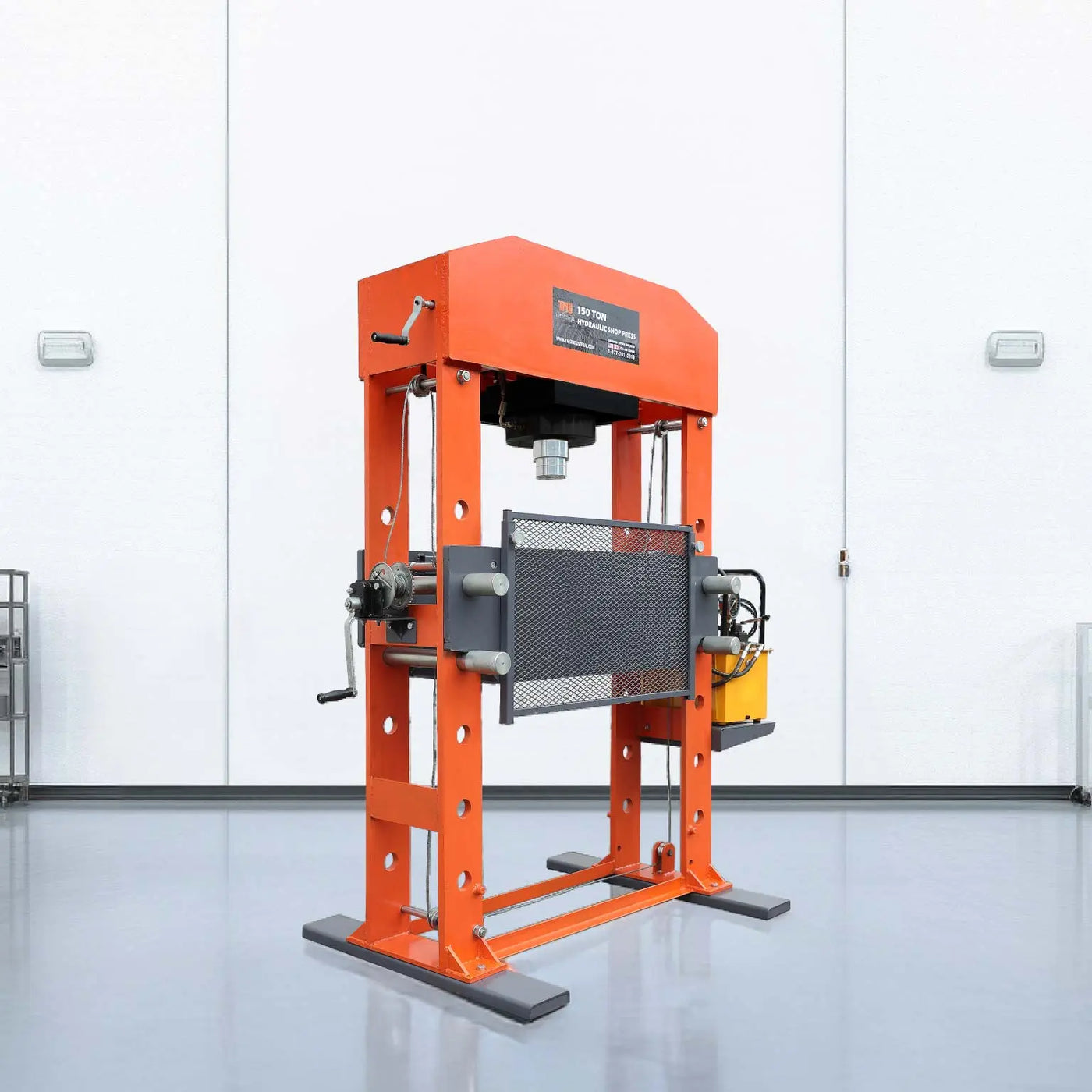

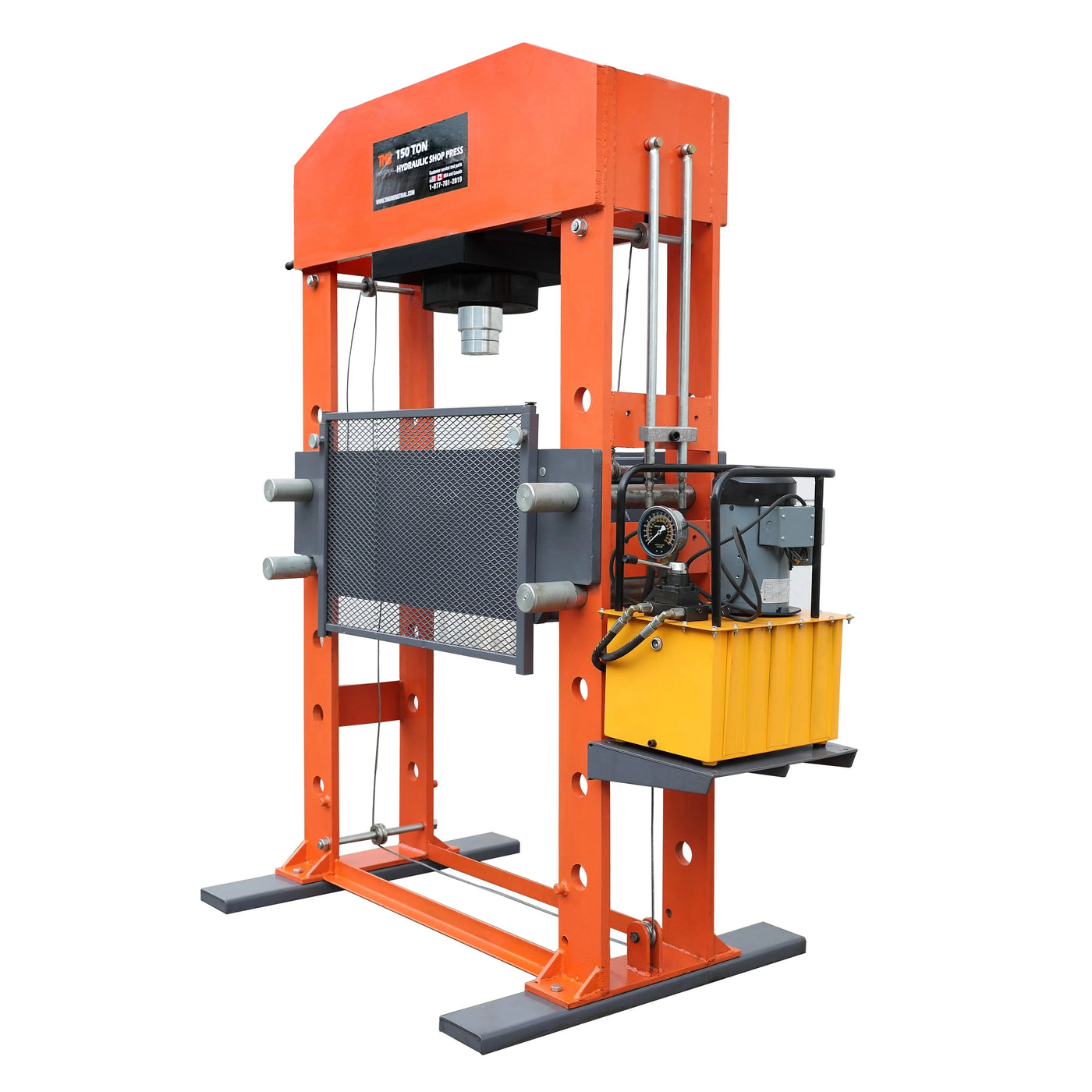

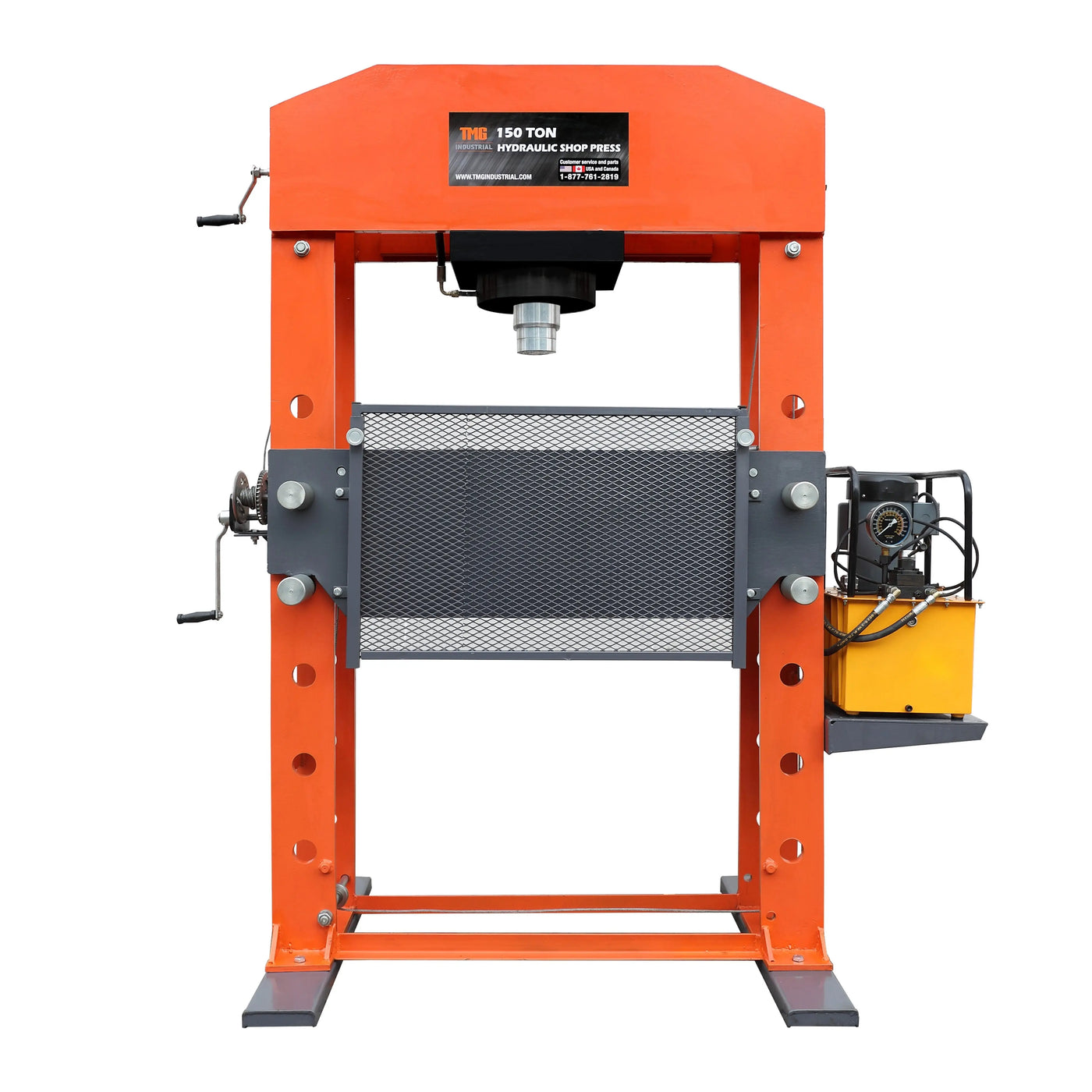

TMG-SP150 Industrial 150-Ton Capacity Electric Hydraulic Shop Press with Fully Welded H-Frame & Grid Guard
Original price was: $12,995.00.$12,495.00Current price is: $12,495.00.
Electric hydraulic shop press generating a 150-ton pressing capacity inside a fully welded steel H-frame.
Equipped with a sliding ram head and protective grid guard, this heavy-duty unit handles demanding metal flattening and large-scale bearing installations.
-
🚚 Fast LTL Freight Shipping
-
🛡️ Manufacturer Warranty
-
📞 Expert Phone Support
Specifications
-
150-Ton Pressing Capacity: Provides immense, controlled force for pushing bearings onto shafts, stamp work, gear and bushing removal, and metal bending.
-
Electric Hydraulic Power: Driven by a reliable CSA-approved 115V, 2 HP electric motor for consistent, fatigue-free hydraulic pumping.
-
Sliding Ram Head: The pressing cylinder slides up to 13 inches left or right, allowing for versatile positioning over uniquely shaped or offset components.
-
Fully Welded H-Frame: Heavily constructed industrial frame design minimizes flex and ensures long-lasting durability in professional shop environments.
-

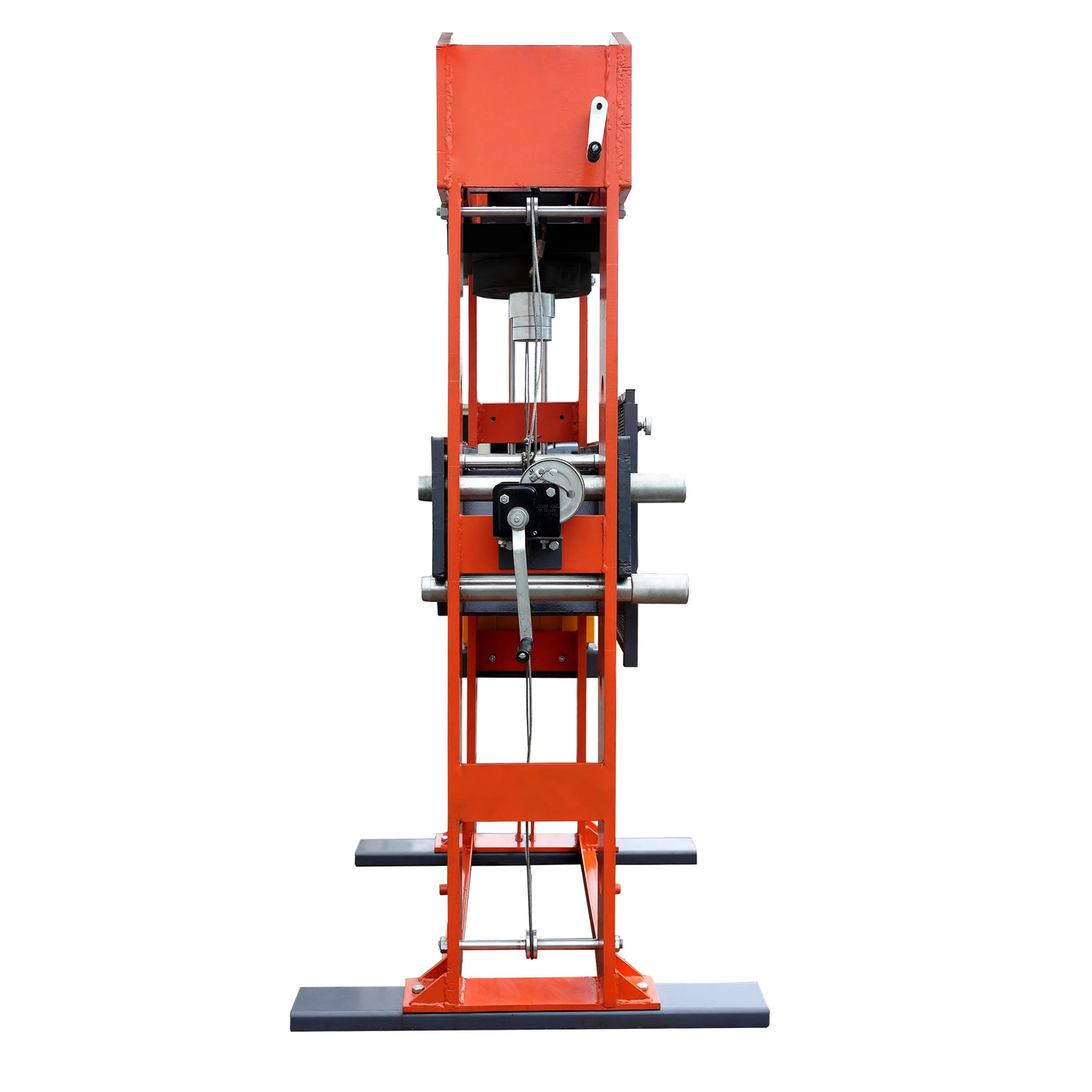

Ergonomic Winch System: Features a steel cable crank winch with a non-slip safety clutch, eliminating heavy lifting when adjusting the carriage bed height.
-
Integrated Safety Features: Includes a heavy-duty 36” x 23” protective grid guard, an overload pressure valve, and twin springs for safe, automatic piston rod retraction.
-
Precision Oil-Filled Gauge: The 4-inch (10 cm) oil-filled pressure gauge is accurate to +/- 2.5% and displays readouts in dual units of measurement (US and metric tons).
| Specification | Detail |
| Brand | TMG Industrial |
| Model / SKU | TMG-SP150 |
| Pressing Capacity | 150 Tons |
| Electric Motor Specs | CSA Approved, 115 V, 60 Hz, 2 HP, 1750 RPM (No-load speed) |
| Max Pump Pressure | 8,500 PSI |
| Discharge Pressure | 105-115% |
| Ram Stroke | 13-¾” |
| Ram Left-Right Movement | 13” |
| Ram Diameter | 4-⅝” |
| Pressing Head Diameter | 3-⅞” |
| Maximum Workpiece Height | 37” |
| Carriage Bed Workable Opening | 34” L x 16” W |
| Frame Internal Dimensions | 39-⅜” L x 13-¾” W |
| Carriage Bed Pin Diameter | 2-¼” |
| Protective Grid Guard Size | 36” W x 23” H |
| Hydraulic Fluid Requirement | ISO AW32 (Fluid not included) |
| Overall Dimensions | 78” L x 40” W x 83” H |
| Shipping Dimensions | 54” L x 22” W x 84” H (Wood Crate) |
| Shipping Weight | 2,700 lbs |
