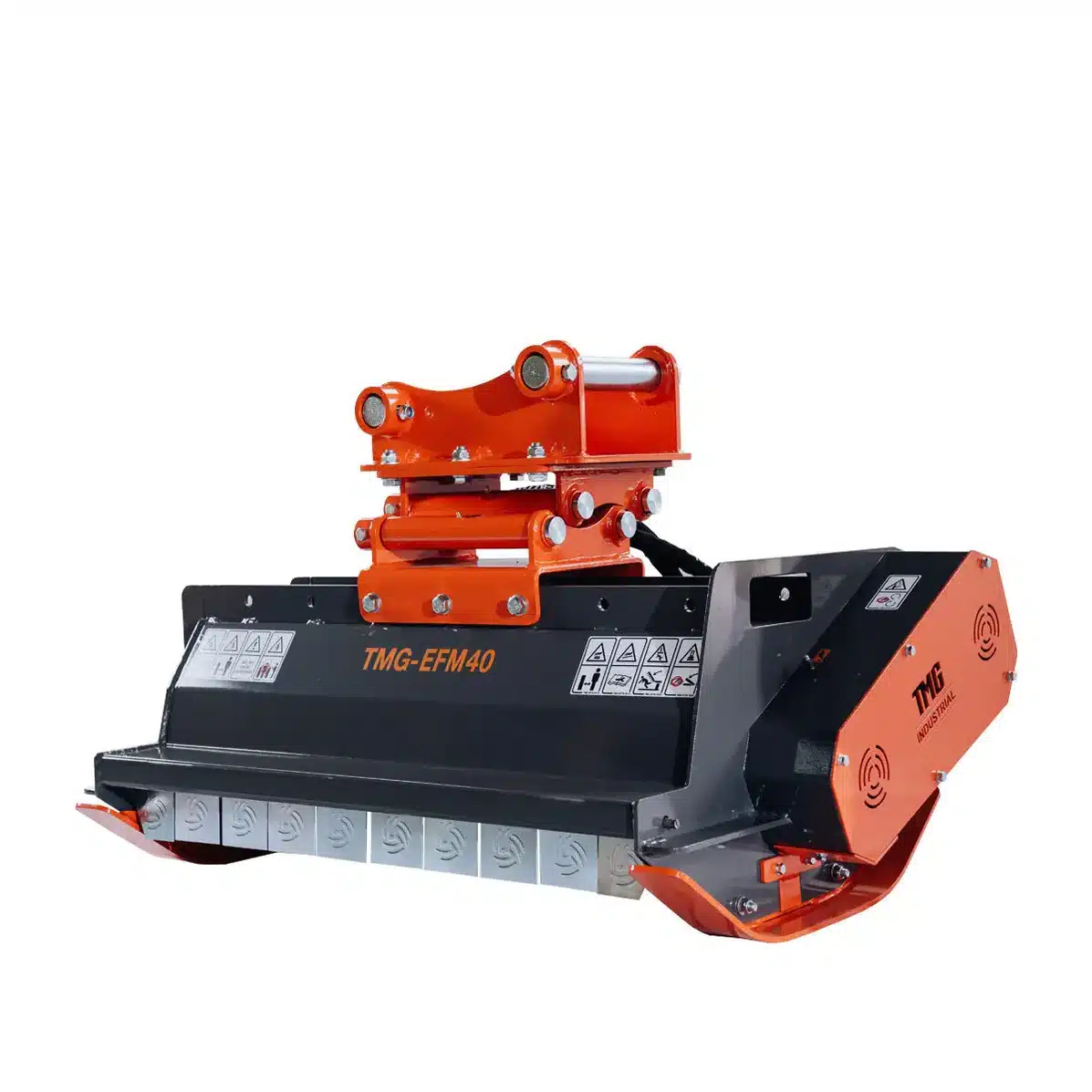

TMG-EFM40 40″ Excavator Brush Flail Mower Attachment

Key Features

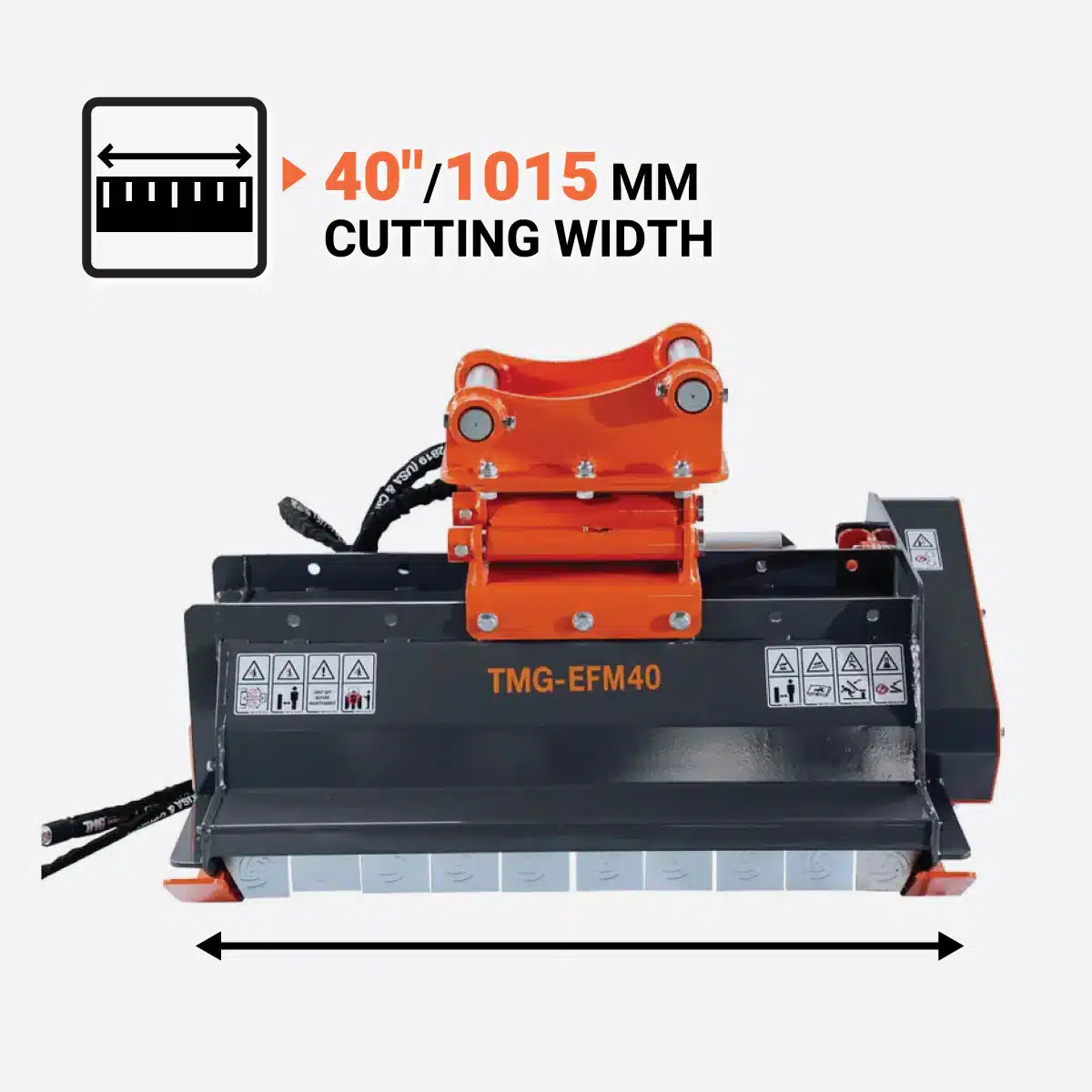

• Aggressive 40” Cutting Swath: Features a highly maneuverable 40-inch working width, striking the perfect balance between tight-access agility and efficient acreage clearing for small to medium-growth vegetation.

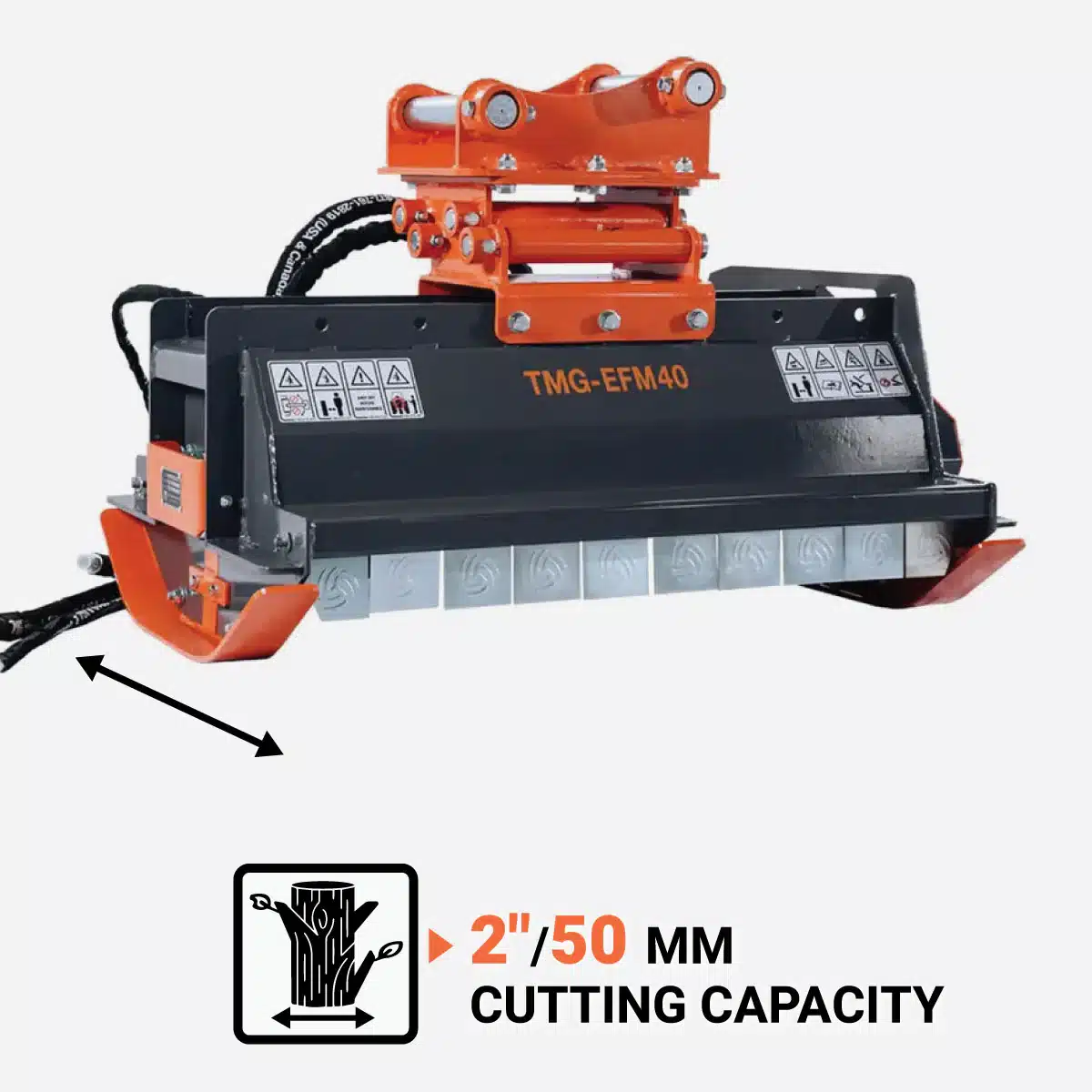

• Heavy-Duty 2″ Cut Capacity: Armed with 16 durable, forged flail hammer knives designed to effortlessly shred heavy brush, thick vines, and tree saplings up to 2 inches (50 mm) in diameter.

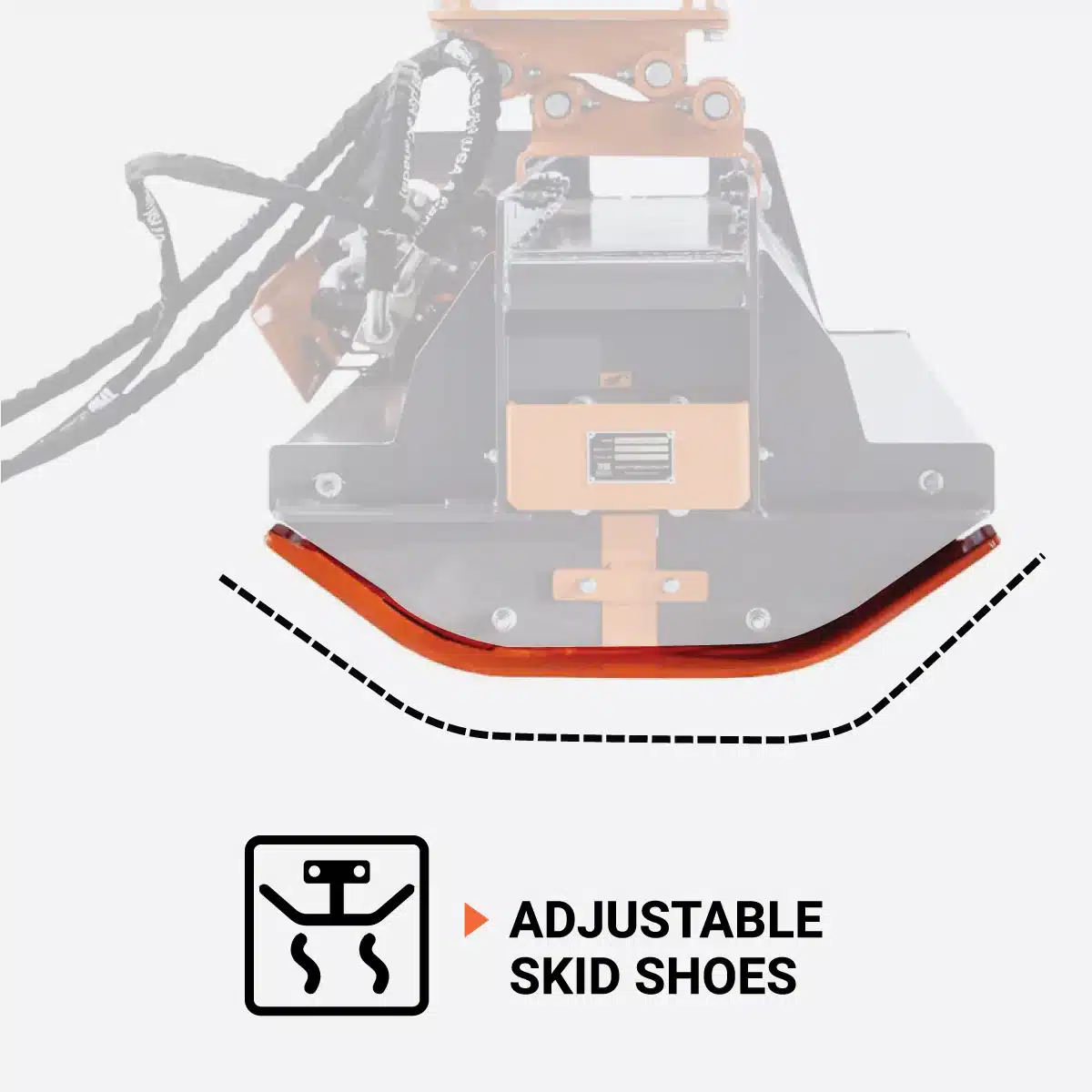

• Self-Leveling & Adjustable Skid Shoes: Outfitted with a specialized self-leveling kit and adjustable heavy-duty skid shoes to maintain a consistent cutting height, perfectly contouring to uneven ground, sloped banks, and rugged hillsides.

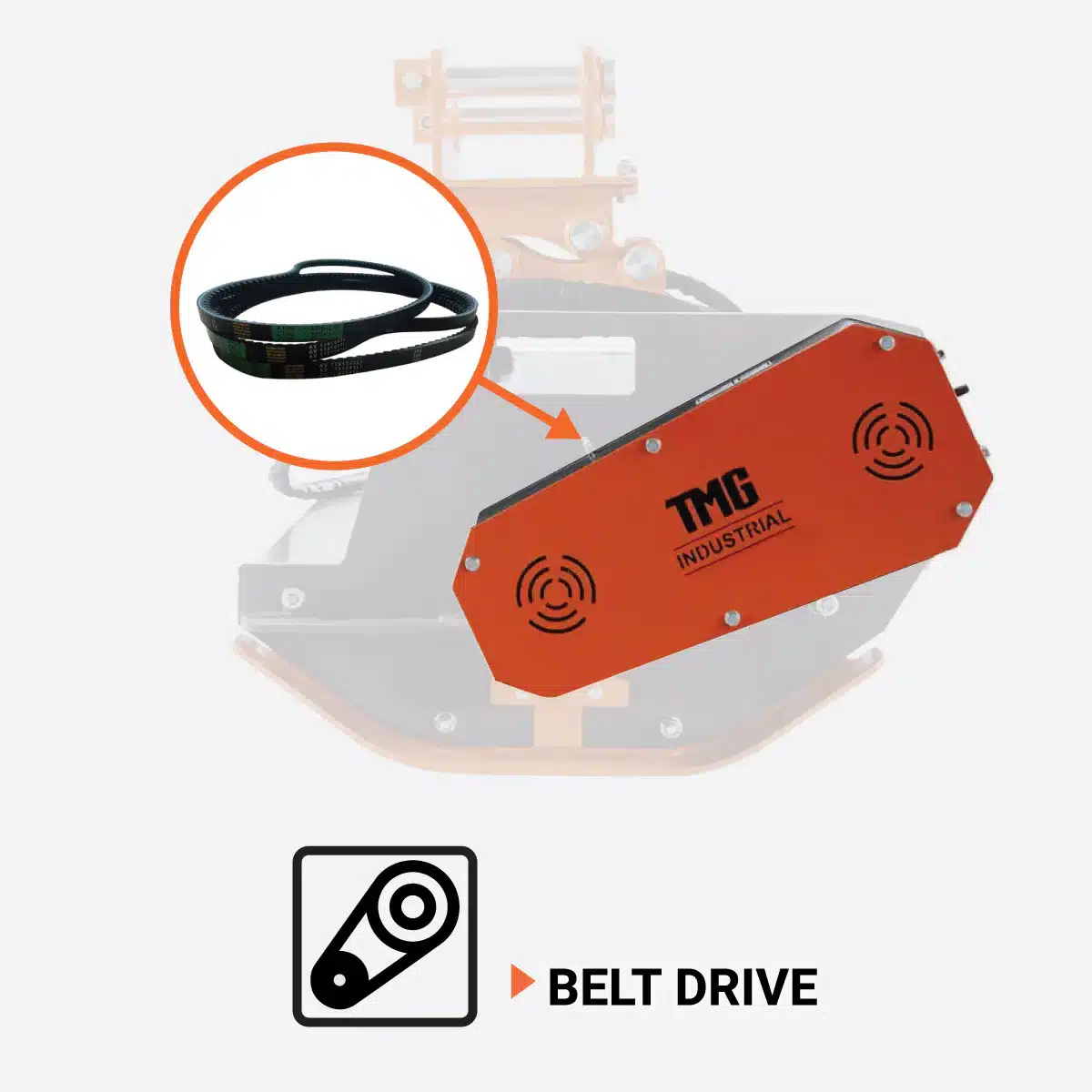

• Reliable Belt-Drive Transmission: Utilizes a rugged belt-drive system to transfer hydraulic power smoothly to the cutting drum, absorbing shock loads from hidden rocks or stumps to protect the hydraulic motor.

• Enhanced Component Protection: Ships equipped with a heavy-duty steel motor protection plate, alongside dedicated safety covers for both the drive belts and bearings to prevent damage from flying debris and snagged branches.

• High-Reach Versatility: Capitalizes on your excavator’s boom articulation, allowing you to easily cut high limbs, reach deep into steep culverts, and mow over fences while keeping the tracks on safe, solid footing.

Technical Specifications

• Model: TMG-EFM40

• Carrier Compatibility: Designed for 6 to 8-Ton Mini and Mid-Sized Excavators

• Working Width: 40” (1015 mm / 1020 mm)

• Maximum Cutting Capacity: 2” Diameter (50 mm)

• Required Hydraulic Flow: 16 – 21 GPM (61 – 80 L/min)

• Maximum Hydraulic Pressure: 2,900 PSI (20 MPa)

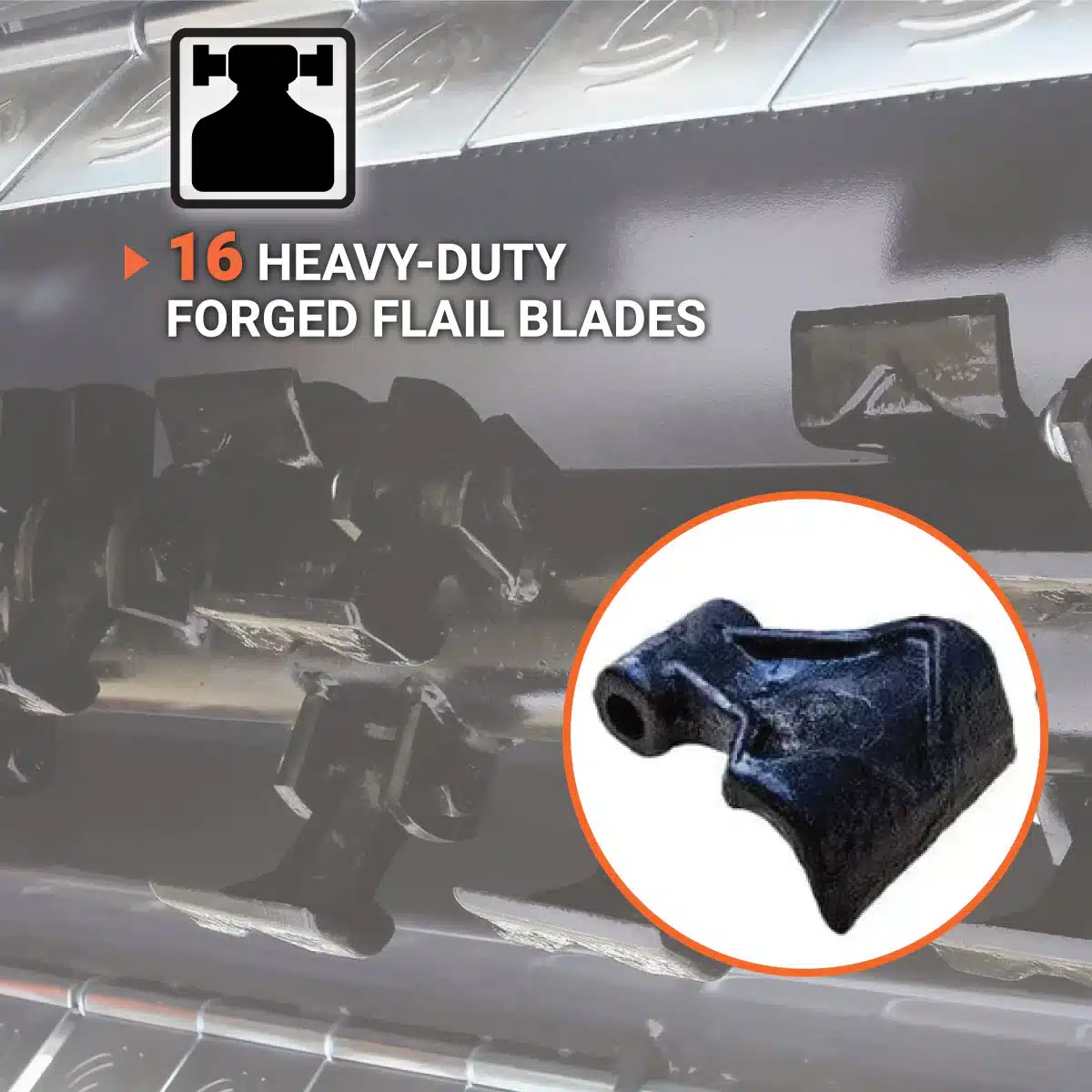

• Cutting Hardware: 16 Heavy-Duty Forged Flail Knives (Hammer T-Blades)

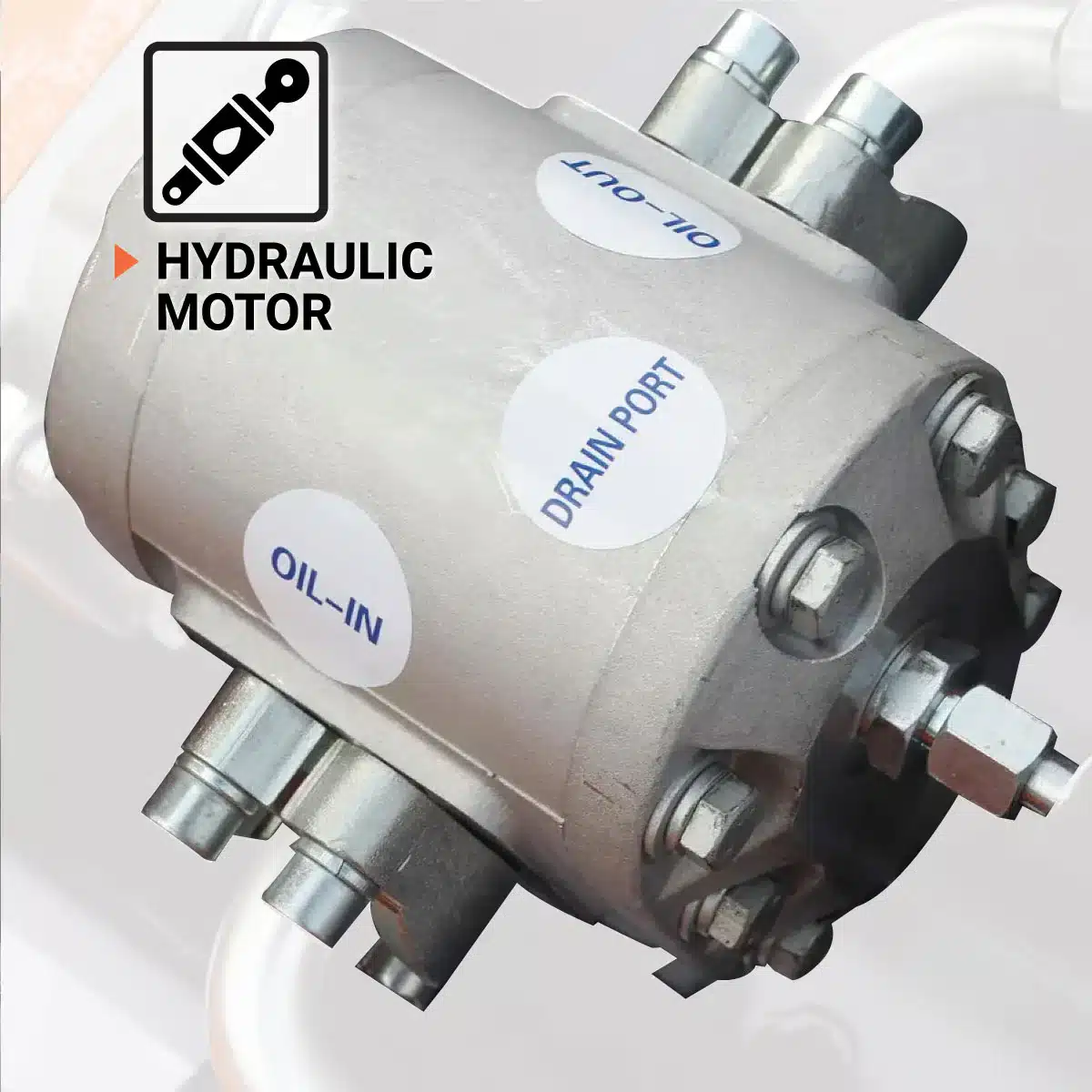

• Drive System: Hydraulic Motor with Belt-Drive Transmission

• 🚨 CRITICAL INSTALLATION REQUIREMENT: A dedicated Case Drain Line (3rd hose line – 3/8”) is strictly required prior to operating this attachment. The case drain line relieves excess internal motor pressure directly back to your machine’s hydraulic reservoir. Operating without a properly installed case drain line will blow hydraulic seals and cause severe motor damage (voiding the warranty).

• Alternate Sizing: Also available in 32″ (TMG-EFM32) and 48″ (TMG-EFM48) working widths.

Shipping & Delivery

• Processing Time: 2–3 business days under normal commercial logistics schedules.

• Transit Time: 10–15 business days (ships directly via domestic freight networks from strategic North American storage hubs).

• Unloading Requirements: This product ships as heavy freight. A forklift, tractor loader, or skid steer equipped with pallet forks is strictly required at the delivery destination to safely offload the metal shipping crate.

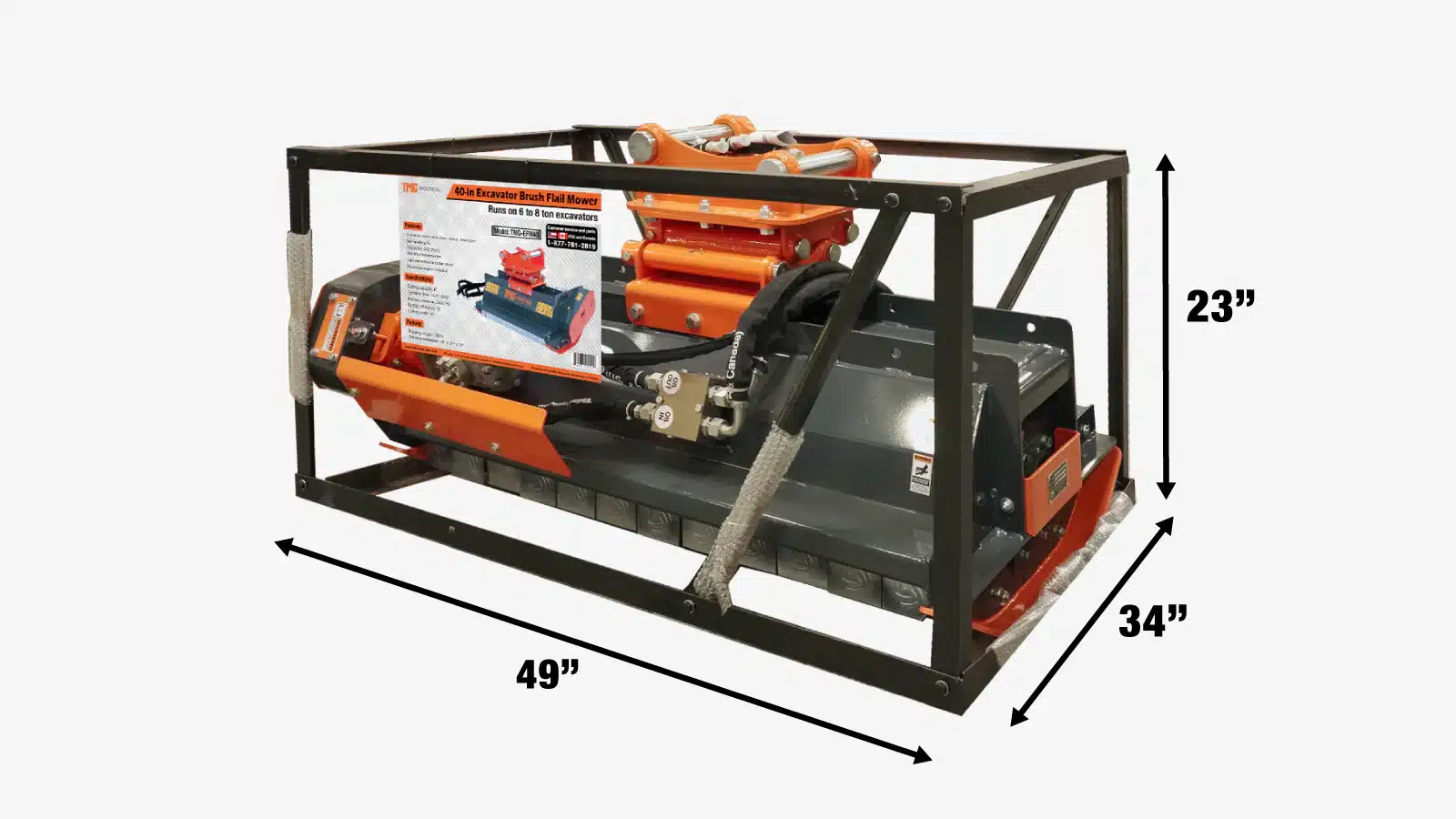

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 49” L x 34” W x 23” H

• Combined Shipping Weig
