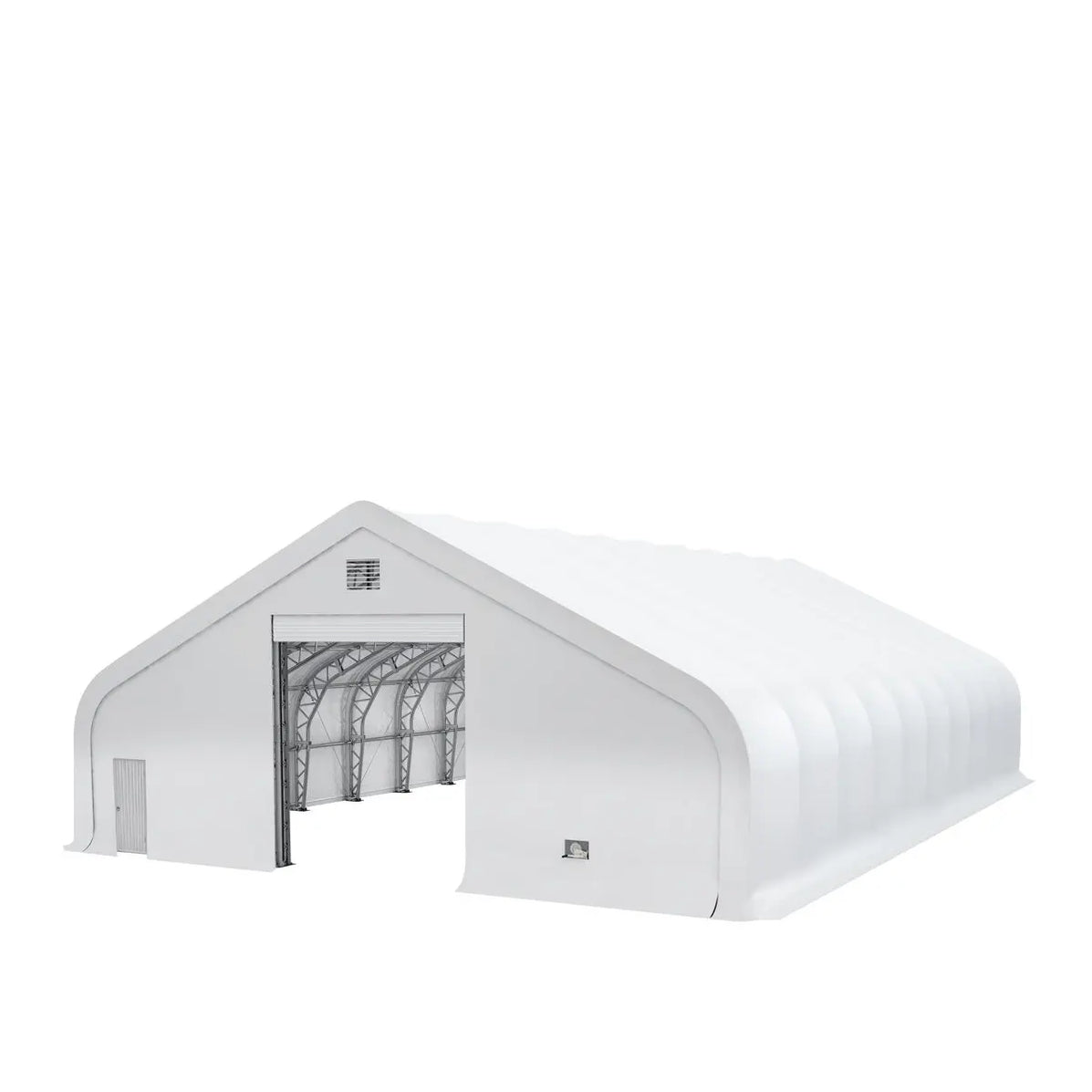

TMG-DT5080-PRO 50′ x 80′ Dual Truss Storage Shelter

Key Features

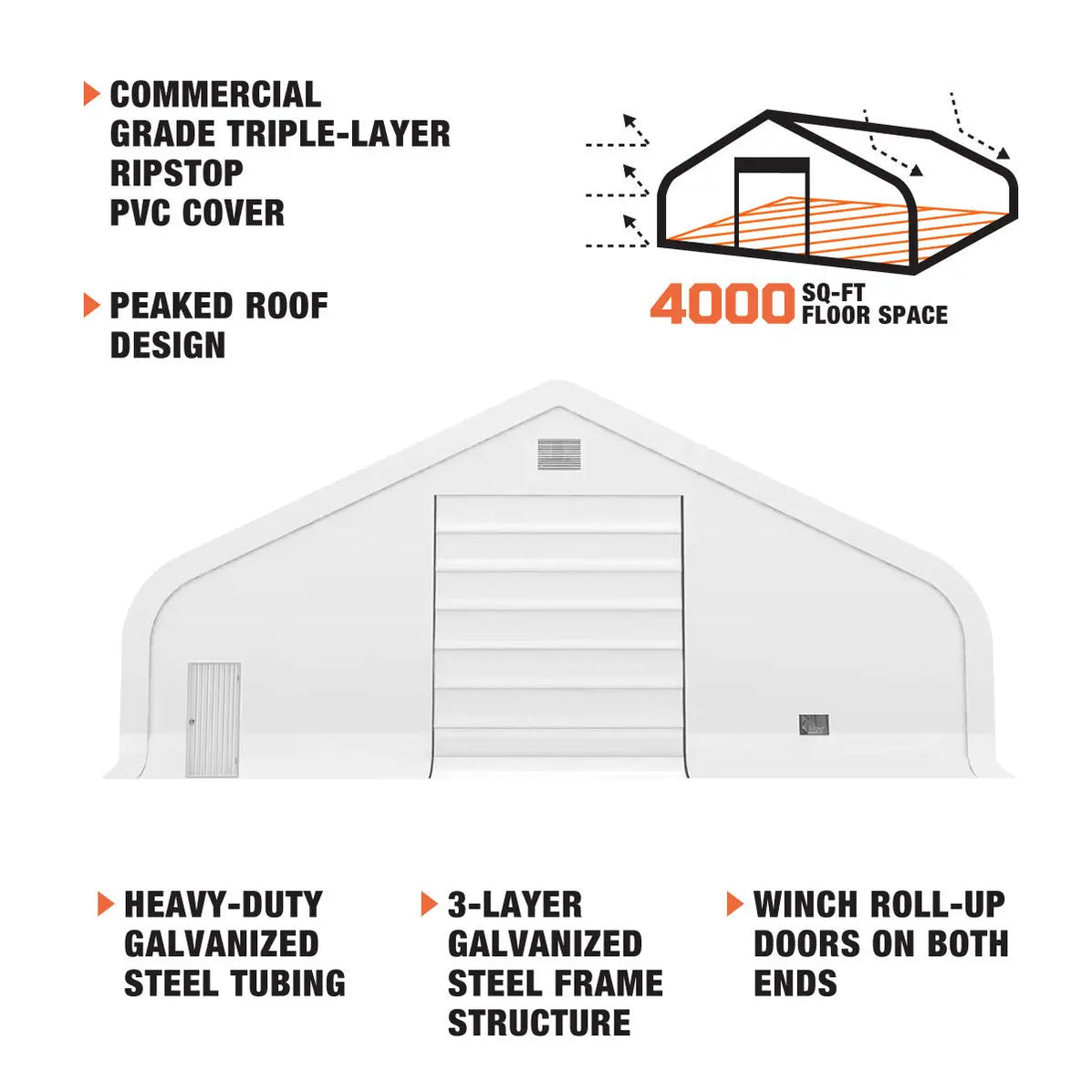

• Massive 4,000 Sq-Ft Footprint: Provides an immense, open-span interior capable of sheltering large-scale machinery, bulk materials, and active commercial workshops with ease.

• Commercial 32 oz PVC Canopy: Wrapped in a heavy-duty, triple-layered ripstop PVC tarpaulin that is inherently flame-retardant, completely waterproof, and highly resistant to chemical and oil corrosion.

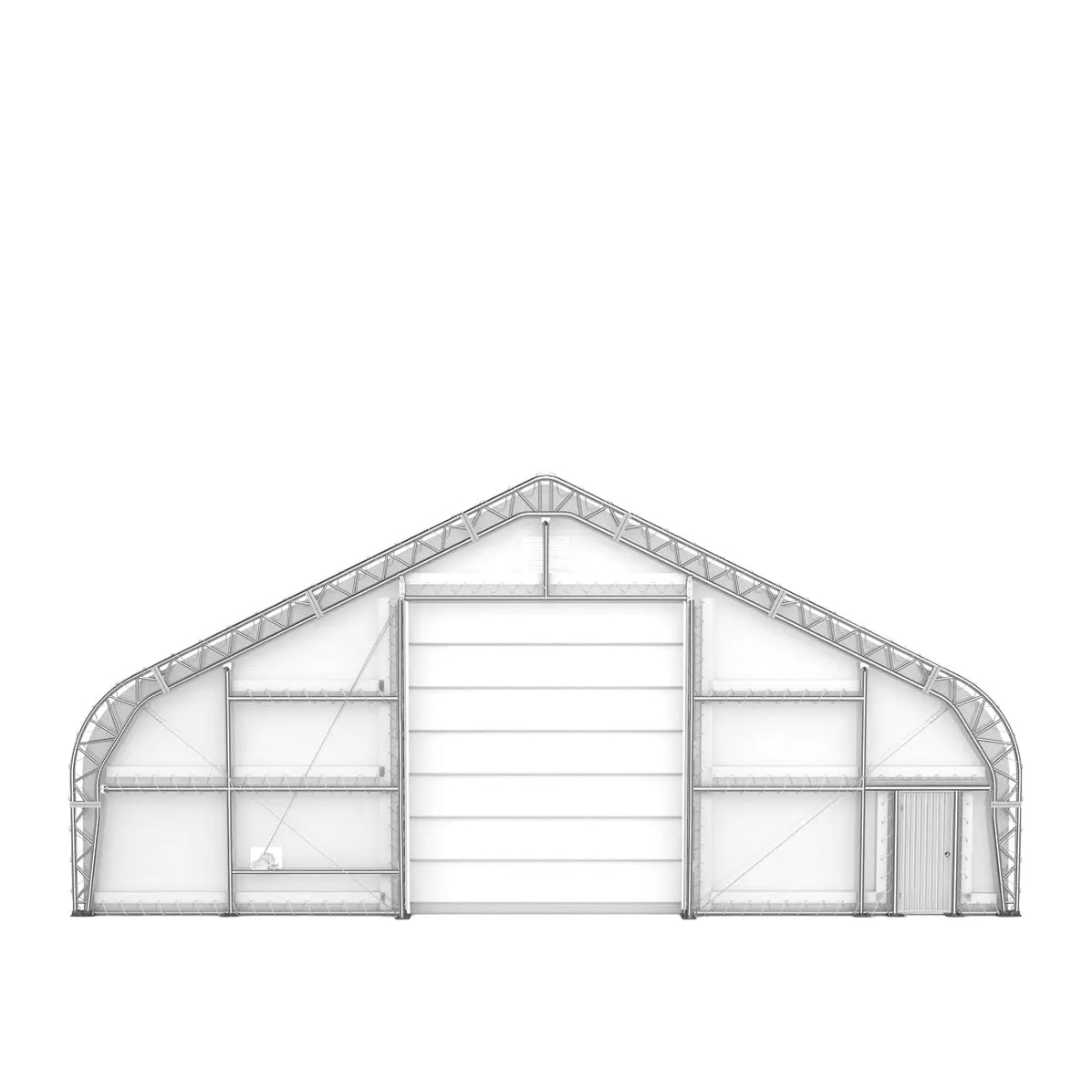

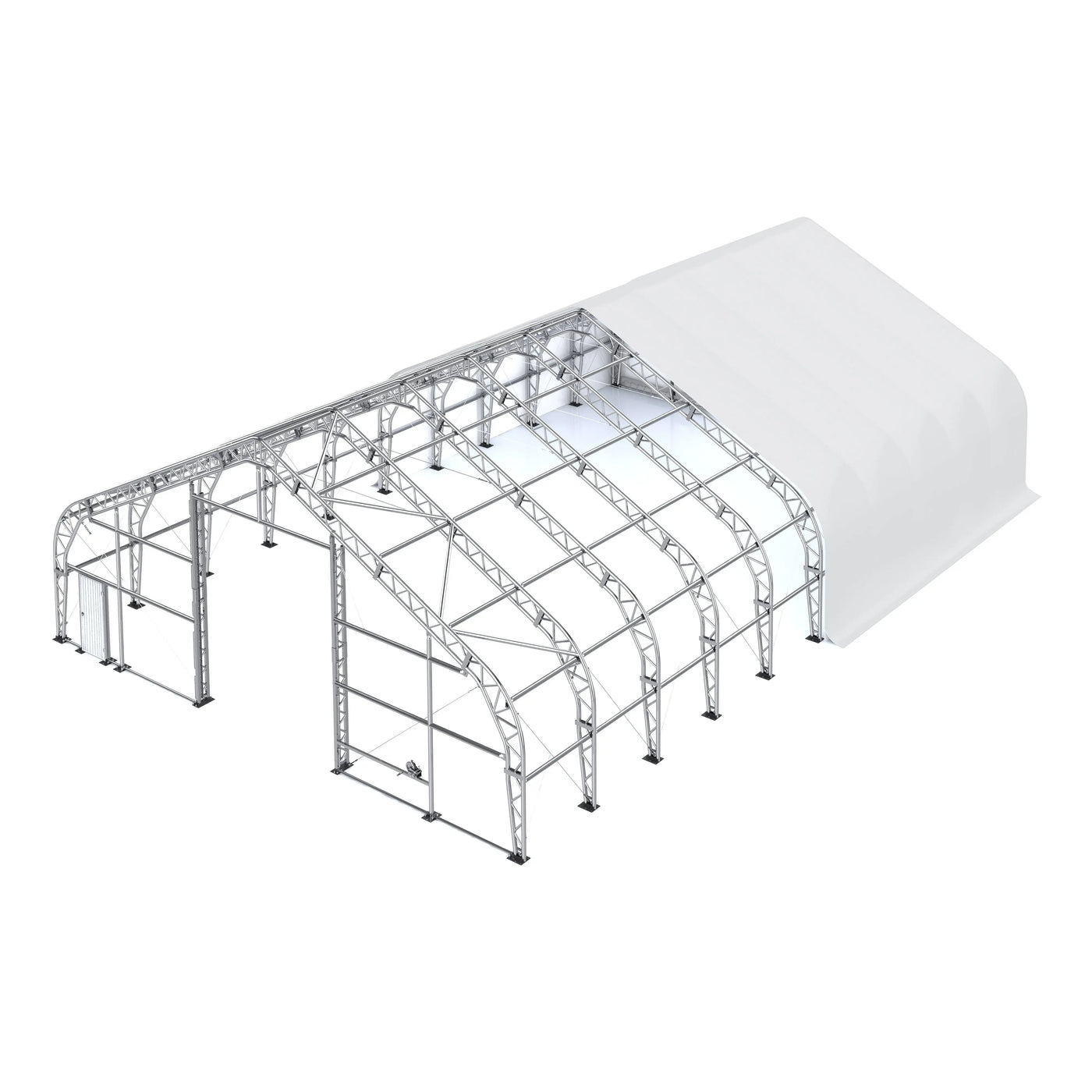

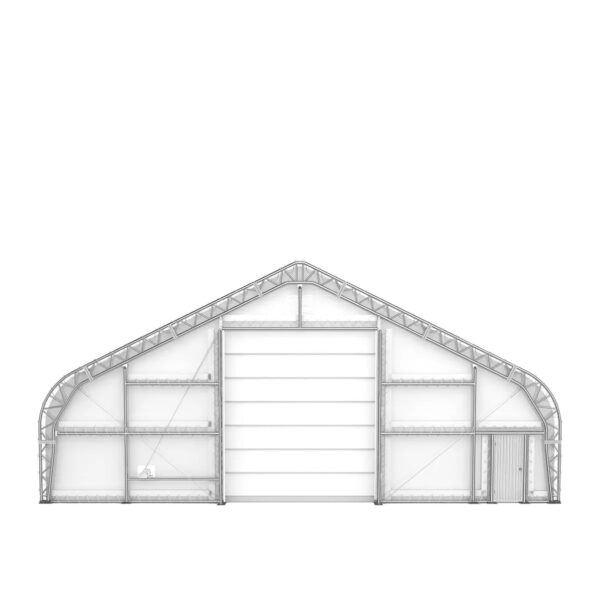

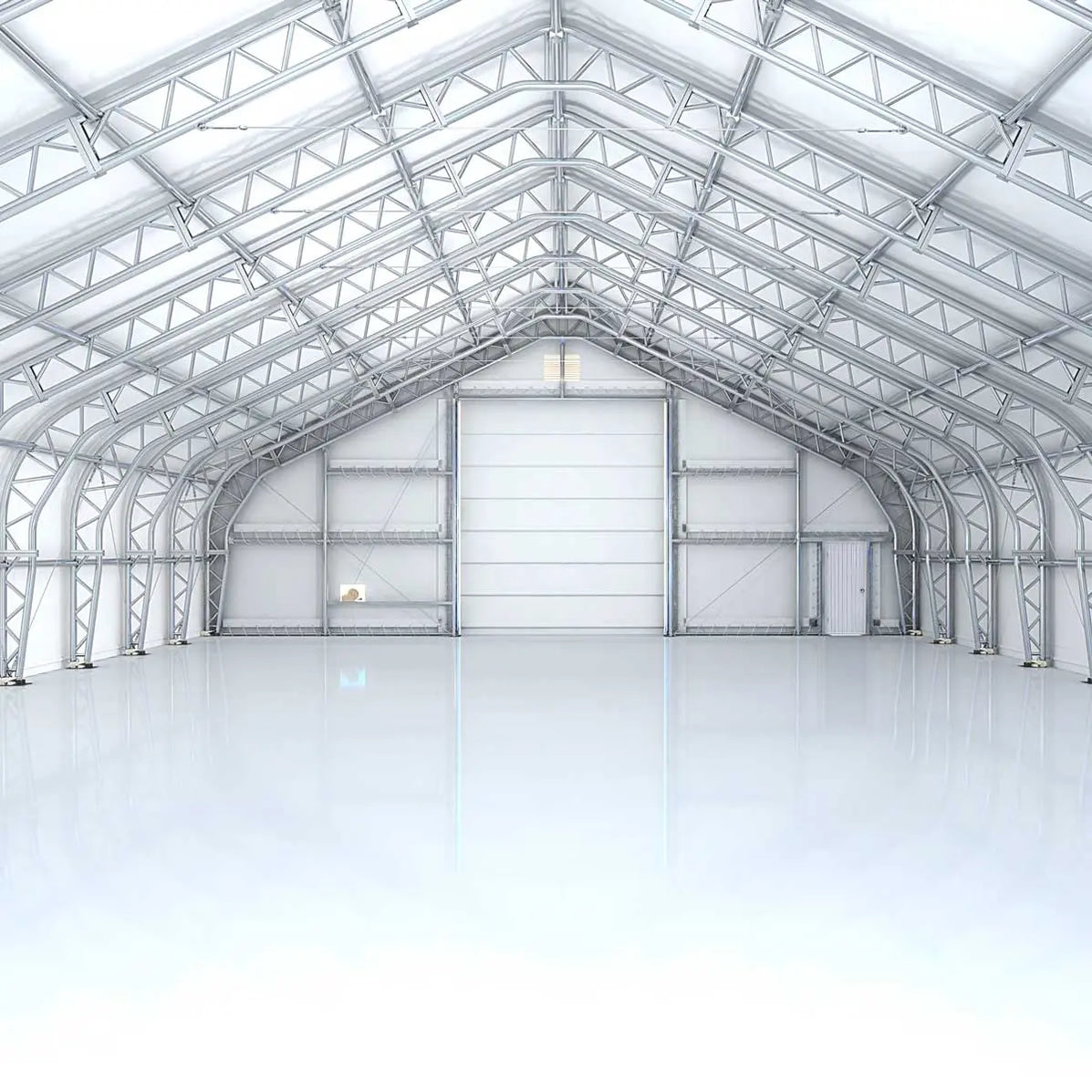

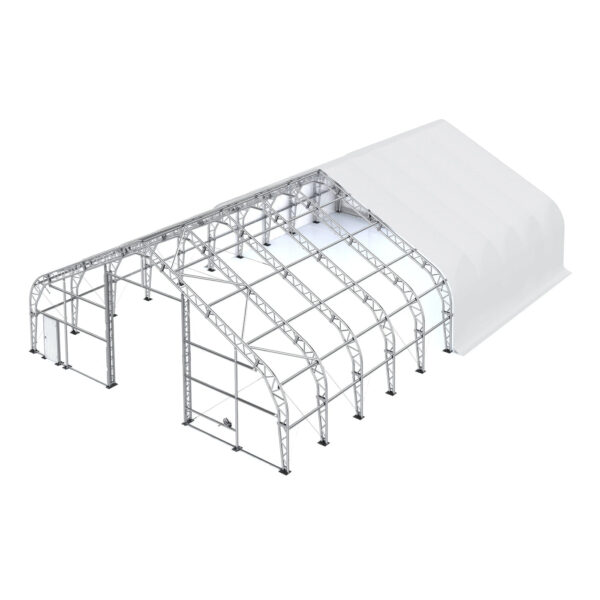

• Reinforced Dual-Truss Framework: Supported by an ultra-strong, 3-layer galvanized steel frame utilizing double-truss architecture and reduced 8-foot truss spacing for maximum stability against severe weather.

• Optimized Sidewall Clearance: Engineered with 9-foot straight walls before the roof curve begins, significantly amplifying vertical storage capabilities along the extreme inner edges of the shelter.

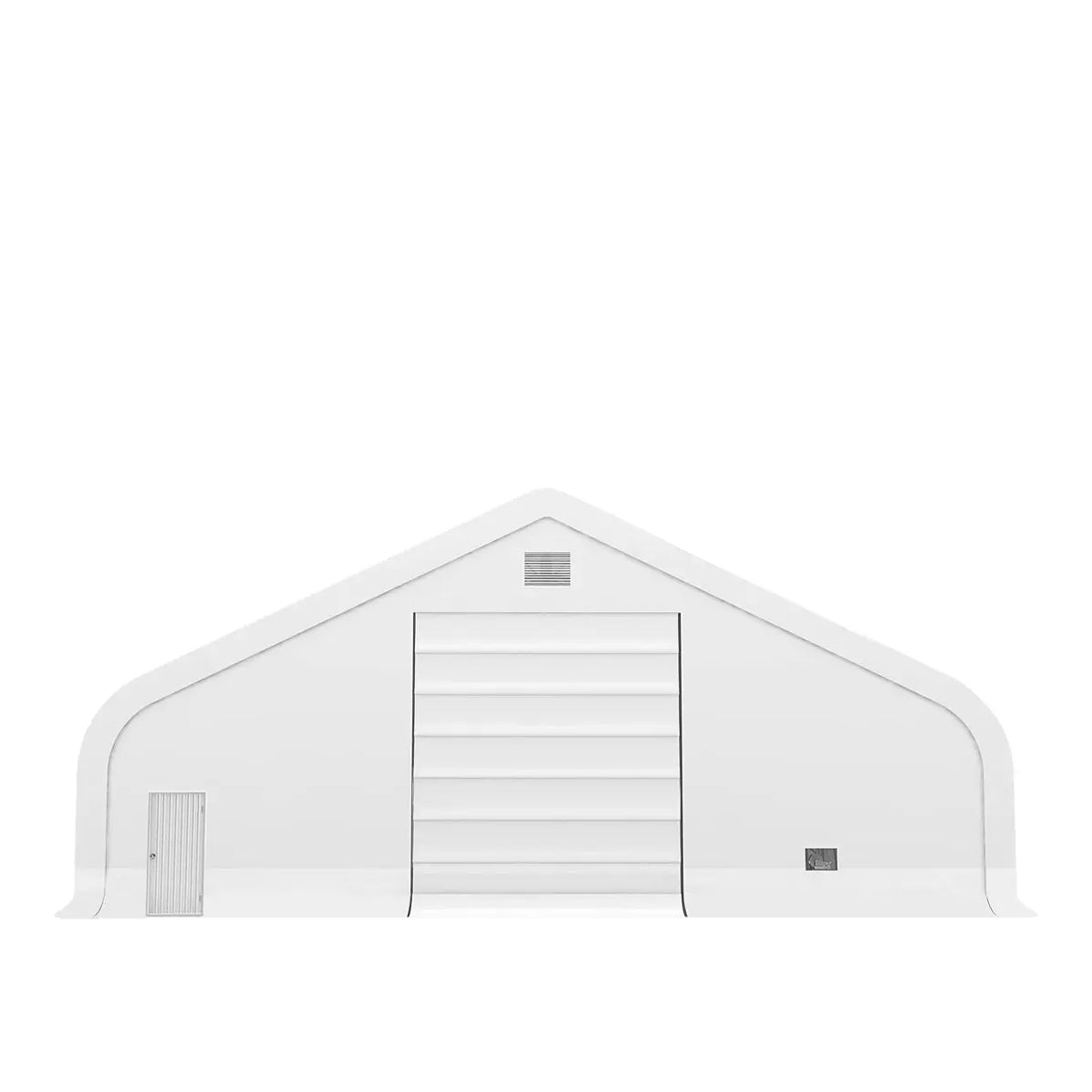

• Drive-Through Workflow Efficiency: Outfitted with massive 15’ x 15’ winch-operated roll-up doors on both end walls, allowing oversized vehicles and materials to be driven straight through without complicated maneuvering.

• Secure Steel Man Doors: Includes standard 3’ x 6’6” steel entry doors, offering a convenient, secure, house-like entry point without the need to open the primary heavy equipment doors.

• Natural Daytime Illumination: The vibrant white PVC fabric reflects harsh UV rays to reduce interior heat while allowing natural sunlight to permeate, cutting down on daytime utility and lighting costs.

Technical Specifications

• Model: TMG-DT5080-PRO

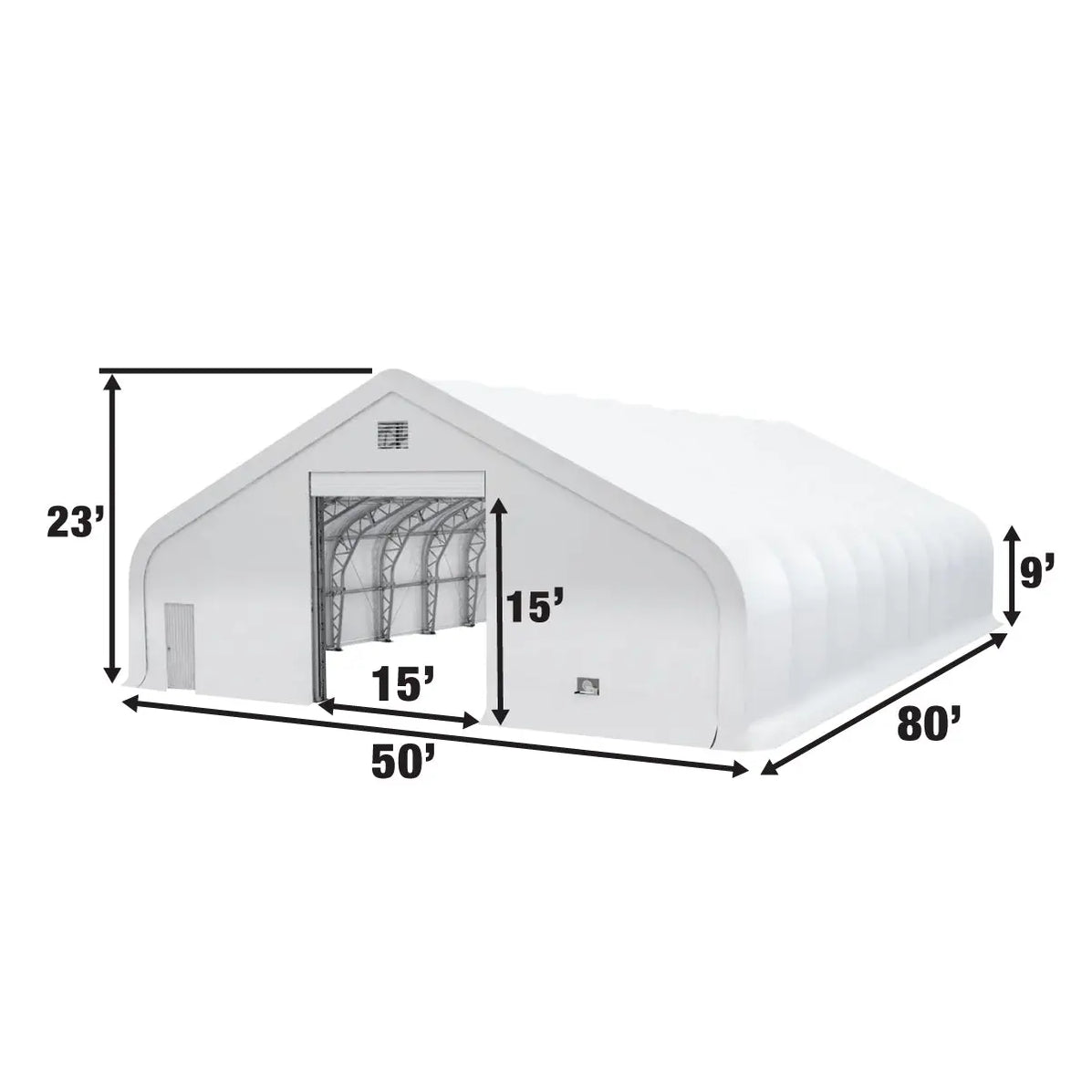

• Exact Outer Dimensions: 50’4” W x 79’7” L

• Inner Floor Dimensions: 47’5” W x 79’7” L

• Vertical Clearances:

  • Peak Ceiling Height: 23’ Outer / 21’ Inner

  • Straight Sidewall Height: 9’

• Structural Framework: 3-layer galvanized steel

  • Truss Tubing: 2-½” diameter (Approx. 14 GA)

  • Purlin Tubing: 2-½” diameter (Approx. 14 GA)

• Structural Spacing: Reinforced 8-foot dual-truss layout

• Door Specifications:

  • Main Roll-Up Doors: 15’ W x 15’ H (On both ends)

  • Steel Man Doors: 3’ W x 6’6” H

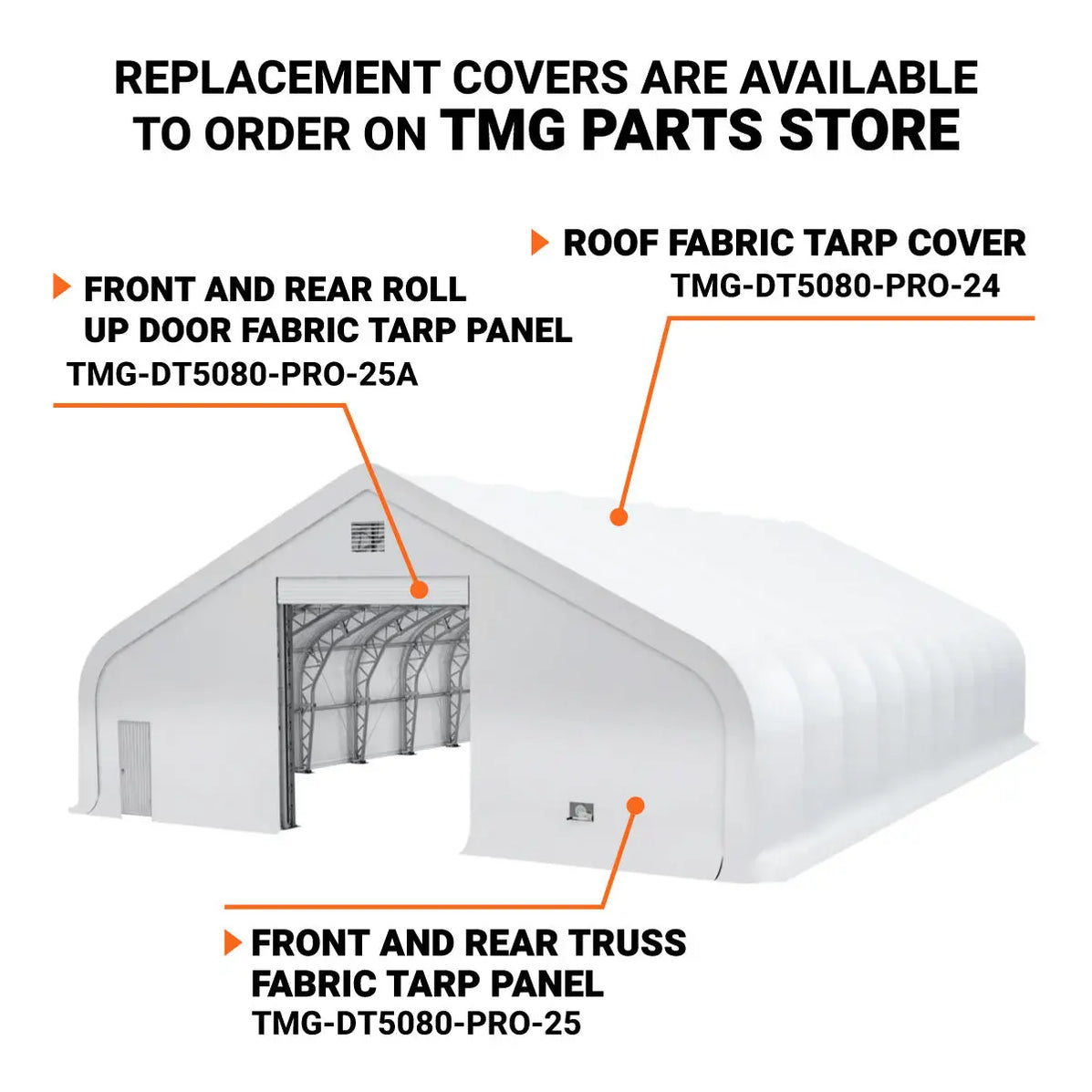

• Canopy Material: Heavy-duty 32 oz PVC fabric (White)

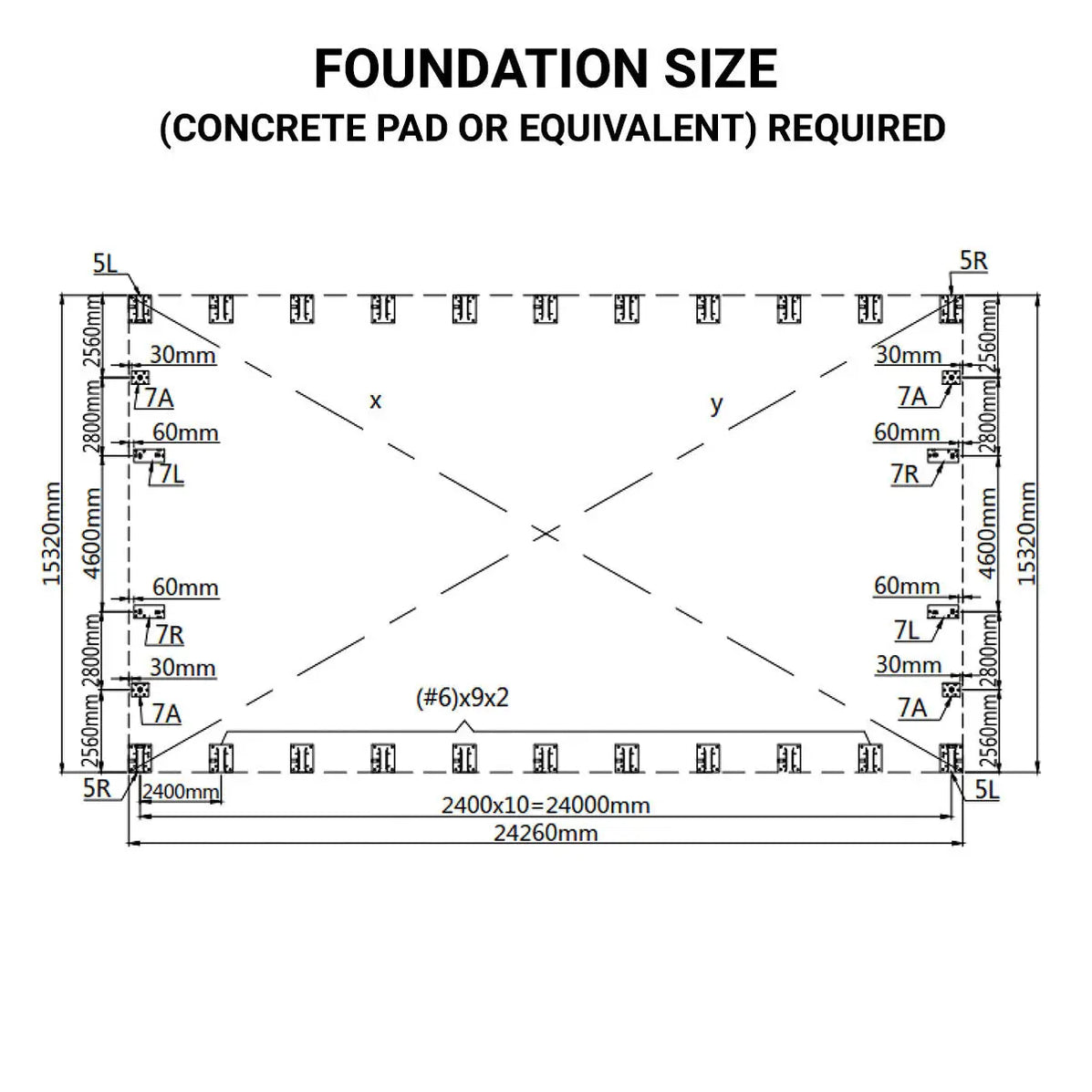

• Foundation Requirements: Concrete slabs or an equivalent heavy-duty load-bearing foundation (Footplates with pre-drilled holes included; anchor bolts not included)

Shipping & Delivery

• Processing Time: 2–3 business days under normal order-processing conditions

• Transit Time: 10–15 business days via LTL freight. Delivery timing may vary based on product availability, destination, site access, and carrier scheduling.

• Unloading Requirements: Product is exceptionally massive and heavy. Standard tailgate/liftgate delivery is strictly unavailable. A heavy-duty forklift, telehandler, or equivalent machinery is absolutely required at the delivery destination to safely offload the heavy crates.

• Packaging Type: Four separate heavy-duty metal crate shipping boxes

• Shipping Dimensions (Per Crate): 115” L x 45” W x 49” H (Boxes A, B, C, and D)

• Combined Shipping Weight: 10,700 lbs
