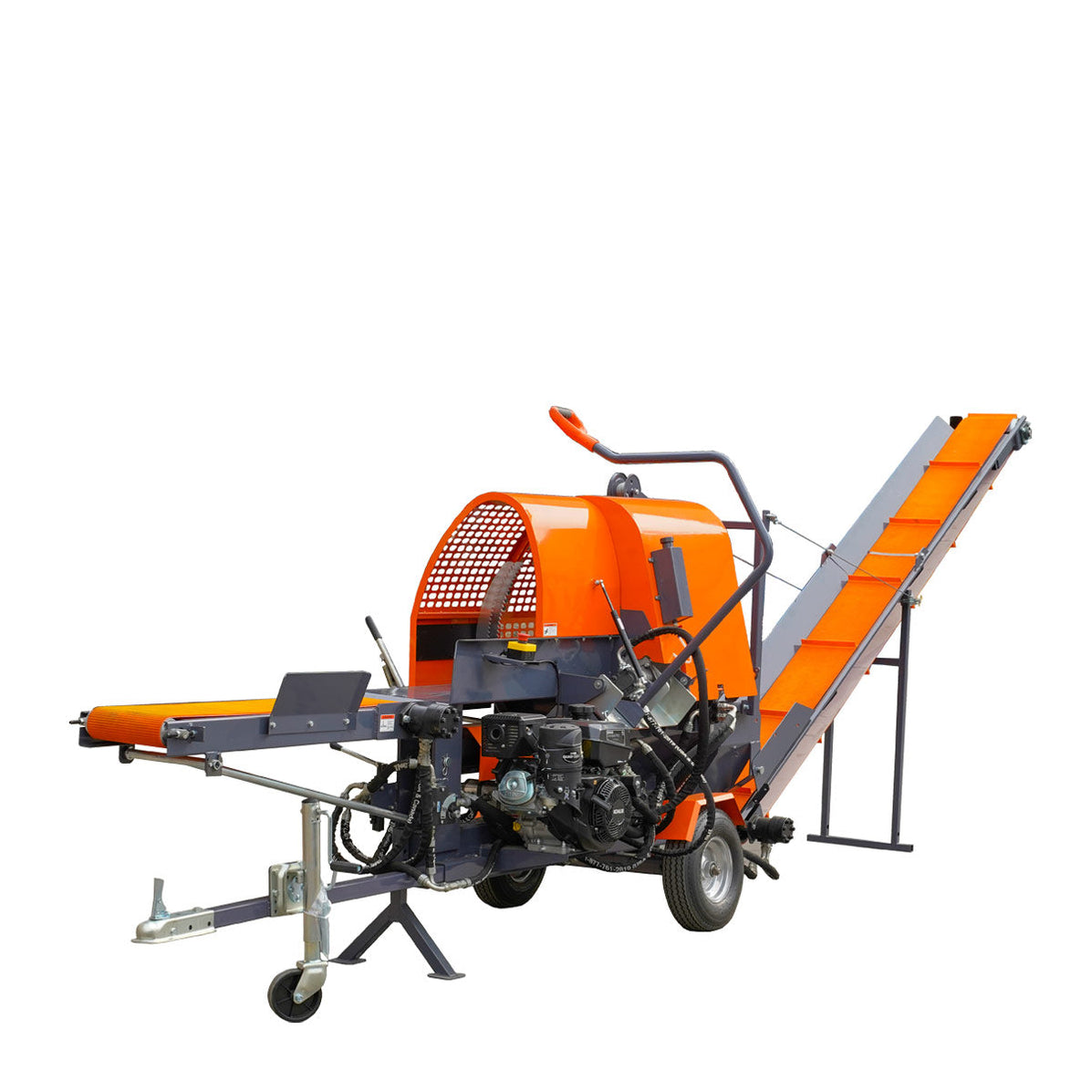

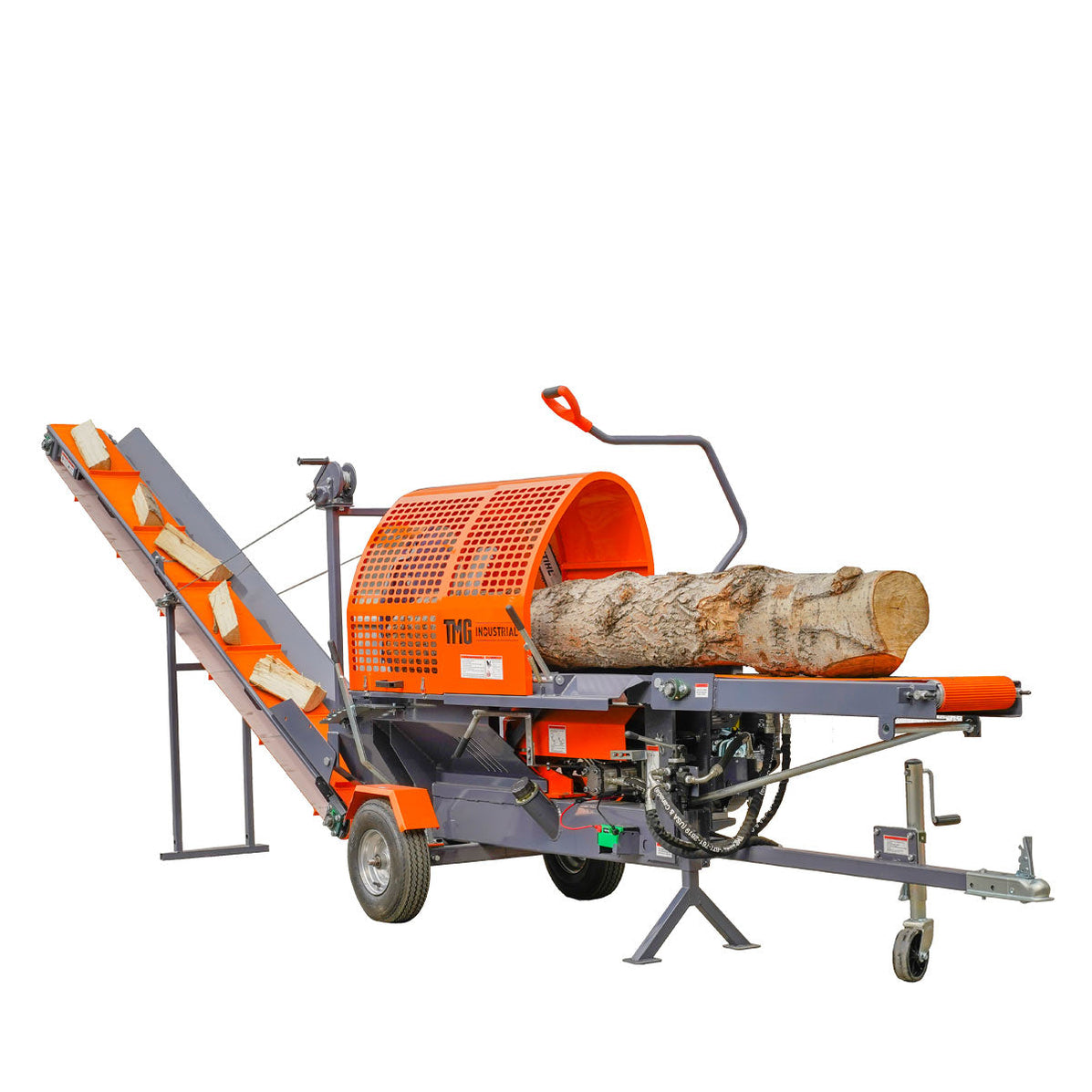

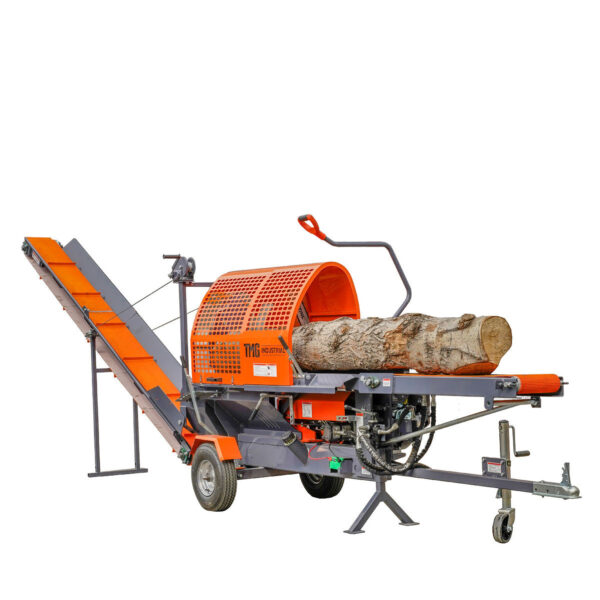

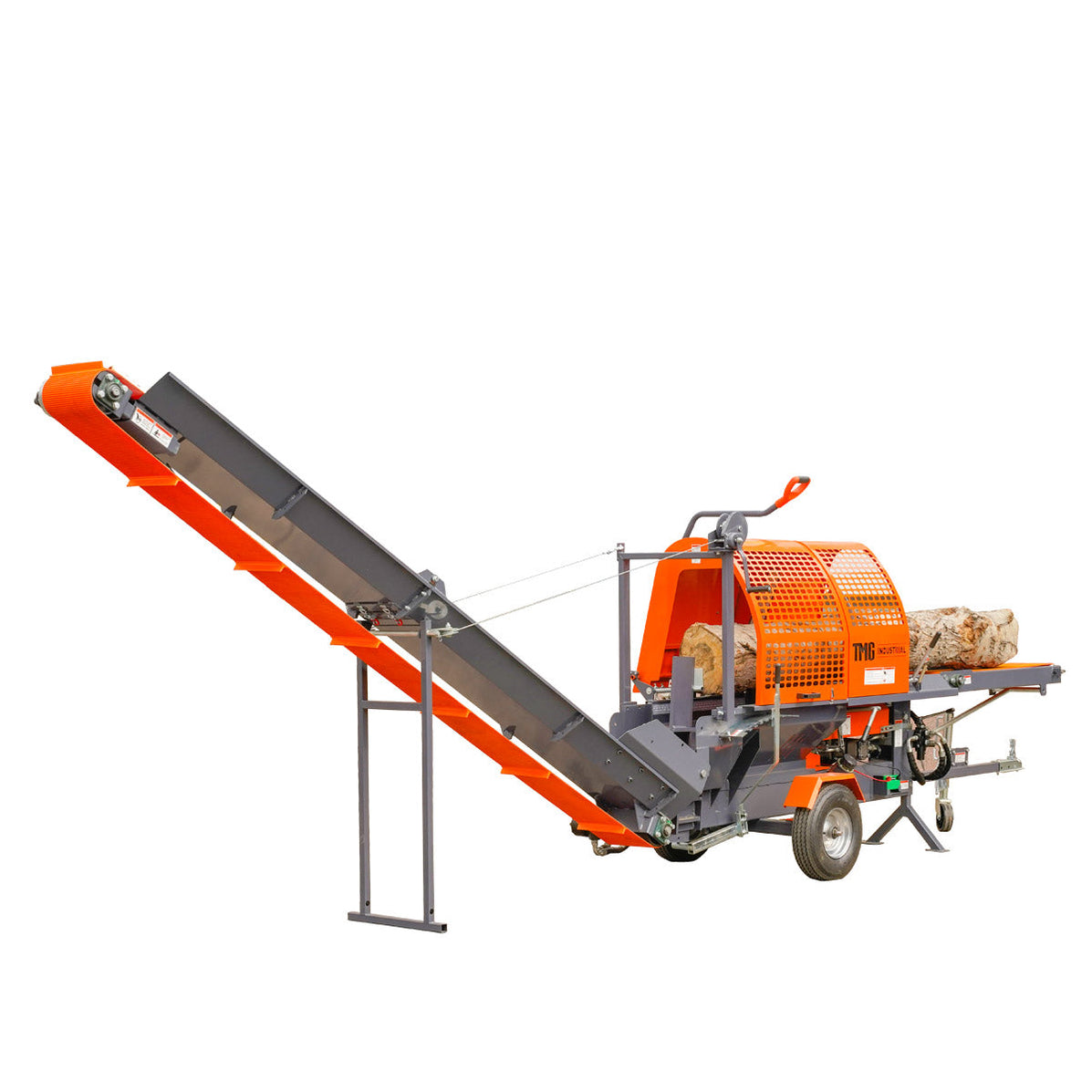

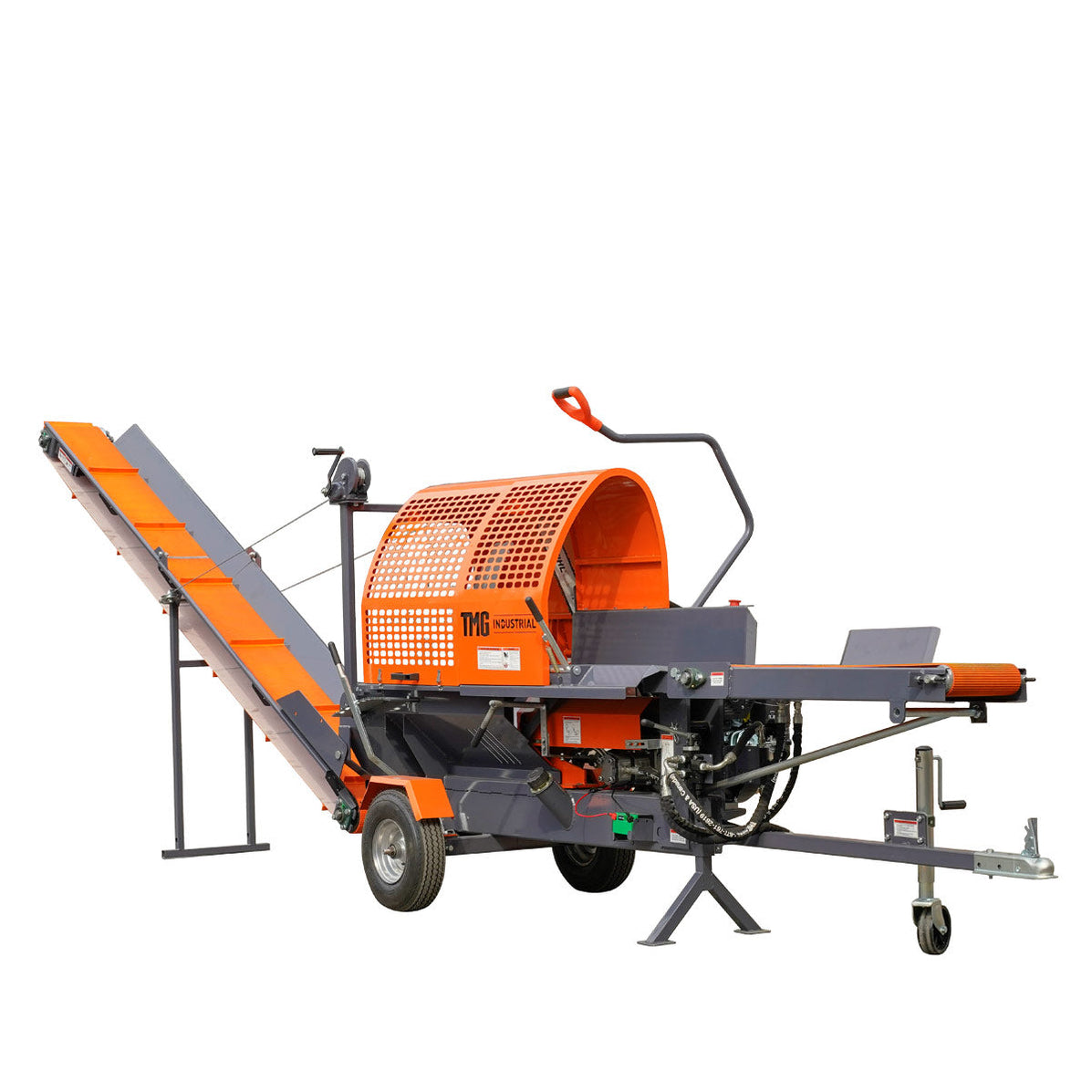

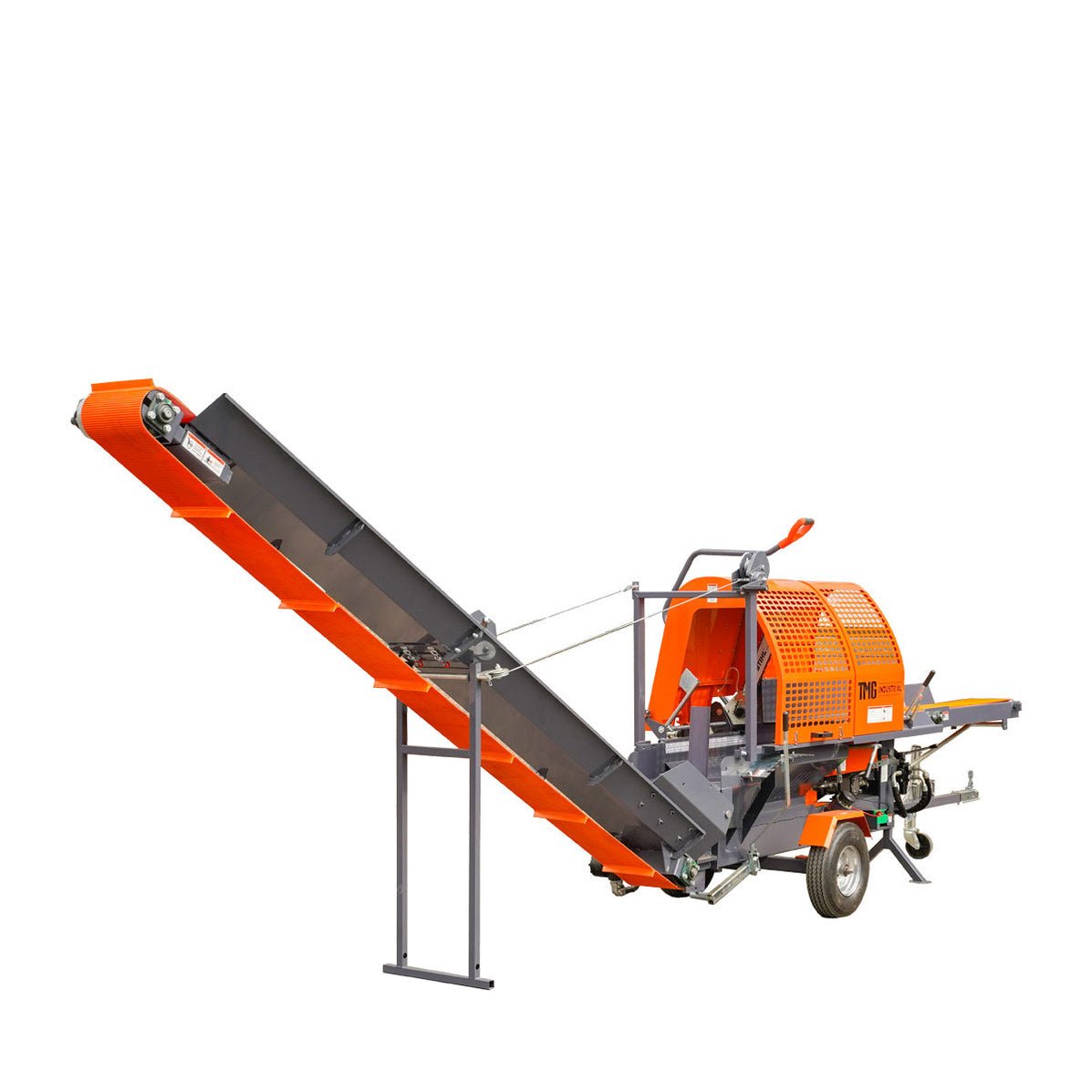

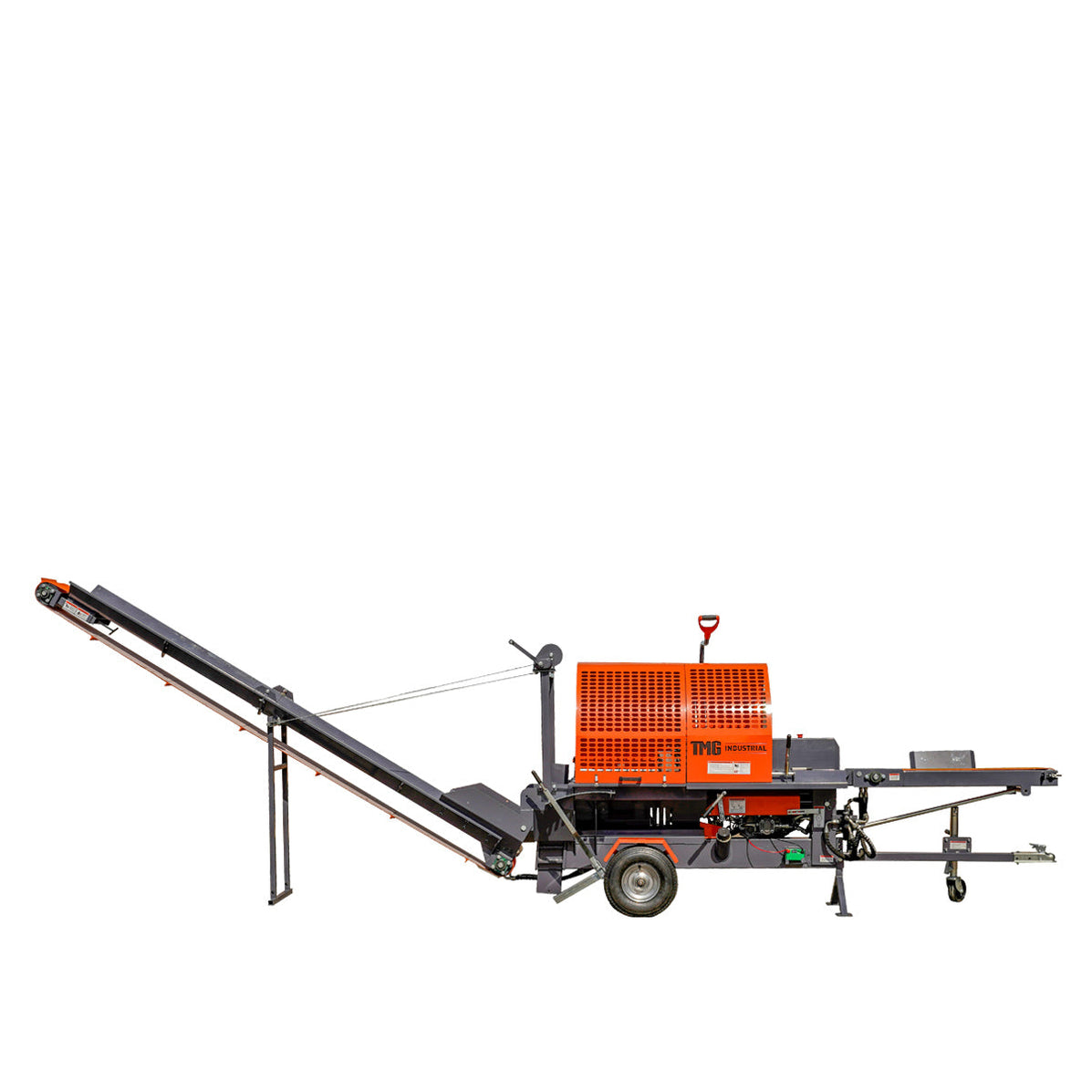

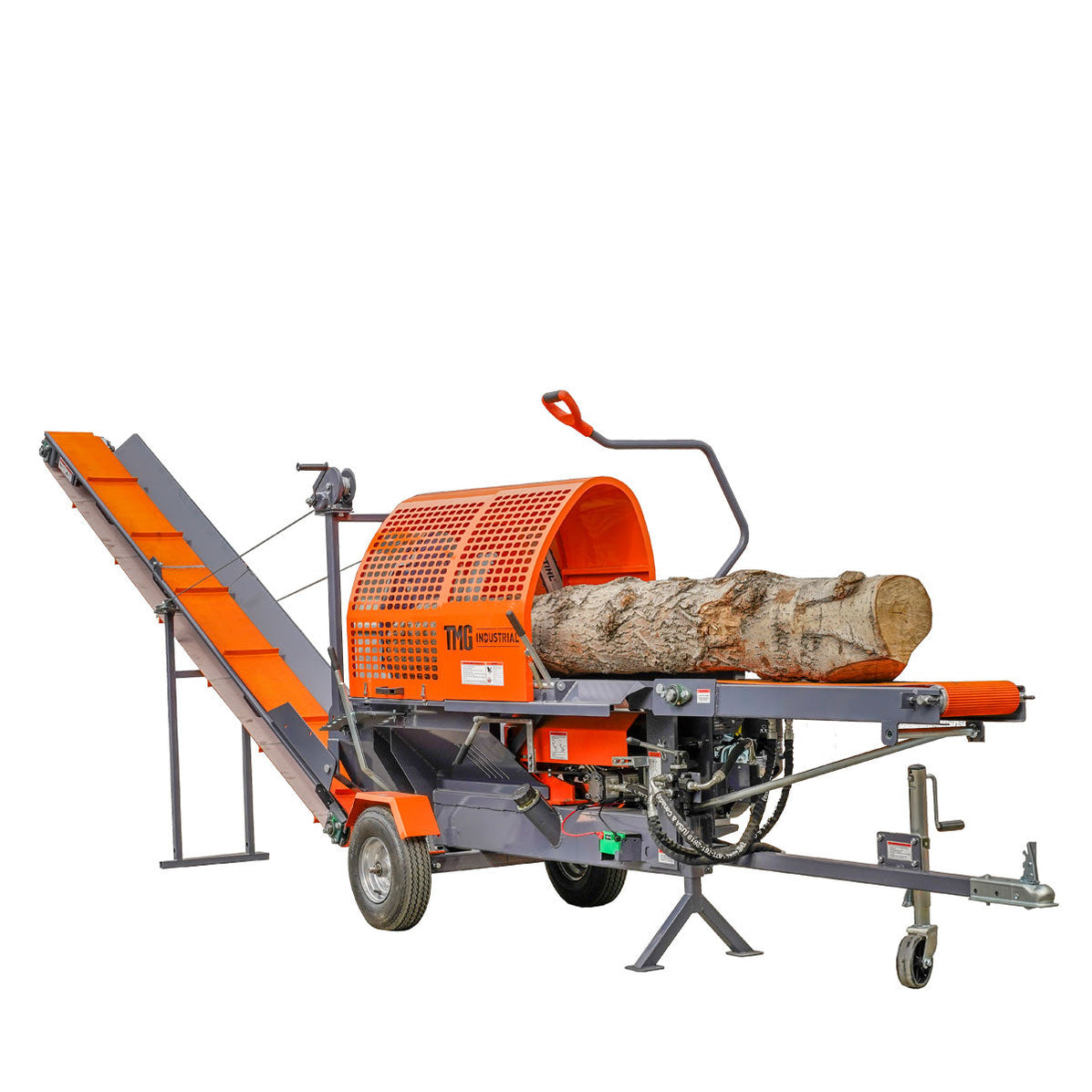

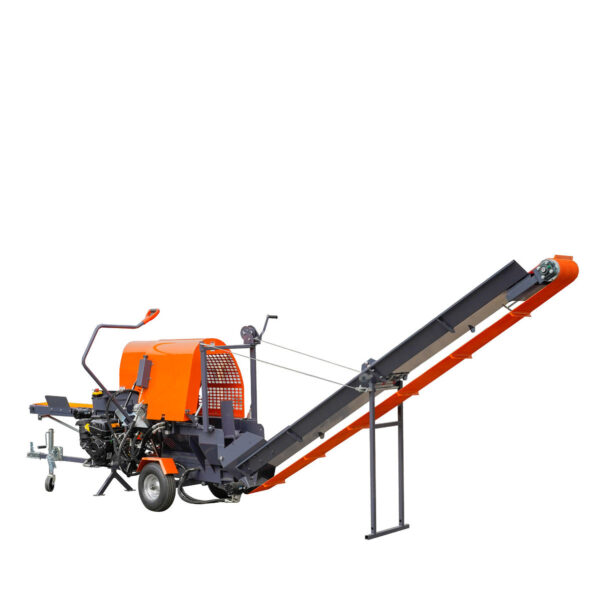

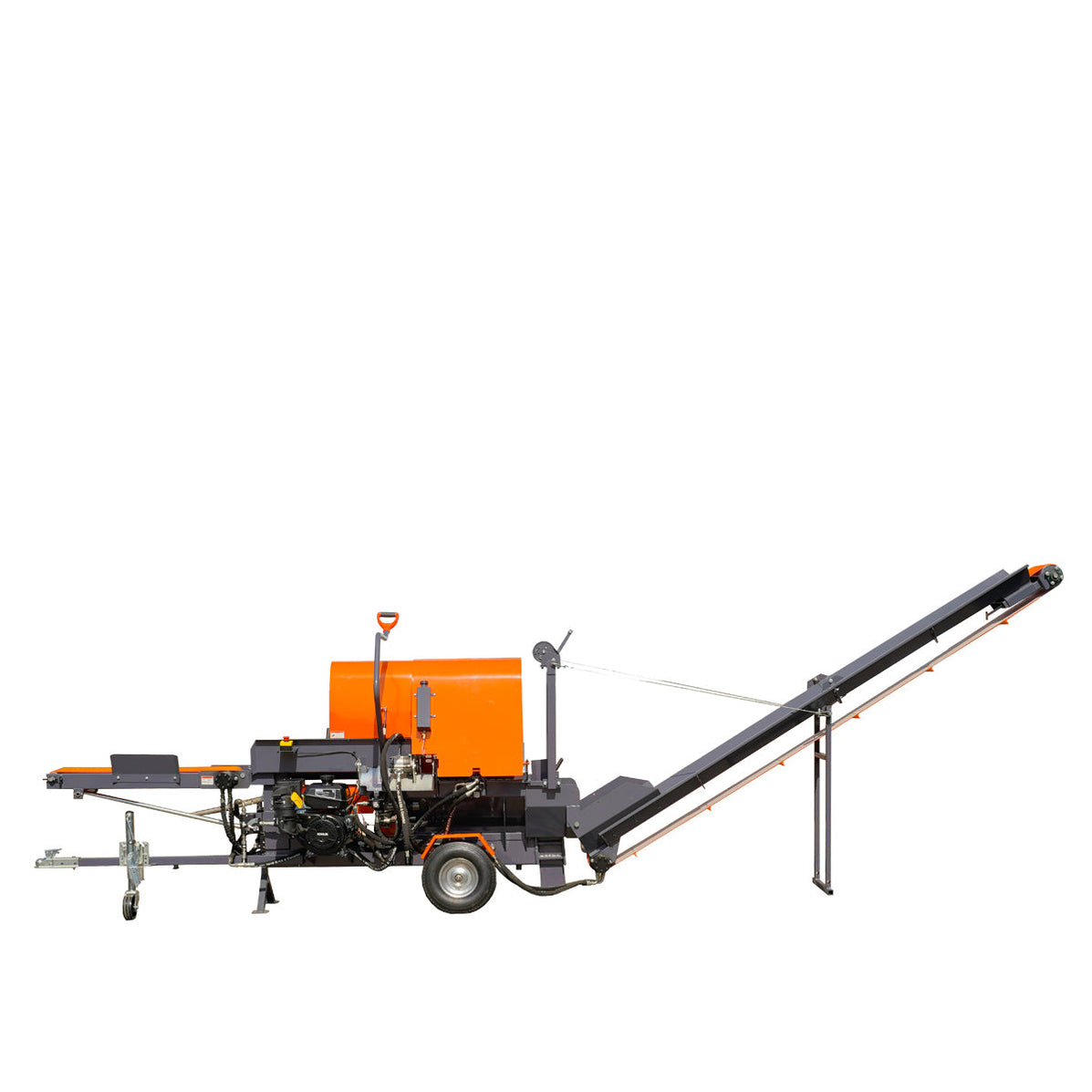

TMG-GLS20 Firewood Log Splitter Processor Conveyor

Key Features

• Commercial-Grade Kohler Power: Equipped with a dependable 14 HP Kohler Command Pro CH440 engine, featuring cast iron cylinder liners for long-term durability and an automatic Oil Sentry™ low-oil shutdown system.

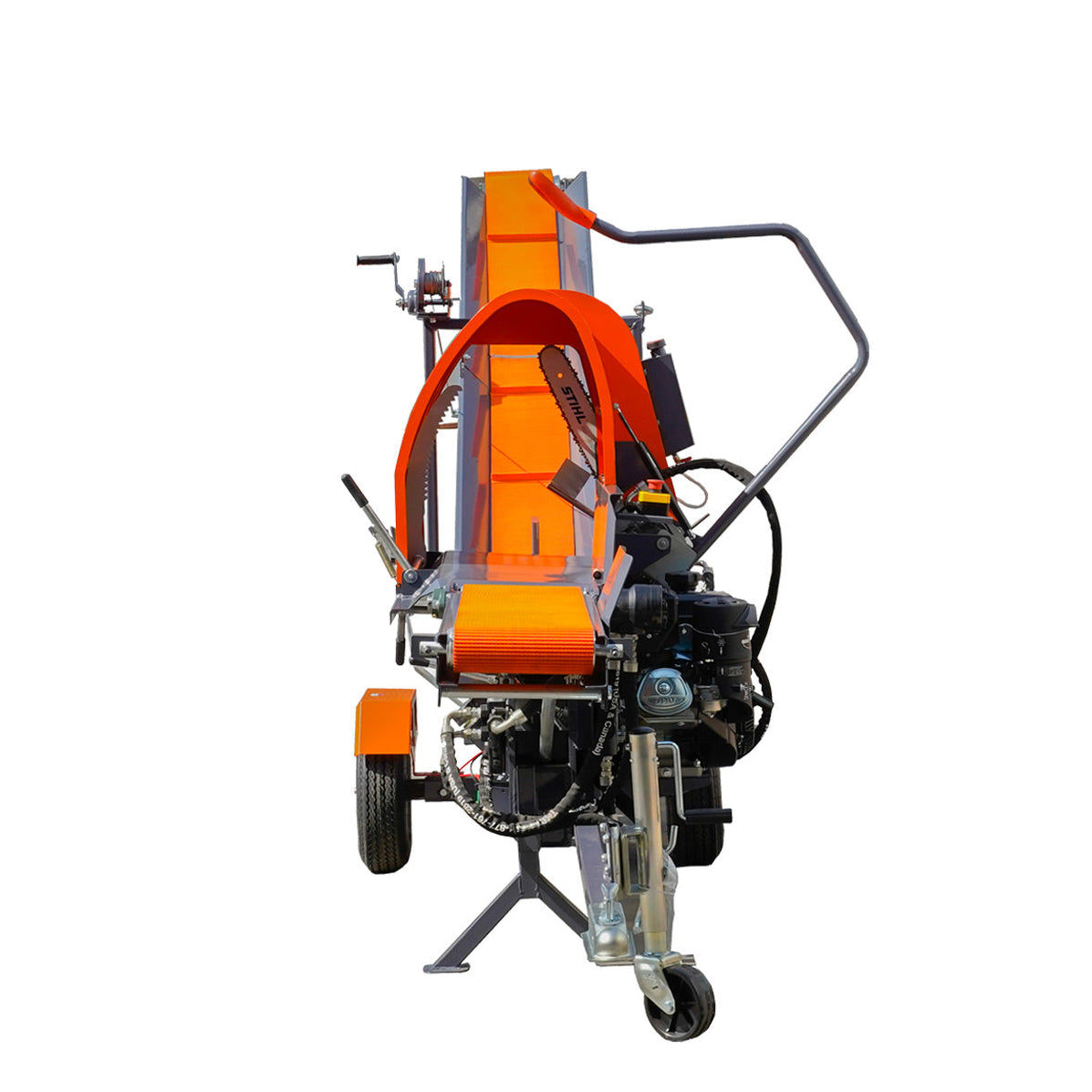

• Integrated Hydraulic Chainsaw: Features a high-speed, hydraulic-driven 18-inch STIHL chainsaw bar that cuts cleanly and effortlessly through heavy logs before they enter the splitting cradle.

• Efficient 2-4 Way Splitting Wedge: Outfitted with an adaptable splitting wedge that allows operators to seamlessly switch between two-way and four-way splits to accommodate varying log dimensions.

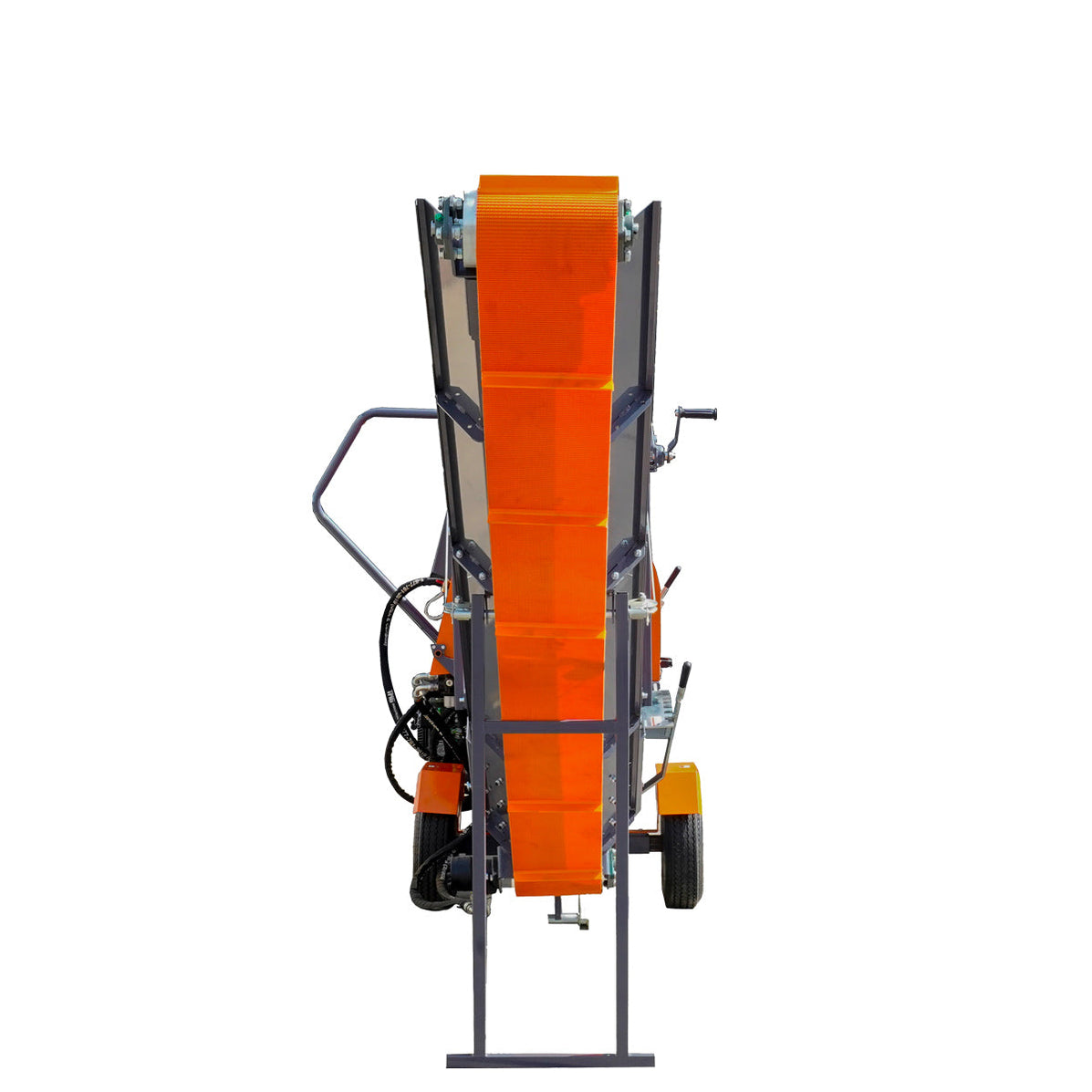

• Dual Hydraulic Conveyor System: Built with an integrated 41-inch hydraulic inlet conveyor to pull heavy logs into the blade, paired with an expansive 126-inch foldable hydraulic outlet conveyor for automatic vehicle or woodpile stacking.

• Operator Safety Enhancements: Designed with a comprehensive metal safety splitting cage that cuts off mechanical operations when opened, alongside an easy-access emergency stop switch.

• Streamlined Jobsite Towing: Fully mobile structure equipped with a 2-inch trailer hitch coupler, heavy-duty pneumatic tires, and an adjustable support trailer jack for effortless repositioning around the yard or jobsite.

Technical Specifications

• Model: TMG-GLS20

• Alternate Motor Configurations: Also available in 7 HP Kohler and 15 HP variations

• Maximum Log Processing Capacity: 15” Diameter

• Maximum Splitting Length: 23” Long

• Hydraulic Splitting Force: 20 Ton

• Chainsaw Assembly: 18” Hydraulic bar (STIHL Chain compatibility)

• Conveyor Layout Dimensions:

  • Hydraulic Inlet Deck: 41” L x 10” W

  • Hydraulic Outlet Deck: 126” L x 10” W (Foldable design)

• Splitting Wedge Geometry: Manual 2-4 way interchangeable wedge

• Hydraulic Fluid Capacity: 26 Liters

• Engine Model & Type: Kohler® CH440 Command Pro (4-cycle, OHV, 429 cc)

• Starting System: Electric key start paired with a backup manual recoil pull-start

• Mobility Hardware: 2” (50 mm) ball hitch coupler and a crank-handle trailer tongue jack

Shipping & Delivery

• Processing Time: 2–3 business days

• Transit Time: 10–15 business days (subject to regional freight terminal parameters and site accessibility)

• Unloading Requirements: Product is exceptionally large, oversized, and heavy. Liftgate delivery service is strictly unavailable for this item. A forklift, skid steer with forks, or equivalent commercial mechanical handling equipment is absolutely required at the destination site to safely unload the freight crate.

• Packaging Type: Heavy-duty wood crate shipping box

• Shipping Dimensions: 90” L x 38” W x 47” H

• Combined Shipping Weight: 1,470 lbs
