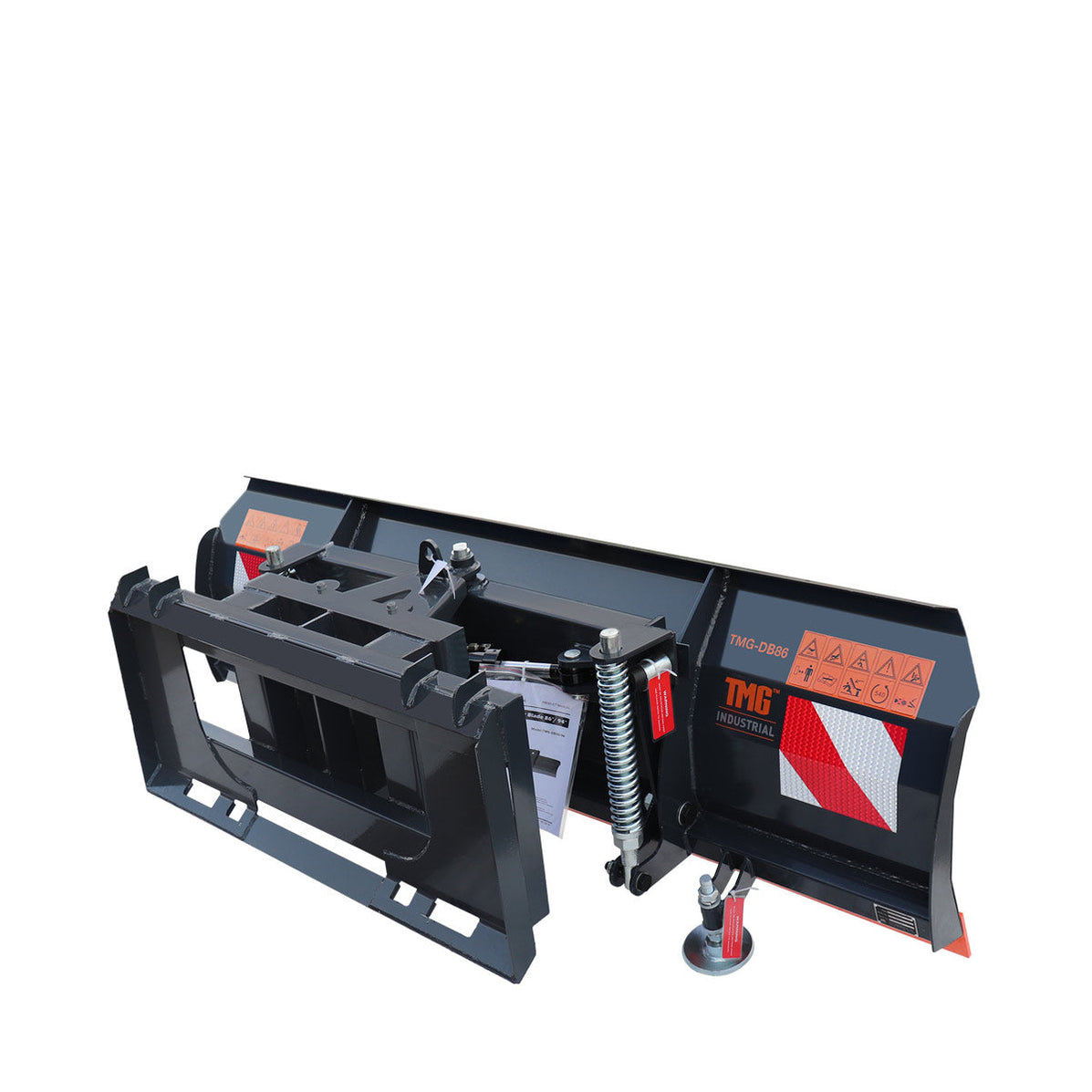

TMG-DB86 86″ Skid Steer Dozer Blade / Snow Plow Pusher

Key Features

• High-Capacity 86″ Footprint: Spans a massive 86-inch working width, enabling rapid cycle times when clearing commercial lots, building pads, acreage driveways, and municipal pathways.

• Dual-Action Year-Round Utility: Built tough to transition seamlessly across seasons, acting as a rigid dozer blade for grading, trenching, and dirt work, or as a high-volume snow plow pusher.

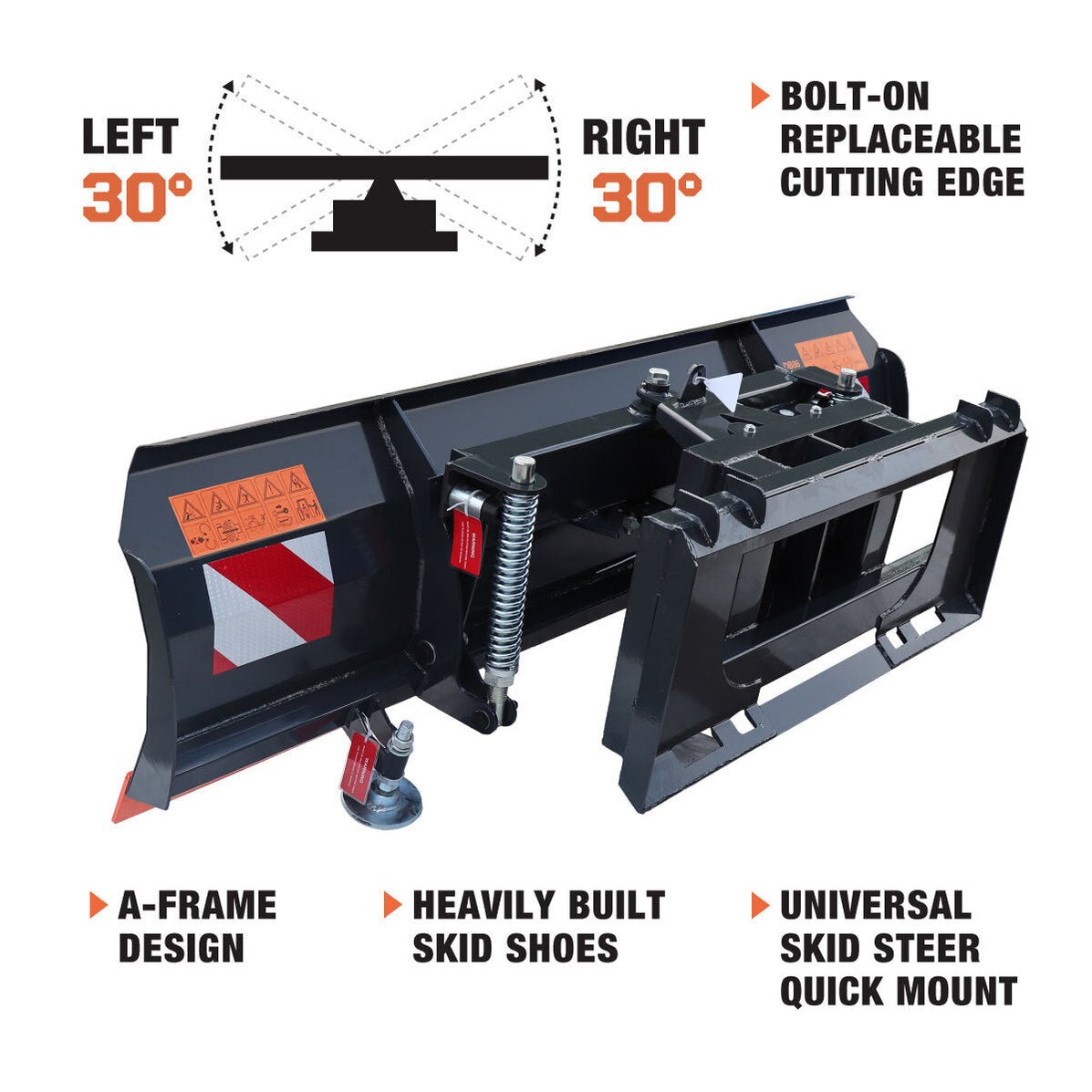

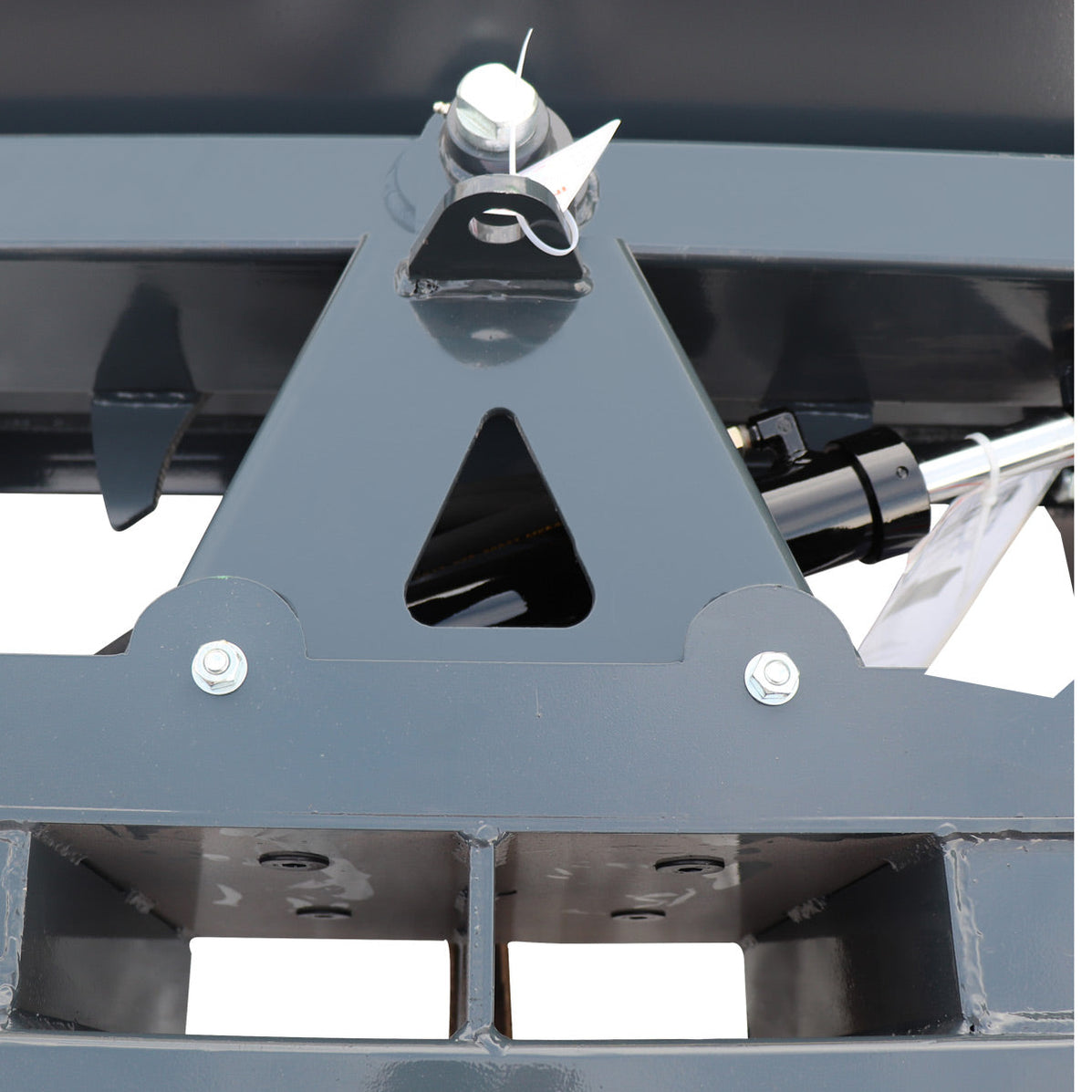

• Forceful 30° Hydraulic Angling: Outfitted with a heavy-duty hydraulic cylinder operating up to 2,600 PSI on a robust A-frame pivot, allowing the operator to dynamically angle the blade 30 degrees left or right from inside the cab.

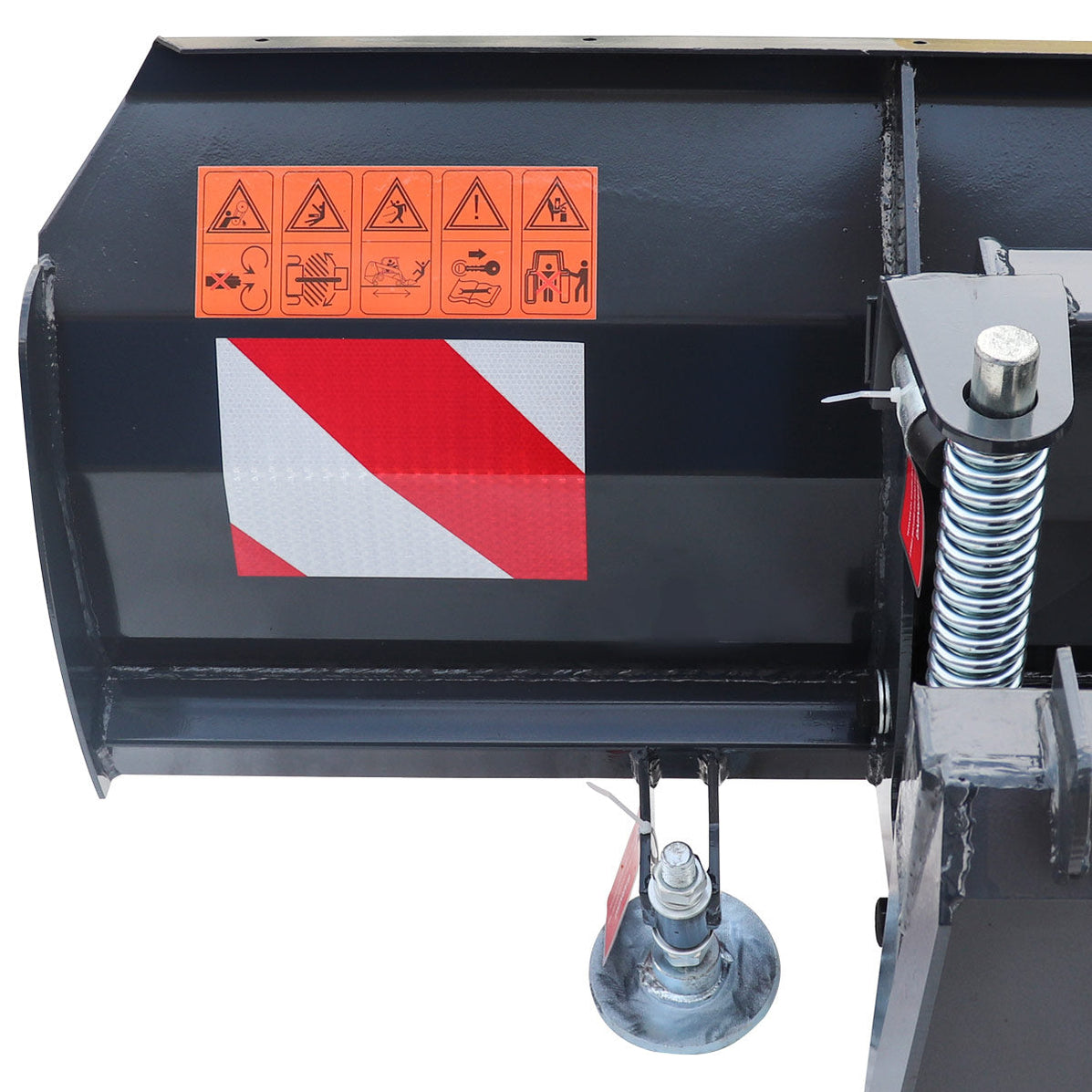

• Shock-Absorbing Dual Trip Springs: Features two industrial-strength tension trip springs that absorb impact pressure and pushback from hidden obstacles like curbs, expansion joints, or rocks, protecting both the attachment and the loader’s lift arms.

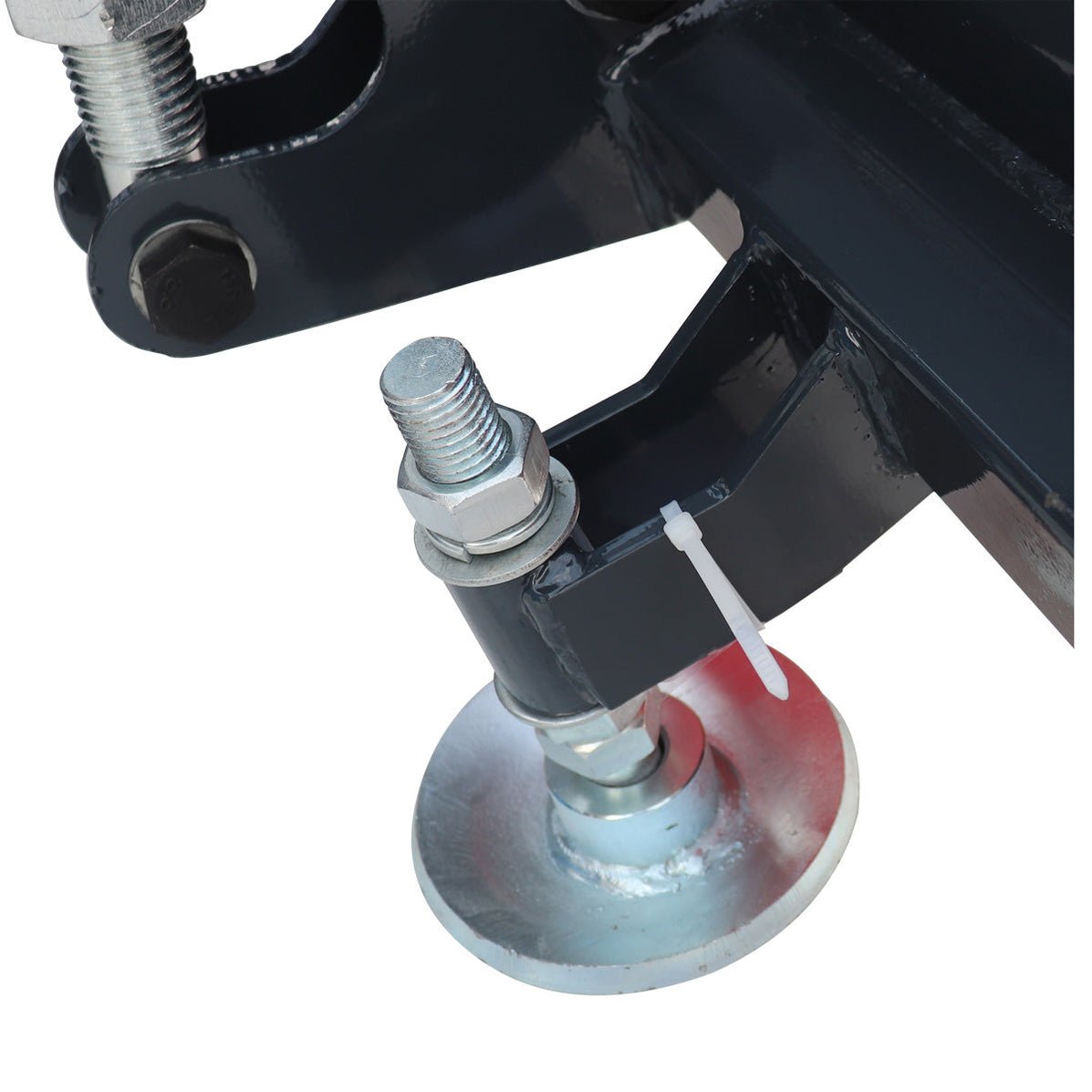

• Adjustable Depth Skid Shoes: Outfitted with heavy-duty side skid shoes that allow the operator to adjust the blade height above the ground surface, ensuring a clean finish while preventing sudden dead stops on uneven terrain.

• Universal Quick Attach Mount: Features a standard universal skid steer quick-mount plate, guaranteeing seamless structural compatibility with nearly all modern skid steer and compact track loader makes and models.

Technical Specifications

• Model: TMG-DB86

• Alternate Sizing Configurations: Also available in 60-inch (TMG-DB60), 72-inch (TMG-DB72), and 94-inch (TMG-DB94) working widths

• Recommended Machine Power: 30 HP minimum requirement

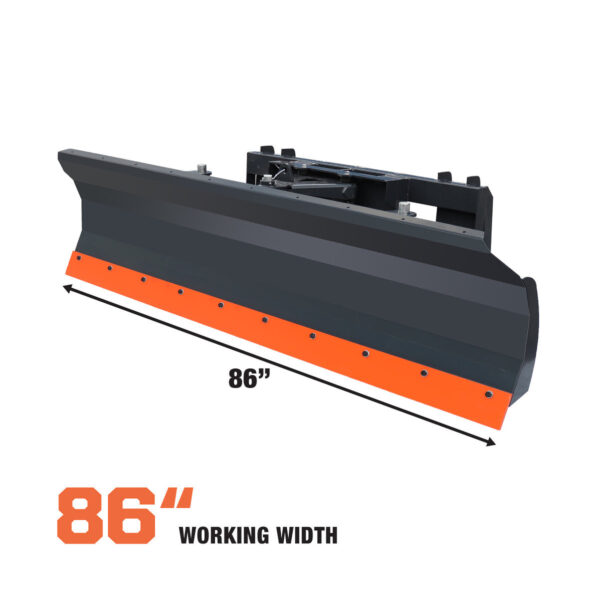

• Working Width: 86” (2.2 meters)

• Moldboard Thickness: 10-Gauge steel construction

• Cutting Edge Specifications: ½” Heavy-duty bolt-on replaceable steel edge

• Articulation Range: 30° to the left and 30° to the right

• Hydraulic System Rating: 2,600 PSI operating threshold

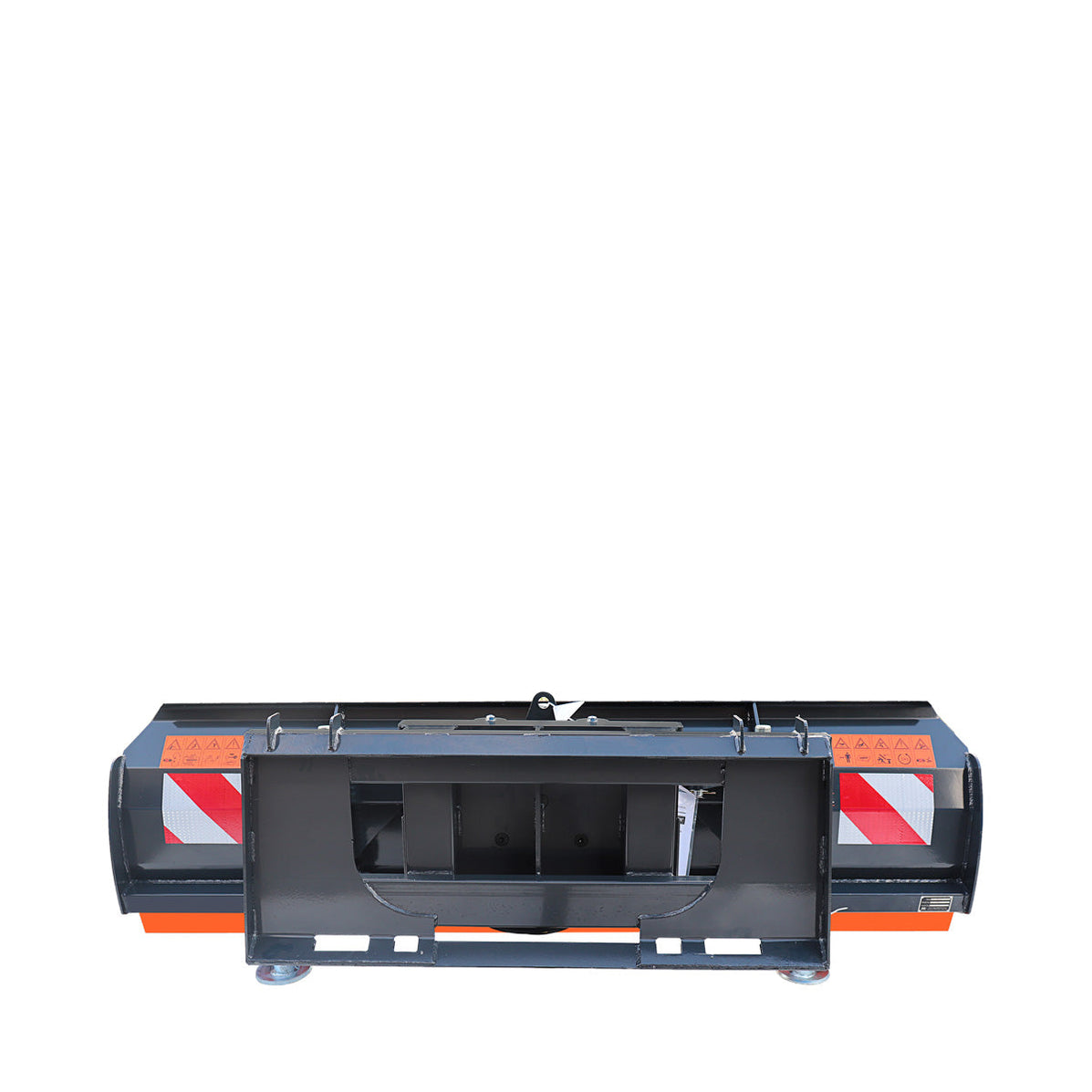

• Mounting Interface: Universal skid steer quick mount

• Hydraulic Connections: Factory-installed hydraulic hoses are included

• Note: Hydraulic quick-disconnect couplers are NOT included and must be sourced separately to match your machine’s specific auxiliary low-flow/high-flow configuration.

Shipping & Delivery

• Processing Time: 2–3 business days

• Delivery: This TMG Industrial Products ships free by standard LTL to delivery addresses in the contiguous United States, with no order minimum. Free local pickup by appointment is also available at 706 N Main St, Gravois Mills, MO 65037. Standard delivery does not include unloading, liftgate, appointment, limited-access, or other accessorial service.

• Unloading Requirements: Product is oversized and heavy. Mechanical unloading assistance (such as a forklift, second skid steer with forks, or compact tractor loader) is required at the delivery destination to safely remove the freight from the transport vehicle.

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 89” L x 31” W x 29” H

• Combined Shipping Weight: 640 lbs
