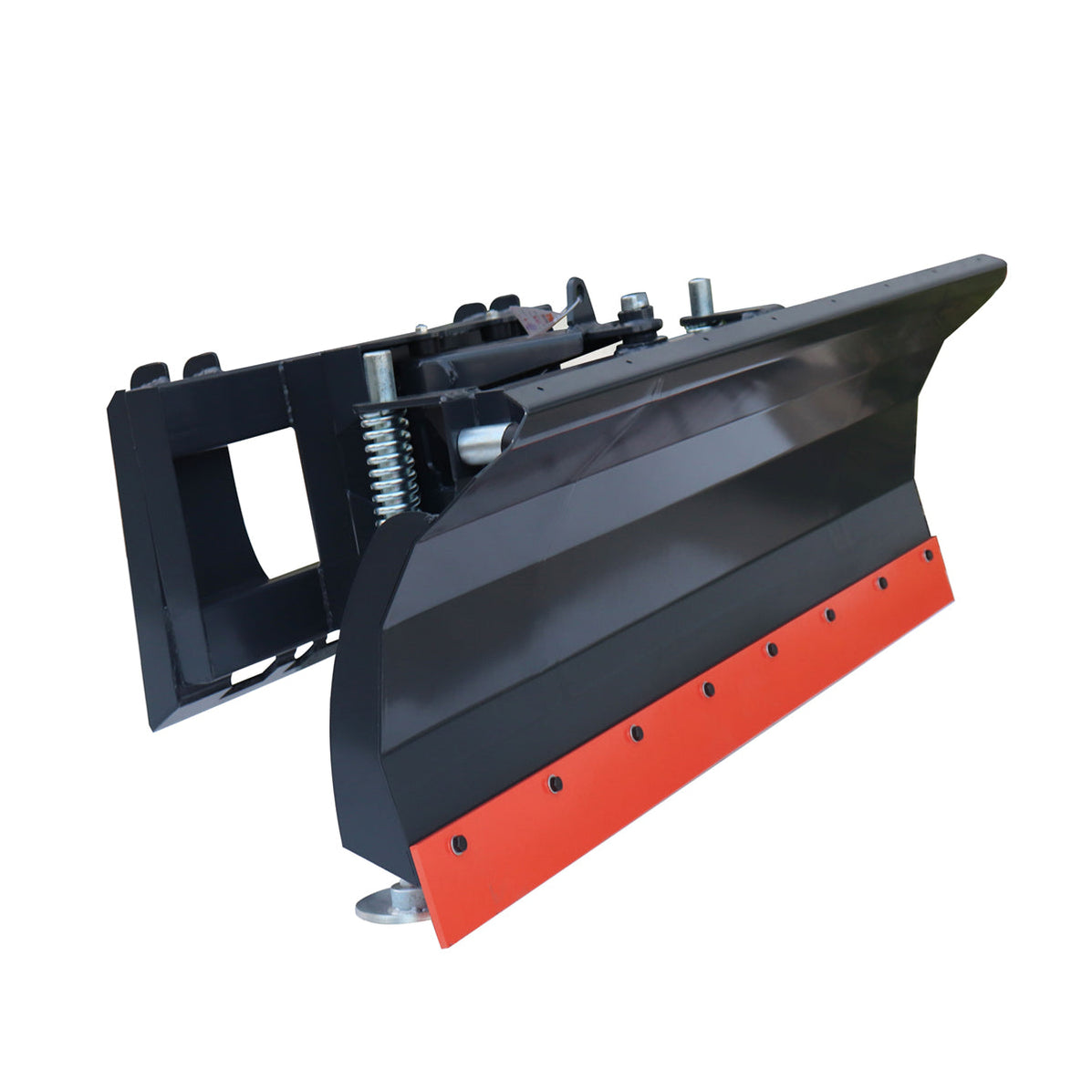

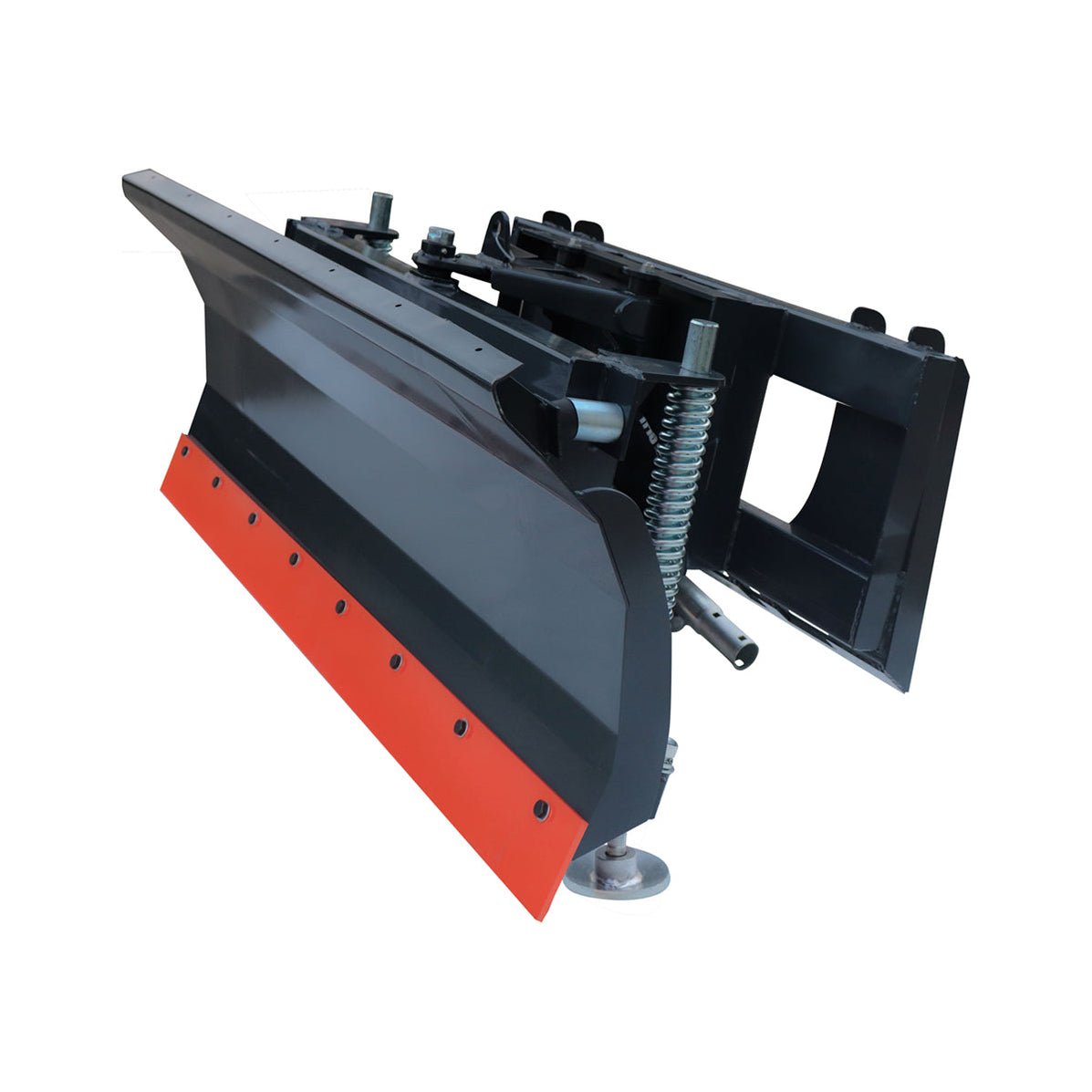

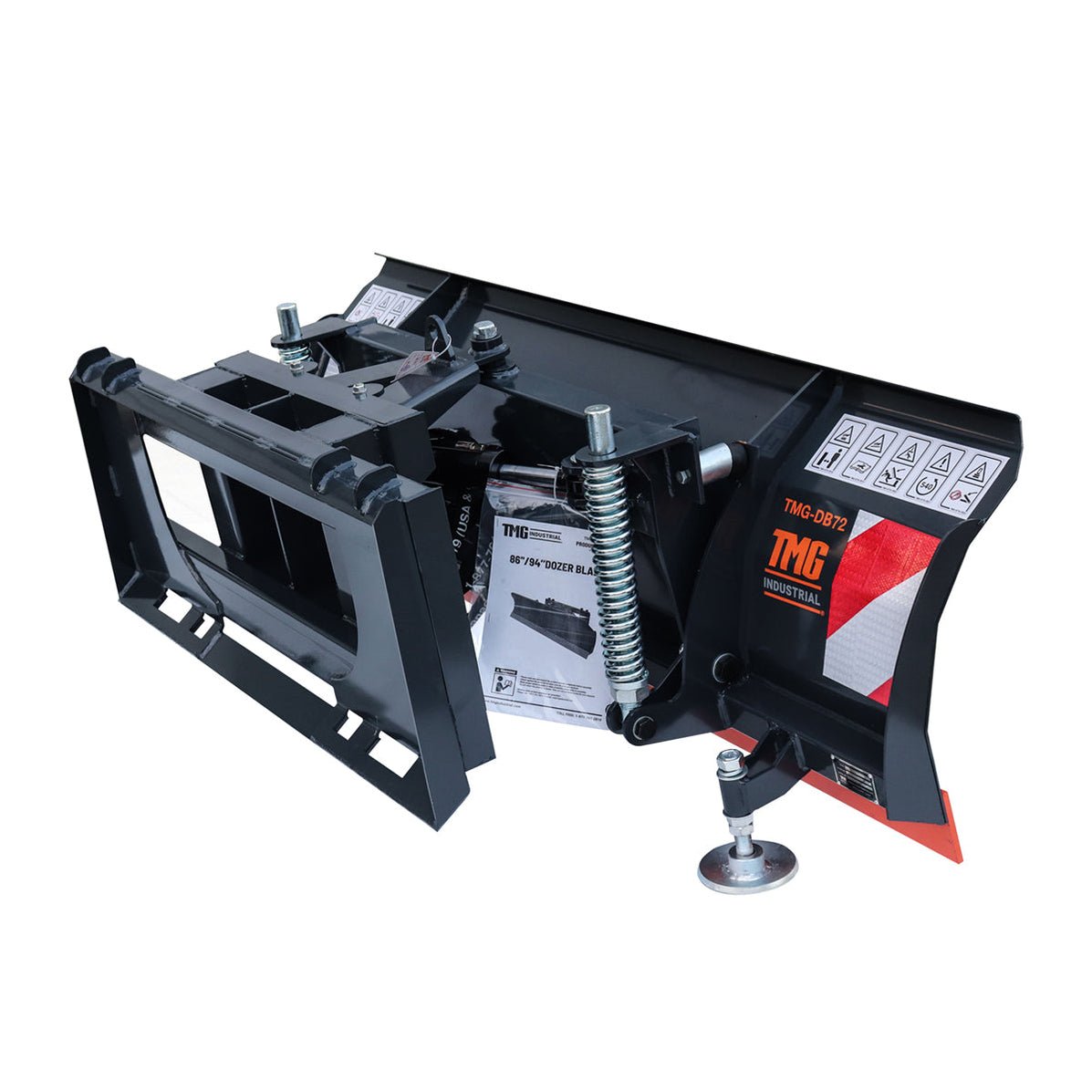

TMG-DB72 72″ Skid Steer Dozer Blade / Snow Plow Pusher

Key Features

• Versatile 72″ Working Footprint: Spans a highly maneuverable 72-inch working width, enabling rapid cycle times while navigating tighter spaces, residential driveways, property lines, and commercial lots.

• Dual-Action Year-Round Utility: Built tough to transition seamlessly across seasons, acting as a rigid dozer blade for grading, trenching, and dirt work, or as a high-volume snow plow pusher.

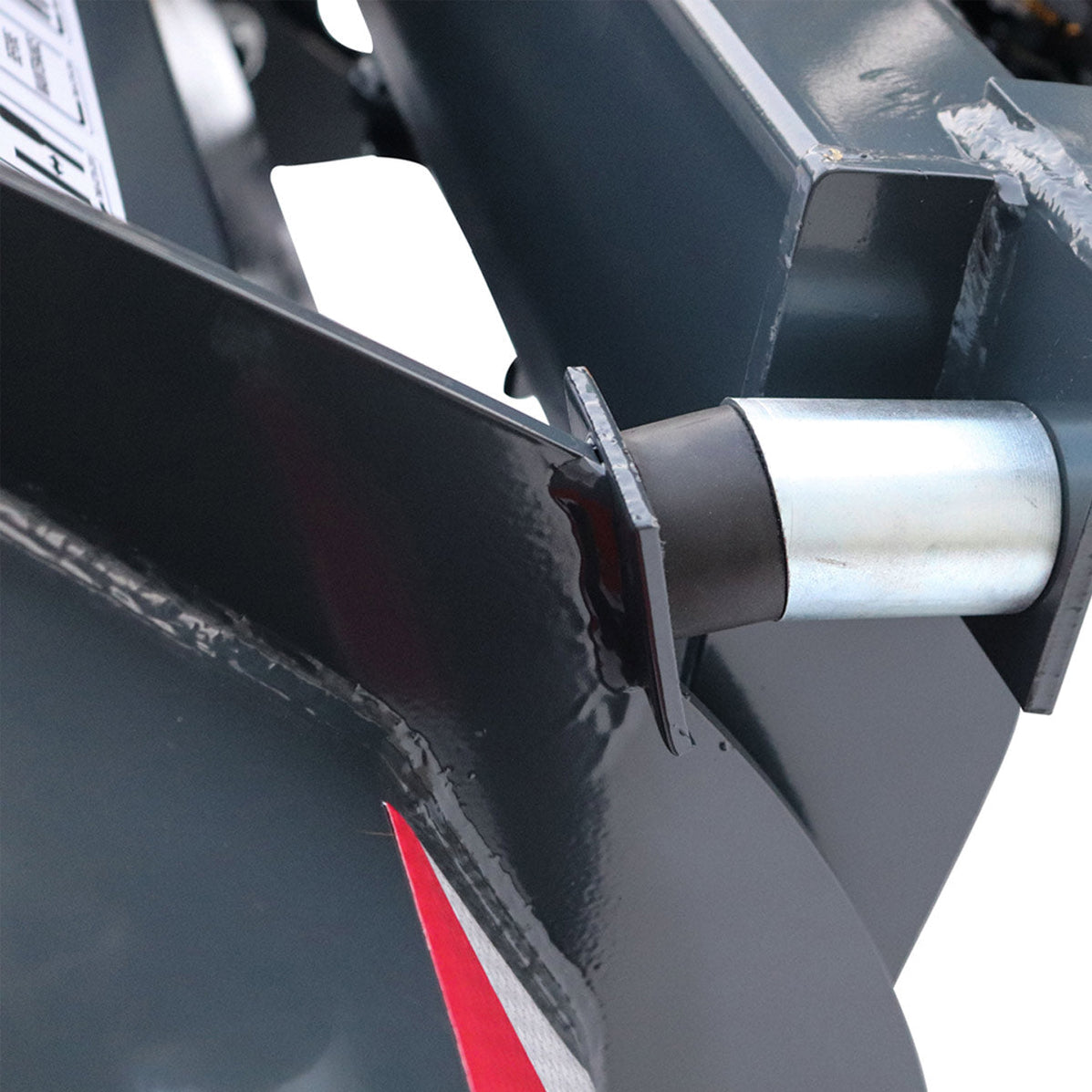

• Forceful 30° Hydraulic Angling: Outfitted with a heavy-duty hydraulic cylinder operating efficiently between 2,300 and 3,600 PSI on a robust A-frame pivot, allowing the operator to dynamically angle the blade 30 degrees left or right from inside the cab.

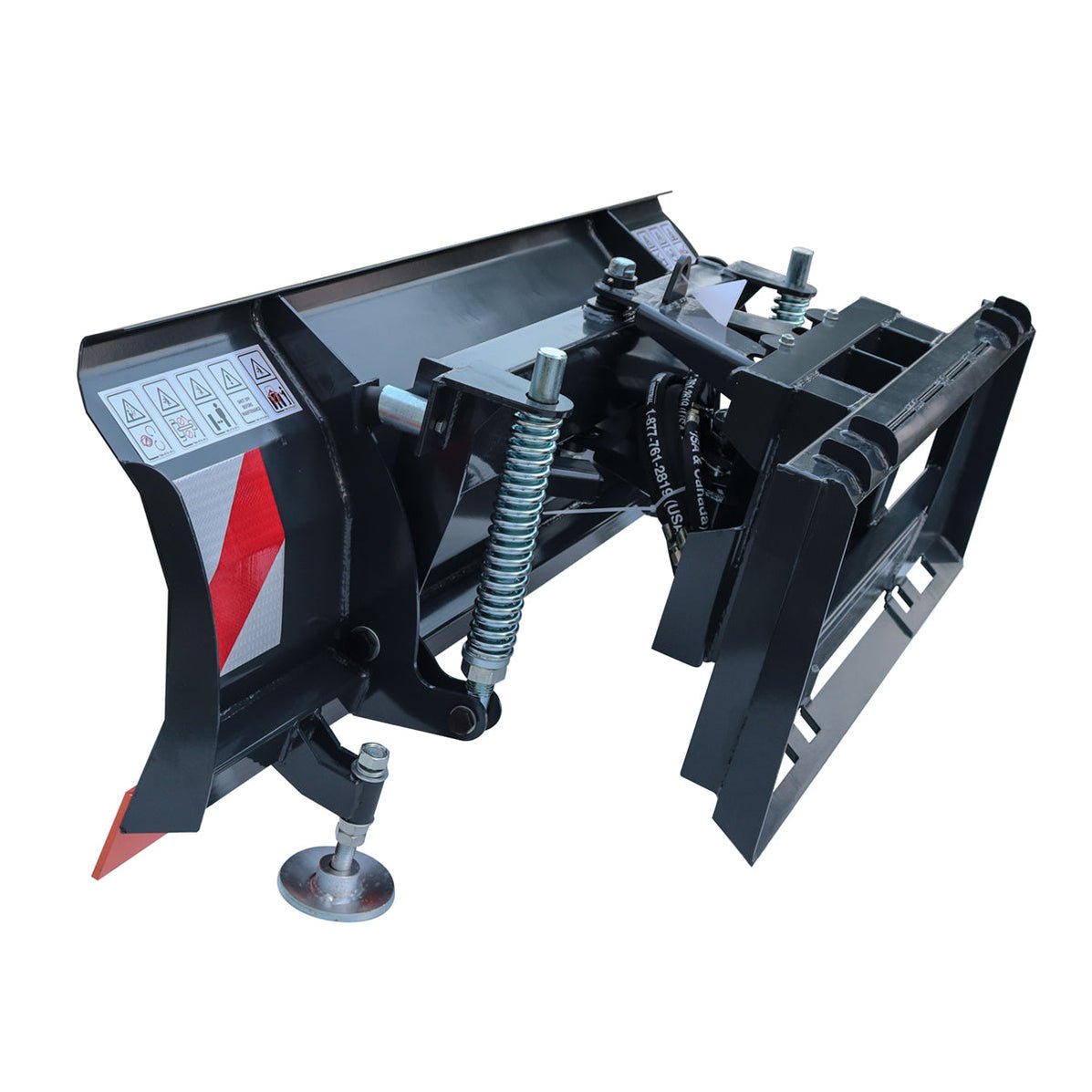

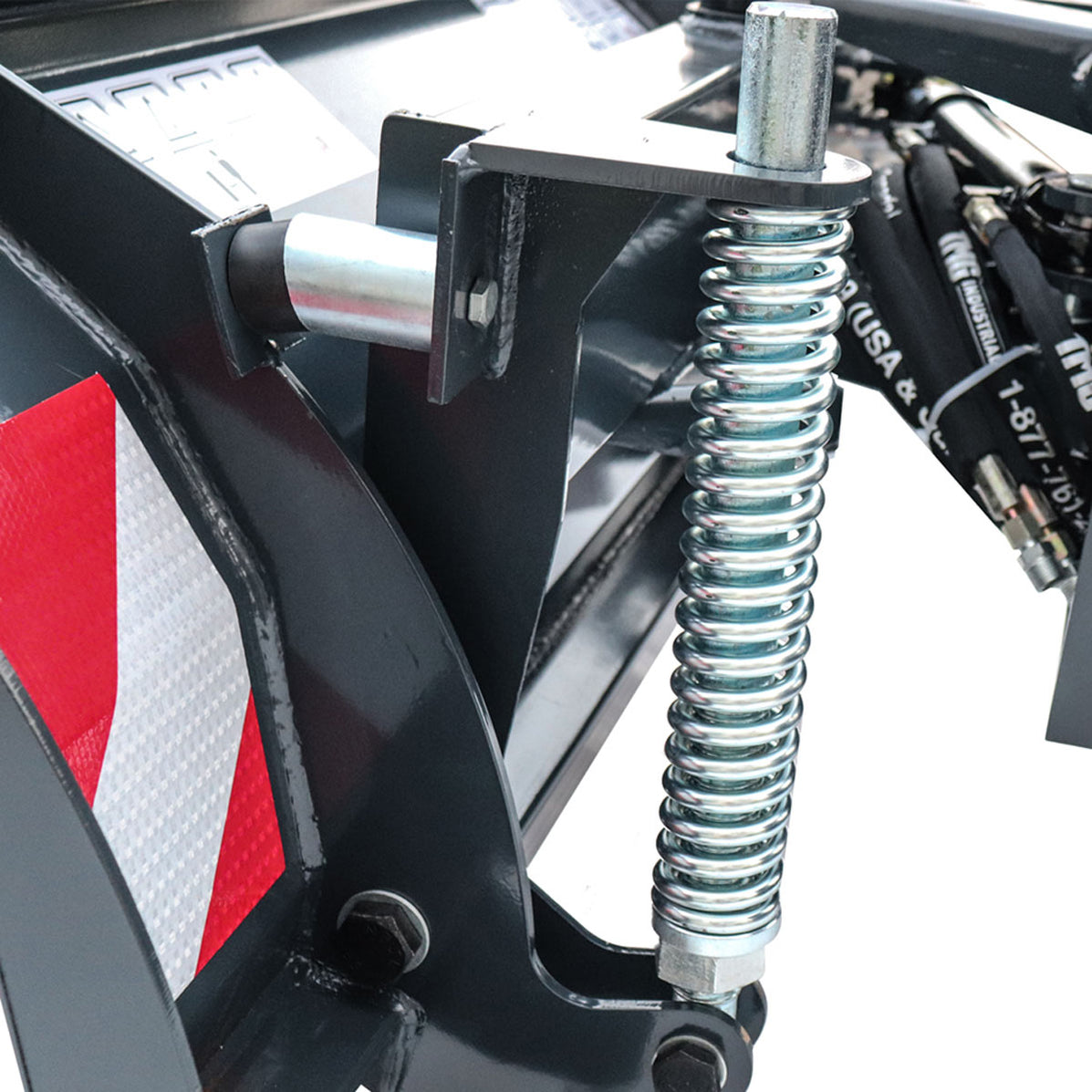

• Shock-Absorbing Dual Trip Springs: Features two industrial-strength tension trip springs that absorb impact pressure and pushback from hidden obstacles like curbs, expansion joints, or rocks, protecting both the attachment and the loader’s lift arms.

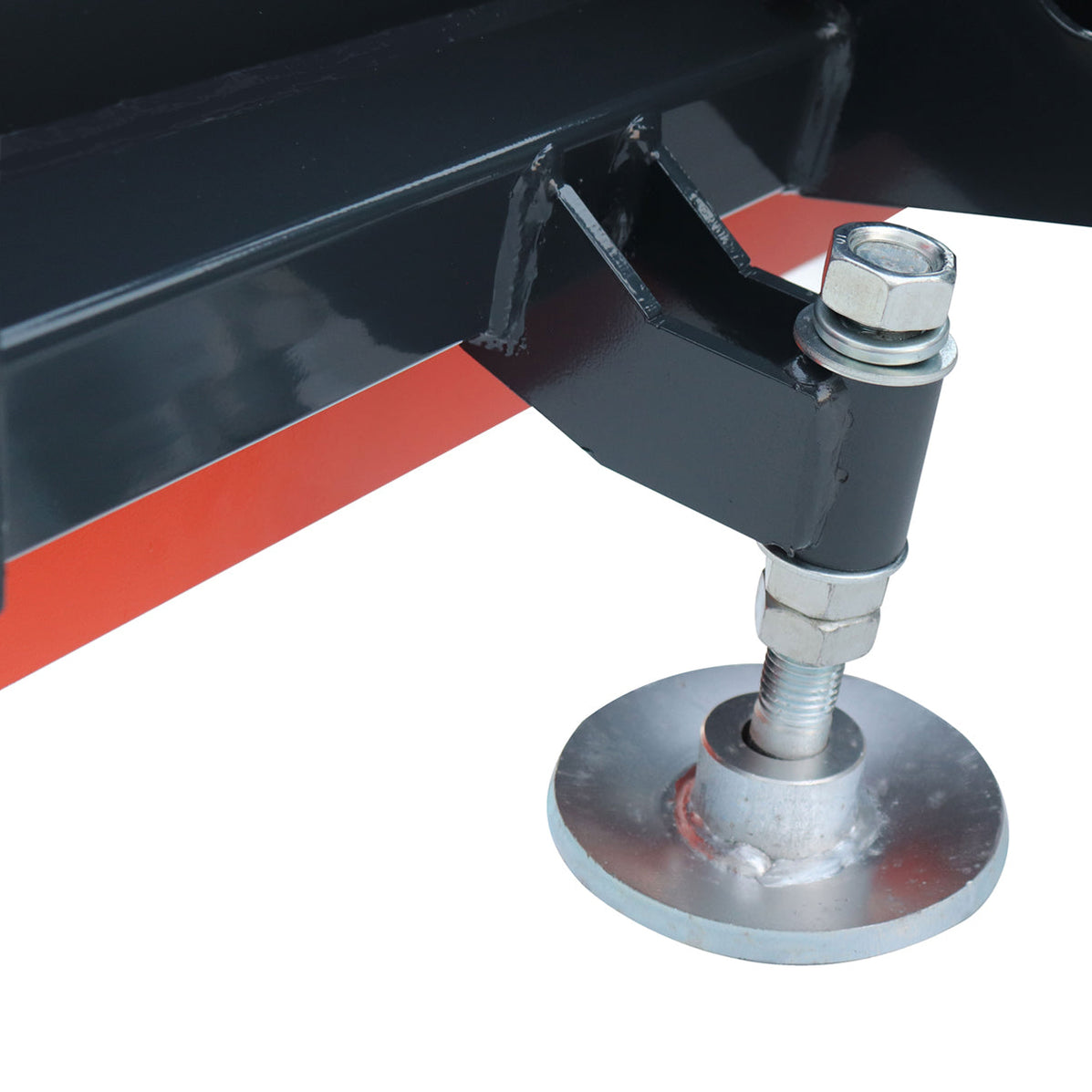

• Adjustable Depth Skid Shoes: Outfitted with heavy-duty side skid shoes that allow the operator to adjust the blade height above the ground surface, ensuring a clean finish while preventing sudden dead stops on uneven terrain.

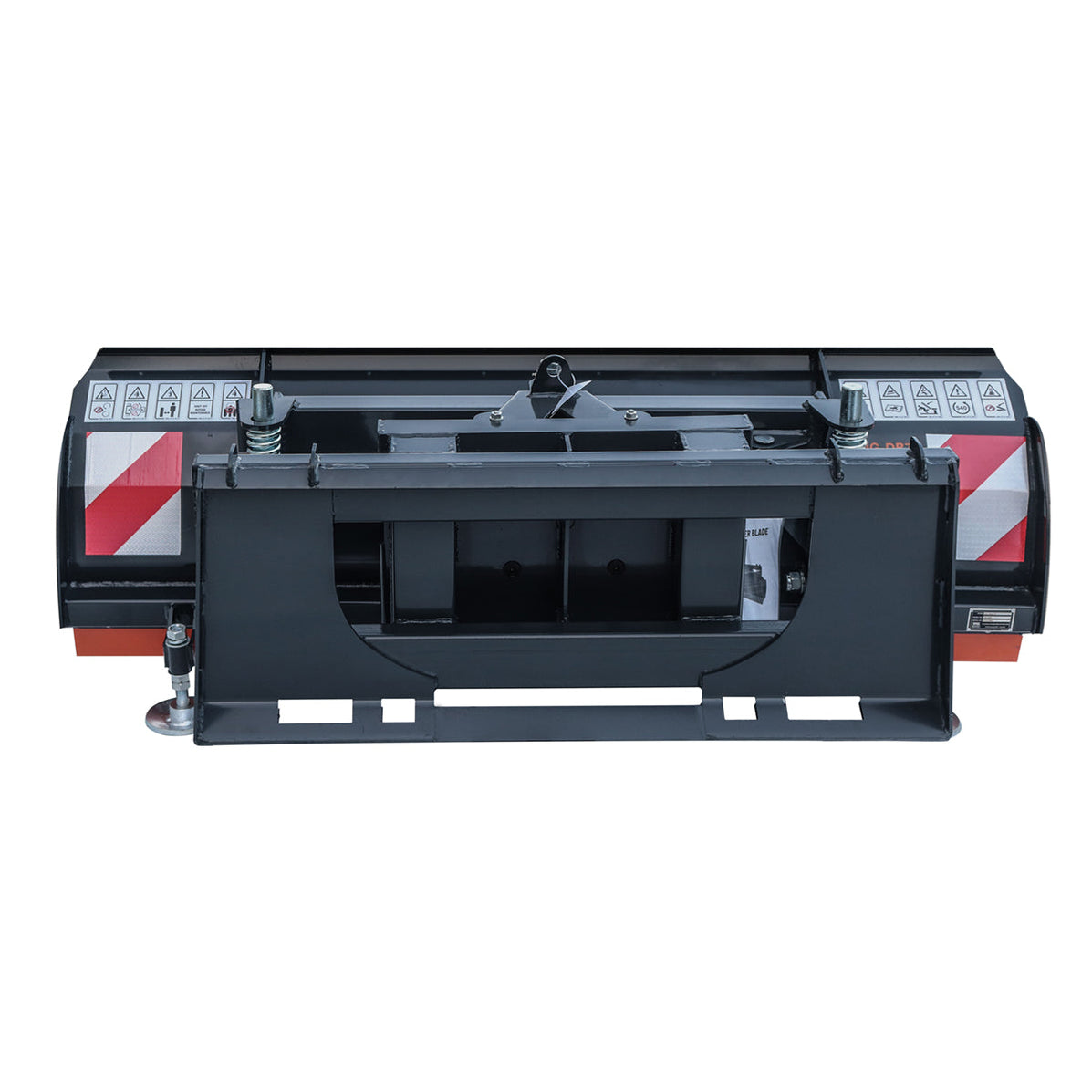

• Universal Quick Attach Mount: Features a standard universal skid steer quick-mount plate, guaranteeing seamless structural compatibility with nearly all modern skid steer and compact track loader makes and models.

Technical Specifications

• Model: TMG-DB72

• Alternate Sizing Configurations: Also available in 60-inch (TMG-DB60), 86-inch (TMG-DB86), and 94-inch (TMG-DB94) working widths

• Recommended Machine Power: 30–60 HP range

• Working Width: 72” (1.8 meters)

• Moldboard Thickness: 10-Gauge steel construction

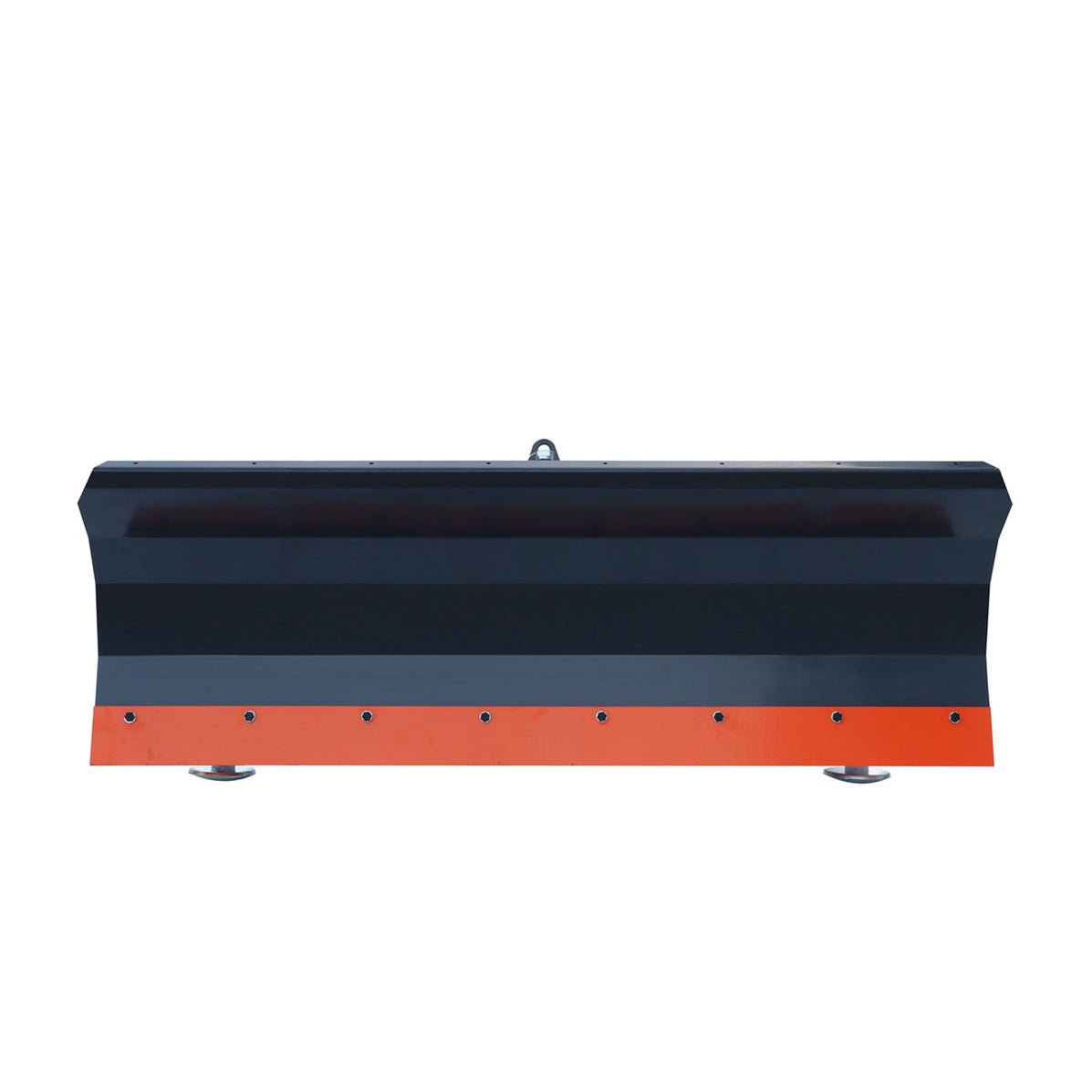

• Cutting Edge Specifications: ½” Heavy-duty bolt-on replaceable steel edge

• Articulation Range: 30° to the left and 30° to the right

• Hydraulic Pressure Threshold: 2,300 – 3,600 PSI (16 – 25 MPa)

• Hydraulic Flow Rate Requirement: 2.6 – 8.0 GPM (10 – 30 L/Min)

• Mounting Interface: Universal skid steer quick mount

• Hydraulic Connections: Factory-installed hydraulic hoses are included

• Note: Hydraulic quick-disconnect couplers are NOT included and must be sourced separately to match your machine’s specific auxiliary low-flow config.

Shipping & Delivery

• Processing Time: 2–3 business days

• Transit Time: 10–15 business days (ships directly from strategic commercial logistics infrastructure within North America)

• Unloading Requirements: Product is oversized and heavy. Mechanical unloading assistance (such as a forklift, second skid steer with forks, or compact tractor loader) is highly recommended at the delivery destination to safely remove the freight crate from the transport vehicle.

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 75” L x 31” W x 27” H

• Combined Shipping Weight: 590 lbs
