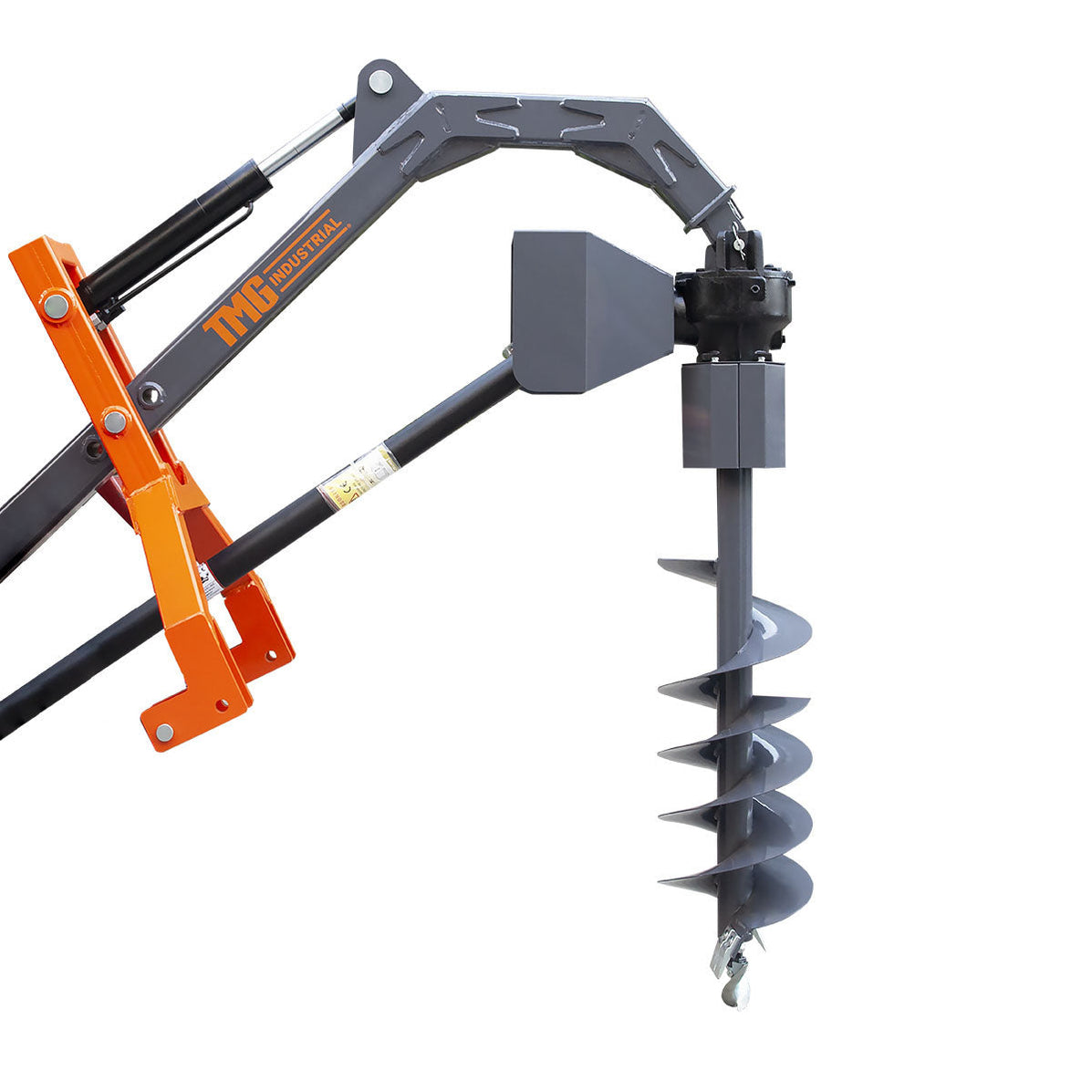

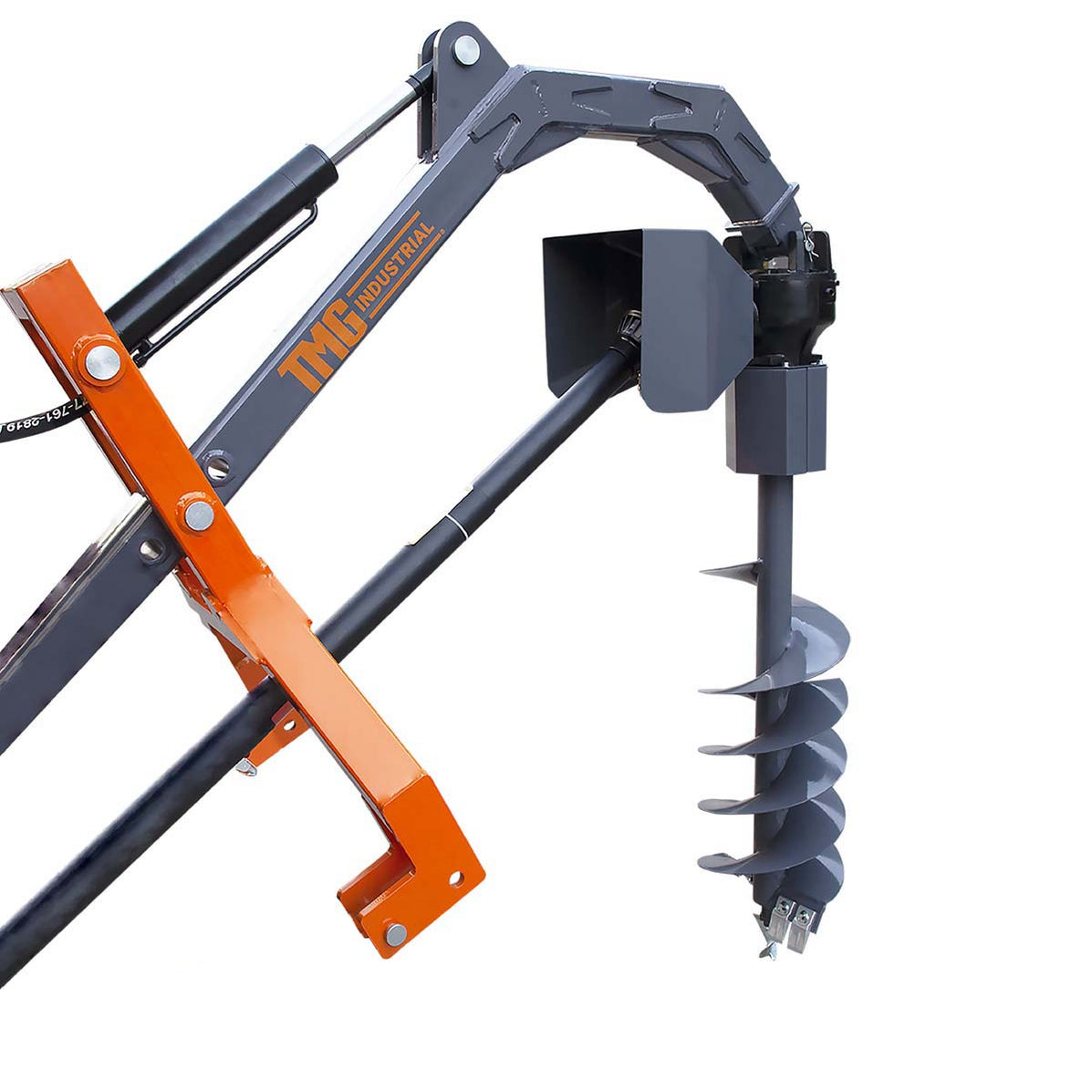

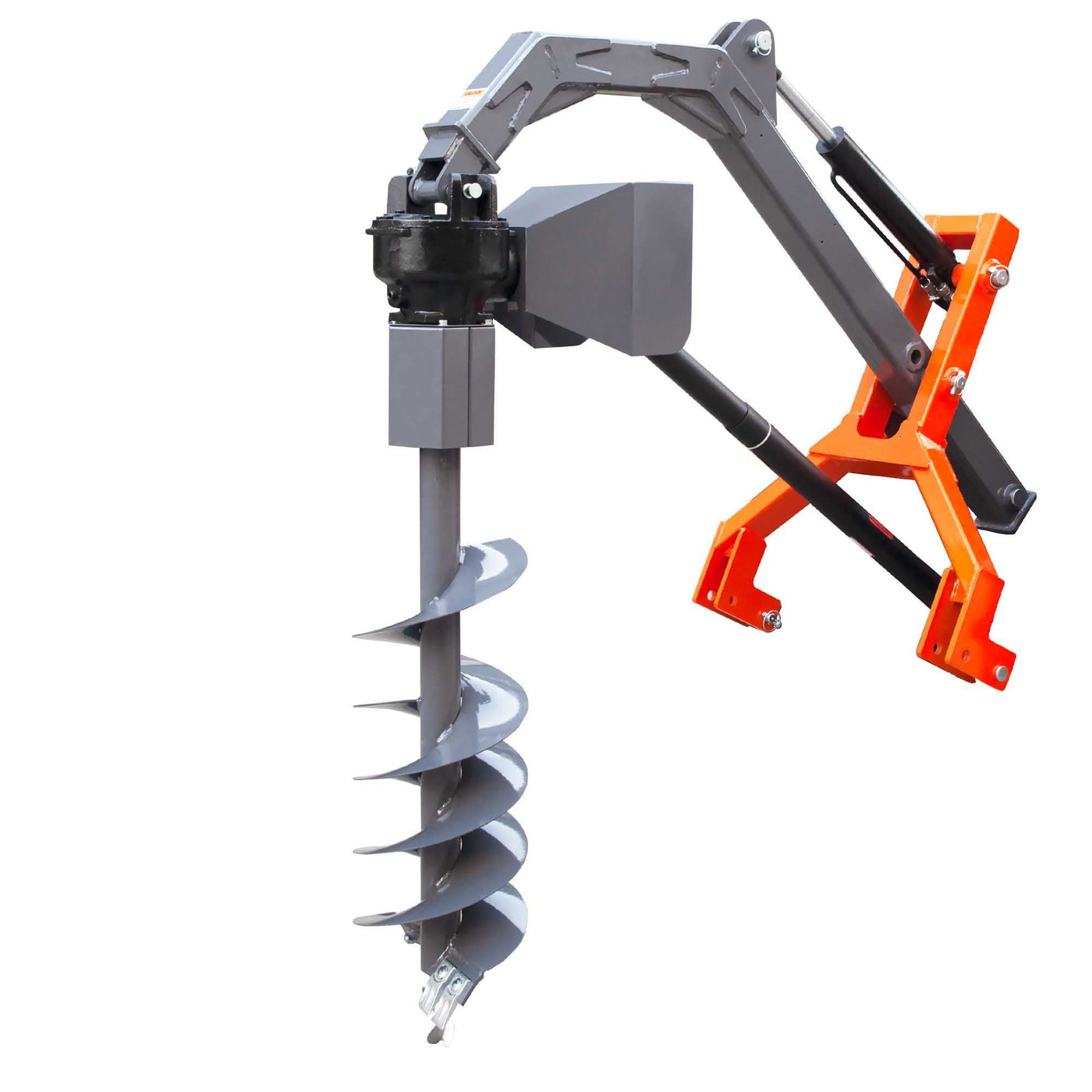

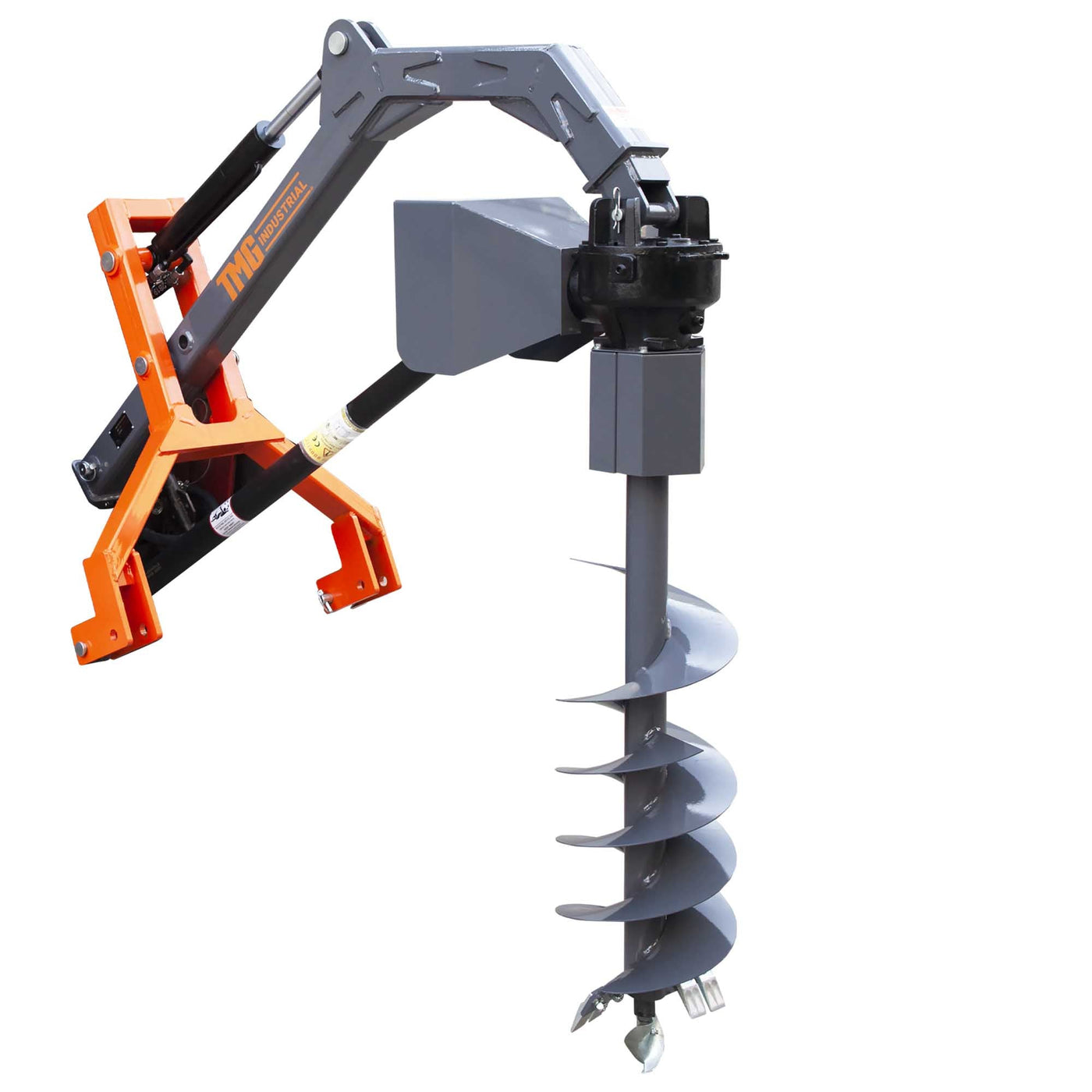

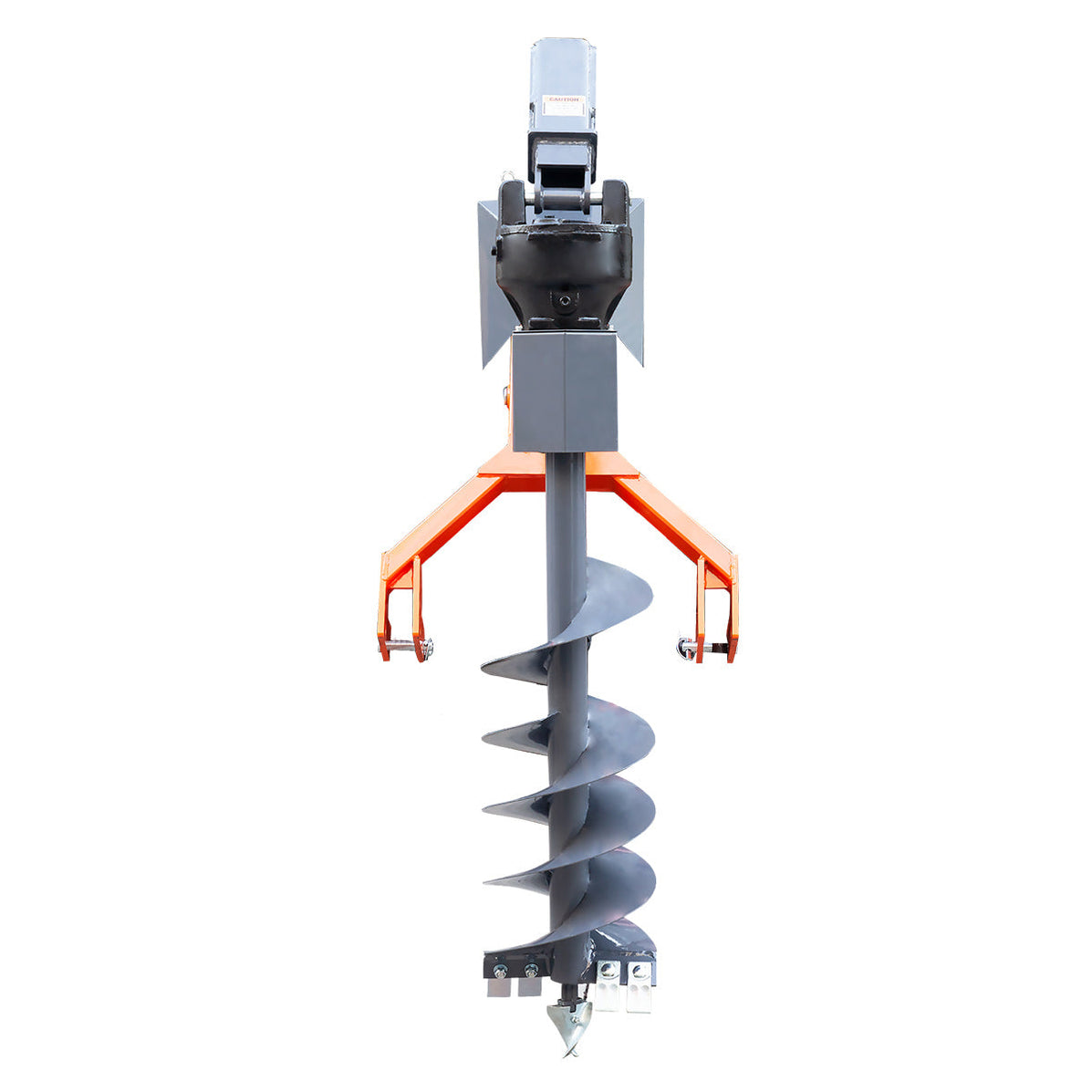

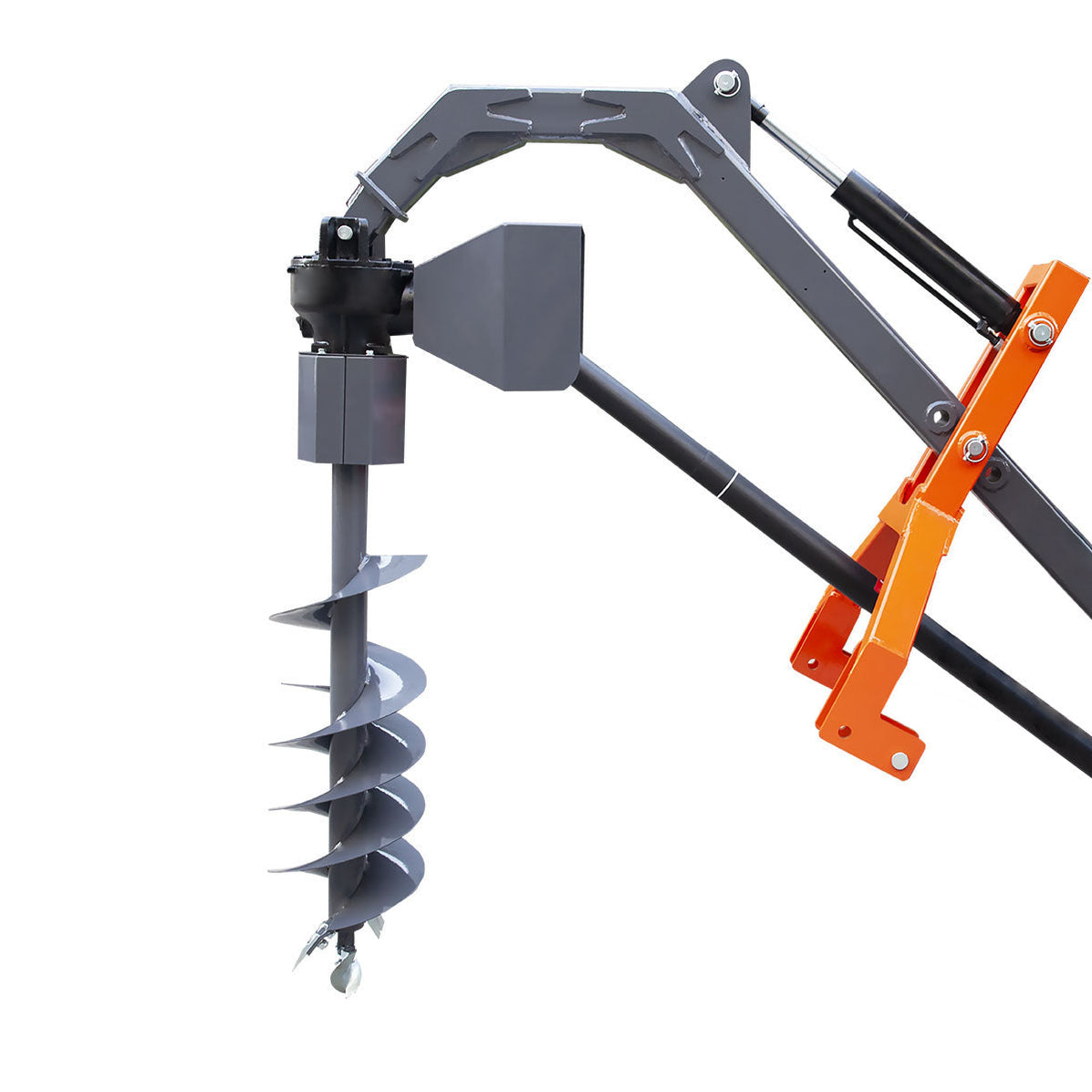

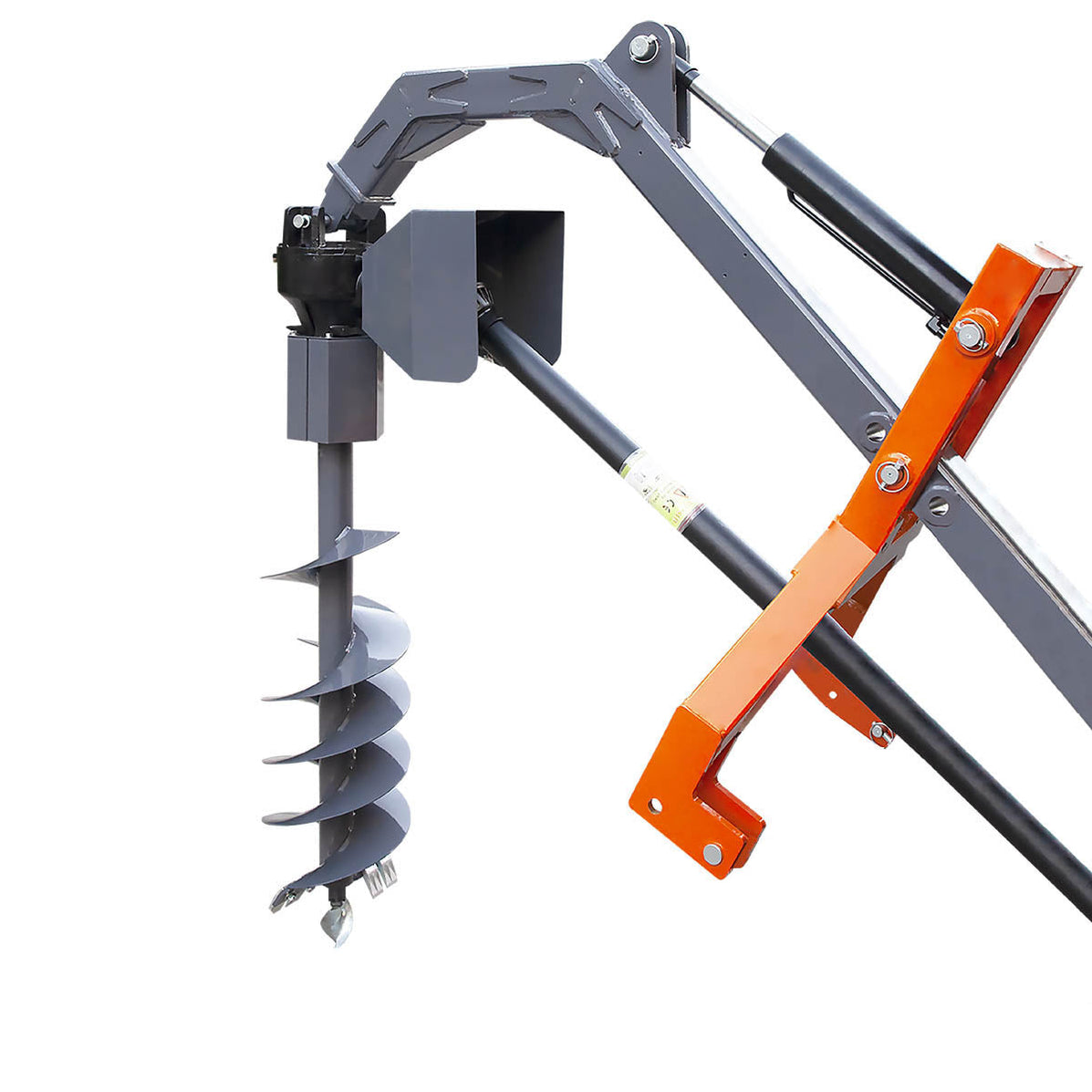

TMG-TPD12 48″ Hydraulic Assist Post Hole Digger

Key Features

• Hydraulic Assist Down-Pressure: Integrates a powerful hydraulic cylinder to deliver positive down-force, ensuring steady, aggressive penetration into hardened or heavily compacted terrain.

• Anti-Swing Stabilization: Engineered with a specialized fixed-position framework that prevents the auger from dangerously swaying or drifting while positioning before a dig or during post-hole extraction.

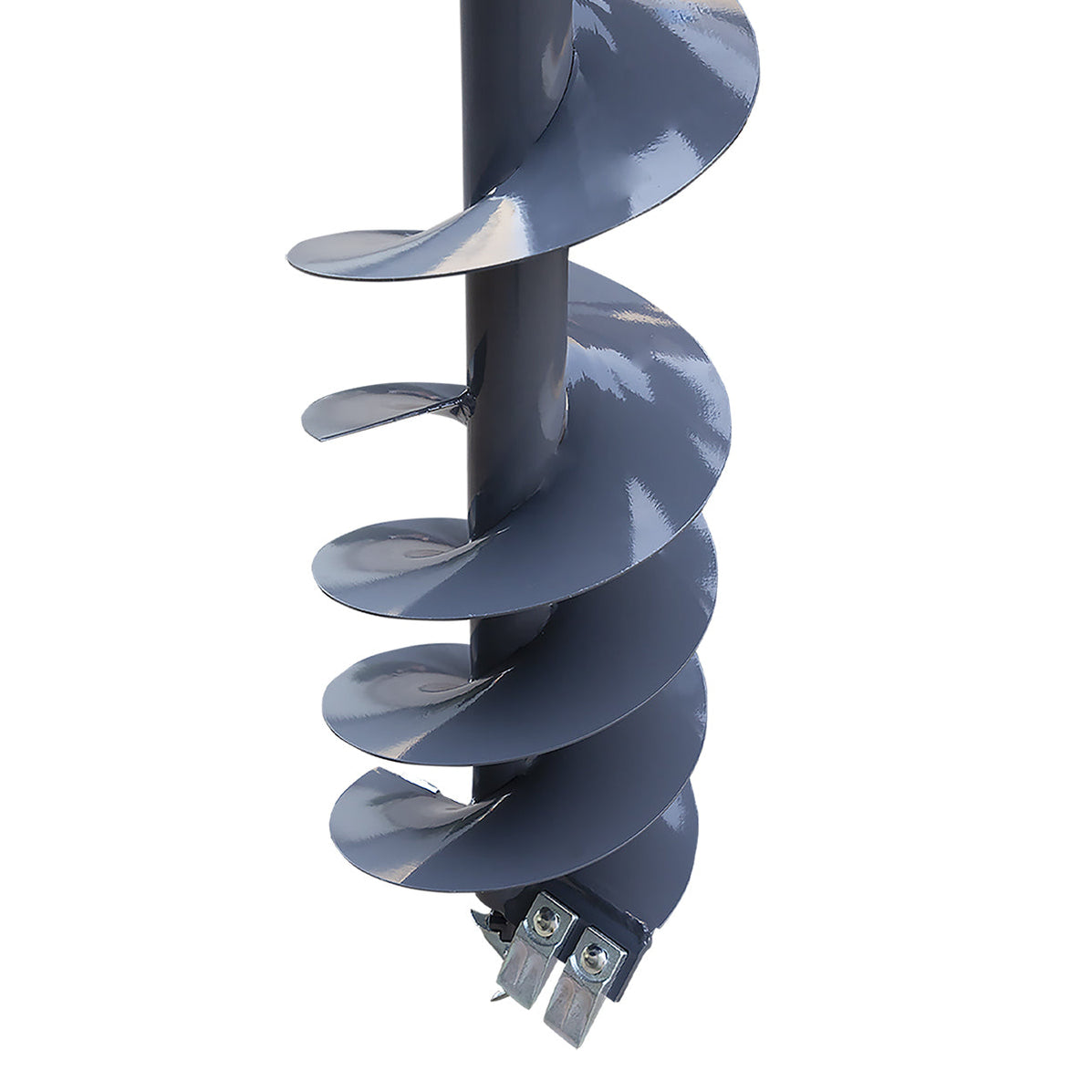

• Continuous Self-Cleaning Auger: Built with a 12-inch diameter steel auger featuring a 14-gauge continuous spiral flighting geometry that prevents clogging and automatically evacuates loose dirt and rock shards.

• Three-Position Adjustable Boom: Features a heavy-wall structural steel boom with three distinct pin positioning holes to adapt the angle and leverage of the digger across uneven slopes or varying tractor drawbar heights.

• Heat-Treated Cutting Edges: Outfitted with high-durability, bolt-on replaceable cutting teeth and a pilot point designed to take the brunt of underground impact while maintaining long-term sharpness.

• Dual Category Compatibility: Equipped with robust 3-point hitch geometry that integrates seamlessly with both Category 1 and Category 2 tractor setups.

Technical Specifications

• Model: TMG-TPD12

• Recommended Tractor Power: 35–65 HP

• Drivetrain Input Speed: 540 RPM standard PTO

• Hitch Compatibility: Category 1 (CAT 1) and Category 2 (CAT 2) 3-Point Hitch setups (Category adjustments may require localized bushing/pin hardware updates)

• Drive Type: Direct-drive gearbox with shear-pin protection

• Output Bore Size: 2” (Standard attachment connection)

• Maximum Digging Depth: 48” (1200 mm)

• Auger Flighting Diameter: 12” (310 mm)

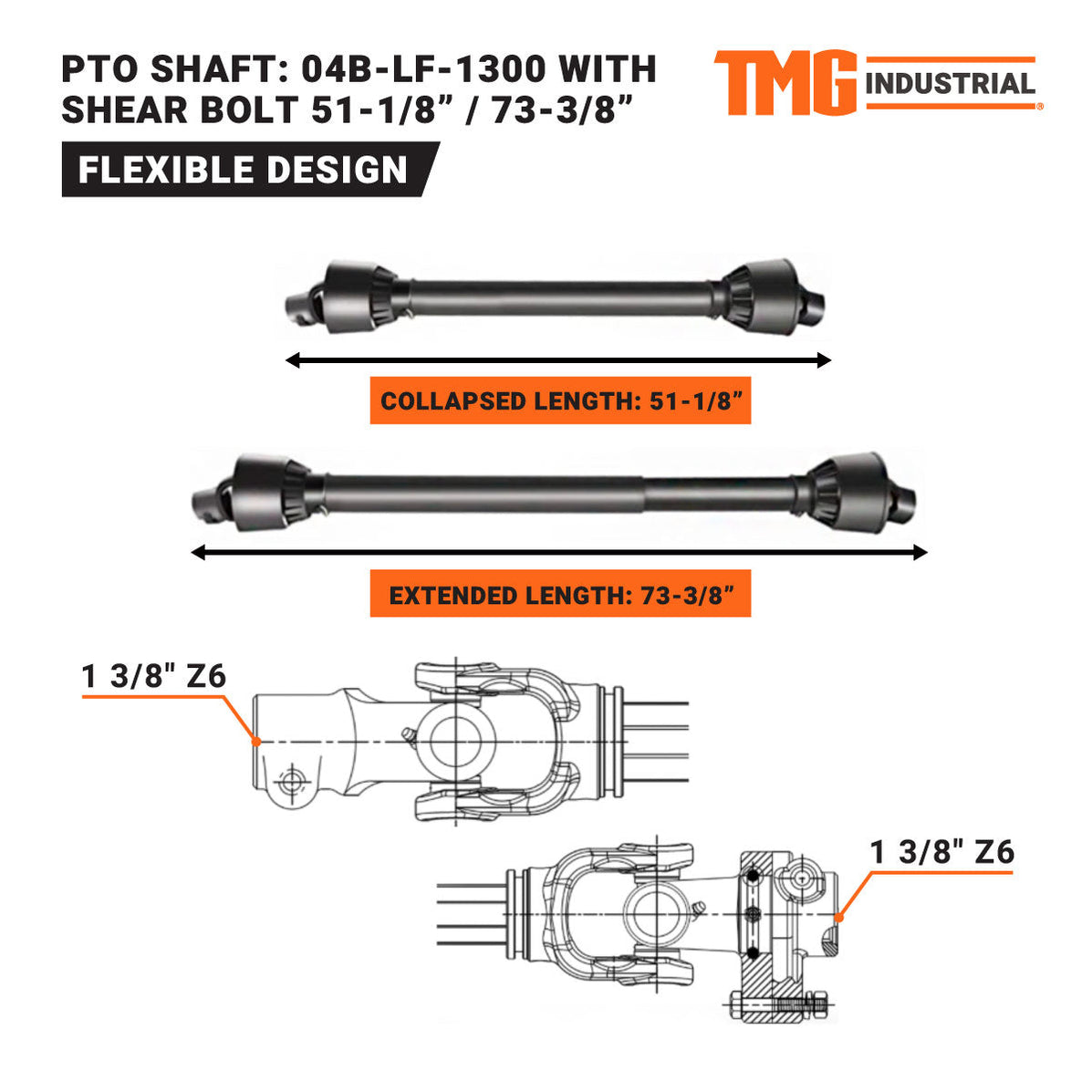

• Driveline Protection: Heavy-duty PTO drive shaft with integrated shear-pin linkage system included

• Wear Hardware: Replaceable heat-treated steel cutting edges and centering point

Shipping & Delivery

• Processing Time: 2–3 business days

• Transit Time: 10–15 business days via LTL freight. Delivery timing may vary based on product availability, destination, site access, and carrier scheduling.

• Availability Note: Highly sought-after equipment; final freight dispatch is subject to current product availability and carrier scheduling.

• Unloading Requirements: Product is oversized, dense, and heavy. Mechanical unloading assistance (such as a forklift, skid steer with forks, or compact tractor loader) is required at the destination address to safely handle the freight crate from the delivery truck.

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 71” L x 28” W x 16” H

• Combined Shipping Weight: 565 lbs
