TMG-RS10 10′ Heavy Duty Static Grizzly Rock Screen

$6,595.00

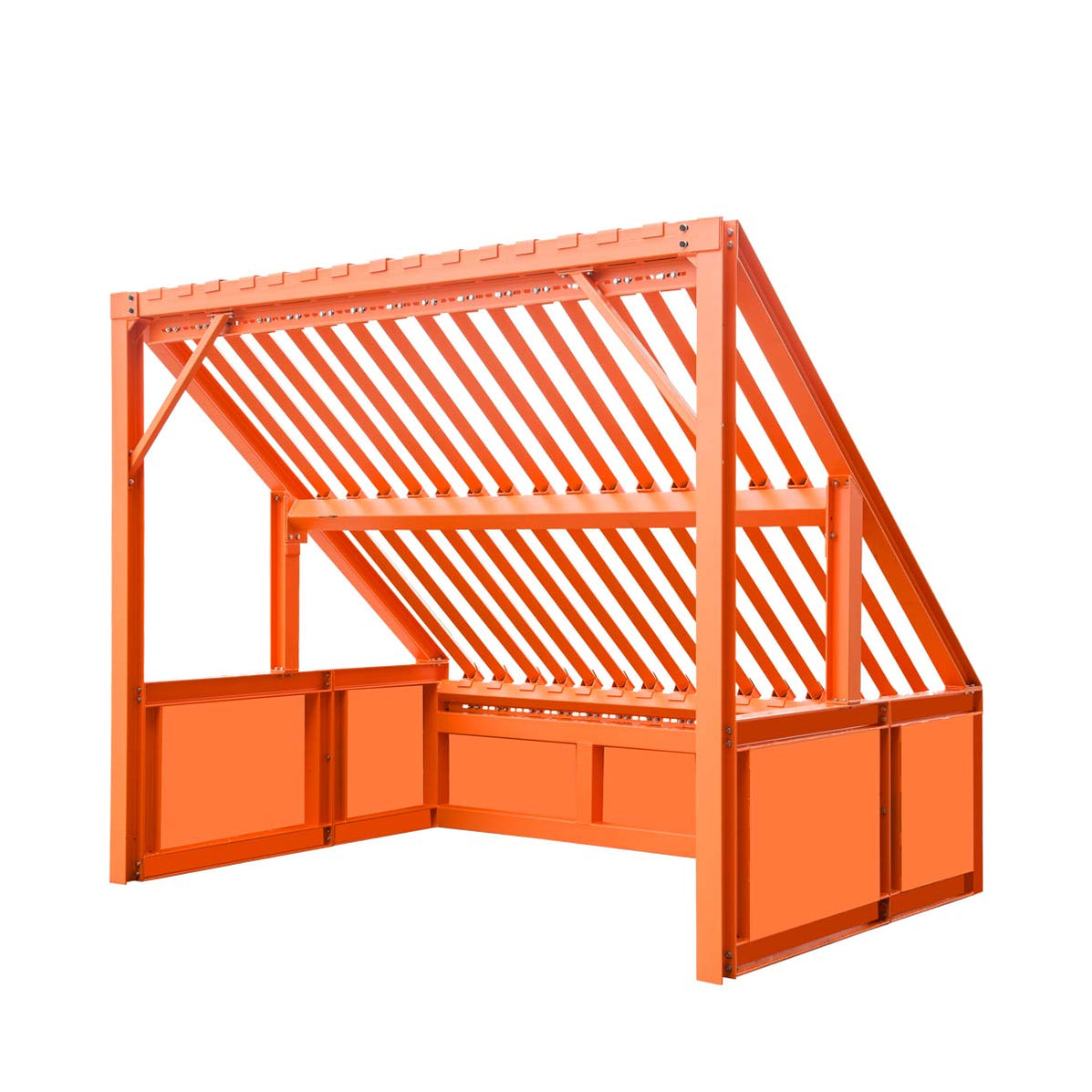

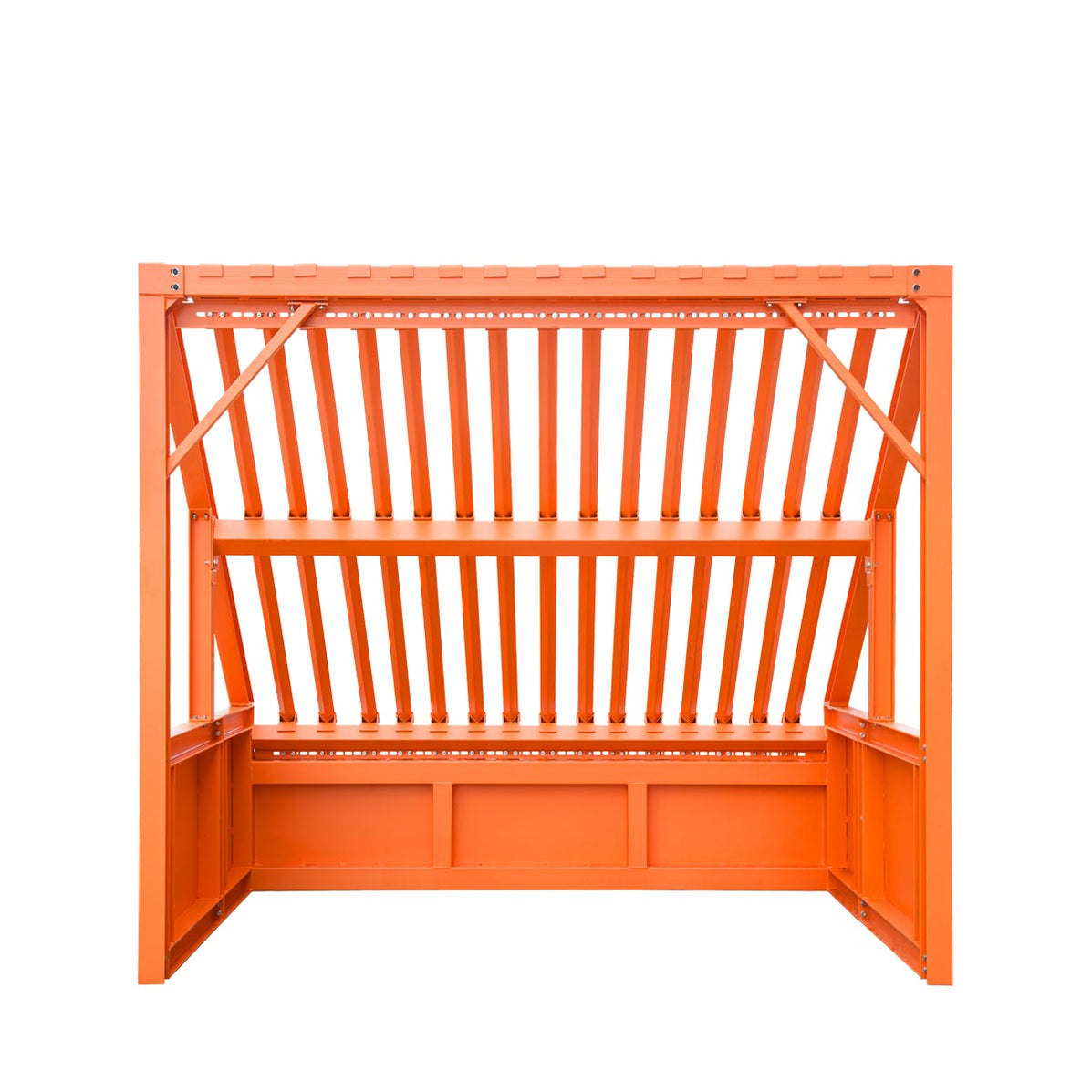

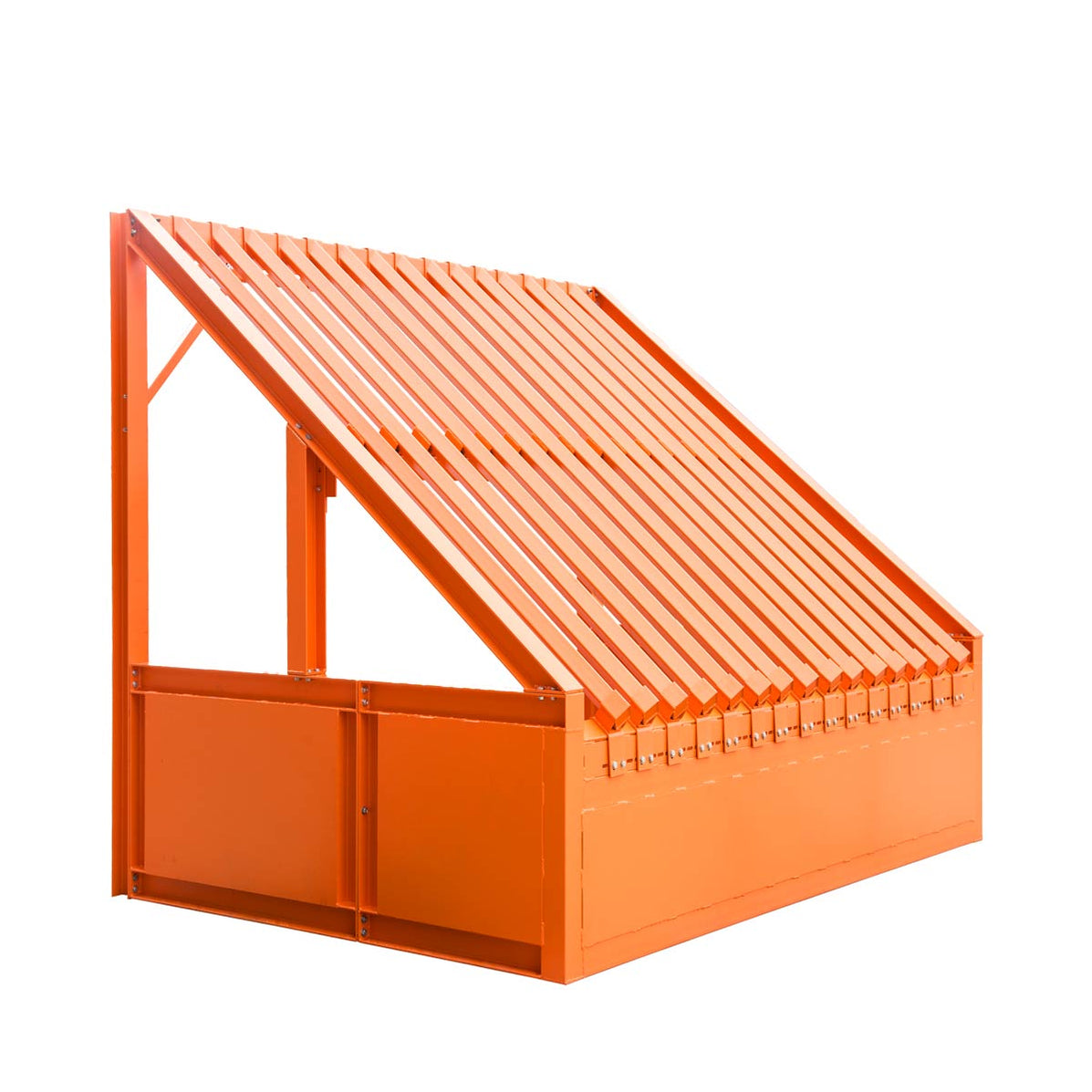

Maximize sorting efficiency on your most demanding job sites with the TMG-RS10 Heavy Duty Static Grizzly Rock Screen. Engineered for high-volume material separation, this 10-by-7-foot screener is built on a rugged 4-inch I-beam framework capable of sustaining 5,000 lbs of continuous working load. Ideal for open-pit mining, aggregate processing, demolition, and site development, it provides a crucial first line of defense to sort oversized materials and waste before secondary crushing operations.

Only 1 left in stock (can be backordered)

Before you order
  • Most orders over $1,000 qualify for free freight. Most shelters and TMG products over $1,000 qualify unless specifically excluded.
  • Loading docks, loading ramps and bridges are excluded from free freight; some Conex-style containers may also require confirmation.
  • Local pickup in Gravois Mills, MO saves $200 at checkout: eligible carts.
Shipping DetailsCall 660-858-8251Ask a Product Question

  • 🚚 Fast LTL Freight Shipping

  • 🛡️ Manufacturer Warranty

  • 📞 Expert Phone Support

Key Features

  • High-Volume Load Capacity: Robust structural design sustains up to 5,000 lbs of heavy, mixed materials for rigorous commercial aggregate and recycling tasks.

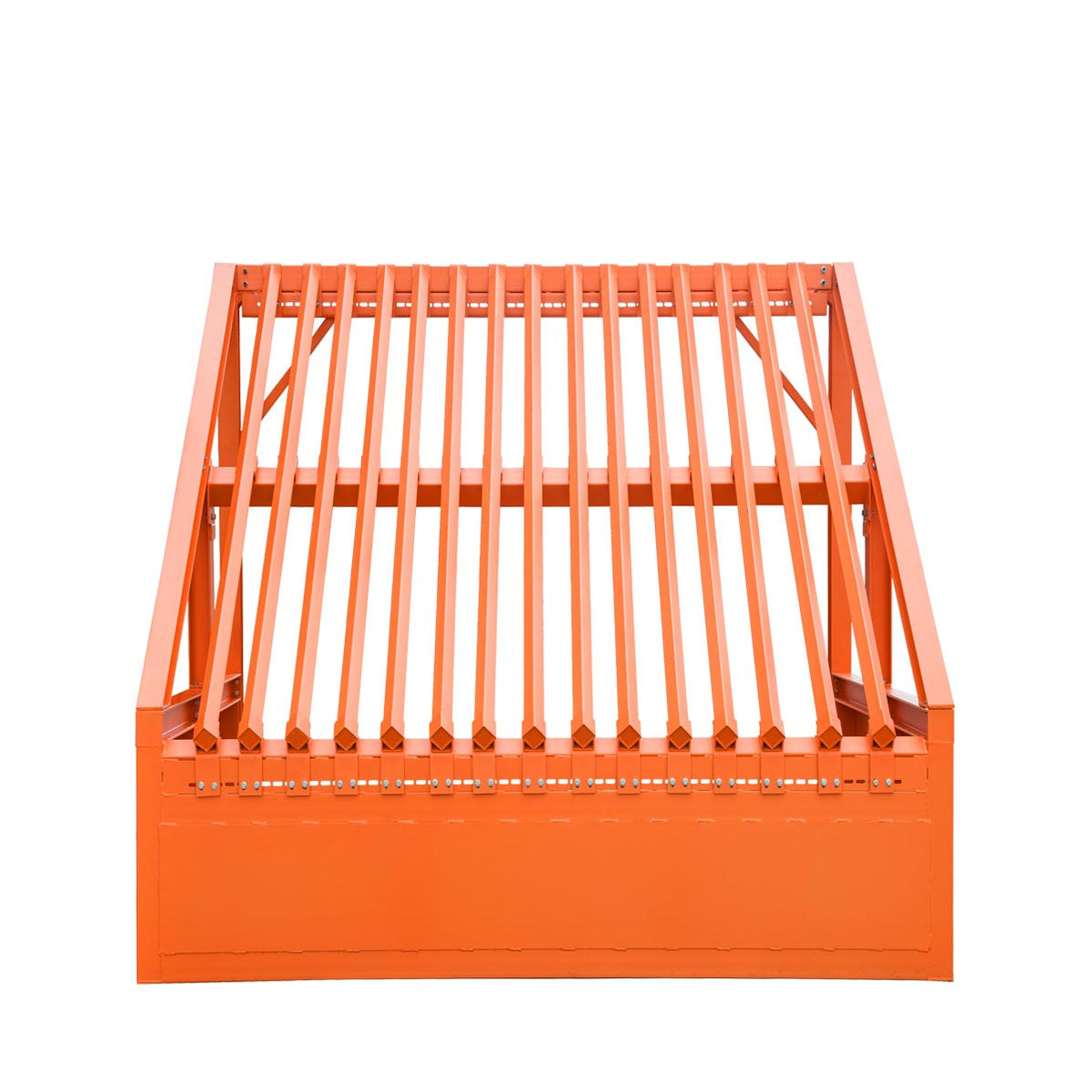

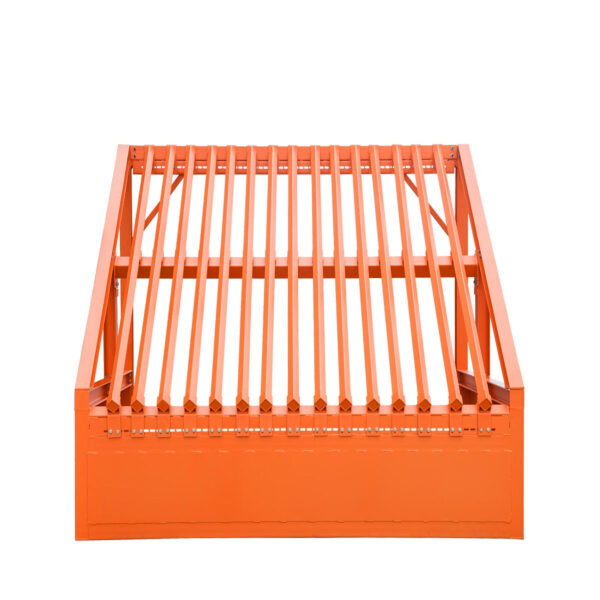

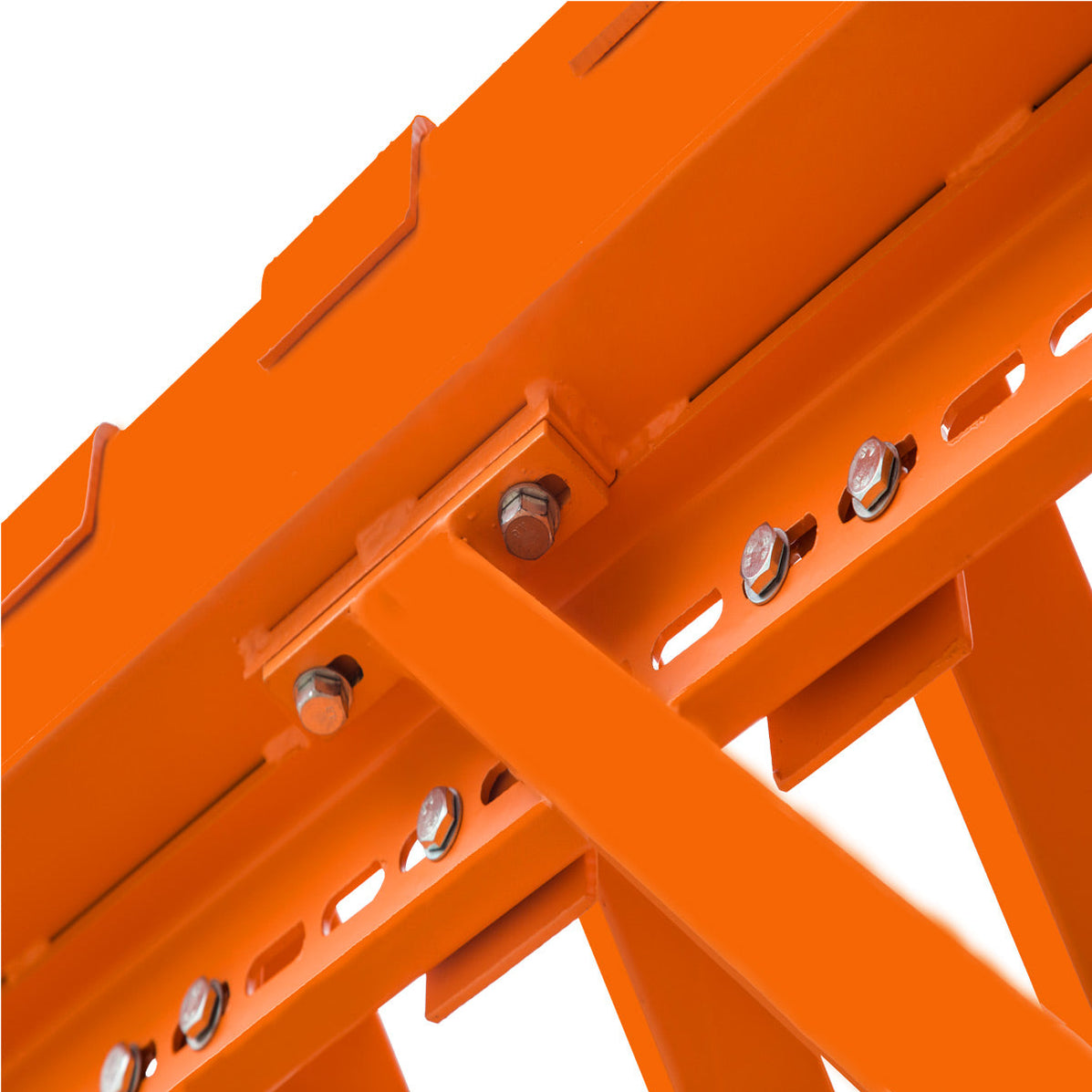

  • Adjustable Sifting Profiles: Features bolt-on, 8-gauge deck bars with customizable spacing from 1″ to 5″ (3″ standard) to match specific job-site sorting requirements.

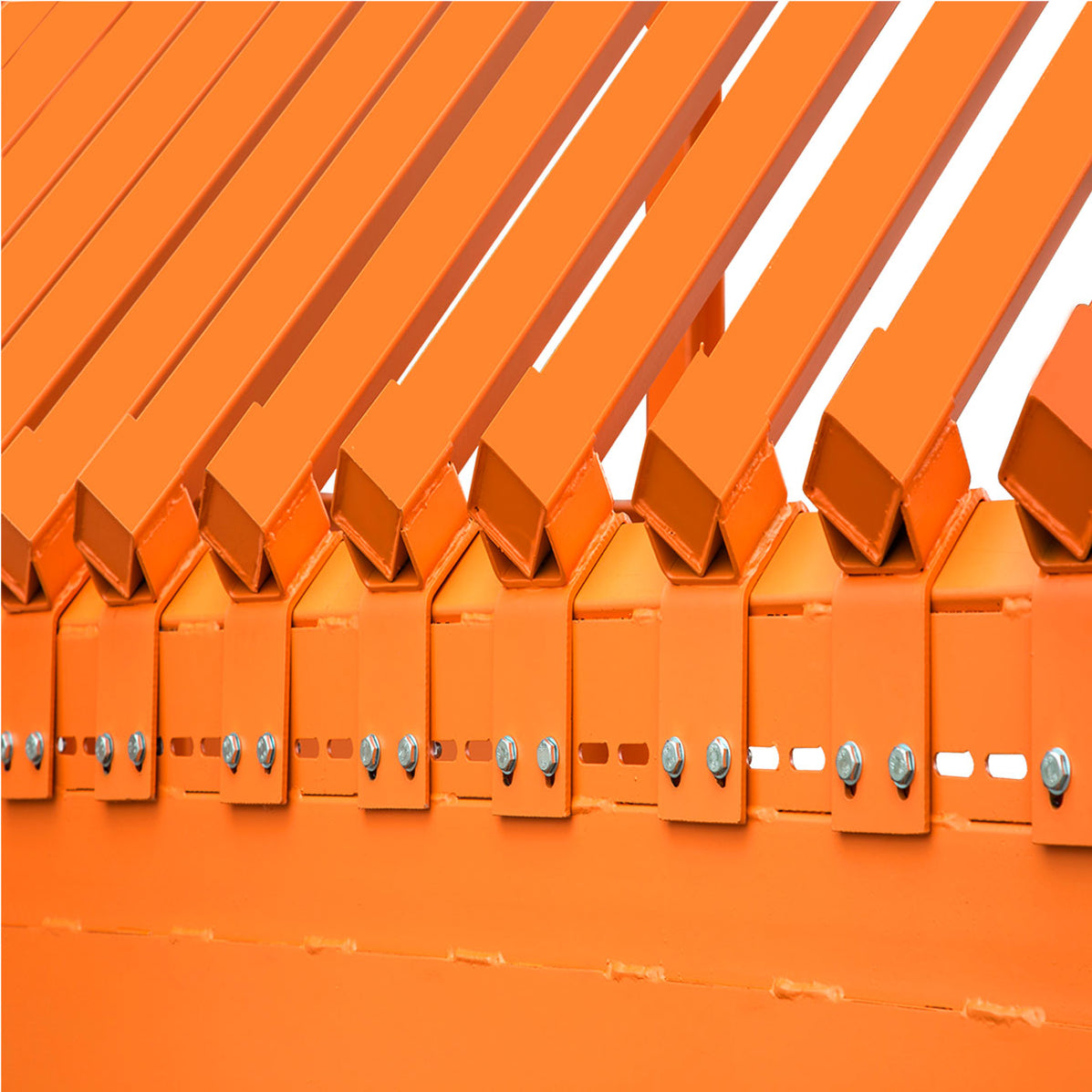

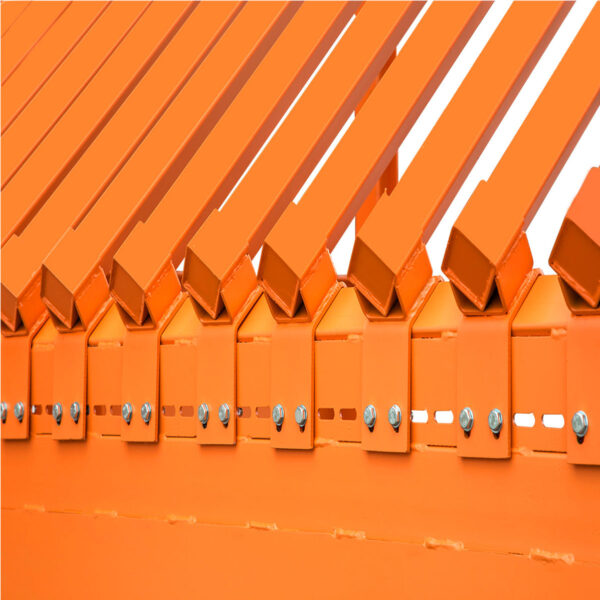

  • Self-Cleaning Architecture: Deck bars are installed in a diamond-shaped configuration with tapered openings, minimizing material clogging and bridging for long-term, maintenance-free screening.

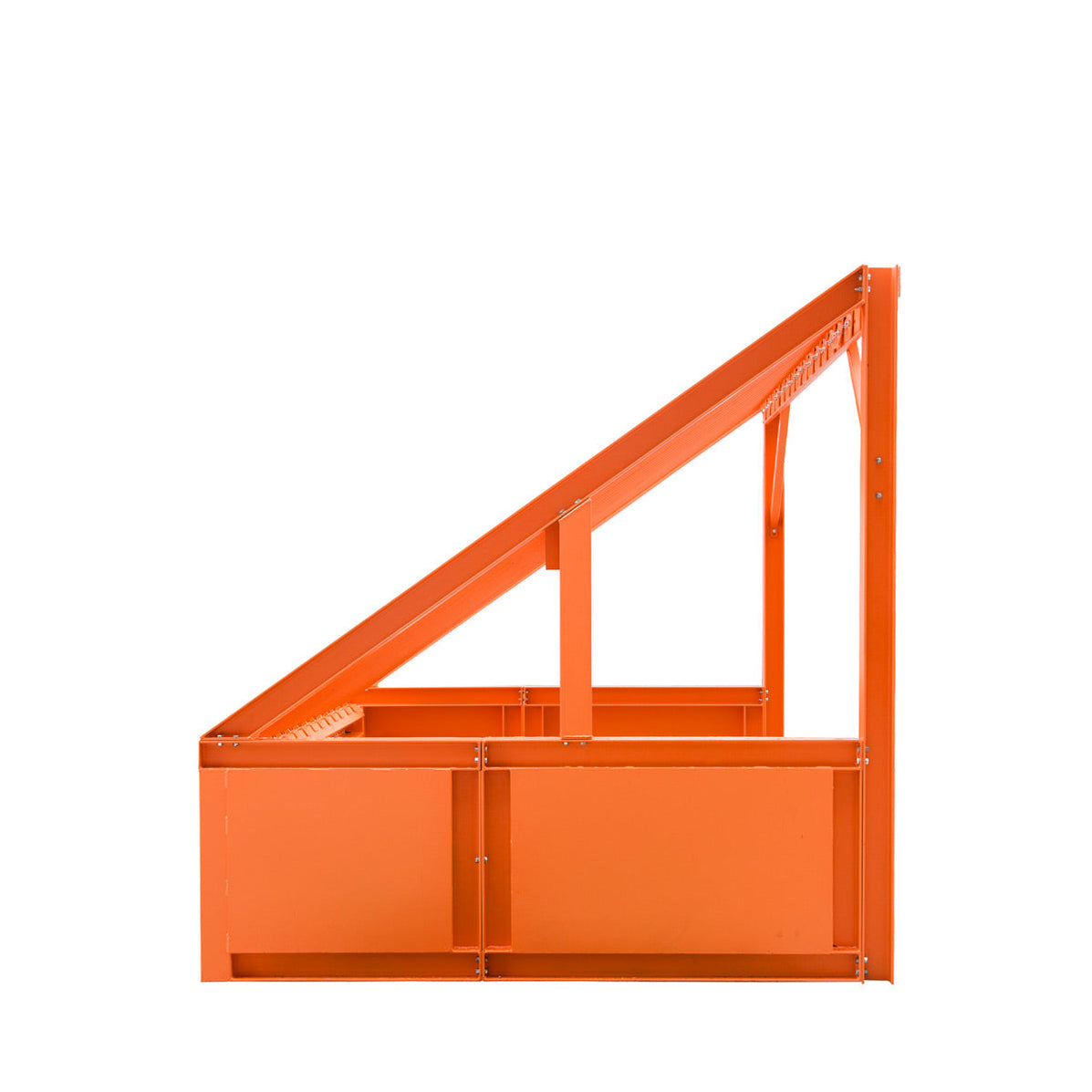

  • Optimized Sloped Discharge: A precision 37° slope angle ensures sorted rocks and debris slide efficiently to the ground, preventing material pile-ups and equipment jams.

  • Heavy-Duty Framework: Constructed with 4″ x 4″ I-beam posts, thick 10-gauge steel plate sidewalls, and a rust-resistant powder-coated finish to endure abrasive, harsh environments.

Technical Specifications

  • Model: TMG-RS10

  • Alternate Options: Also available in a larger 12′ configuration (TMG-RS12)

  • Working Load Capacity: 5,000 lbs (2,200 kg)

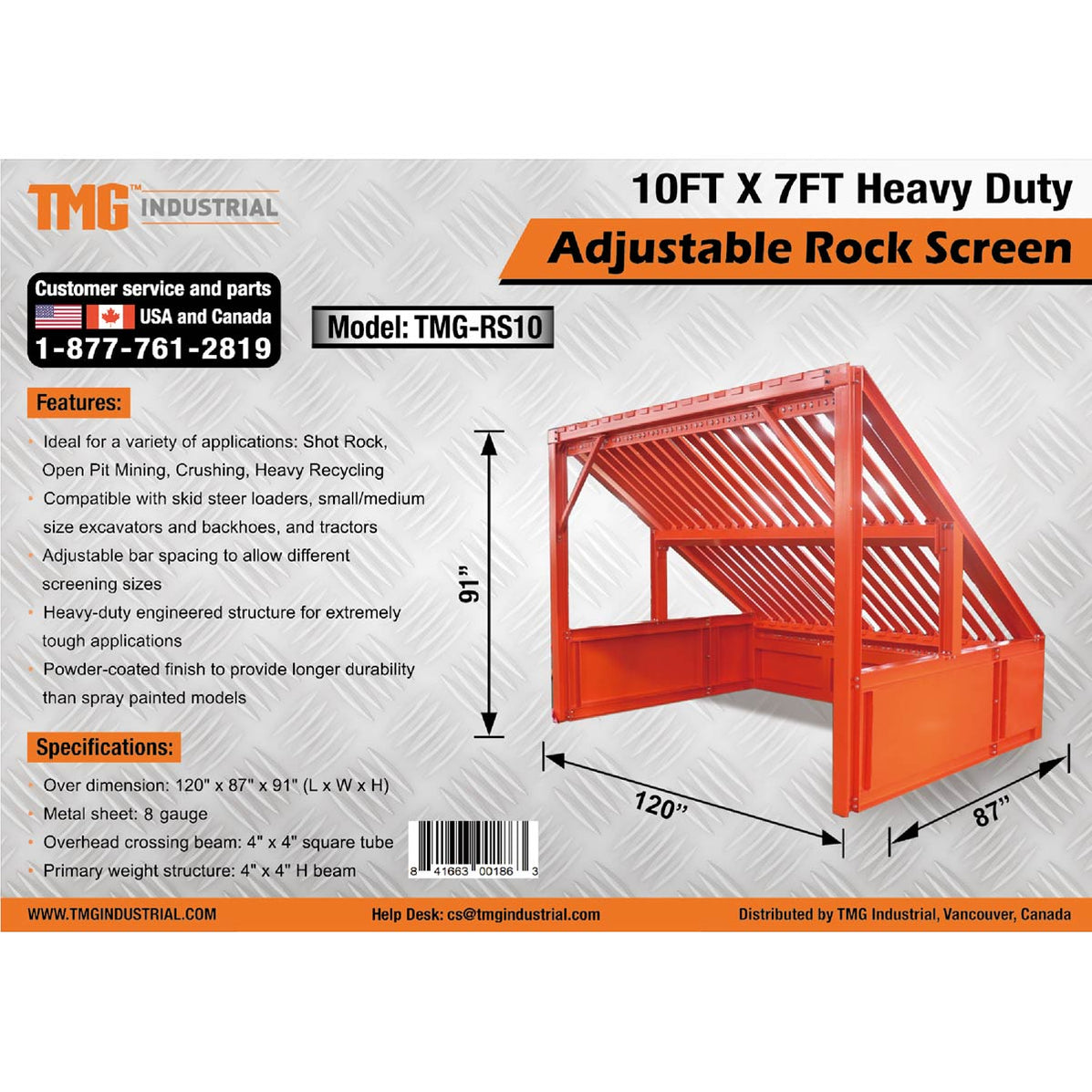

  • Overall Structure Dimensions: 10’ L x 7-¼’ W x 7-½’ H

  • Sifting Area Footprint: 10’ x 7’ (3 m x 2 m)

  • Frame Construction: 4” x 4” I-beam posts and square cross-tubing

  • Sidewall / Front Wall Plating: 10-Gauge (10 GA) steel

  • Deck Bar Specs: 9′ length, 8-gauge (1-¾” x 1-¾” square tubing)

  • Bar Spacing Configuration: 3″ Standard (Adjustable 1″ to 5″; Note: tighter spacing below 3″ requires purchasing additional spare deck bars)

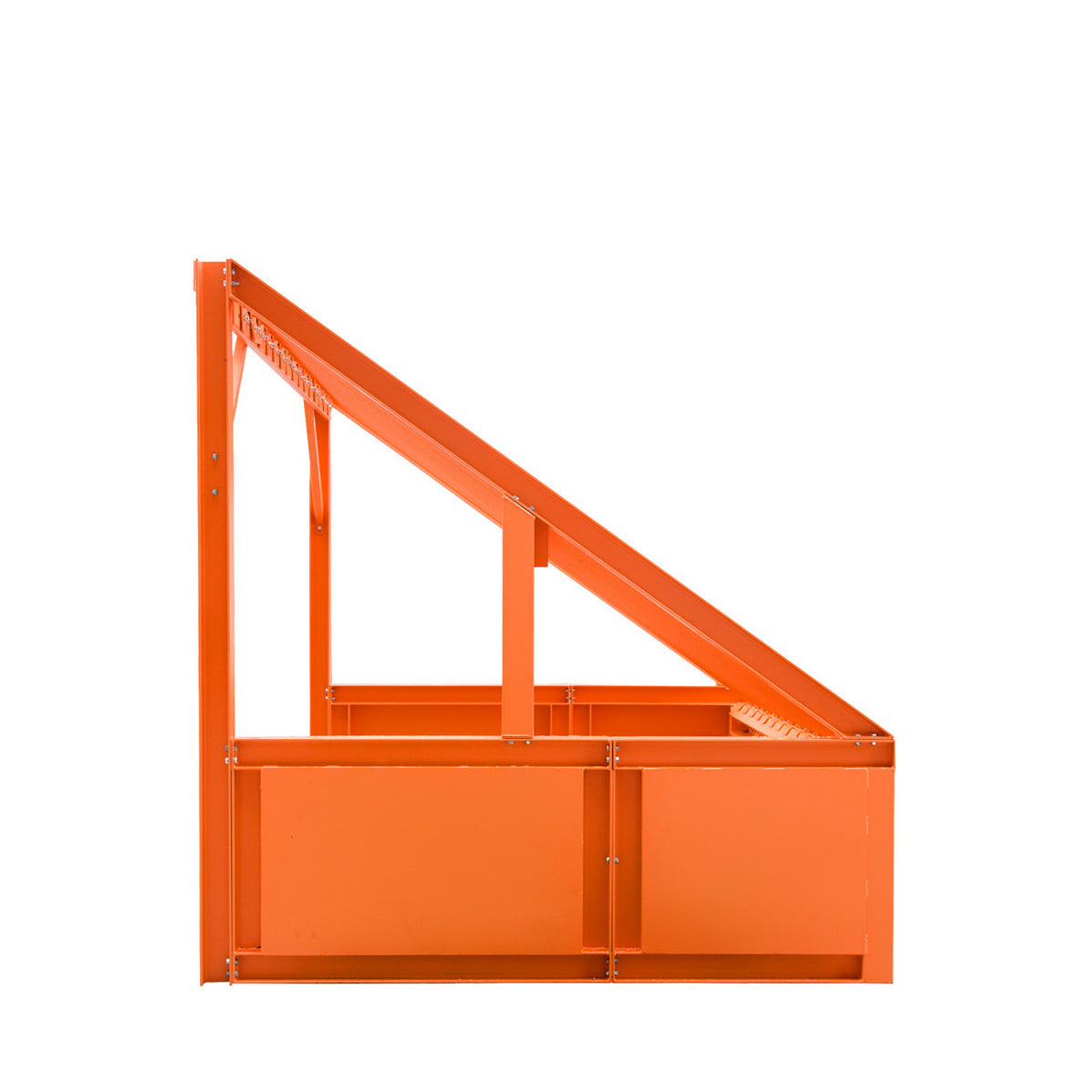

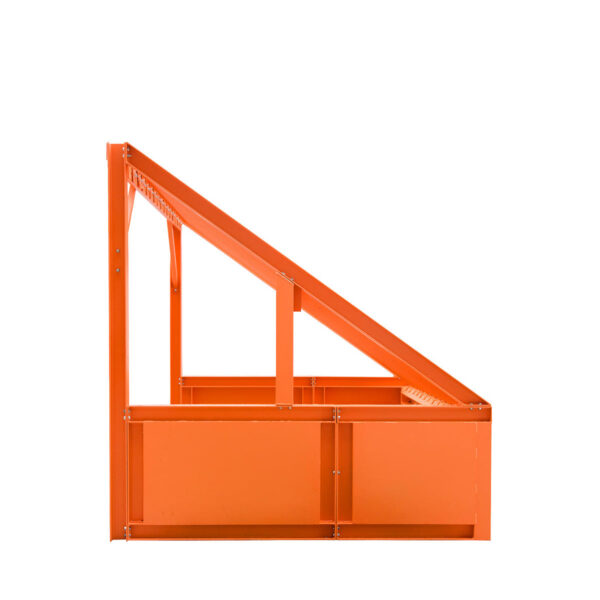

  • Screen Slope Angle: 37°

  • Assembly Requirement: Minor assembly required

Shipping & Delivery

  • Processing Time: 2–3 business days

  • Transit Time: 10–15 business days (subject to regional freight terminal parameters and site accessibility)

  • Unloading Requirements: Product is too large for standard liftgate delivery. A forklift, wheel loader, or equivalent heavy equipment is strictly required to receive the order.

  • Packaging Type: Heavy-duty metal shipping crate

  • Shipping Dimensions: 126” L x 34” W x 31” H

  • Combined Shipping Weight: 2,345 lbs

Before You Order

  • Free freight applies to most orders over $1,000; loading docks, loading ramps and bridges are excluded.
  • Oversized freight may require carrier confirmation and unloading equipment at delivery.
  • Local pickup in Gravois Mills, Missouri can save $200 on eligible orders over $1,000.

Need help before ordering? Call 660-858-8251 or contact us with your delivery ZIP code and equipment details.
