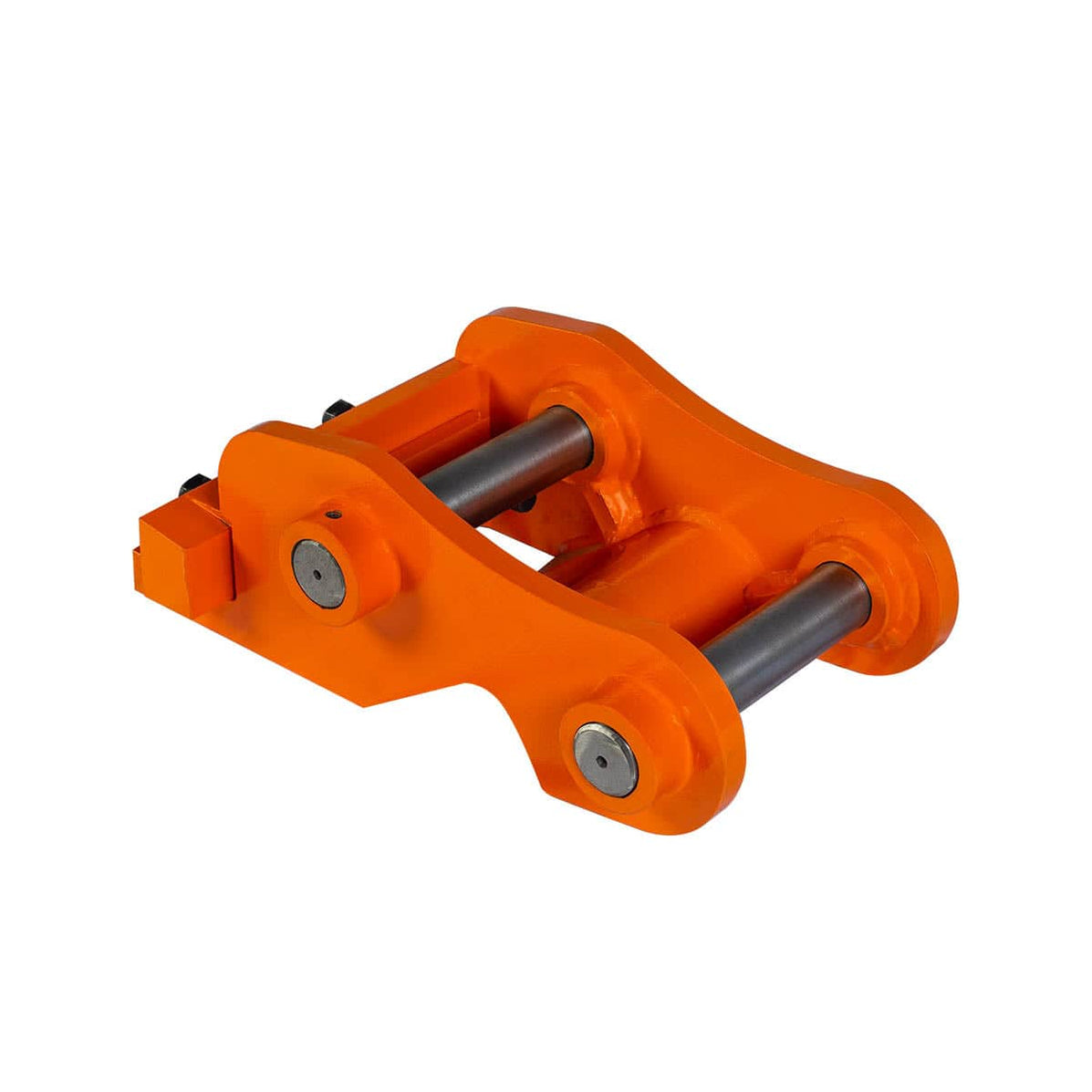

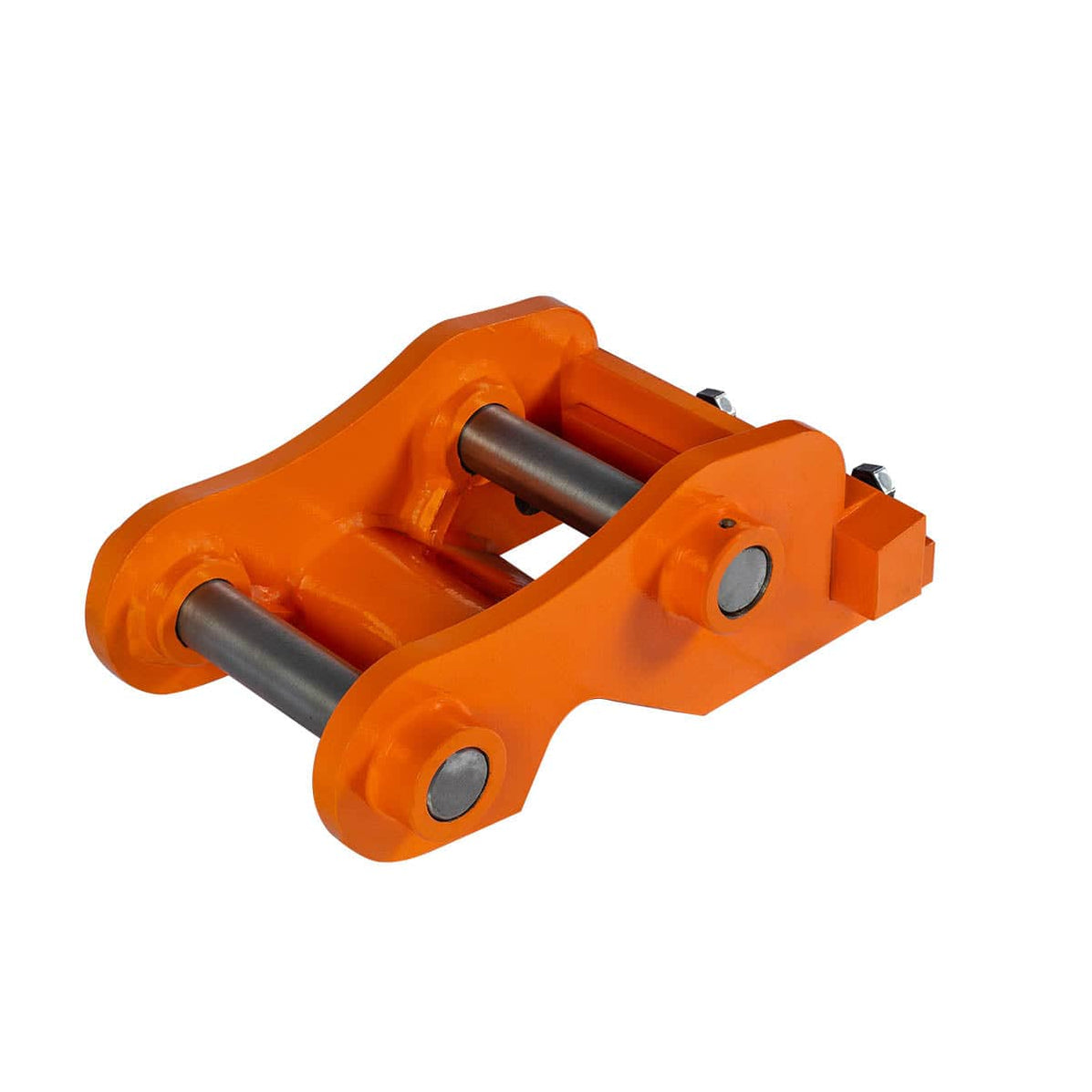

Orange quick coupler for 4–7 ton excavator attachments, jobsite attachment tool connector with pins

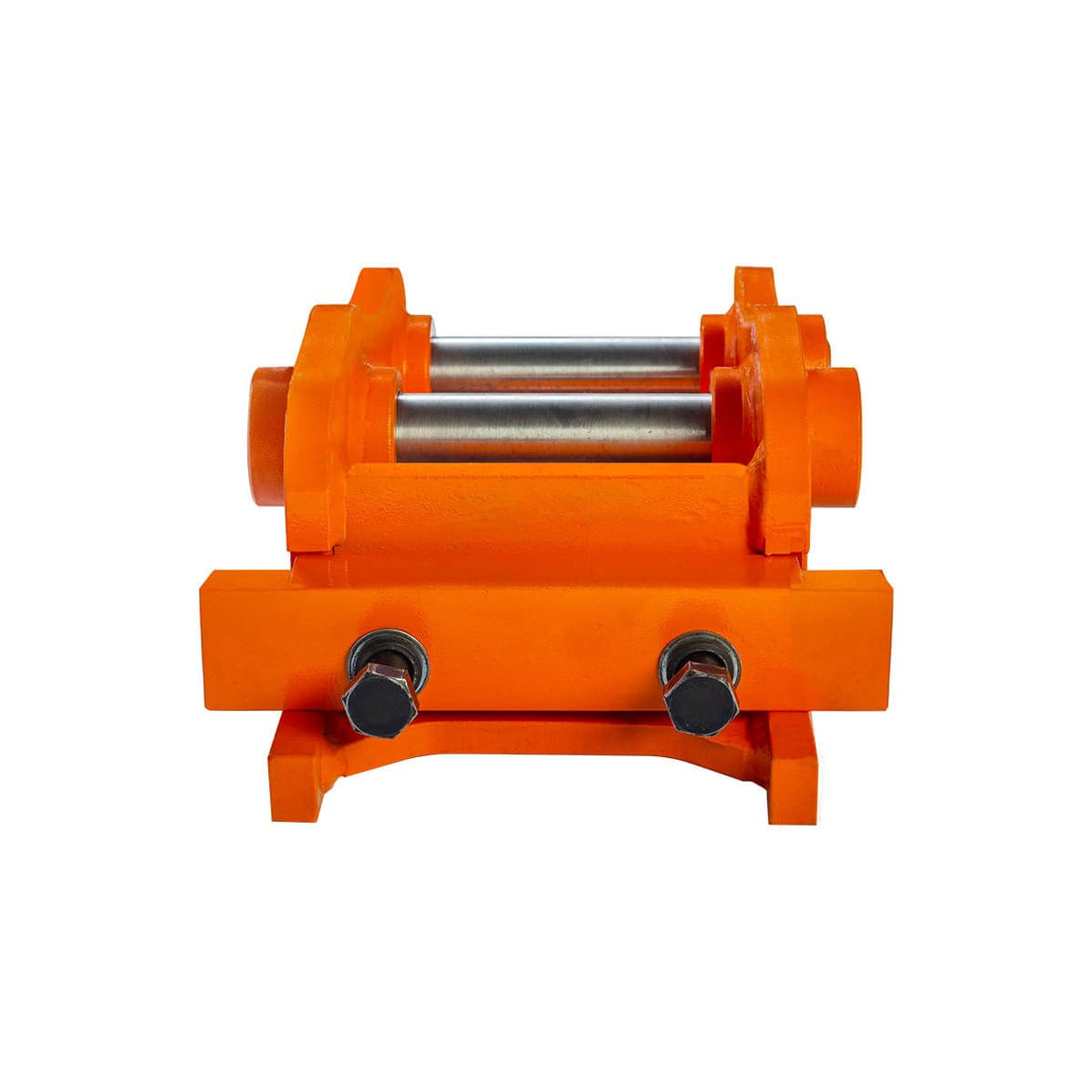

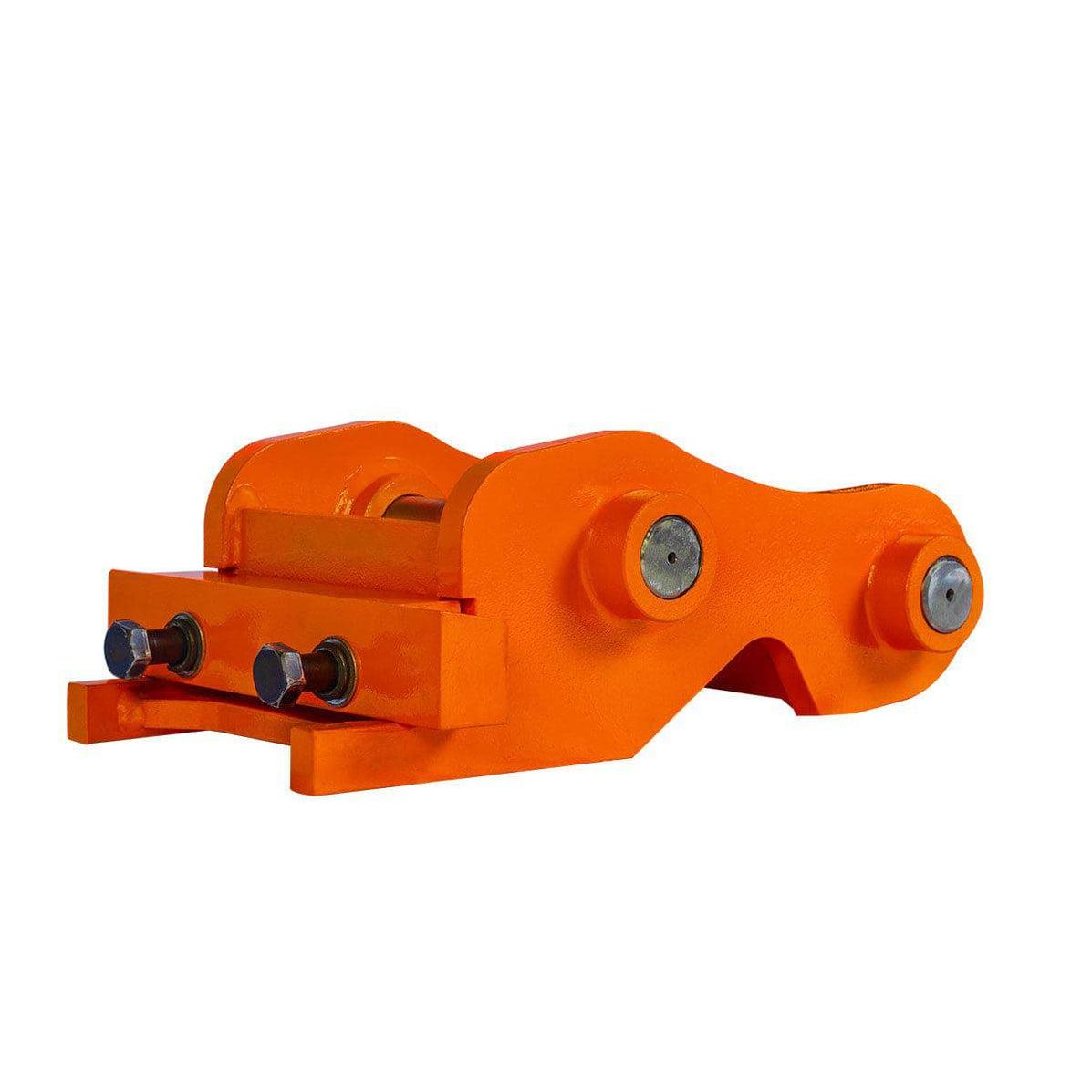

Orange quick coupler attachment for 4–7 ton excavators with pin-on mounting for fast tool changes

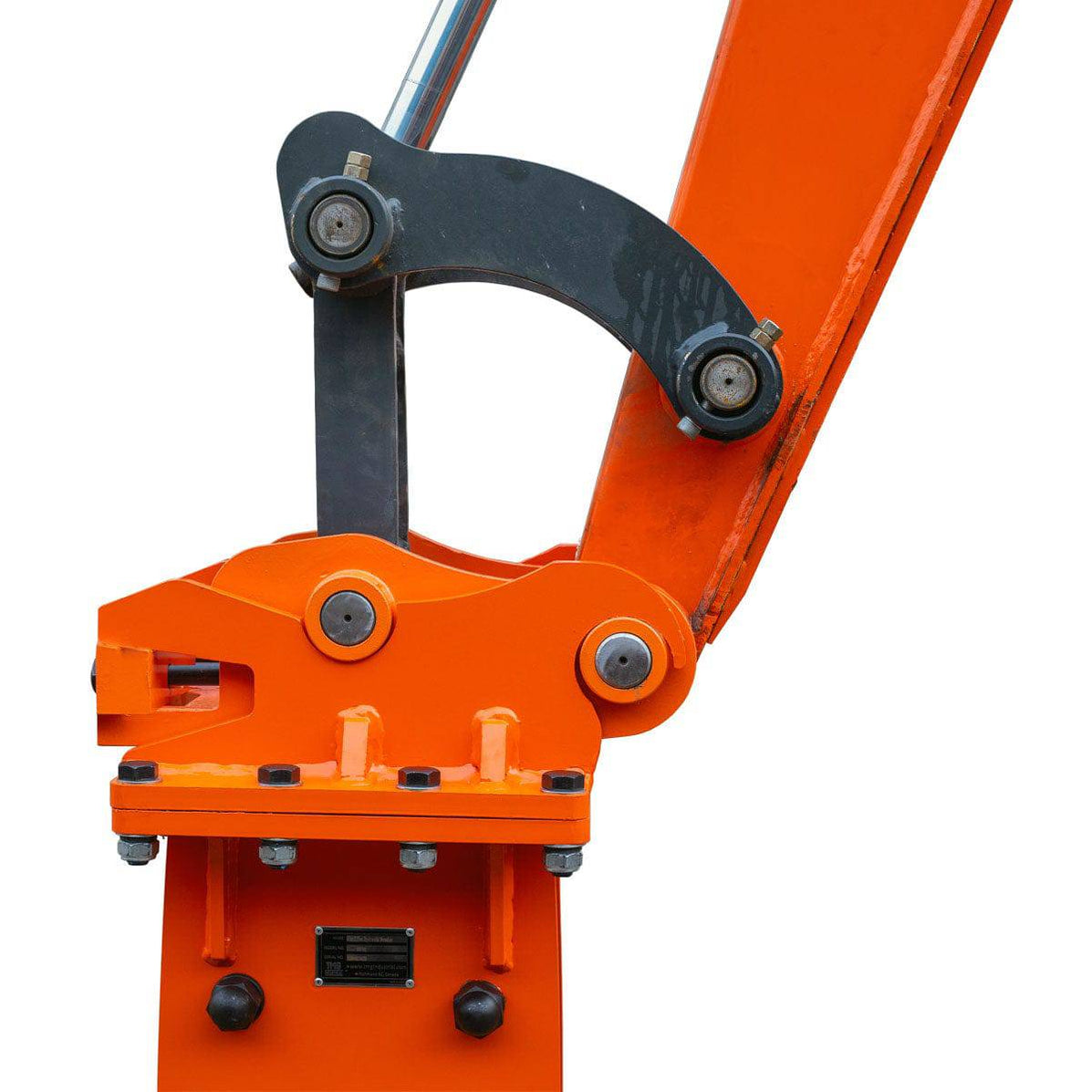

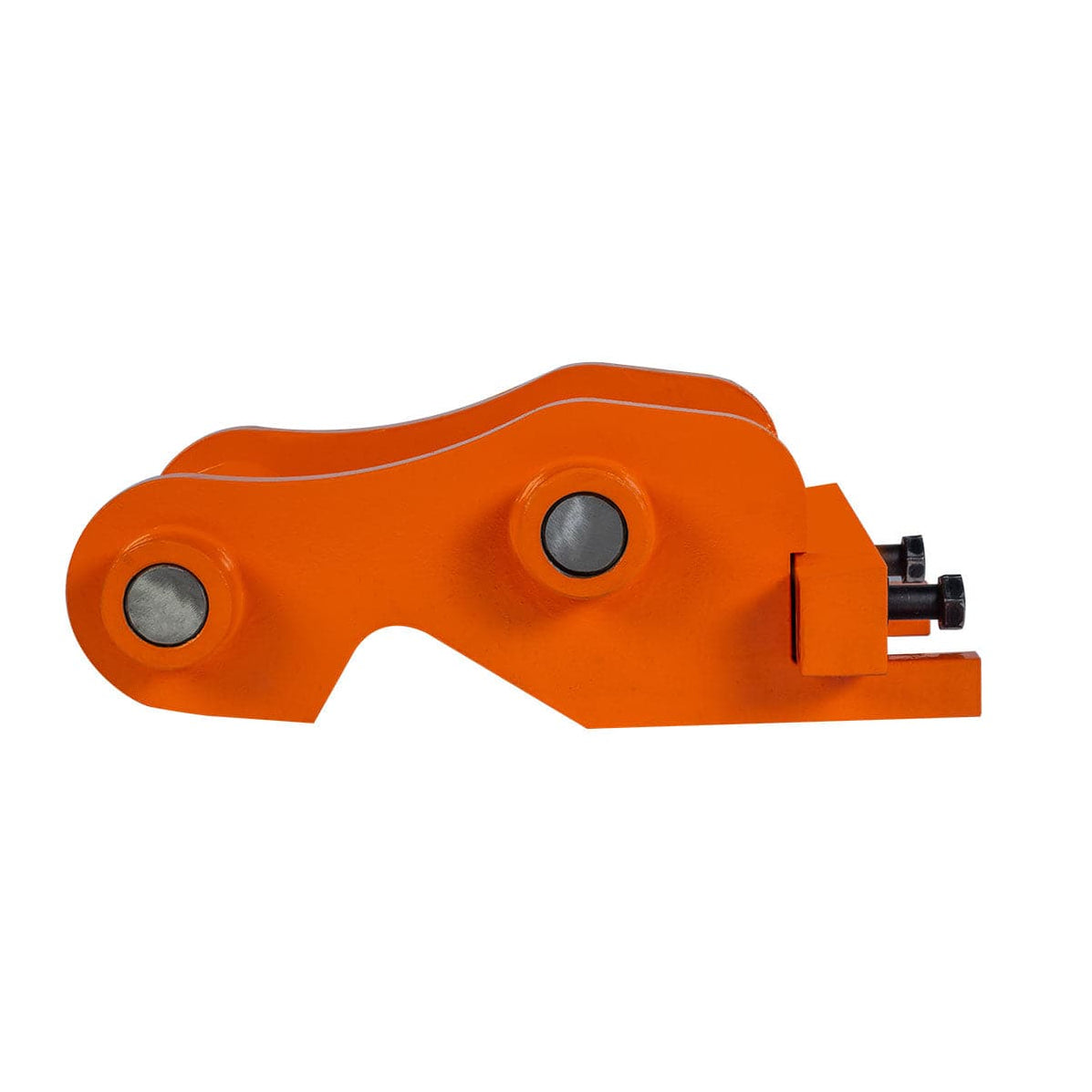

Orange TMG-EQC07 quick coupler adapter with pins for 4–7 ton excavator attachments and jobsite use

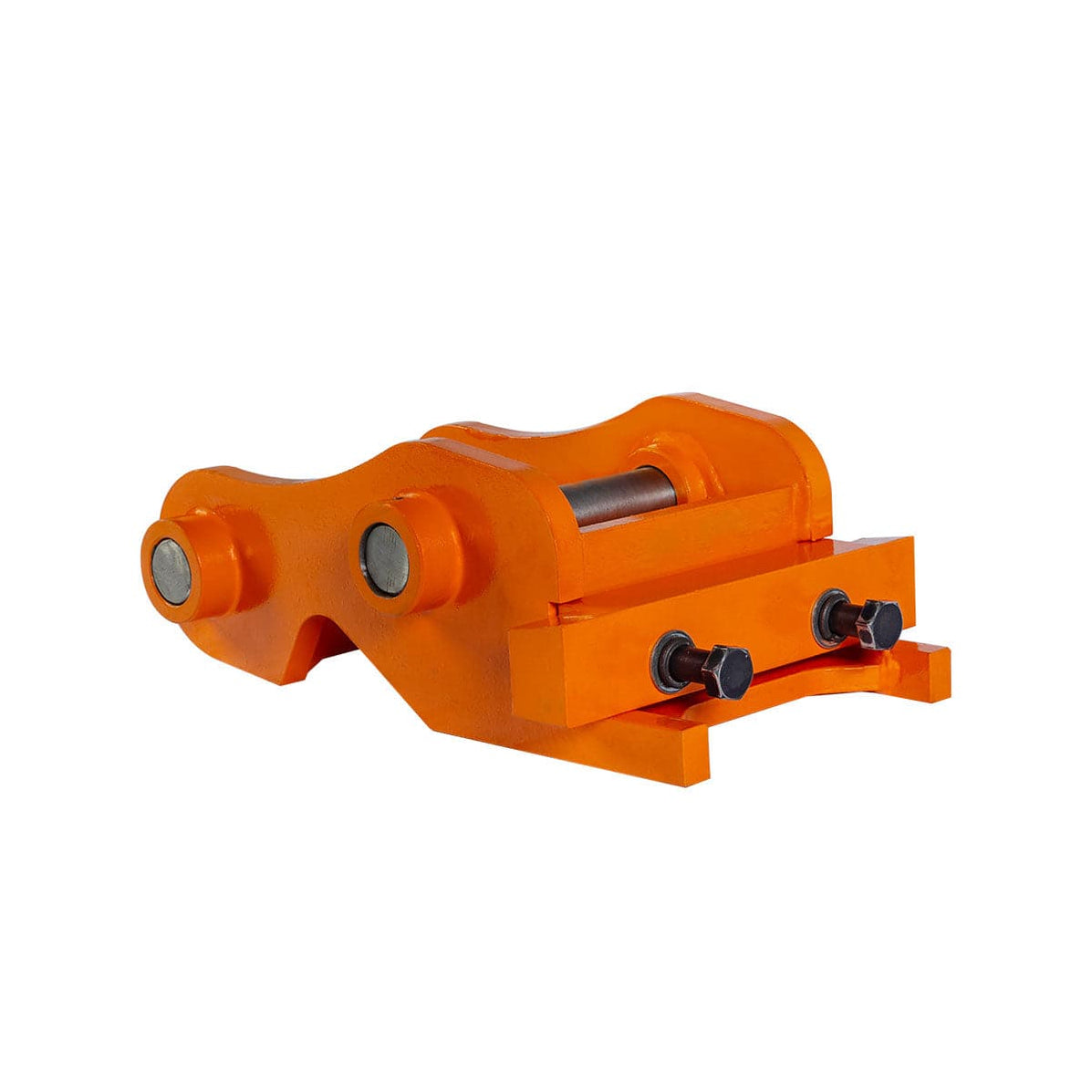

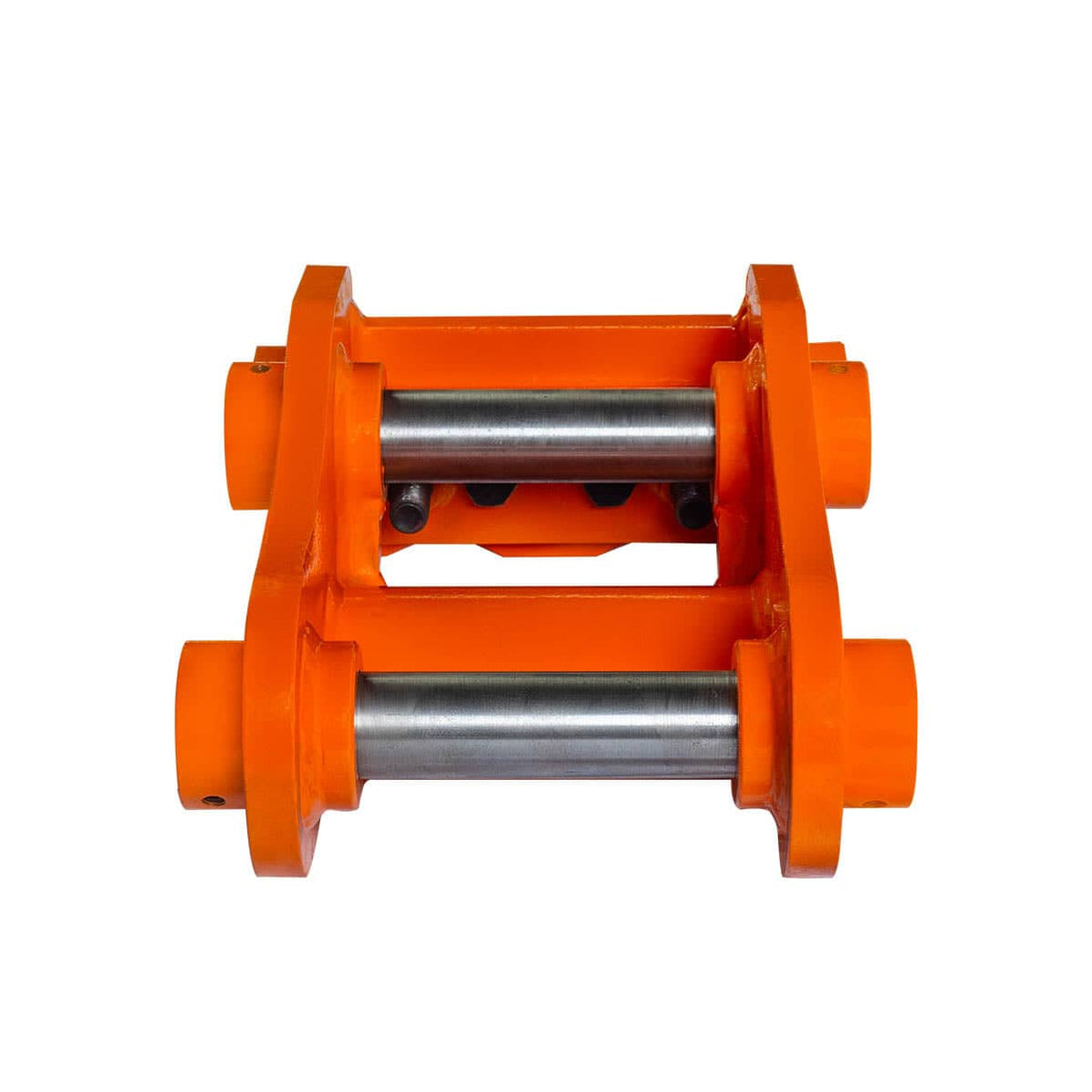

Orange excavator quick coupler attachment with pin locking for 4–7 ton excavators and jobsite tool use

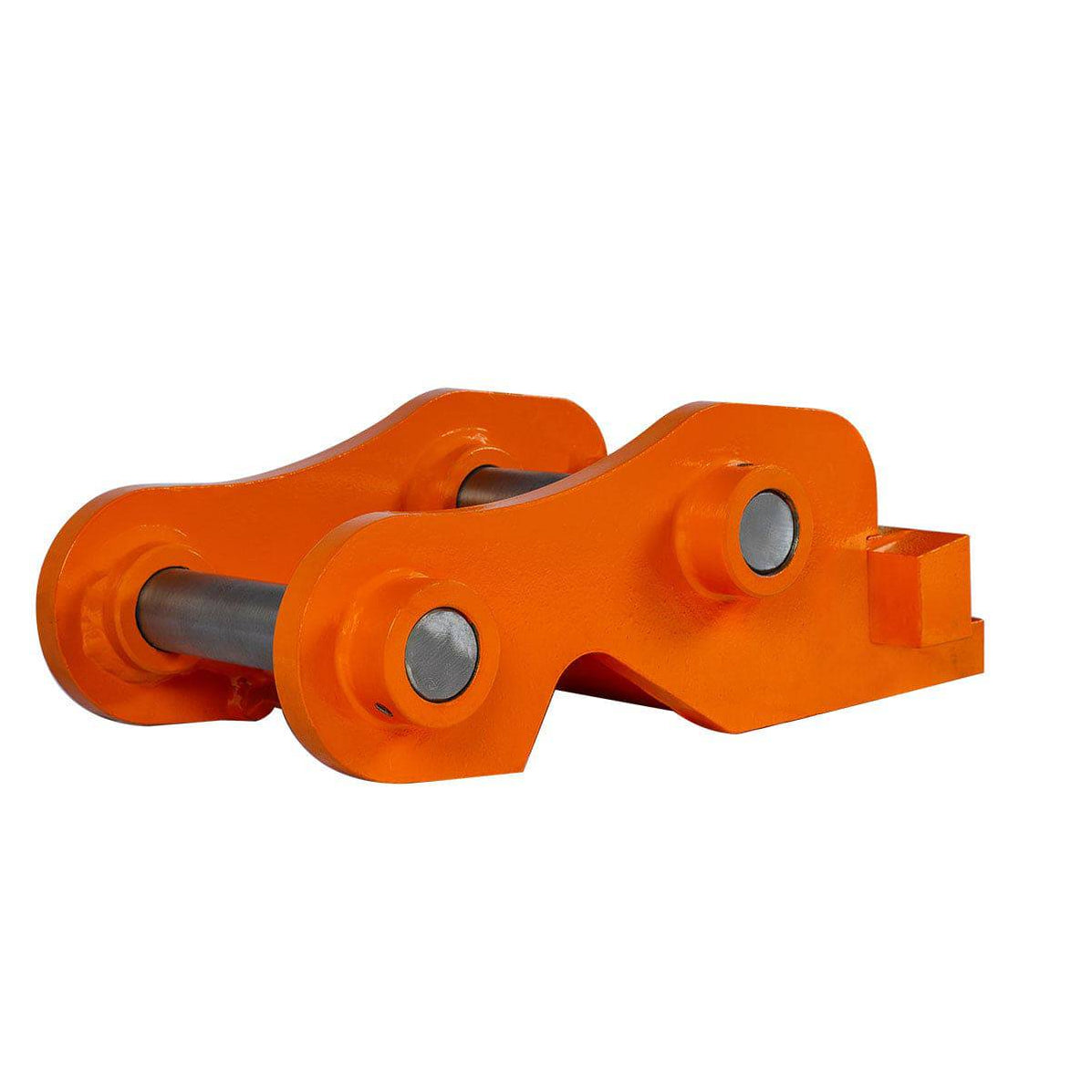

Orange steel quick coupler for 4–7 ton excavator attachments with pin-on hookup view

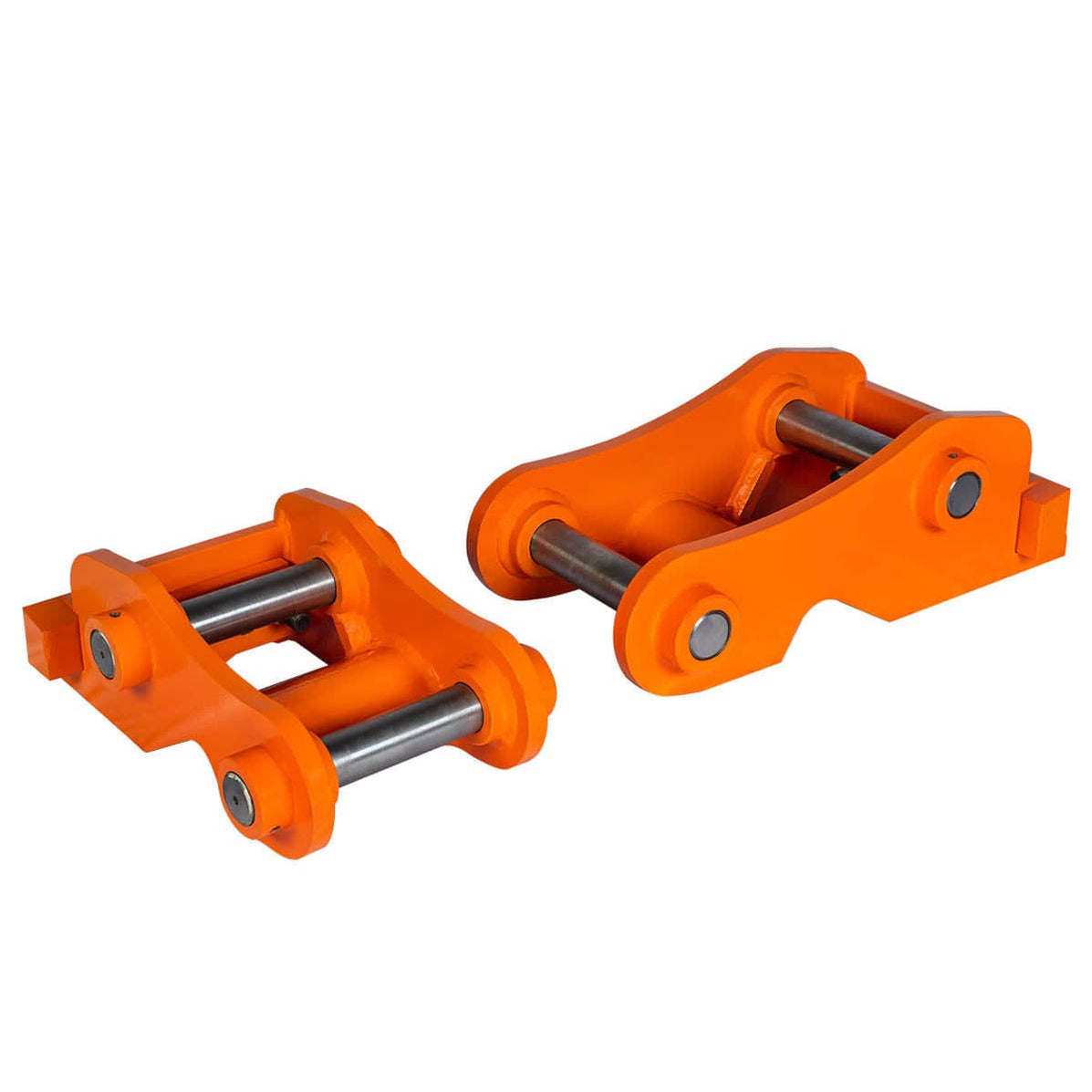

Orange quick coupler attachment for 4–7 ton excavators, suitable for excavator attachment hookups

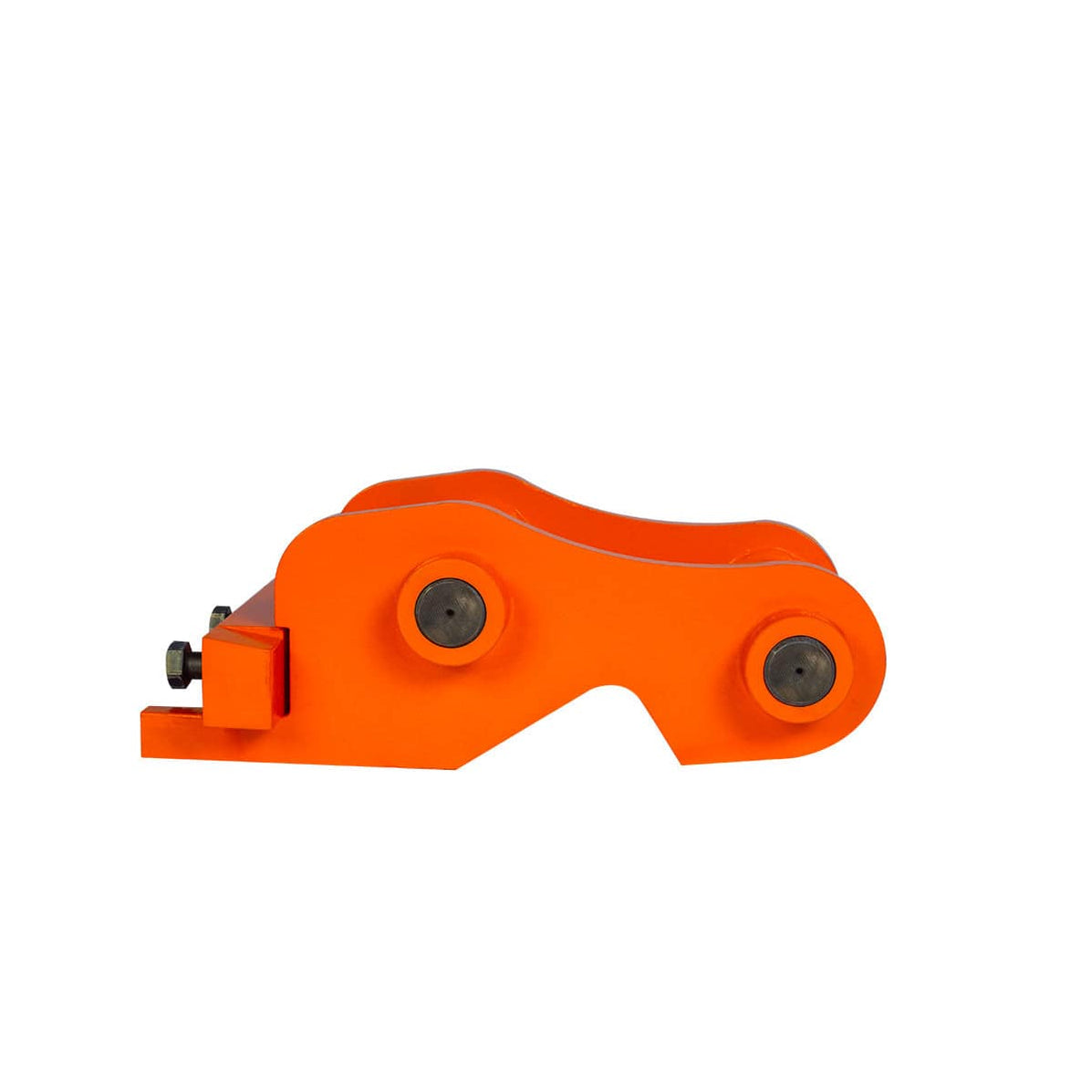

Orange steel quick coupler pin kit for 4–7 ton excavator attachments, excavator quick-attach tool connection

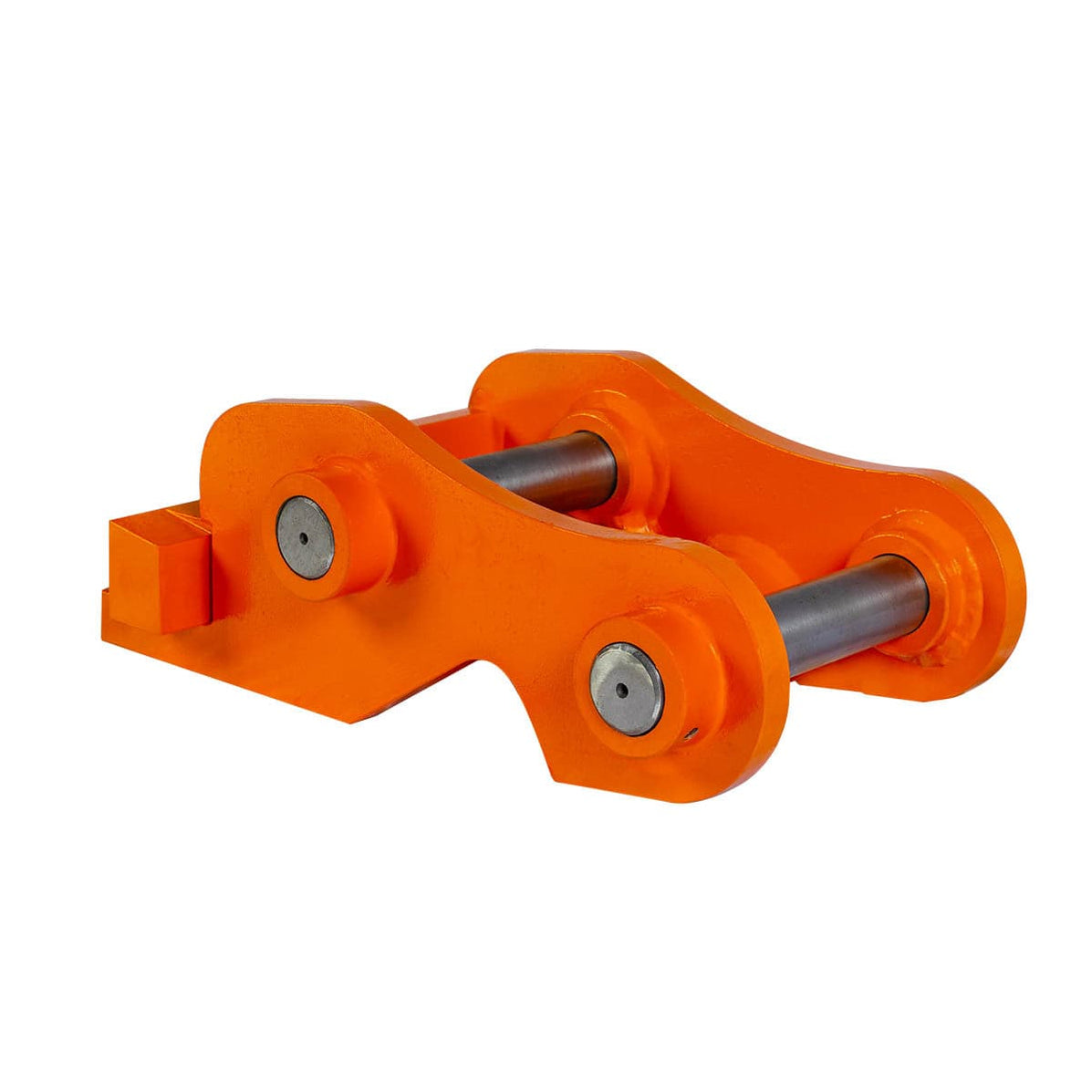

Orange excavator quick coupler attachment with locking pin for 4–7 ton excavators and jobsite use
Orange excavator quick coupler attachment for 4–7 ton equipment with pin mounting and lever latch.
TMG-EQC07 quick coupler set in orange for 4–7 ton excavator attachments, featuring pin-style connection components
Orange quick coupler attachment for 4–7 ton excavators with pin linkage for jobsite equipment use

TMG-EQC07 Quick Coupler for 4–7 Ton Excavator Attachments

Original price was: $995.00.Current price is: $750.00.

Optimize your earthmoving efficiency and minimize down-time with the TMG-EQC07 Quick Coupler. Specially engineered for 4–7 ton excavators, this heavy-duty attachment allows operators to switch between buckets, hydraulic concrete breakers, and plate compactors rapidly without the need for additional auxiliary hydraulic lines.
It features a high-strength, precision-machined wedge lock design that optimizes your machine’s tip radius, enhancing breakout and curling forces.
Equipped with an integrated bolt retainer safety plate for robust mechanical locking, this quick coupler delivers a tight, secure fit designed to withstand the violent vibrations and high stresses of heavy construction and demolition environments.

Shipping options: choose LTL freight delivery or free local pickup. Free freight applies only on qualifying orders over $1,000; loading docks, loading ramps and bridges are excluded.

Only 1 left in stock

Before you order
  • Most orders over $1,000 qualify for free freight. Most shelters and TMG products over $1,000 qualify unless specifically excluded.
  • Loading docks, loading ramps and bridges are excluded from free freight; some Conex-style containers may also require confirmation.
  • Local pickup in Gravois Mills, MO saves $200 at checkout: eligible carts.
Shipping DetailsCall 660-858-8251Ask a Product Question

u003culu003enu003cliu003enu003cp data-path-to-node=u00228,3,1,0,0u0022u003eu0026#x1f69a; u003ci data-path-to-node=u00228,3,1,0,0u0022 data-index-in-node=u00223u0022u003eFast LTL Freight Shippingu003c/iu003eu003c/pu003enu003c/liu003enu003cliu003enu003cp data-path-to-node=u00228,3,1,1,0u0022u003eu0026#x1f6e1;u0026#xfe0f; u003ci data-path-to-node=u00228,3,1,1,0u0022 data-index-in-node=u00224u0022u003eManufacturer Warrantyu003c/iu003eu003c/pu003enu003c/liu003enu003cliu003enu003cp data-path-to-node=u00228,3,1,2,0u0022u003eu0026#x1f4de; u003ci data-path-to-node=u00228,3,1,2,0u0022 data-index-in-node=u00223u0022u003eExpert Phone Supportu003c/iu003eu003c/pu003enu003c/liu003enu003c/ulu003e

Key Features

  • Rapid Attachment Adjustments: Minimizes labor and swap times by enabling fast manual transitions between attachments without requiring complex hydraulic installations or adjustments.

  • Wedge-Lock Mechanical Advantage: Engineered with a heavy-duty steel wedge lock system that pulls attachments tight to the stick, reducing play, minimizing wear, and optimizing overall breakout forces.

  • Integrated Safety Engagement: Outfitted with a secure bolt retainer safety plate that creates a mechanical lock to keep pins firmly seated during intense pounding, vibrating, or digging applications.

  • Enhanced Geometry Performance: Formed to compress your attachment’s tip radius, allowing your machine’s cylinder layout to deliver maximum power and precise control.

  • Industrial Construction Grade: Machined from high-tensile steel to resist distortion, friction, and cracking under relentless high-impact field usage.

Technical Specifications

  • Model: TMG-EQC07

  • Excavator Size Class Compatibility: 4–7 Ton machines (also available in a larger 6–9 Ton configuration)

  • Specific Attachment Fitment: Direct fit for models including:

    • TMG-ECP41 (Hydraulic Plate Compactor)

    • TMG-HB70Q (Hydraulic Breaker/Hammer)

    • TMG-EPD700 (Hydraulic Post Pounder)

  • Coupler Pin Diameter: 2”

  • Pin Center-to-Center Distance: 9”

  • Internal Chassis Width: 6”

  • Lugging Alignment Style: Machined Wedge Lock

  • Assembled Physical Dimensions: 20-½” L x 12” W x 7” H (Bare block size: 19.5” x 12.2” x 7”)

  • Net Unit Weight: 100 lbs

Shipping & Delivery

  • Processing Time: 2–3 business days

  • Transit Time: 10–15 business days (subject to regional freight terminal parameters and site accessibility)

  • Shipping Cost Policy: Free freight applies only on qualifying orders over $1,000; loading docks, loading ramps and bridges are excluded. Standard freight rates apply below threshold.

  • Packaging Type: Wood crate shipping box

  • Shipping Dimensions: 21” L x 13” W x 11” H

  • Combined Shipping Weight: 115 lbs

Specifications & fitment at a glance

TMG-EQC07 verified product specifications
Model TMG-EQC07
Carrier class 4–7 ton excavators
Direct-fit TMG attachments TMG-ECP41, TMG-HB70Q, and TMG-EPD700
Coupler pin diameter 2 inches
Pin center-to-center distance 9 inches
Internal chassis width 6 inches
Assembled dimensions 20-1/2 × 12 × 7 inches
Net unit weight 100 lb

Measure the interface—not only the machine class

A 4–7 ton rating alone does not prove fitment. Before ordering, verify pin diameter, pin centers, internal width, stick geometry, and attachment lug dimensions. Follow the excavator measuring checklist or send us your measurements.
