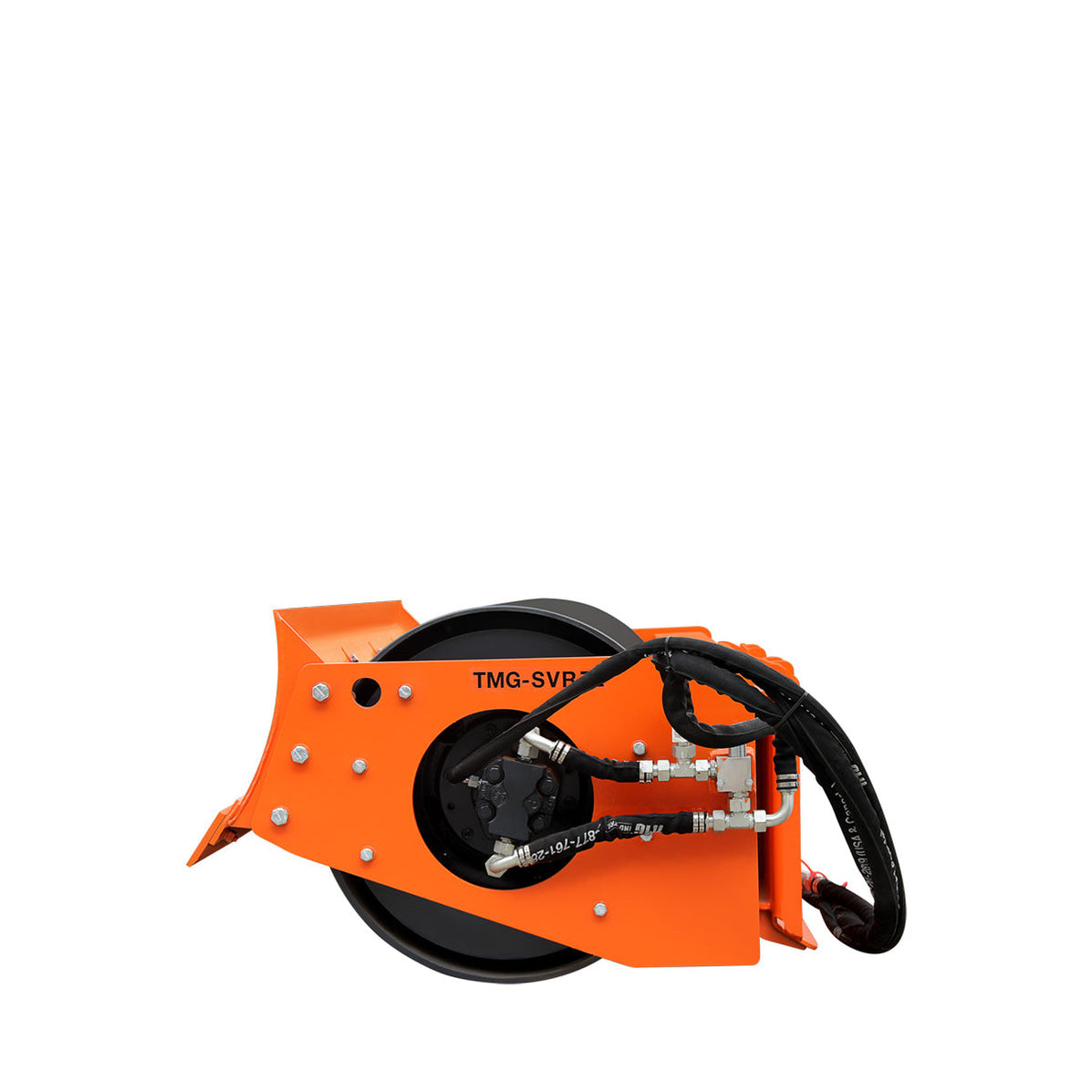

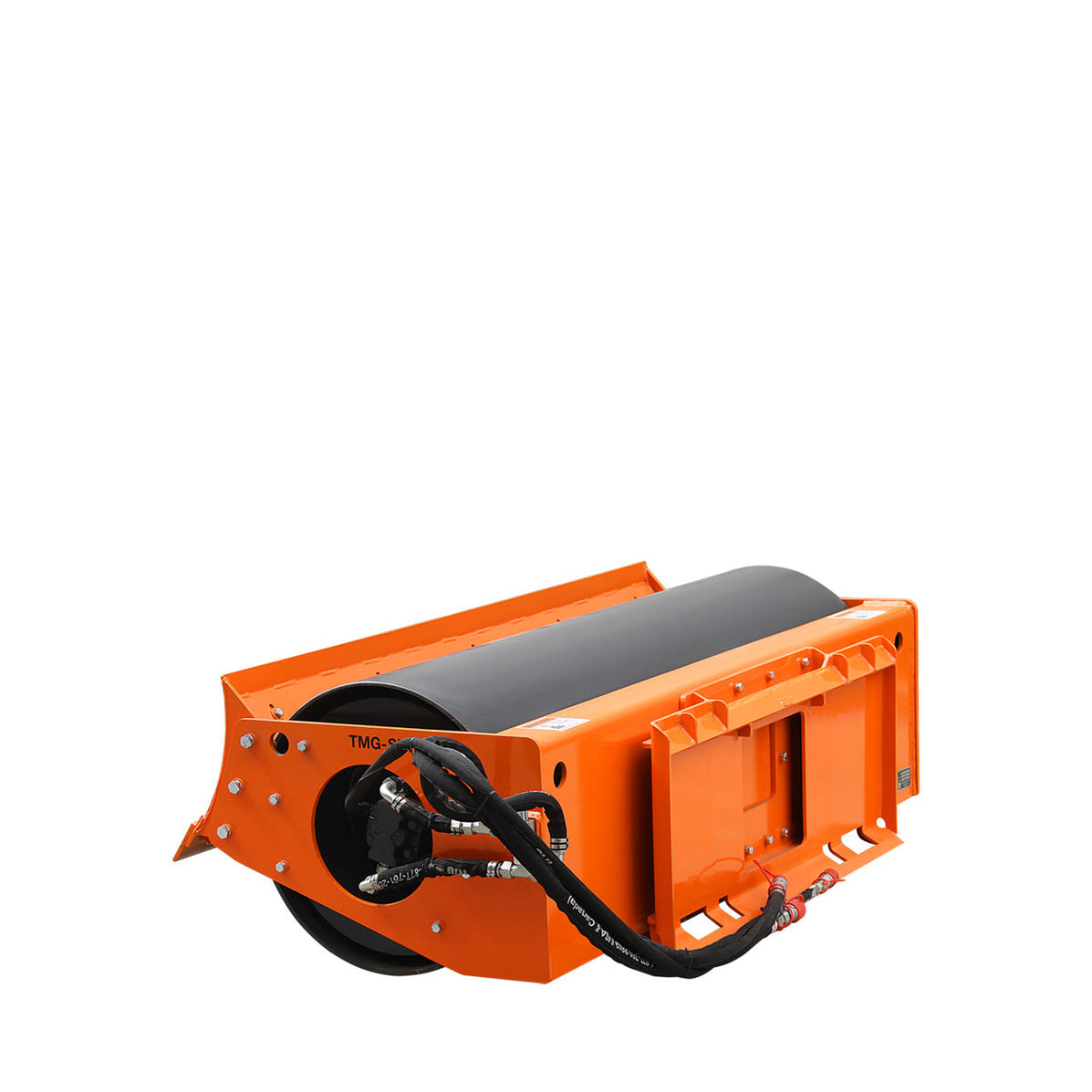

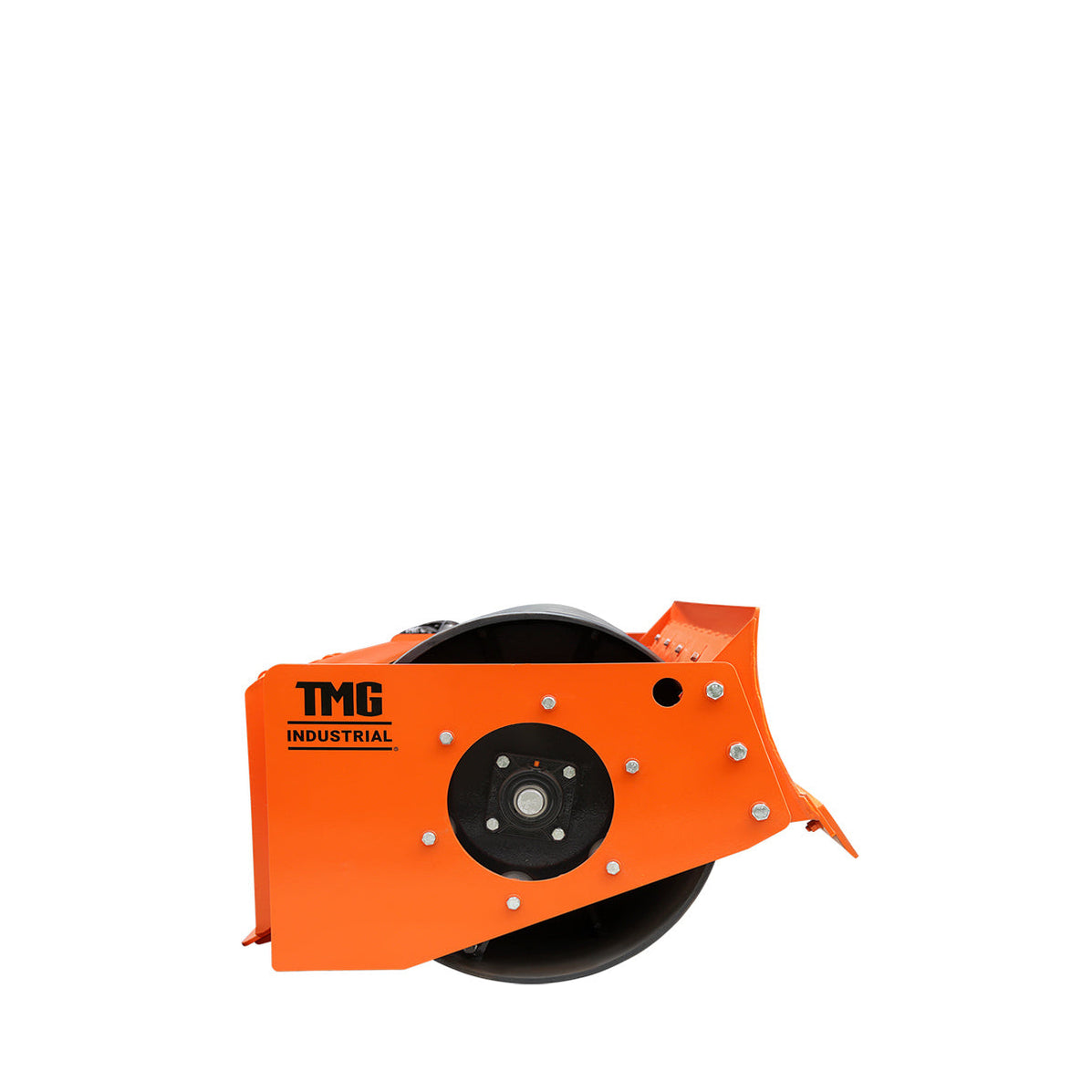

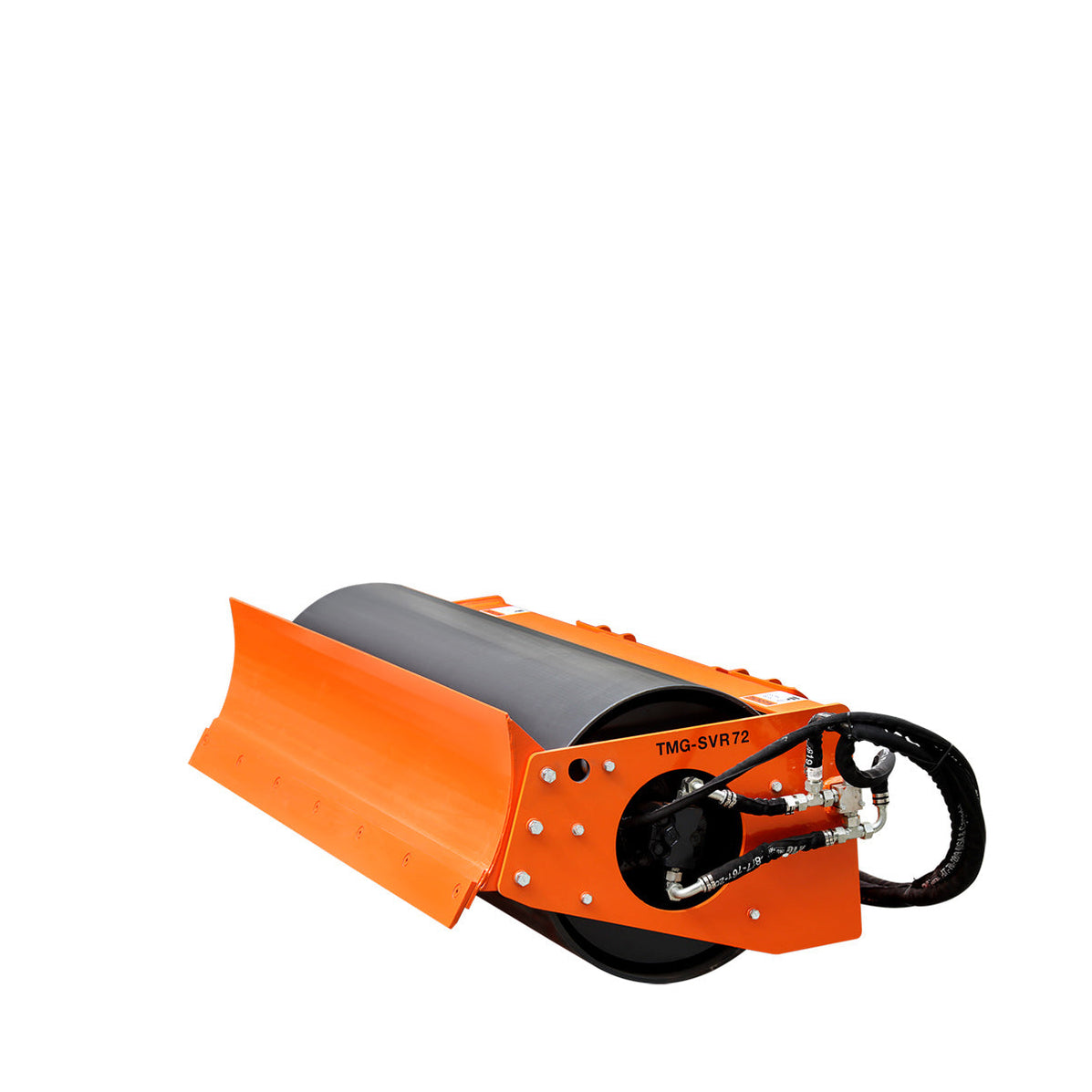

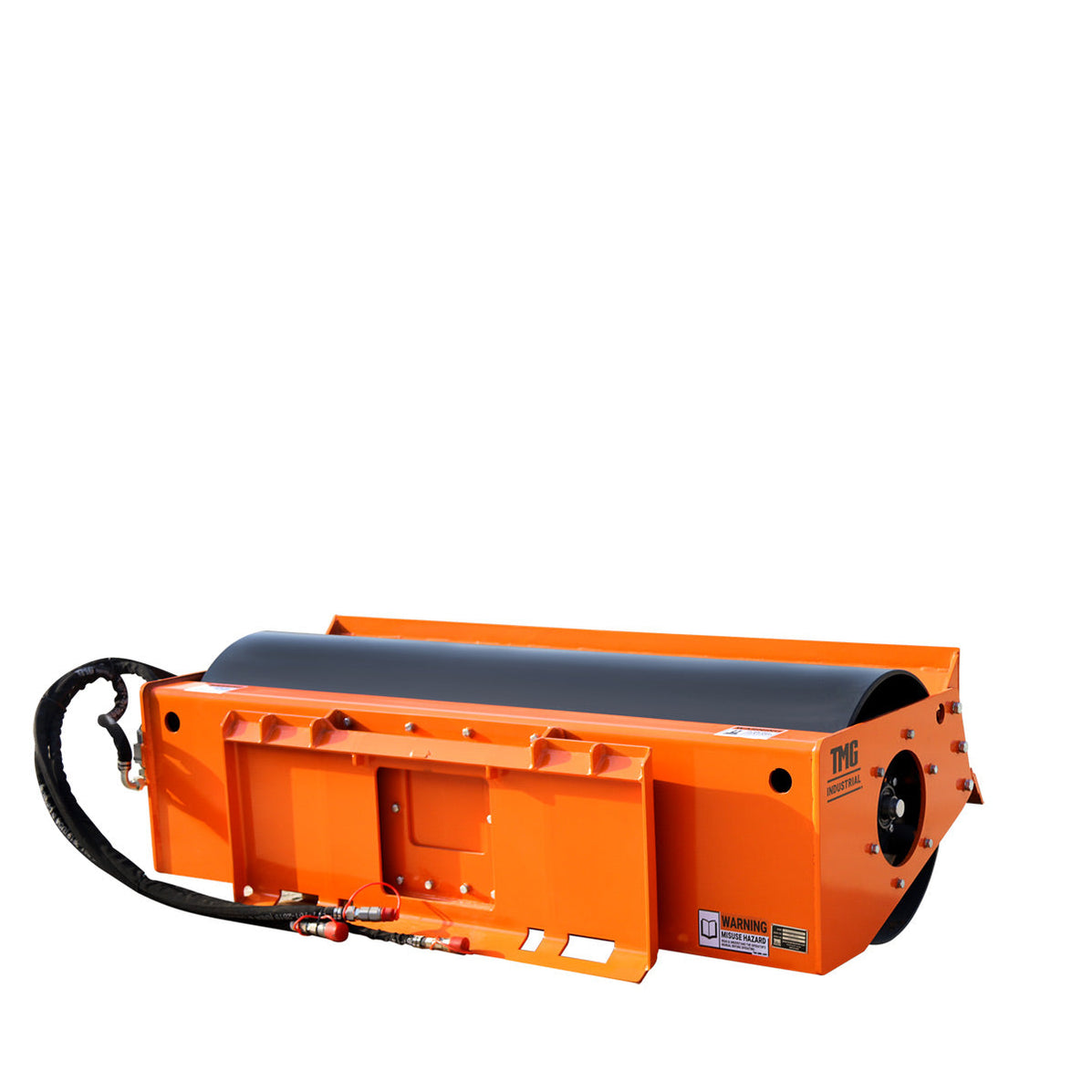

TMG-SVR72 72″ Skid Steer Vibratory Roller Attachment

Key Features

• High-Impact Compaction Output: Generates a powerful dynamic force ranging from 30 to 41 kN (over 9,200 lbf), ensuring deep-vibratory penetration and high compaction density on structural subgrades.

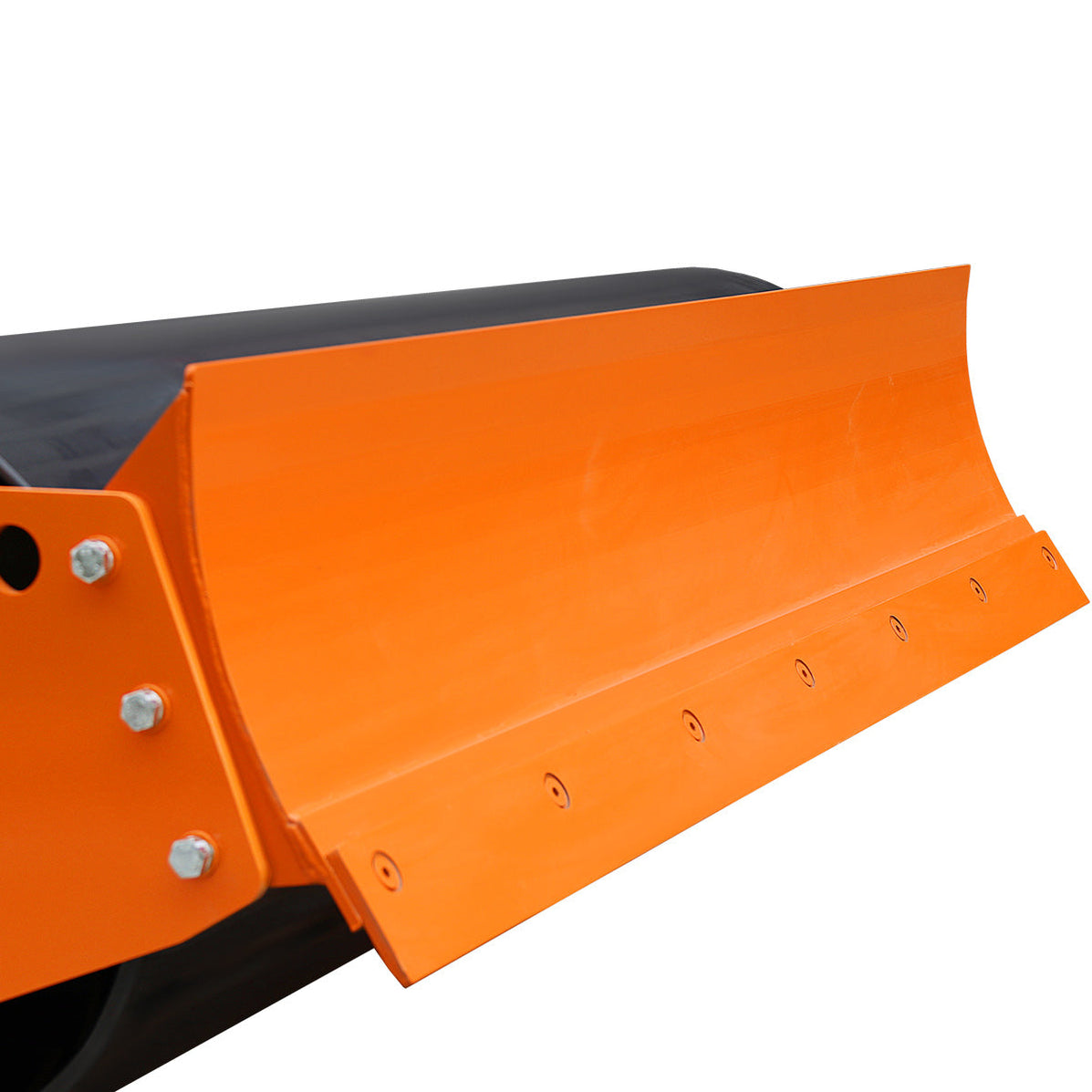

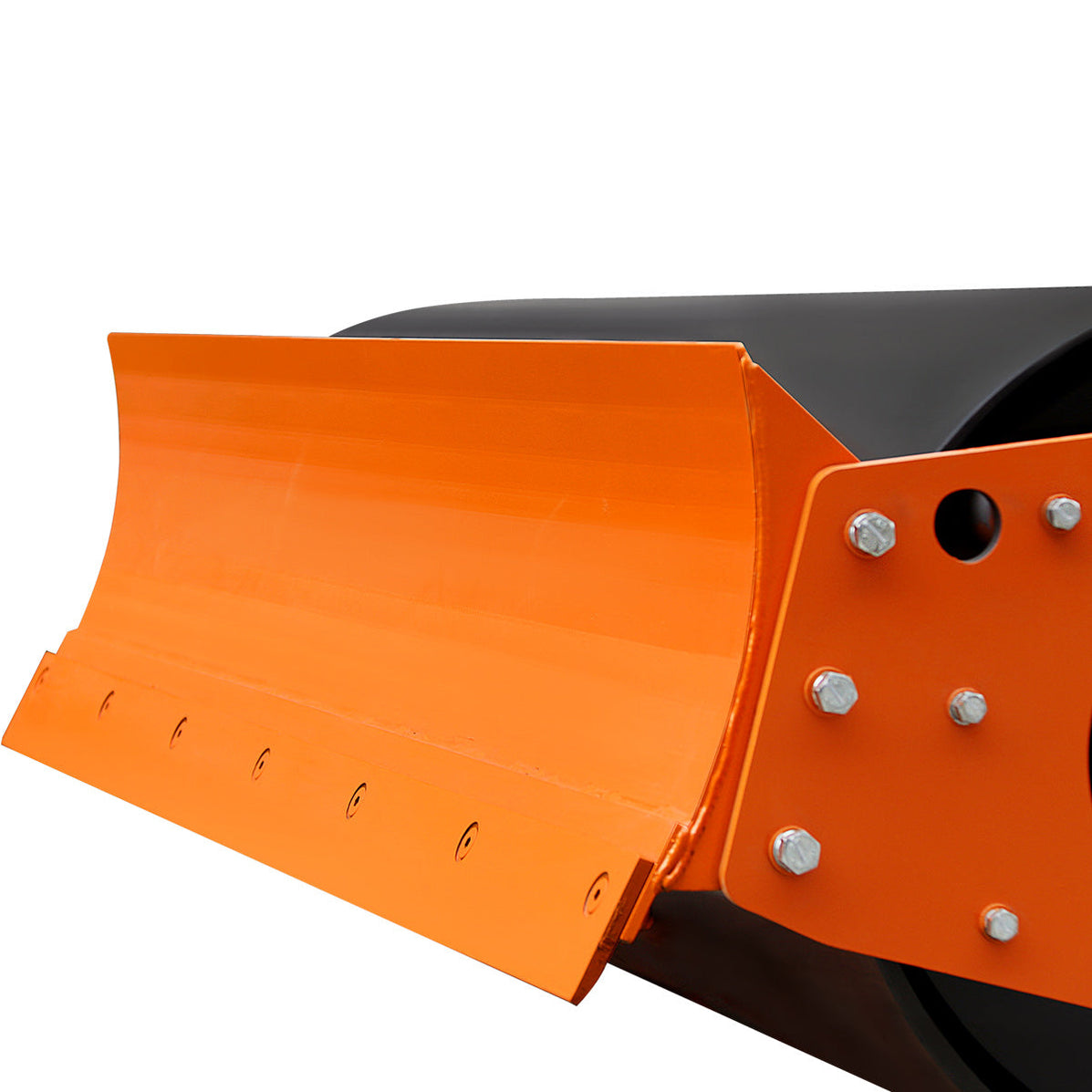

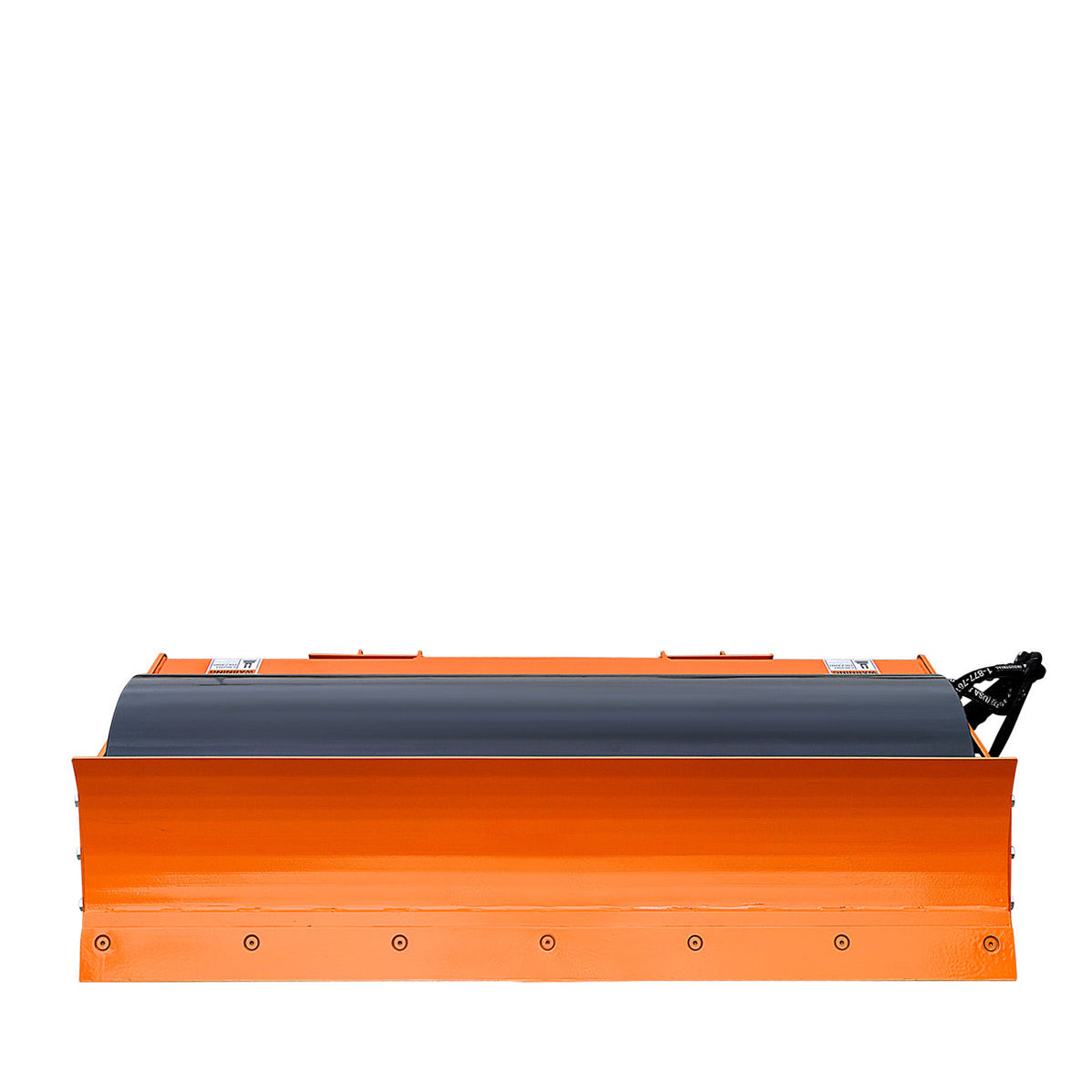

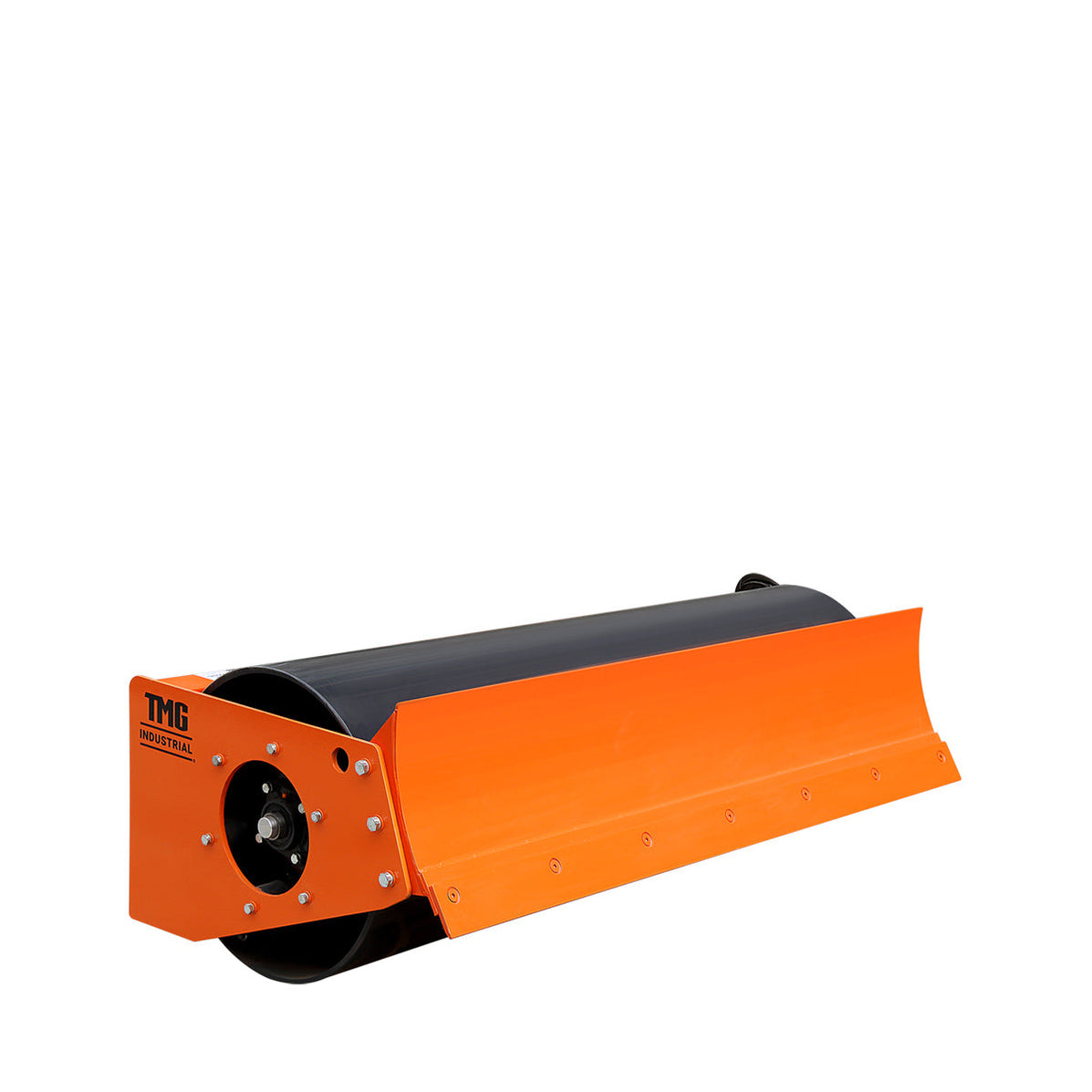

• Integrated Front Pushing Blade: Outfitted with a rigid structural steel pushing blade along the chassis to knock down high spots, backfill minor voids, and level materials right before the drum rolls over them.

• Oil-Bath Motor Lubrication: Features a built-in internal motor oil-bath lubrication system that continuously cools and protects core components, offering superior durability over traditional grease-point rollers during extended runtimes.

• Advanced Hydraulic Motor Protection: Equipped with a dedicated hydraulic motor protection valving set that actively prevents overheating, pressure spikes, and premature motor damage from auxiliary circuit backpressure.

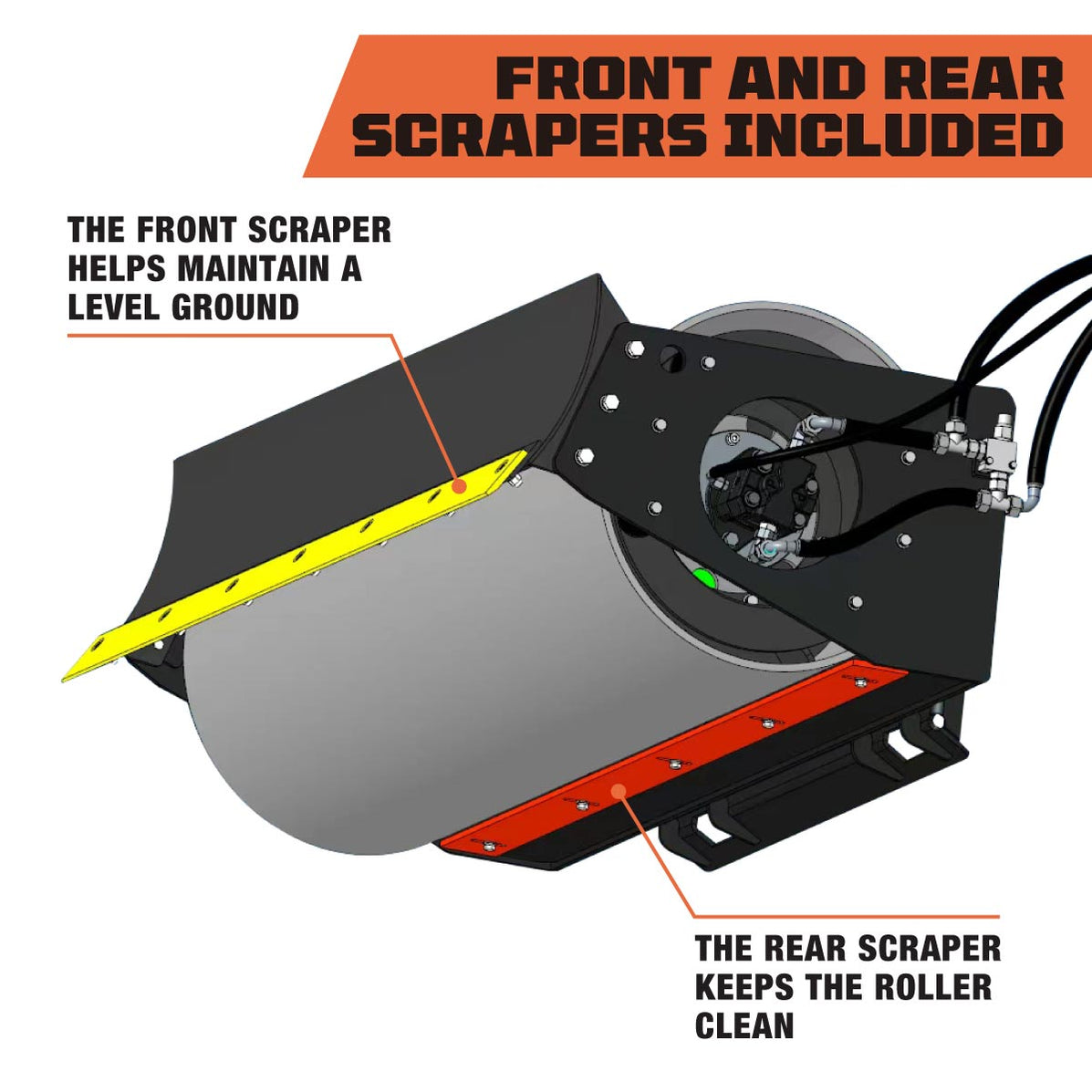

• Dual Surface Drum Scrapers: Includes heavy-duty front and rear adjustable scrapers that continuously clear damp mud, sticky clay, and asphalt buildup from the 24-inch drum face to maintain a perfectly smooth rolling finish.

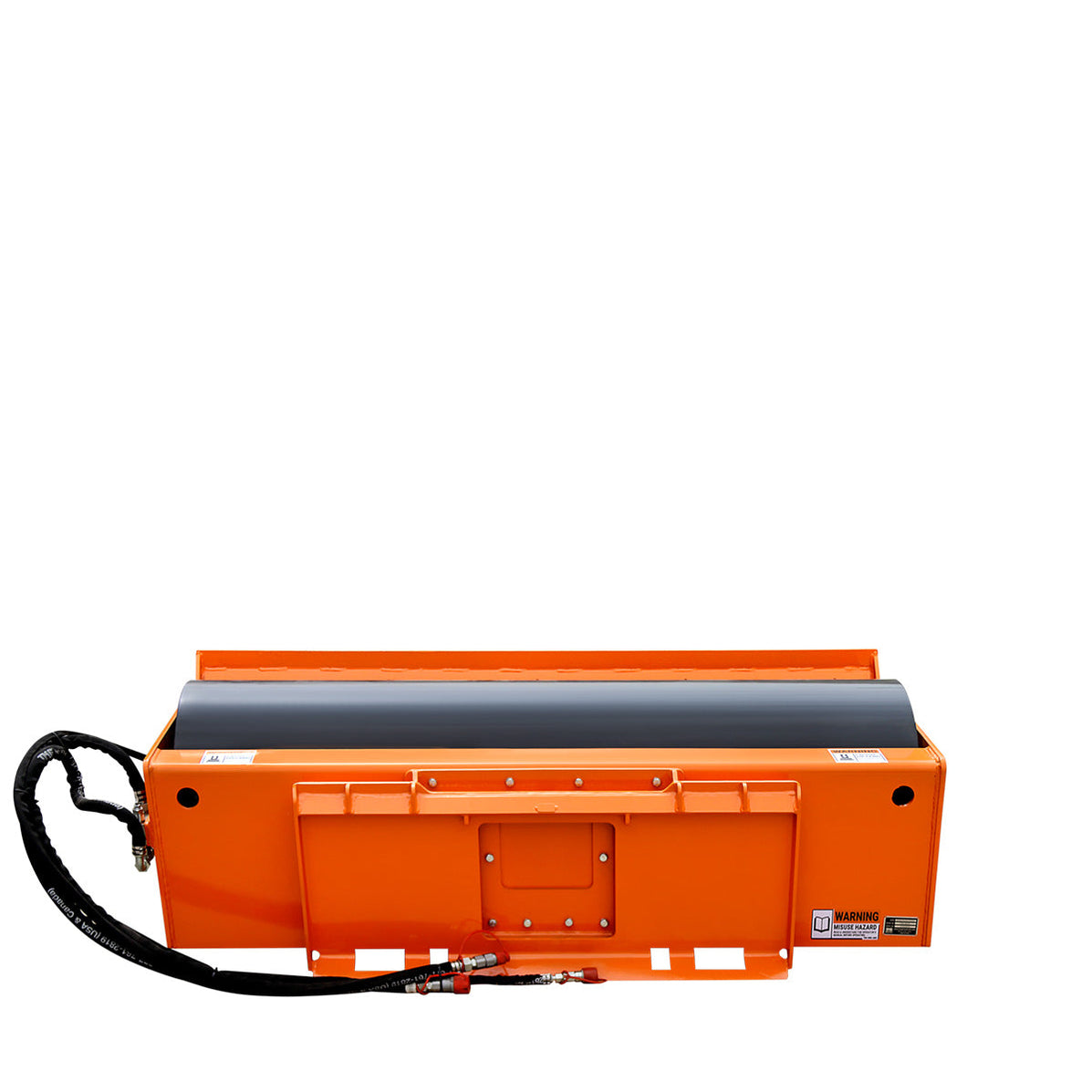

• Universal Skid Steer Mount: Built with a standard universal quick-attach backing plate, ensuring rapid connection and full structural compatibility with most modern skid steers and track loaders.

Technical Specifications

• Model: TMG-SVR72

• Drum Style: Smooth drum layout

• Working Drum Width: 72”

• Drum Diameter: 24”

• Overall Physical Footprint: 75” L x 39-¼” W x 25” H

• Attachment Operating Weight: 1,985 lbs (900 kg)

• Dynamic Impact Force: 30 – 41 kN (9,217 lbf maximum)

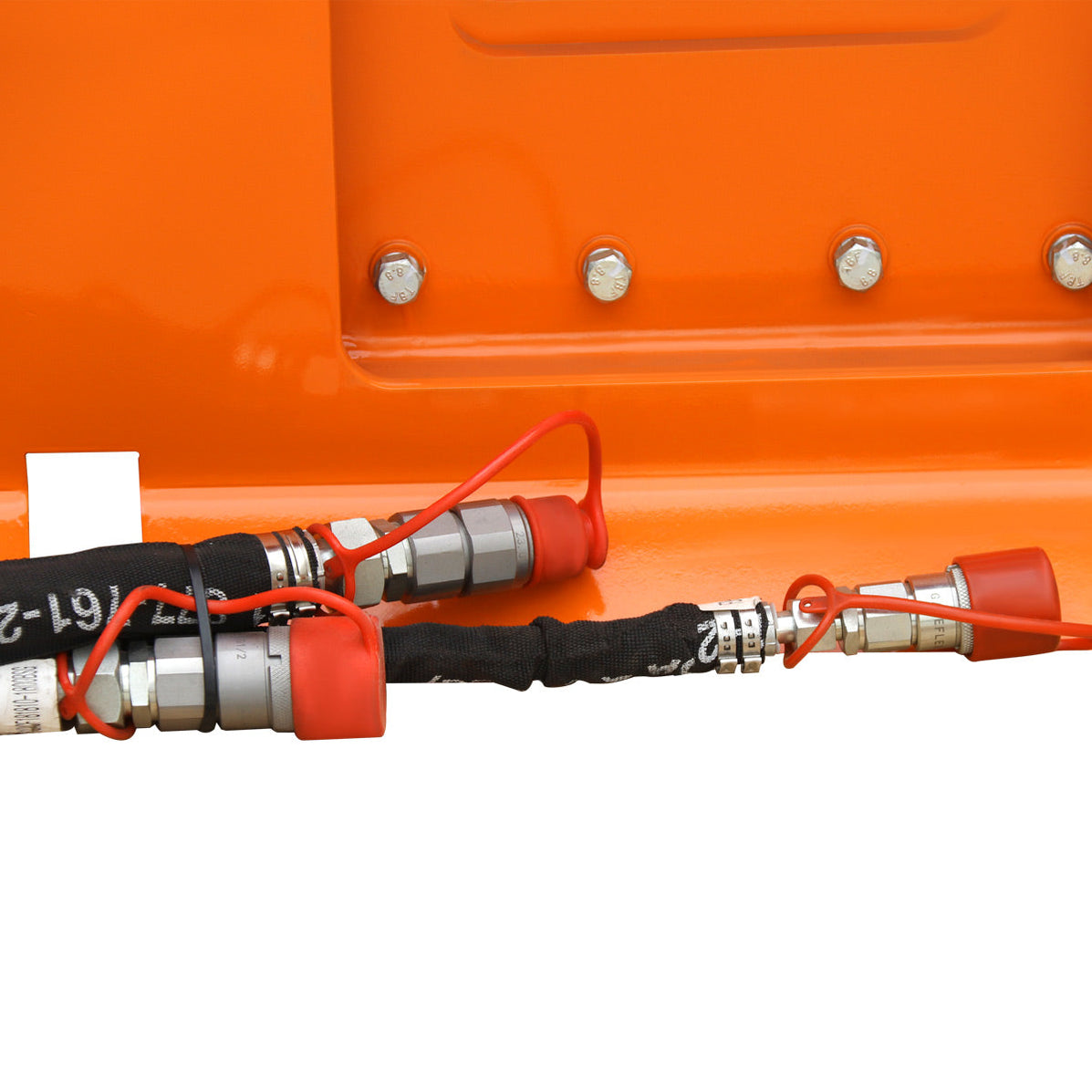

• Required Auxiliary Hydraulic Flow: 16 – 18 GPM (Standard low-flow system compatible)

• Maximum Auxiliary System Pressure: 2,320 PSI

• Mounting Interface: Universal skid steer quick mount

• Equipment Compatibility: Fits most standard skid steers, compact track loaders, and compact wheel loaders

Shipping & Delivery

• Processing Time: 2–3 business days

• Delivery: This TMG Industrial Products ships free by standard LTL to delivery addresses in the contiguous United States, with no order minimum. Free local pickup by appointment is also available at 706 N Main St, Gravois Mills, MO 65037. Standard delivery does not include unloading, liftgate, appointment, limited-access, or other accessorial service.

• Availability Note: High-demand industrial equipment; final freight dispatch is subject to current product availability and carrier scheduling.

• Unloading Requirements: This product is exceptionally dense, oversized, and heavy. Mechanical unloading equipment (such as a heavy-duty forklift, a large skid steer/wheel loader with forks, or a telehandler) is strictly required at the delivery destination to safely remove the freight crate from the commercial carrier.

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 81” L x 50” W x 32” H

• Combined Shipping Weight: 2,100 lbs
