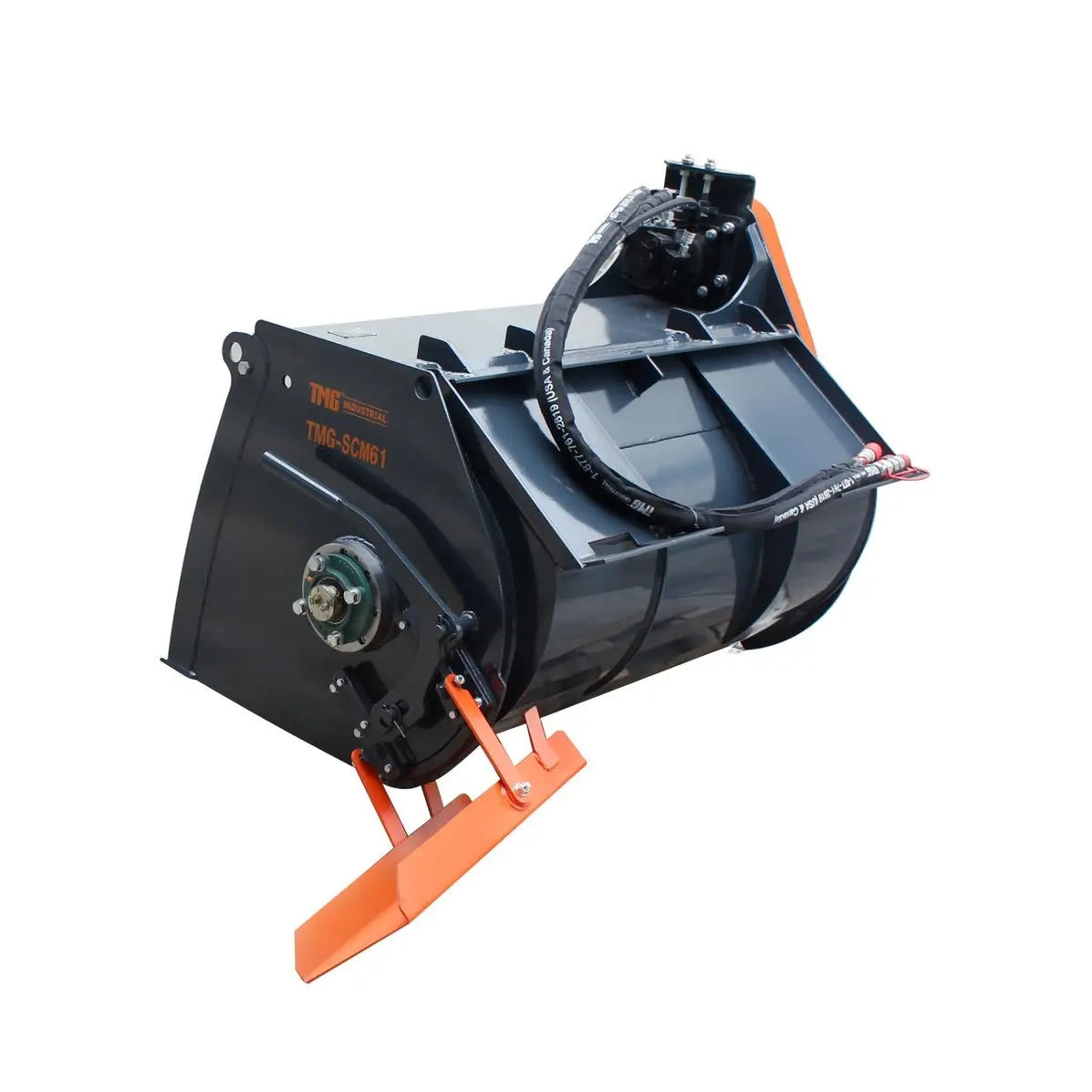

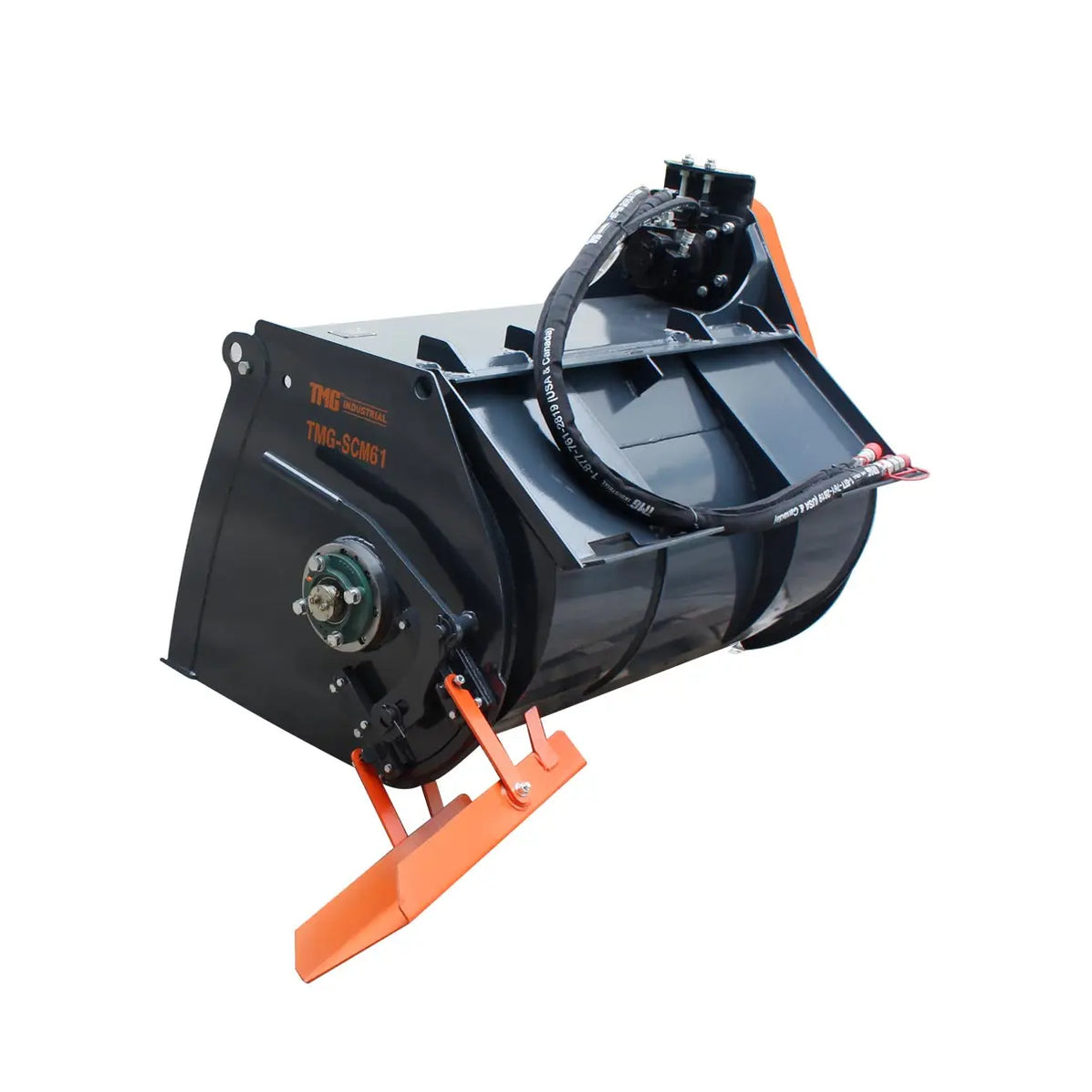

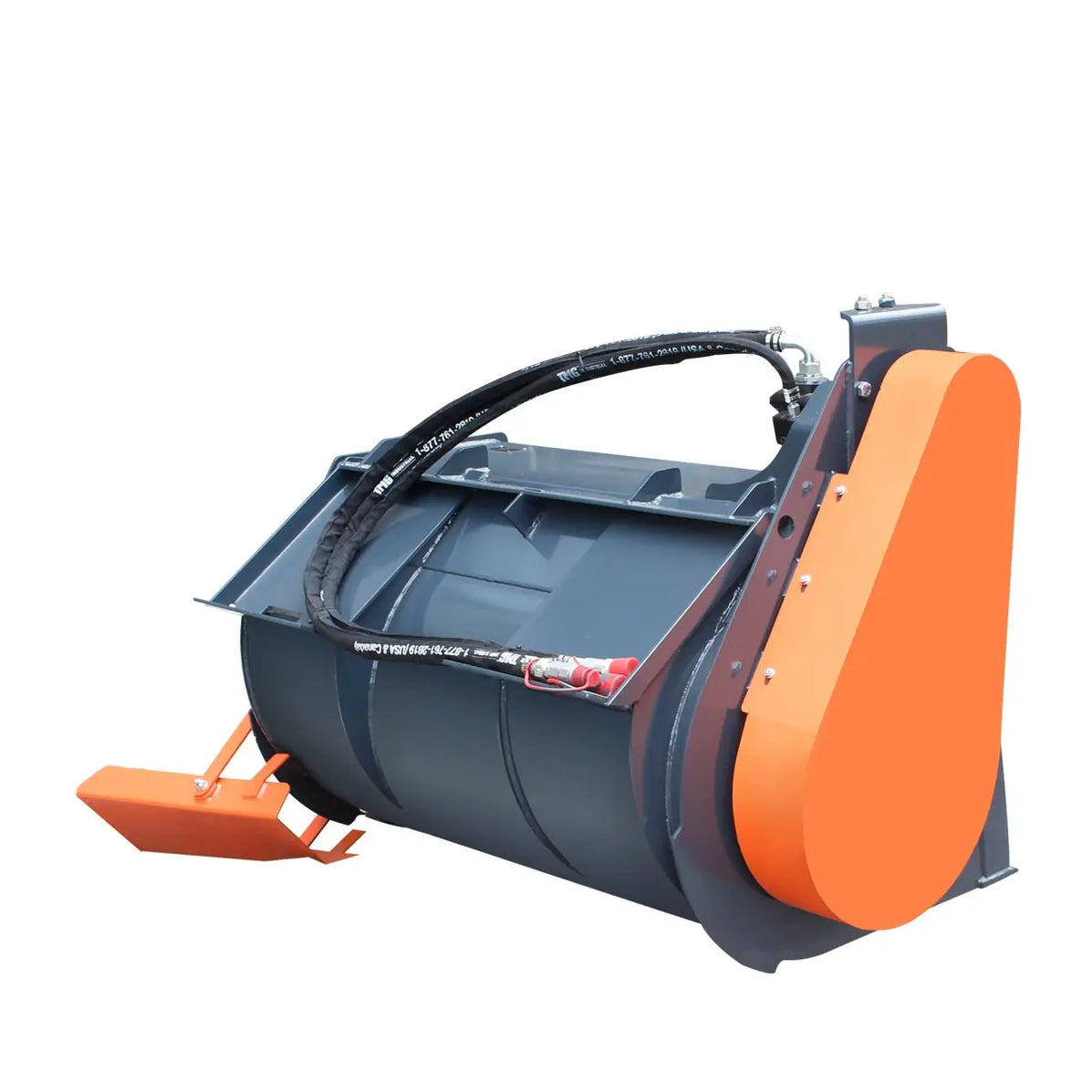

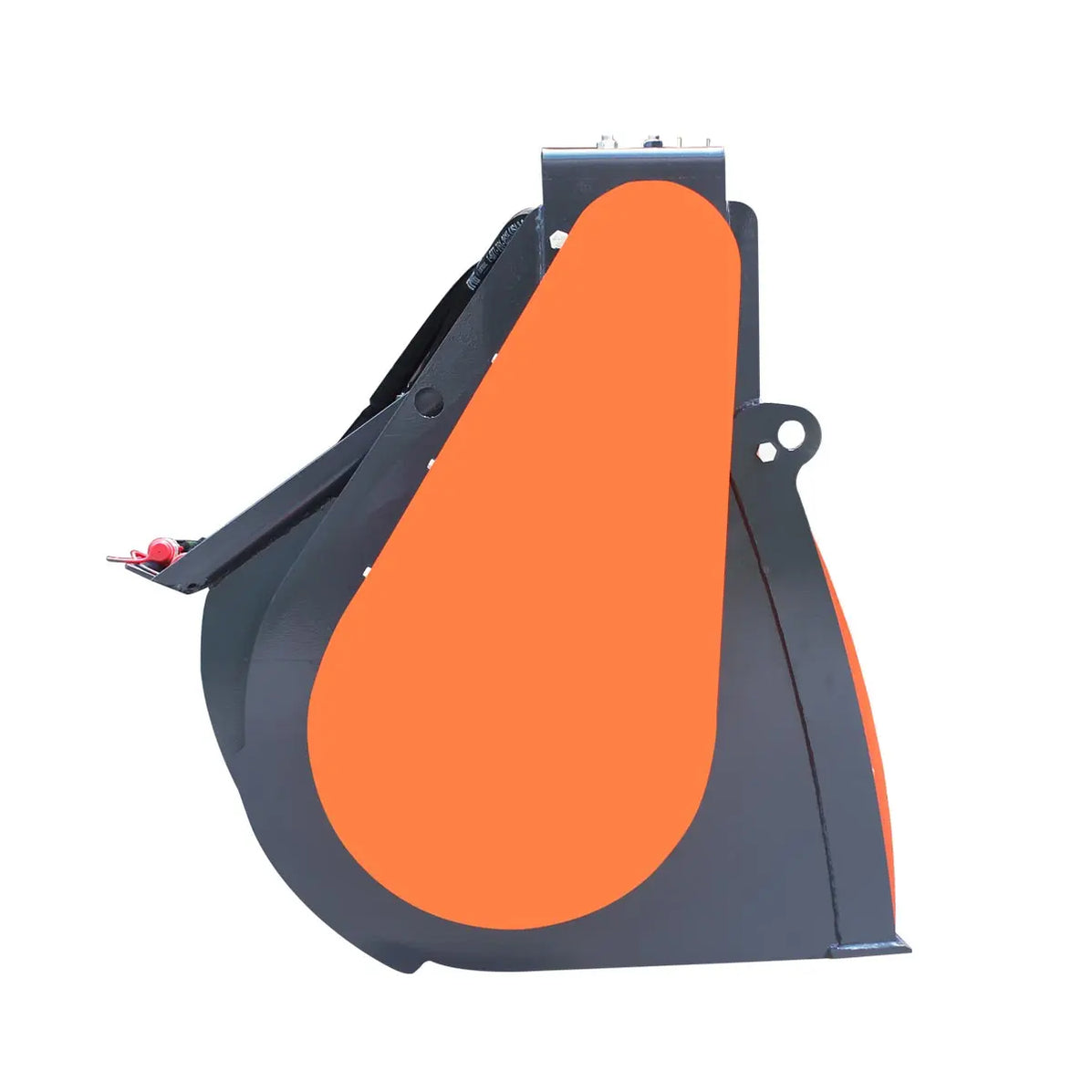

TMG-SCM61 60″ Skid Steer Concrete Mixer Attachment

Key Features

• High-Capacity 16 Cu-Ft Hopper: Features an expansive 60-inch wide bucket with a 16 cubic-foot blending capacity, allowing operators to mix large batches simultaneously to optimize on-site efficiency.

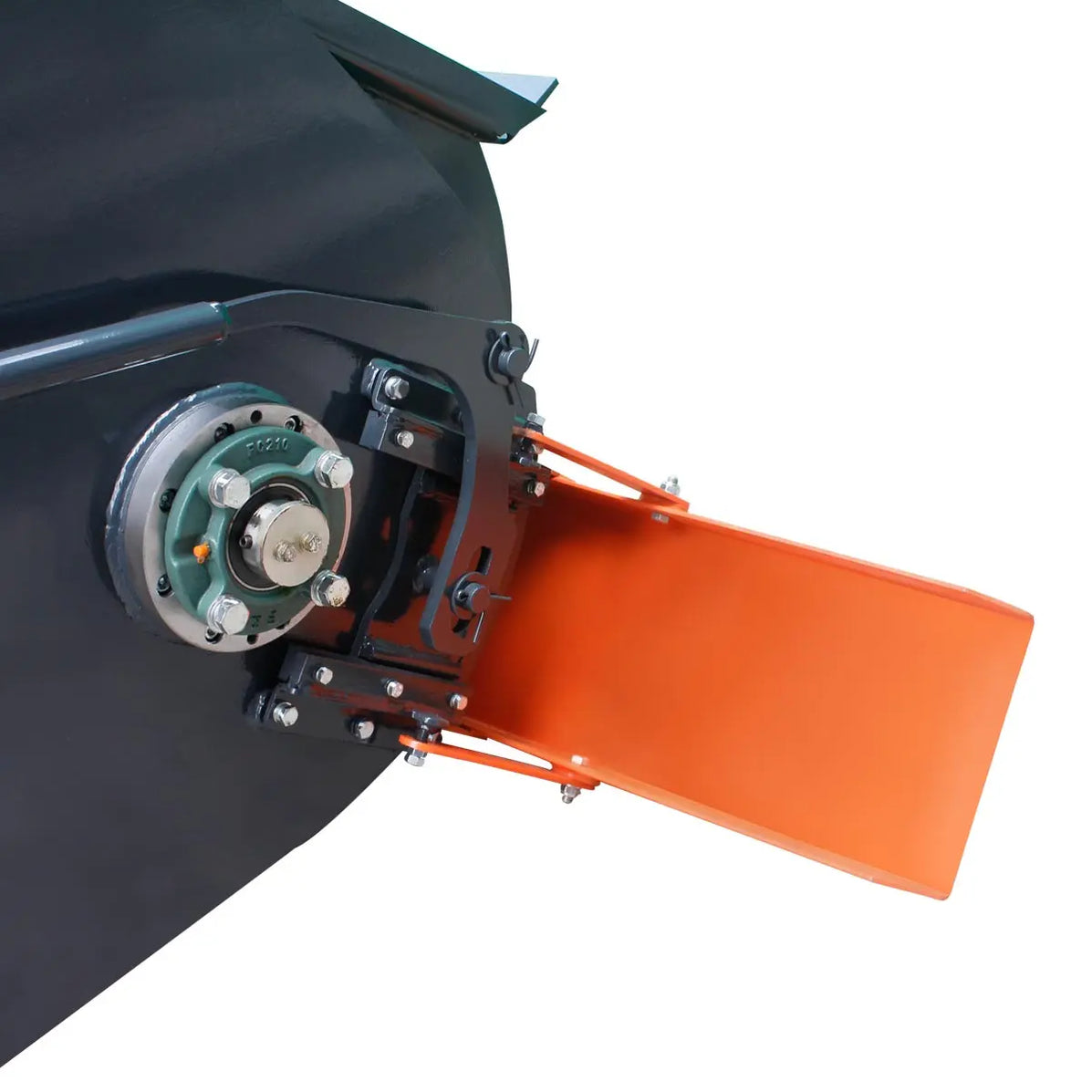

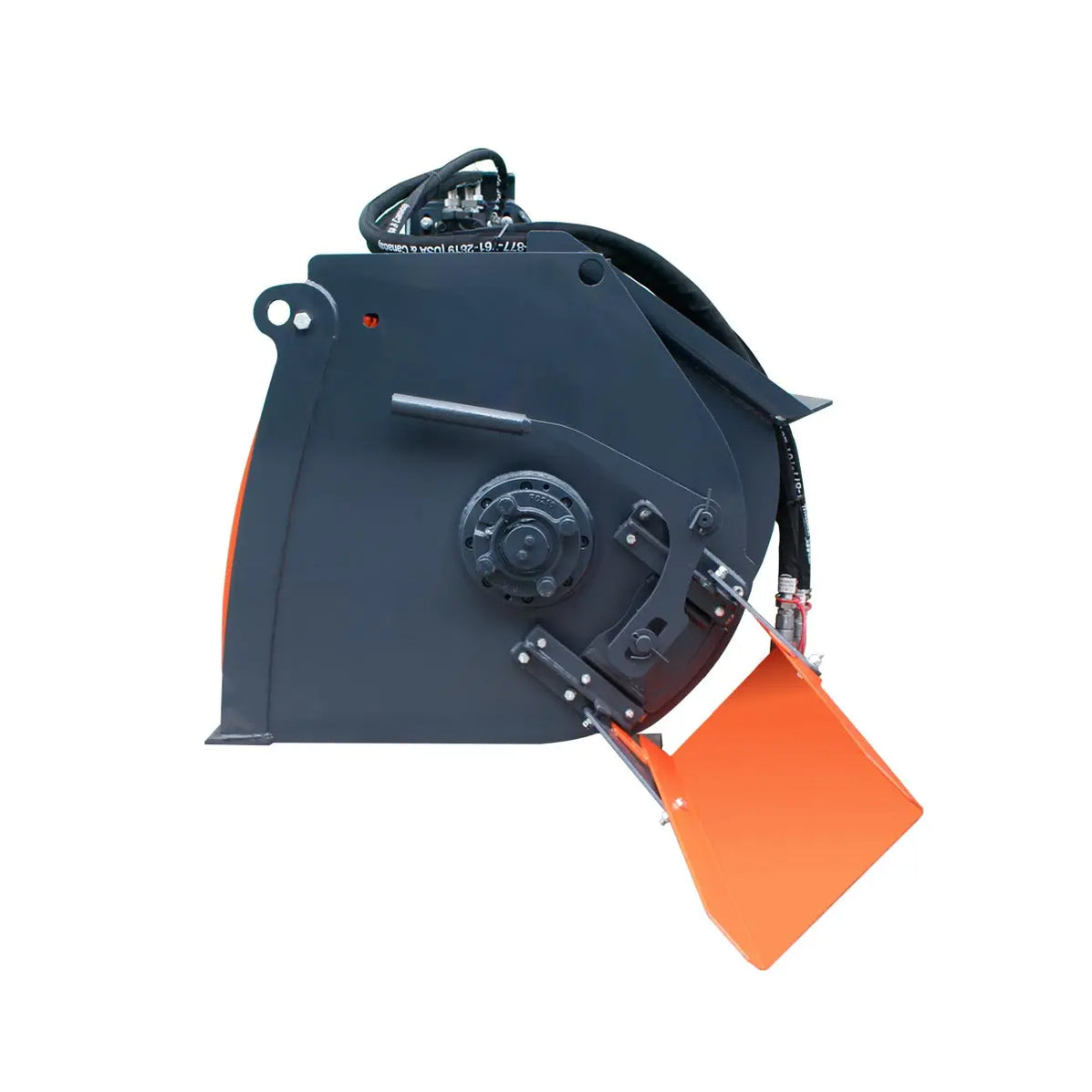

• Dual-Dispensary Pour System: Designed with a controlled side-chute dispenser for precision work (such as setting posts, footings, and filling forms) alongside standard front-dump capabilities for larger monolithic slab, sidewalk, and pad pours.

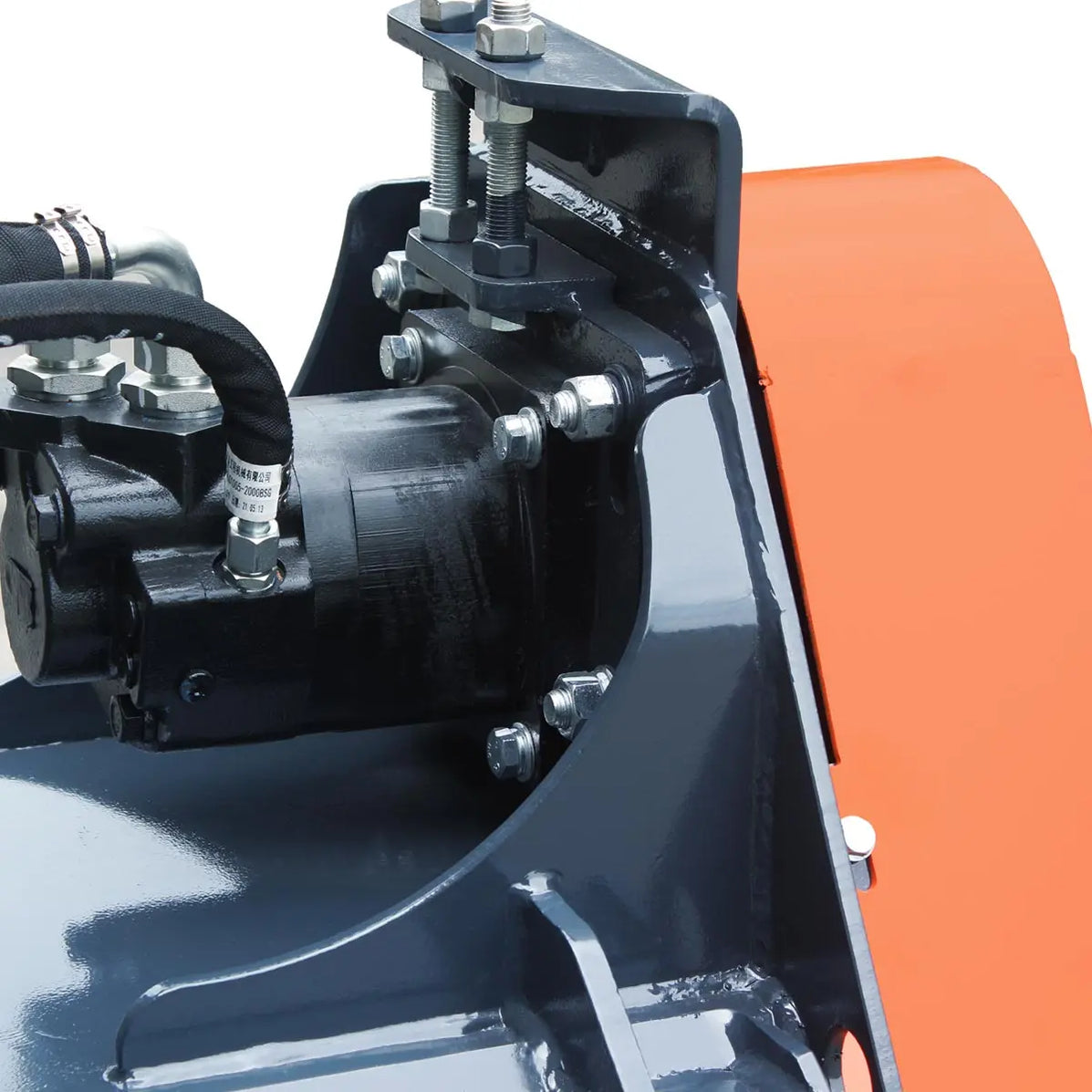

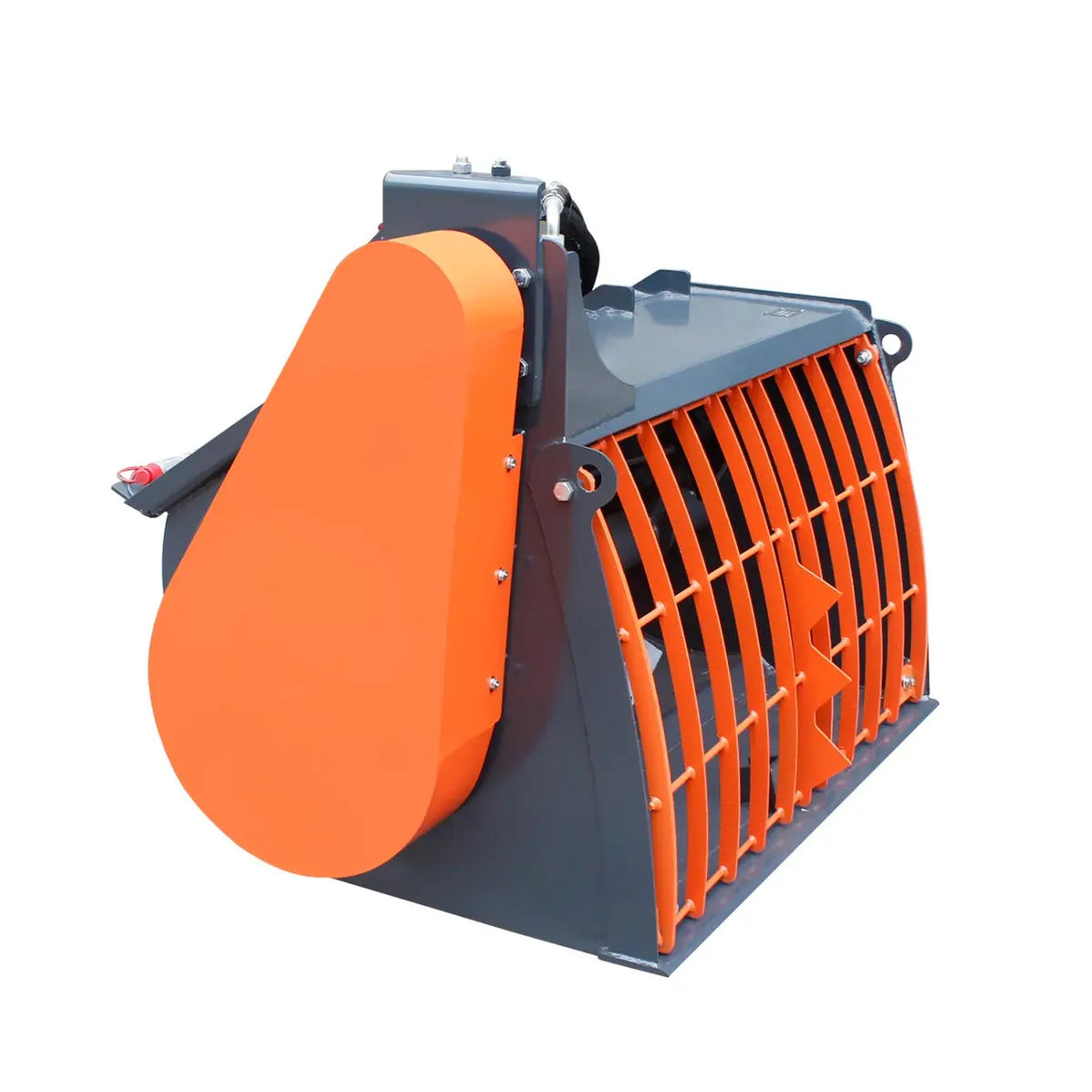

• Heavy-Duty Chain & Sprocket Drive: Powered by a rugged hydraulic chain-and-sprocket drive system operating at up to 3,000+ PSI to supply high-torque, stall-free mixing action through dense aggregate blends.

• Reversible Churning Paddles: Outfitted with robust, reversible revolving paddles that thoroughly blend materials to prevent dead spots, ensuring a highly consistent, professional-grade slump and pour every time.

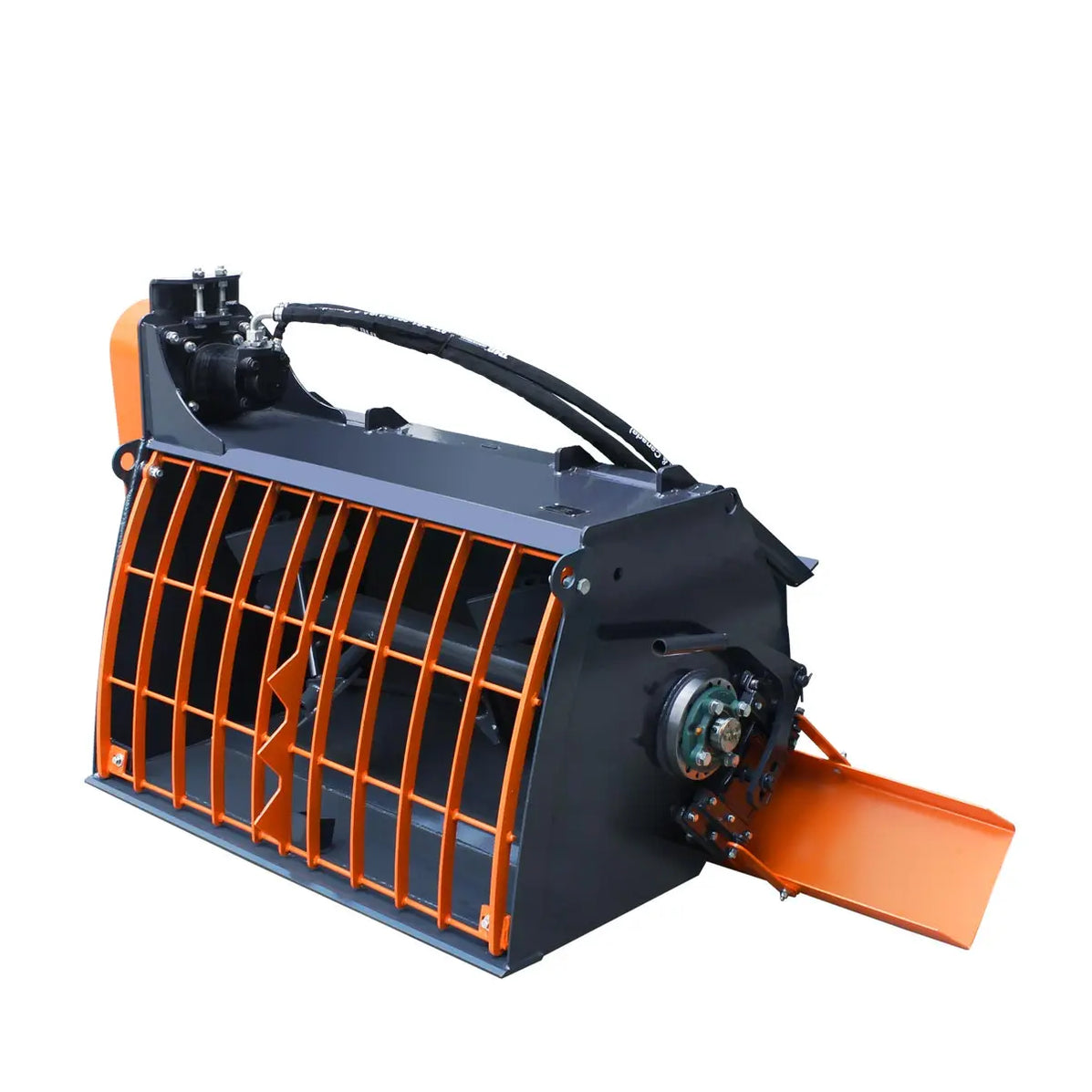

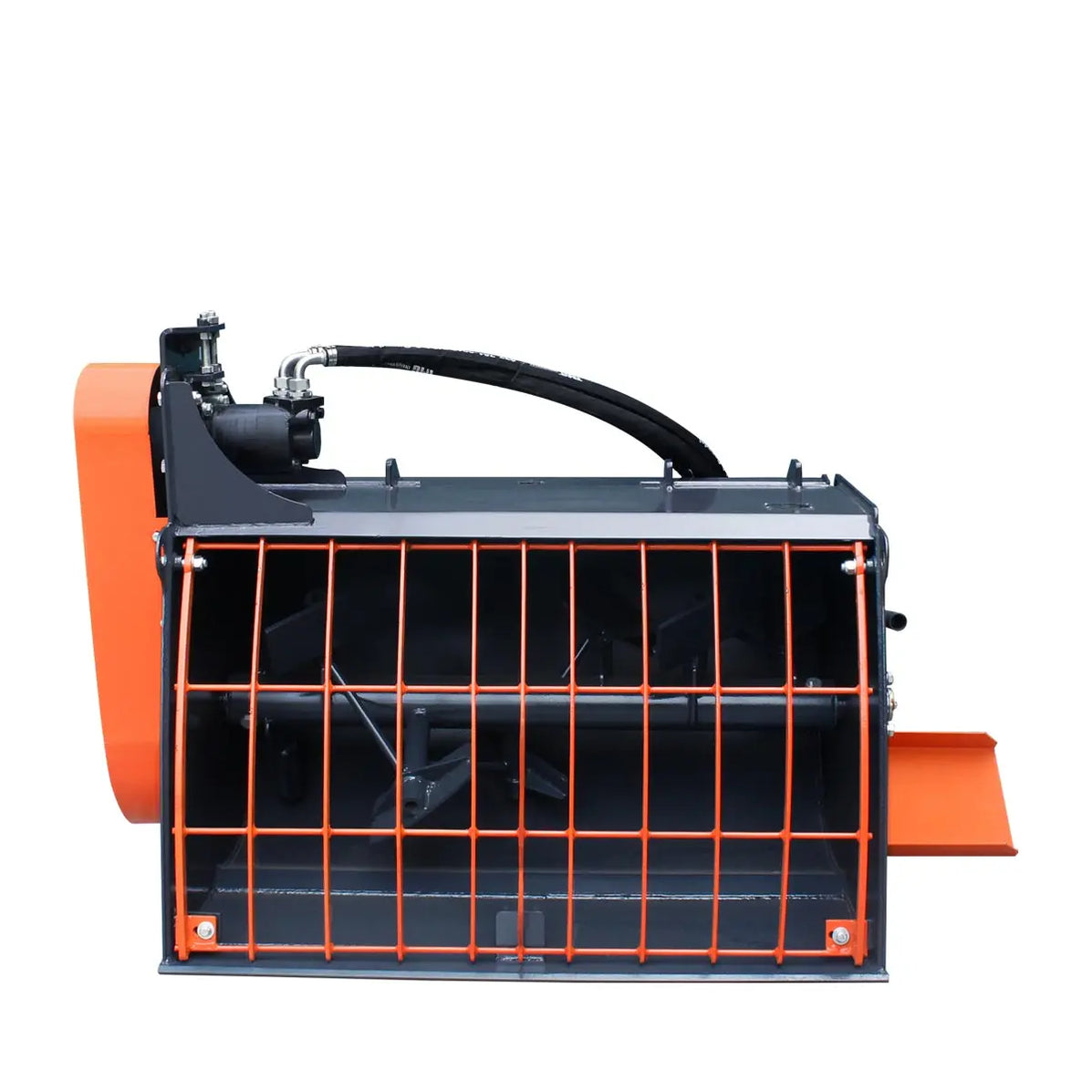

• Integrated Bag-Splitter Safety Grate: Features a heavy-duty, removable steel top grate equipped with built-in bag splitters, enabling rapid, tool-free loading of dry cement bags while driving up safety and debris filtration.

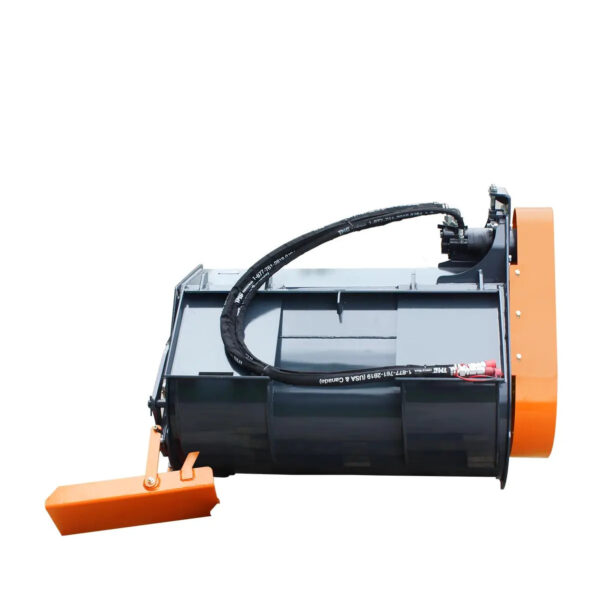

• Plug-and-Play Hydraulic Setup: Ships complete with standard hydraulic hoses and flat-face couplers included, ensuring seamless connection to your loader’s auxiliary low-flow hydraulic circuits.

• Universal Quick Attach Mount: Built with a standard universal skid steer quick-mount plate, providing reliable compatibility with almost all modern skid steer and compact track loader makes and models.

Technical Specifications

• Model: TMG-SCM61

• Hopper Capacity: 16 Cubic Feet

• Hopper Dimensions: 60” Working Width | 25” Deep

• Assembled Physical Footprint: 73” L x 53” W x 49” H

• Auxiliary Hydraulic Flow Rating: 16 – 21 GPM (Standard low-flow system compatible)

• Maximum Hydraulic Pressure Threshold: 3,050 PSI

• Drivetrain Mechanism: High-torque hydraulic chain & sprocket motor

• Mixing Hardware: Reversible heavy-gauge revolving paddles

• Material Constraints: Supports maximum aggregate sizes up to ¾” at a 25% (or less) mix ratio

• Mounting Interface: Universal skid steer quick mount

• Hydraulic Connections: Factory-installed hydraulic hoses and flat-face quick-disconnect couplers are included

Shipping & Delivery

• Processing Time: 2–3 business days

• Transit Time: This TMG Industrial Products ships free by standard LTL to delivery addresses in the contiguous United States, with no order minimum. Delivery timing depends on product availability, destination, site access, unloading requirements, and routing.

• Unloading Requirements: Product is exceptionally dense, oversized, and heavy. Mechanical unloading equipment (such as a forklift, a second skid steer with forks, or a wheel loader) is strictly required at the delivery destination to safely receive and offload the transport crate from the freight truck.

• Packaging Type: Heavy-duty protective metal crate shipping box

• Shipping Dimensions: 66” L x 55” W x 43” H

• Combined Shipping Weight: 1,130 lbs
