Compact Mini Excavator, 15 HP EPA Certification Engine
$10,499.99
In stock
FREE Shipping
- FREE* Nationwide Freight Shipping on all:
- TMG Industrial products
- Stinger Attachments
- Bucket Bunker Attachment Racks
- New Attachment Bundles
- Landhonor/Wolverine Attachments
- Fuel Tanks , Fuel Trailers
- qualifying orders over $1000
*Gates and loading ramps do not qualify for free shipping
*free shipping to the lower 48 only
*Buyer is responsible for unloading on some oversize products
In Store Pick Up
FREE $250 CliffhouseBuildings.com Gift Card
-
- Choose FREE Local Pickup and get a $250 Cliffhouse Gift Card on all orders over $1000
- Come meet our friendly staff
- Loading assistance
- Open (Winter Hours) M-F 8:30-5:30 Saturday 9-1

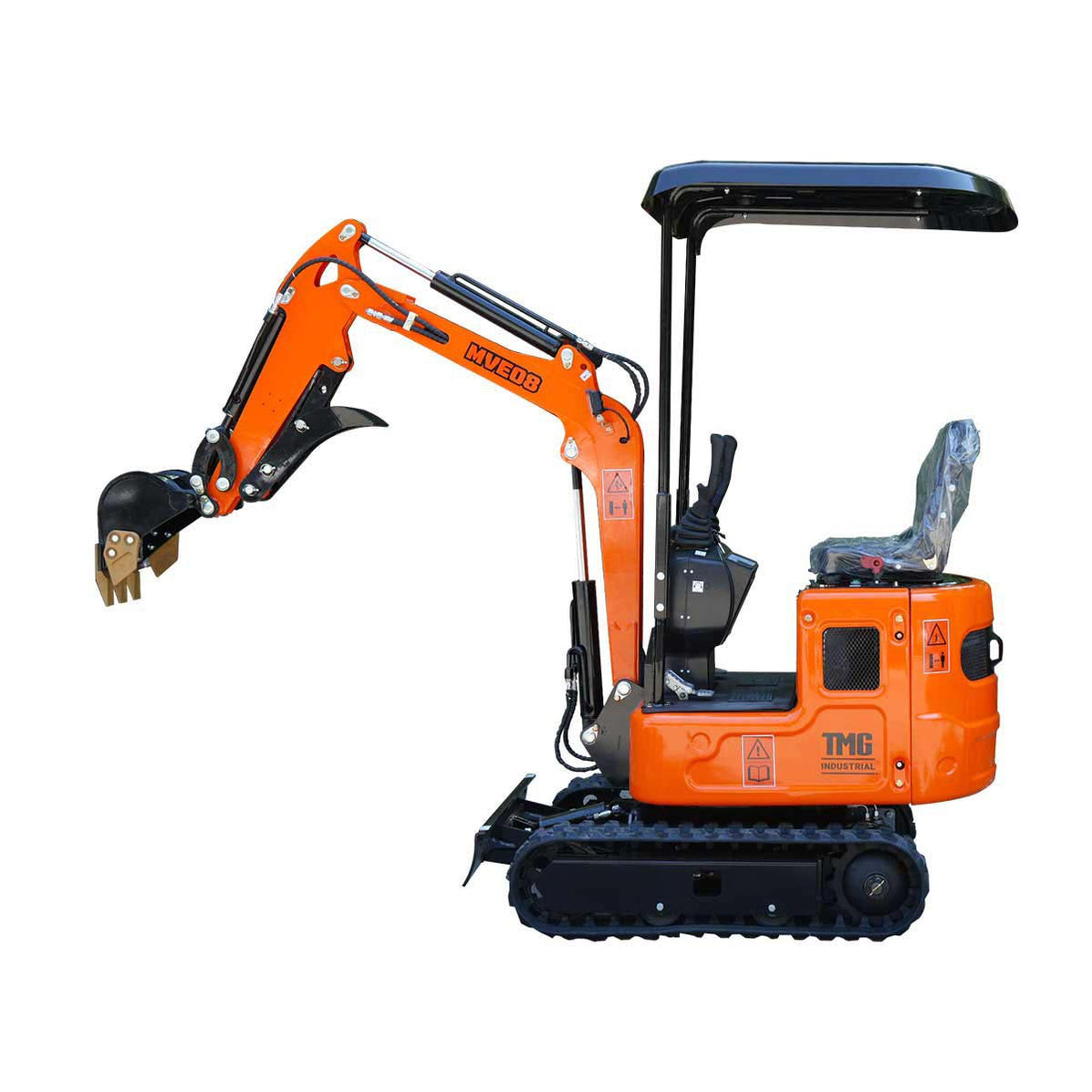

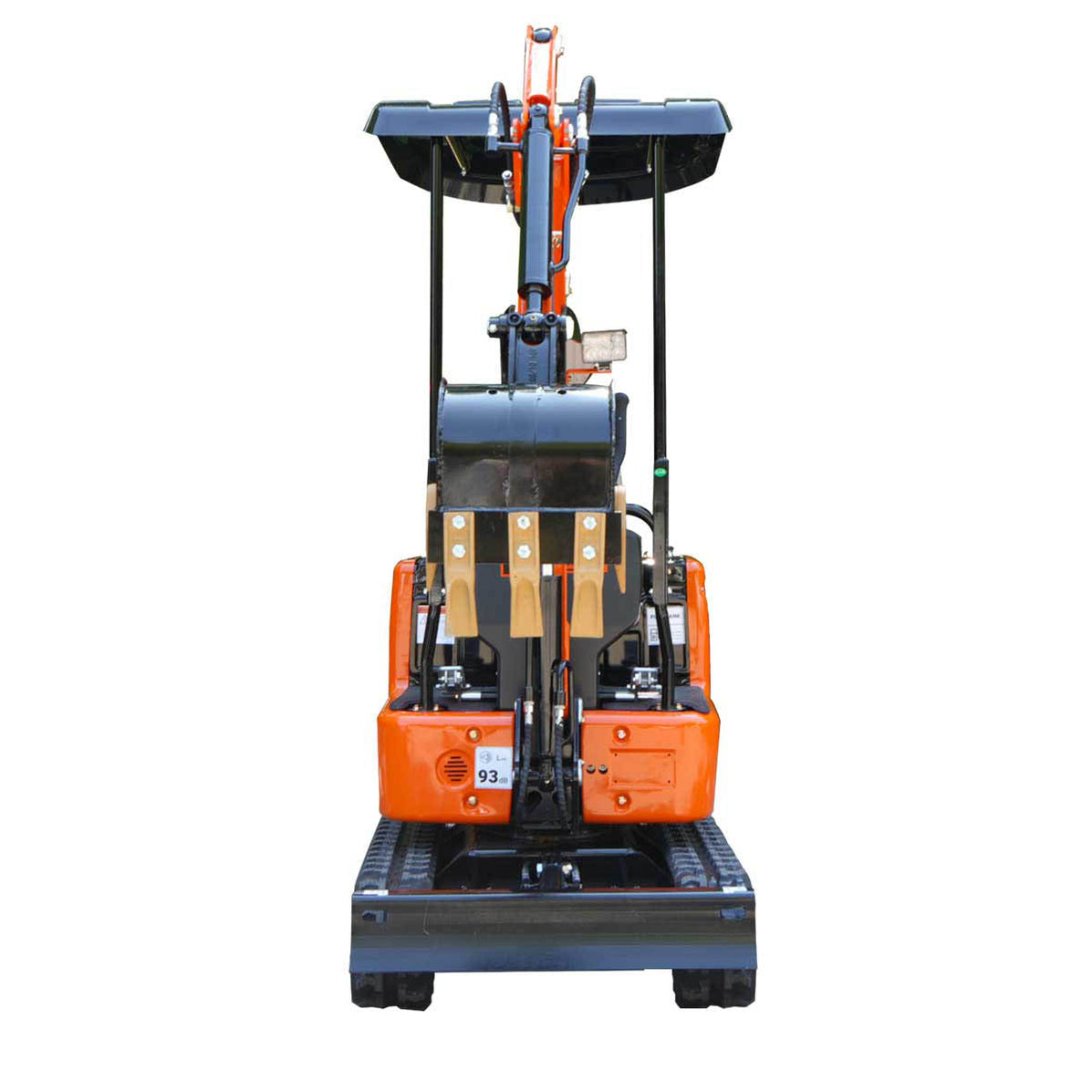

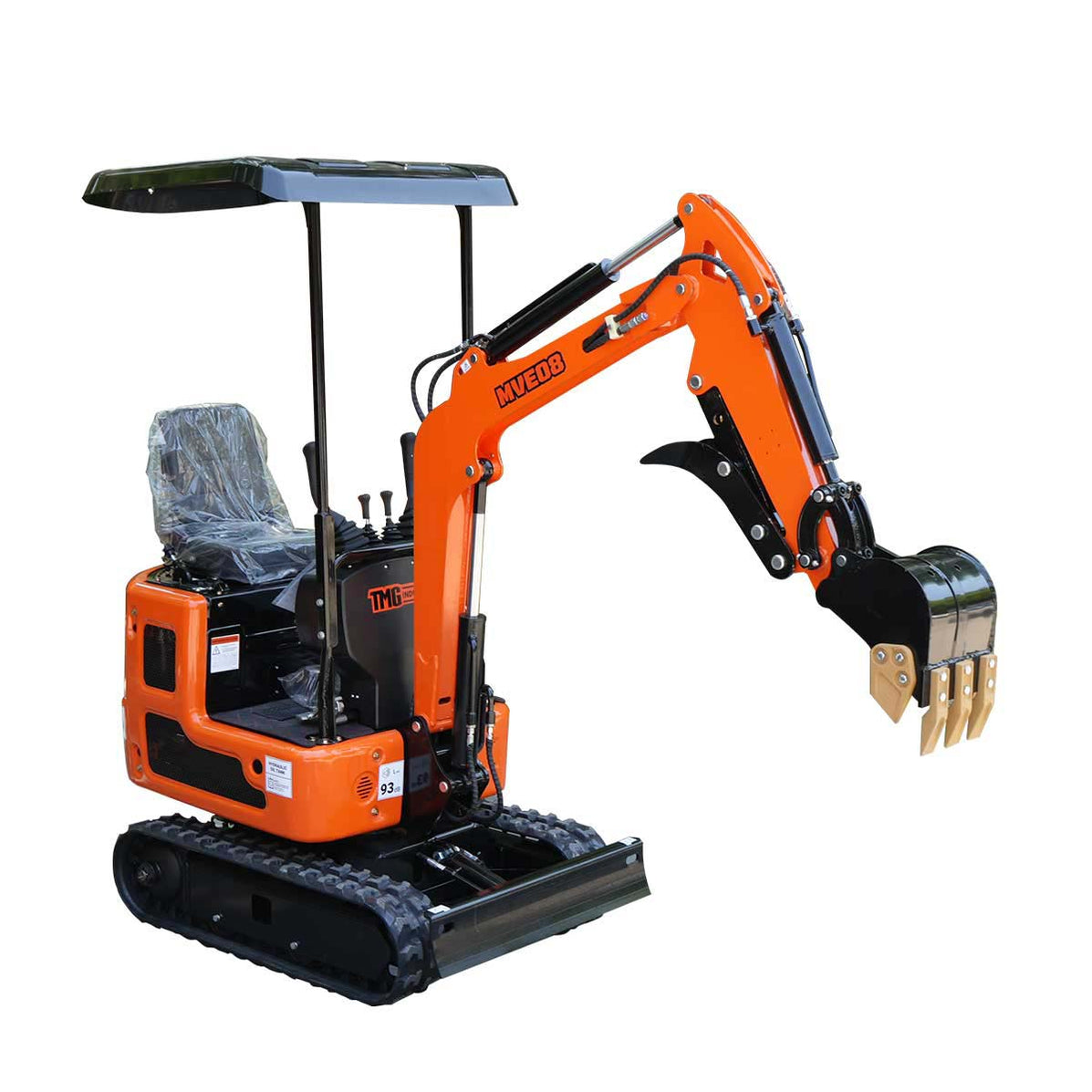

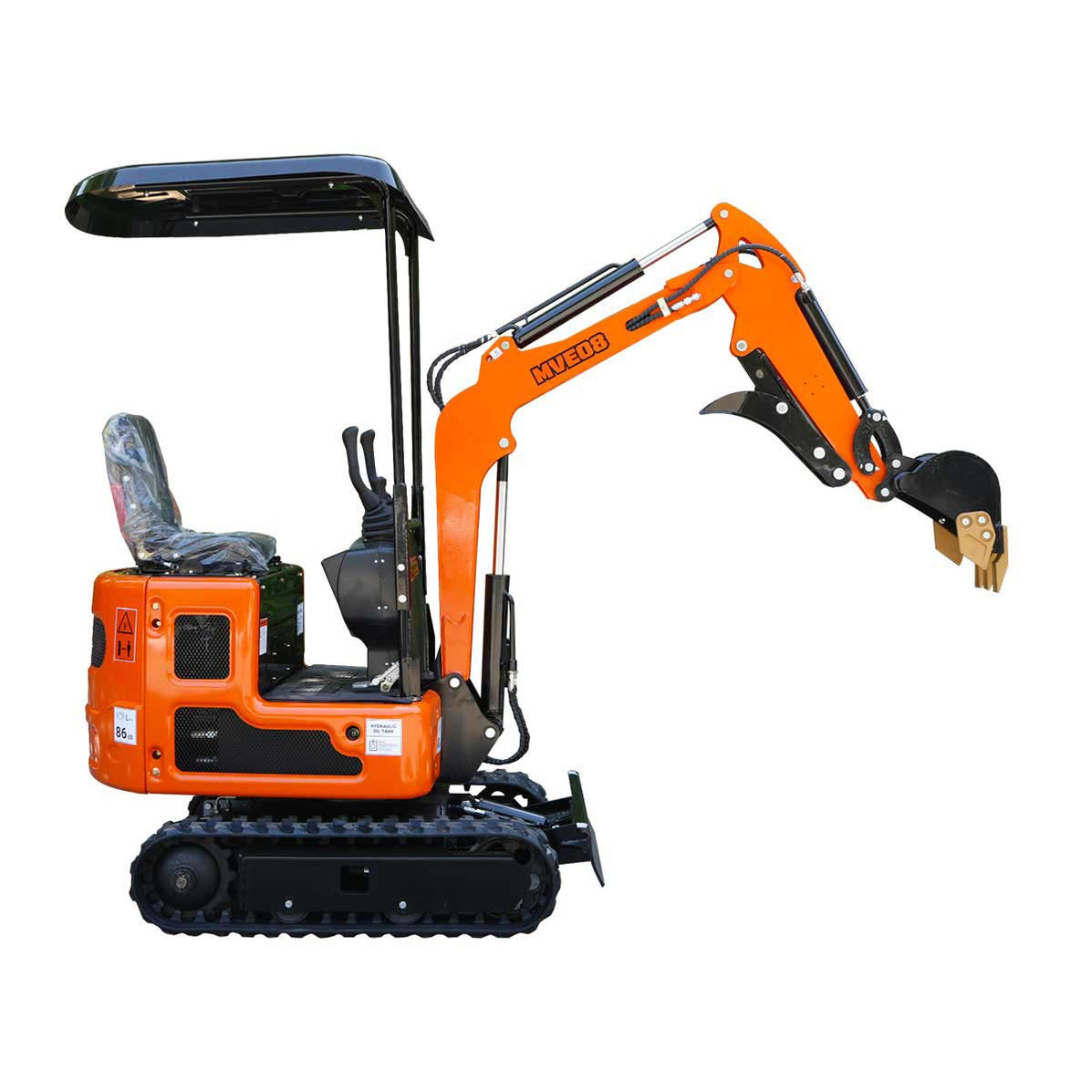

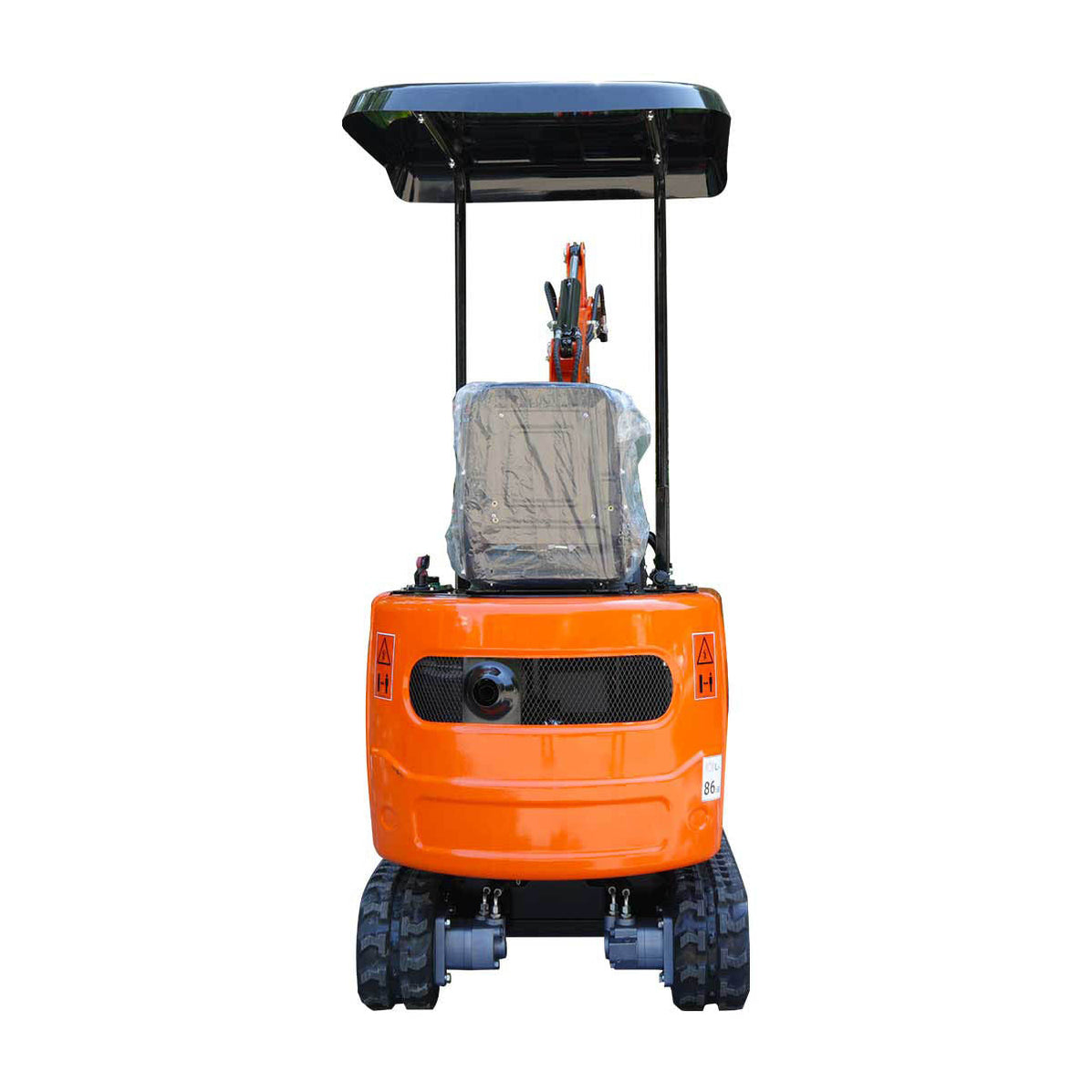

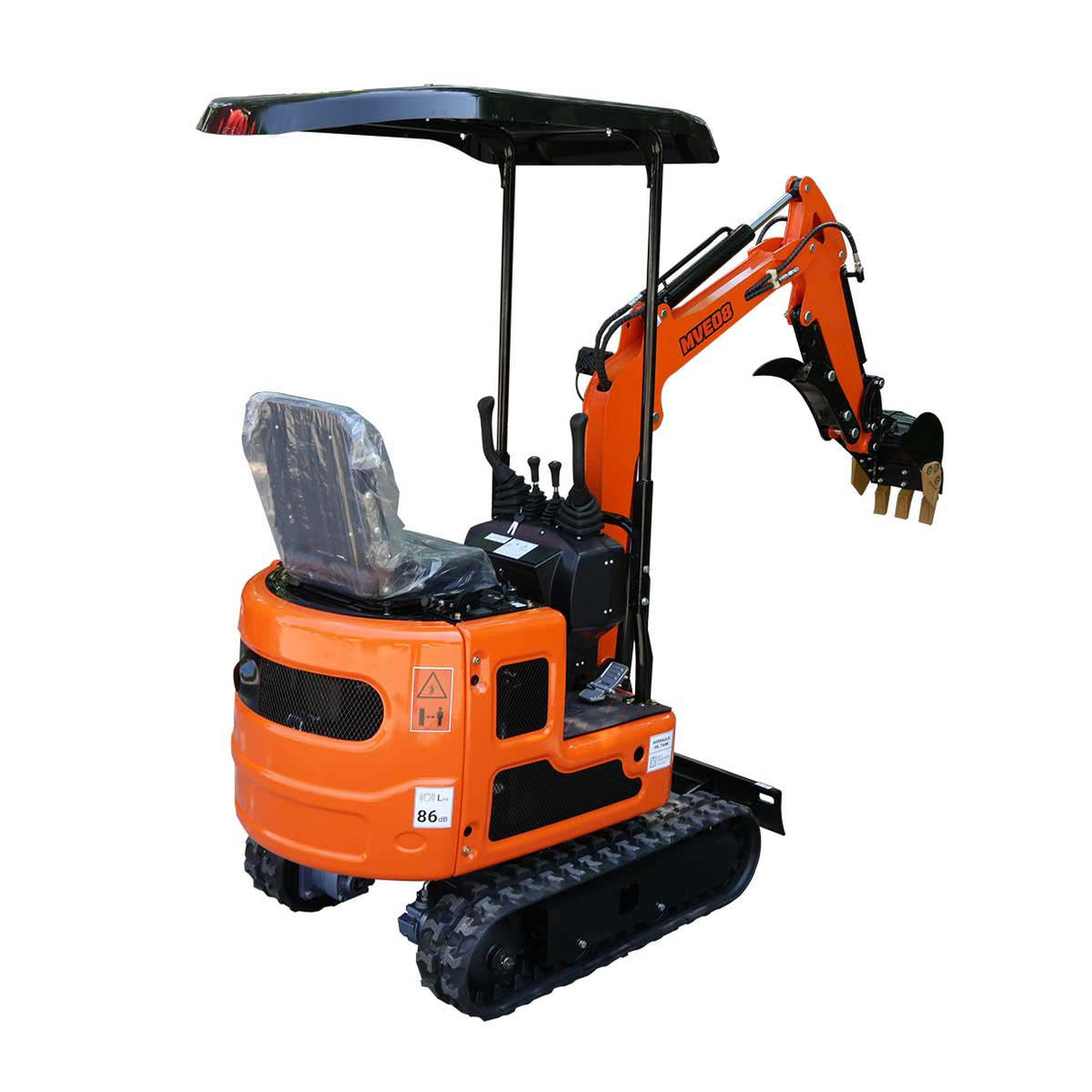

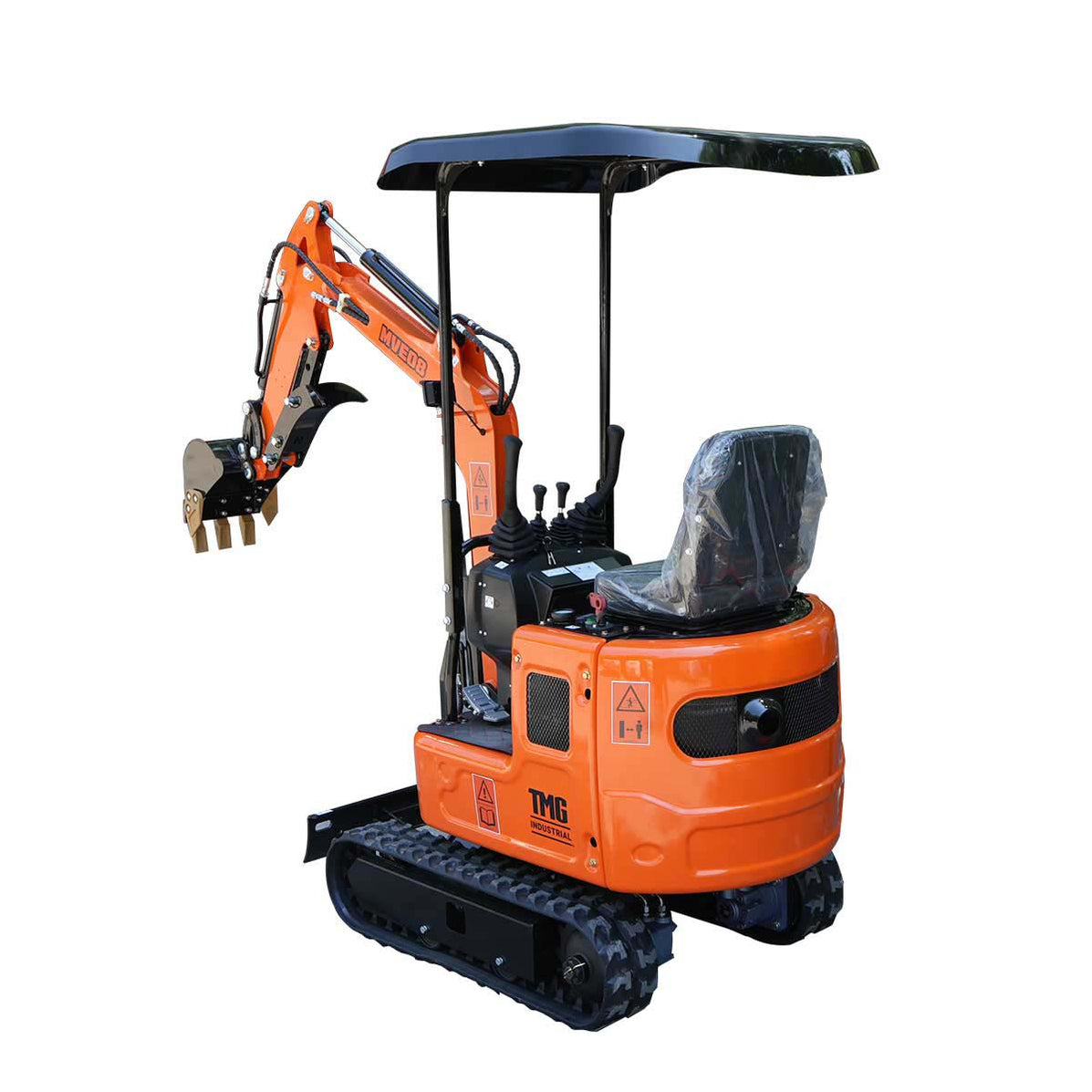

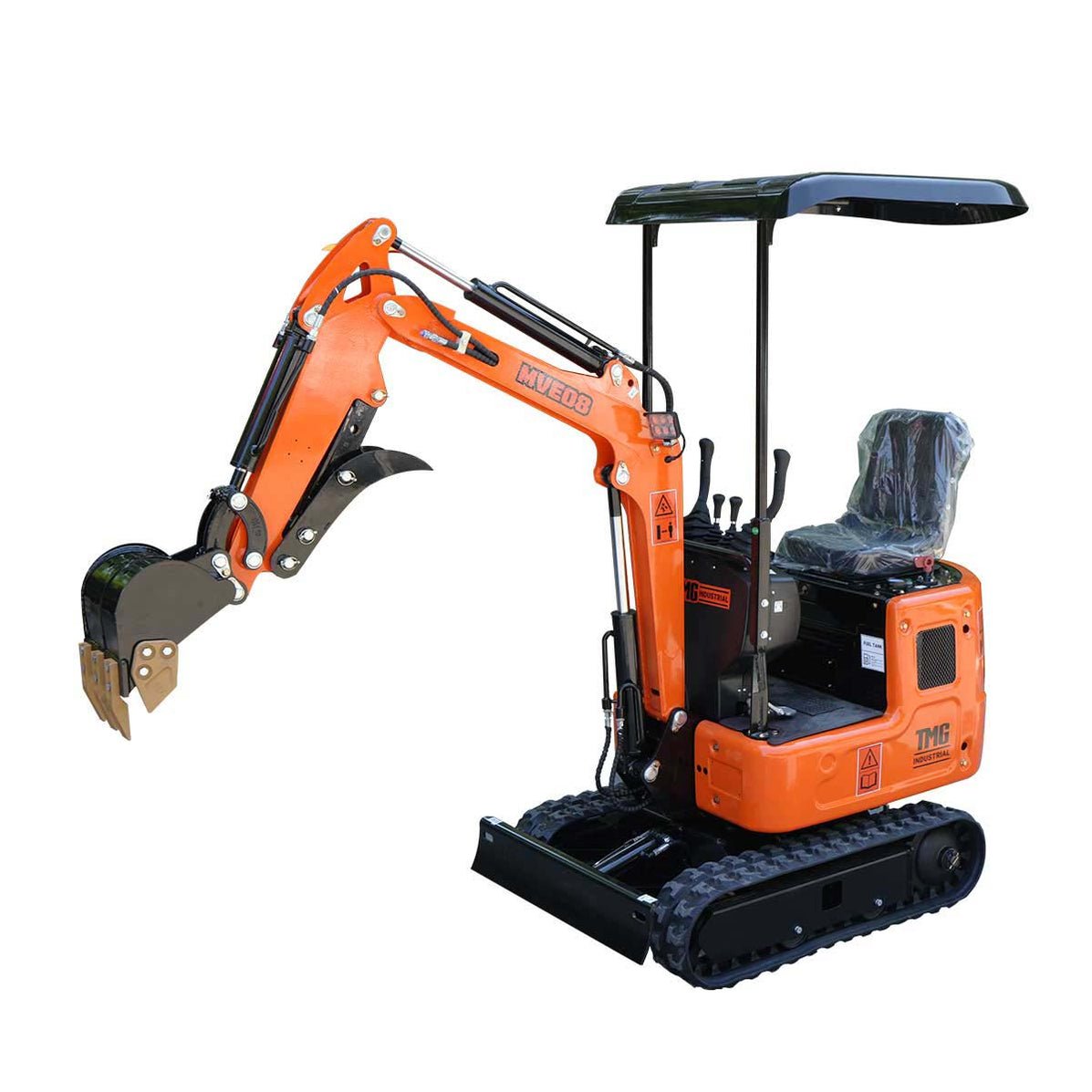

The TMG-MVE08 Mini Compact Excavator is a heavy-duty powerhouse packed into a small, easy-to-use package. Featuring a 15 HP air-cooled engine with EPA certification, this excavator is designed for both flexibility and safety. Specifications
Operating weight: 1900 lb

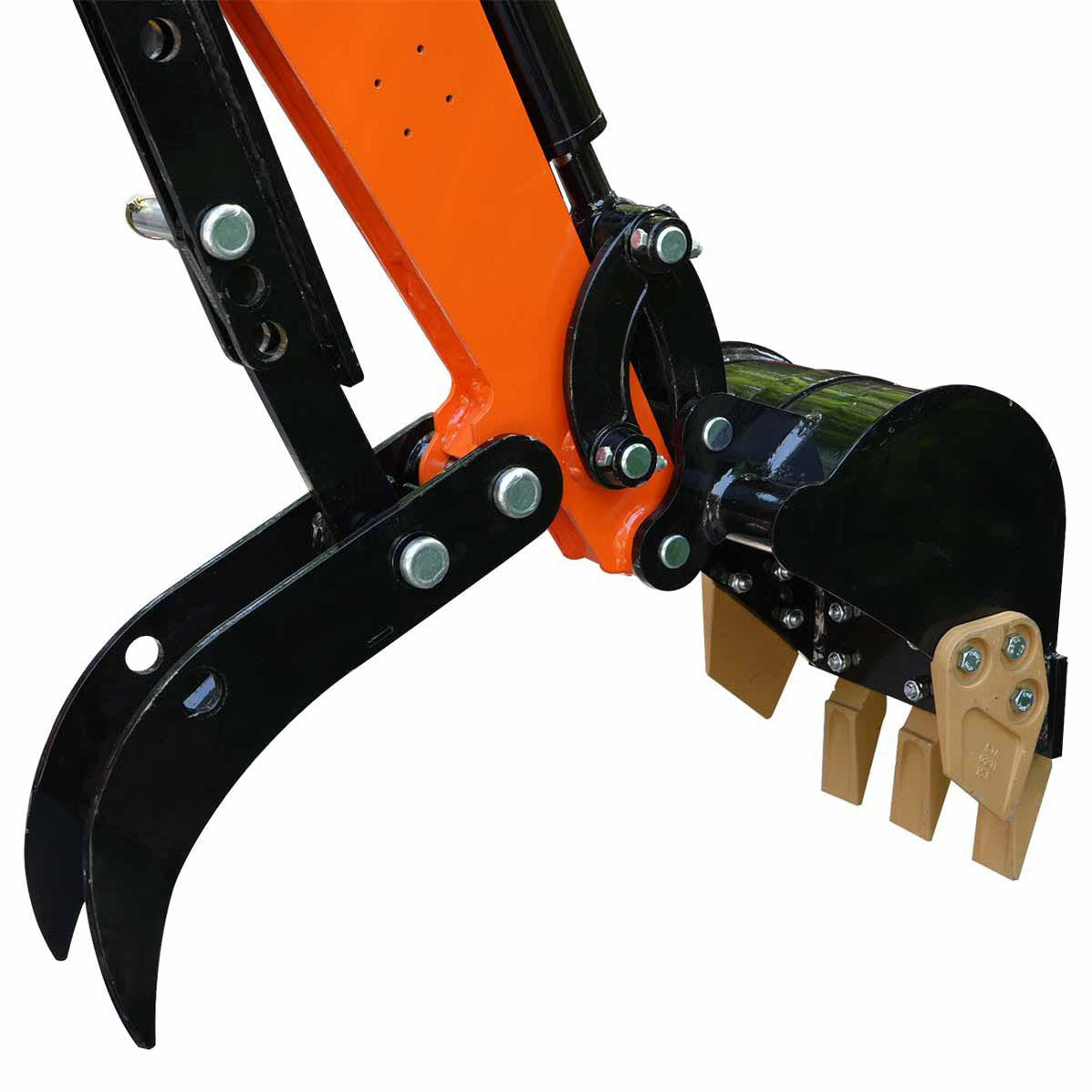

Standard bucket capacity: 0.5 cu-ft
Working device form: Backhoe
Max. travel speed: 1.8 km/h
Max. gradability: 30°
Track ground pressure: 25.53 kpa
Hydraulic oil tank capacity: 12.5 L
Fuel tank capacity: 5.5 L
Max. tractive force: 6.8 kN
Product net weight: 1900 lb
The name of the manufacturer of the hydraulic pump is Parker, with a flow rate of 21.6L/min.
Operating Range
Max. digging depth: 61-½"
Overall operating height(fully raised): 100"
Max. digging radius: 114"
Max. unloading height: 75"
Min. turning radius: 61"
Max. lifting height dozer blade: 6"
Max. depth dozer blade: 6"
Dipper boom digging force: 6.1 kN
Bucket digging force: 9.2 kN
Main Dimensions
Track length: 47"
Upper chassis ground clearance: 15"
Counterweight turning radius: 32"
Chassis width: 36"
Track width: 7"
Track height: 12"
Transportation length: 85"
Height of seat to ground: 40-½"
Overall height: 87"
Engine
Single cylinder, air-cooled, 4-stroke, OHV
Displacement: 420 cc
Max. out power: 8.6kw/3600 RPM
Start type: Electric start w/battery included
Oil capacity: 1.16 US Qt (1.2 L)
Engine oil type: 10W-30
The name of the manufacturer of the hydraulic pump is Parker, with a flow rate of 21.6L/min.
