80 ton Weighbridge Truck Scale, -35℃ to +70℃

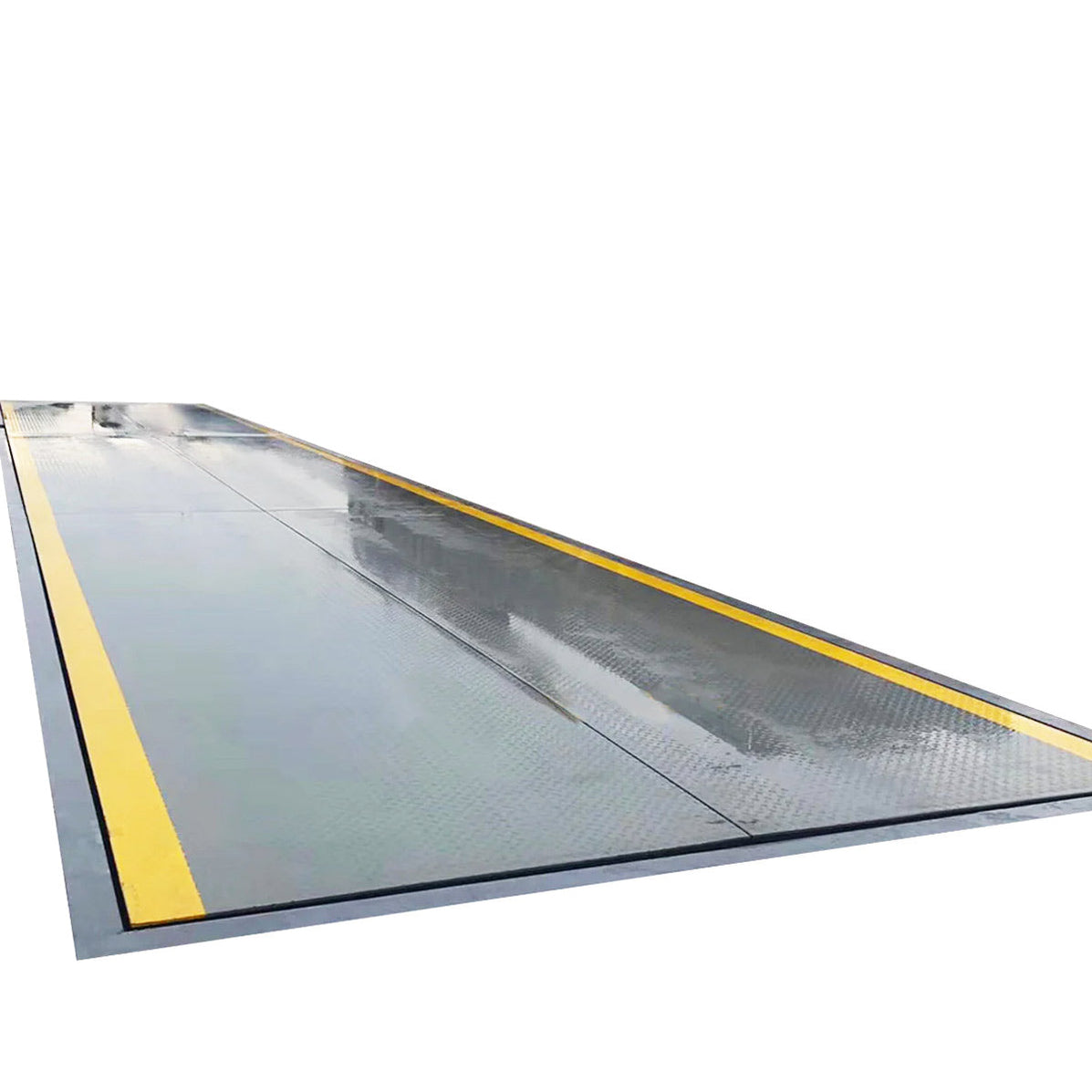

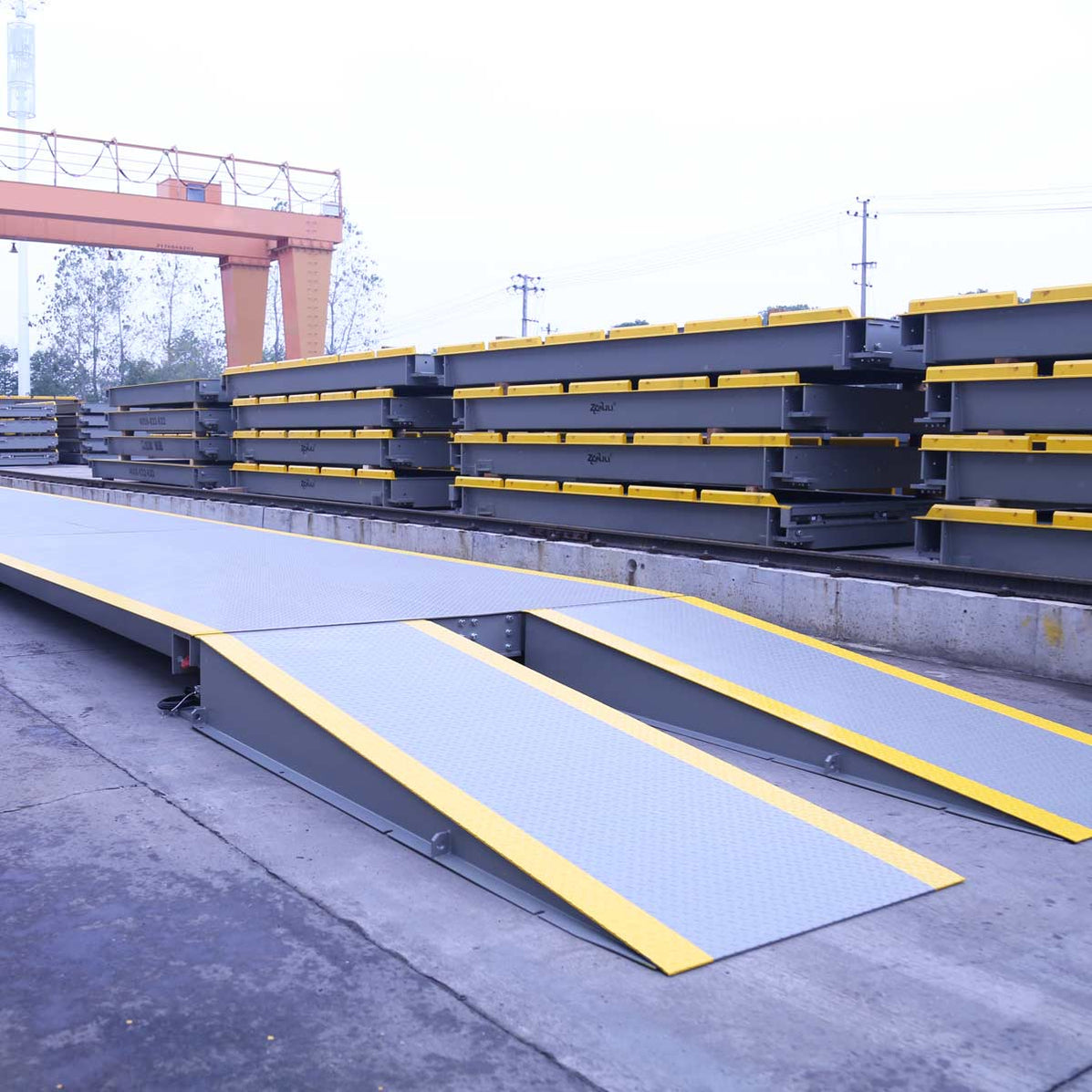

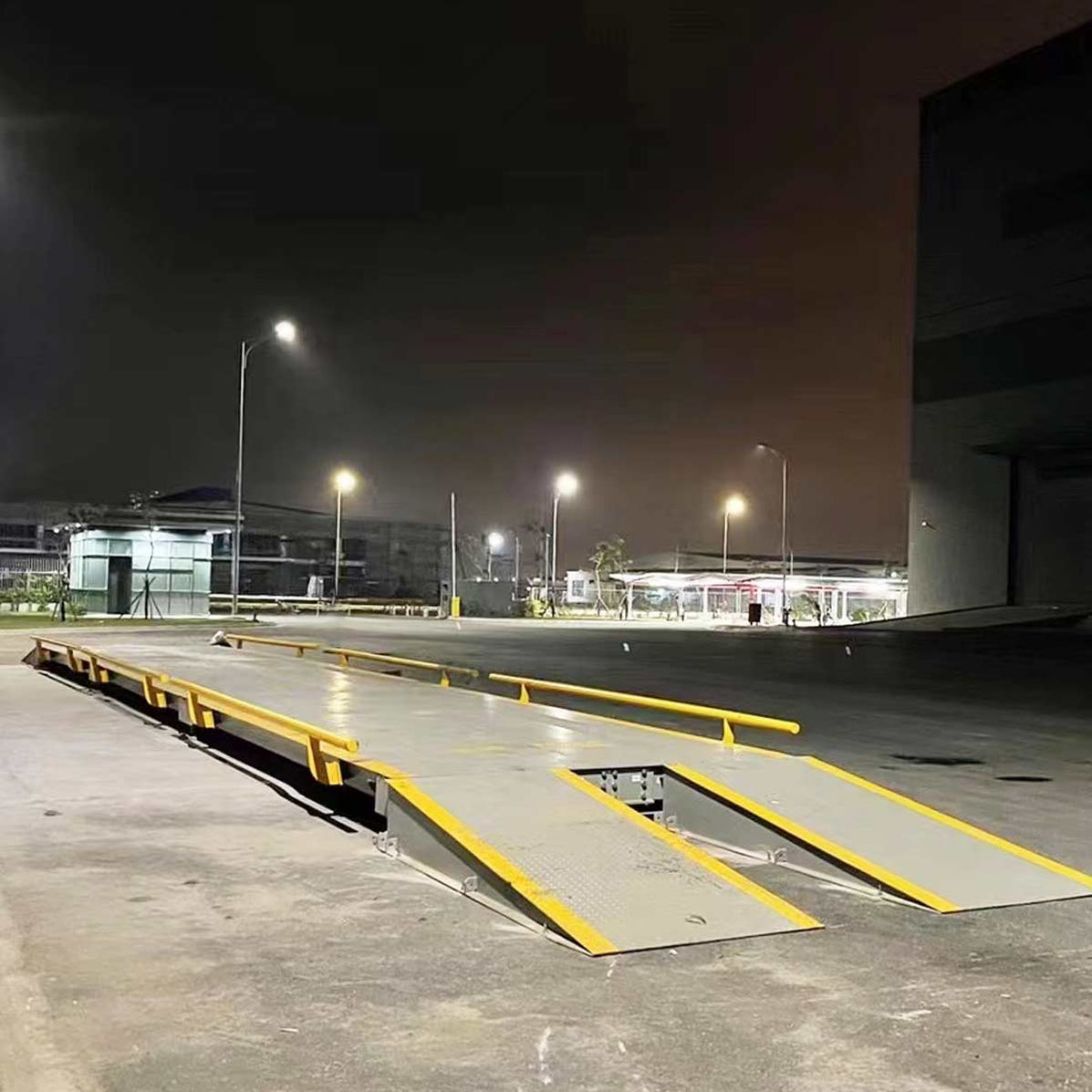

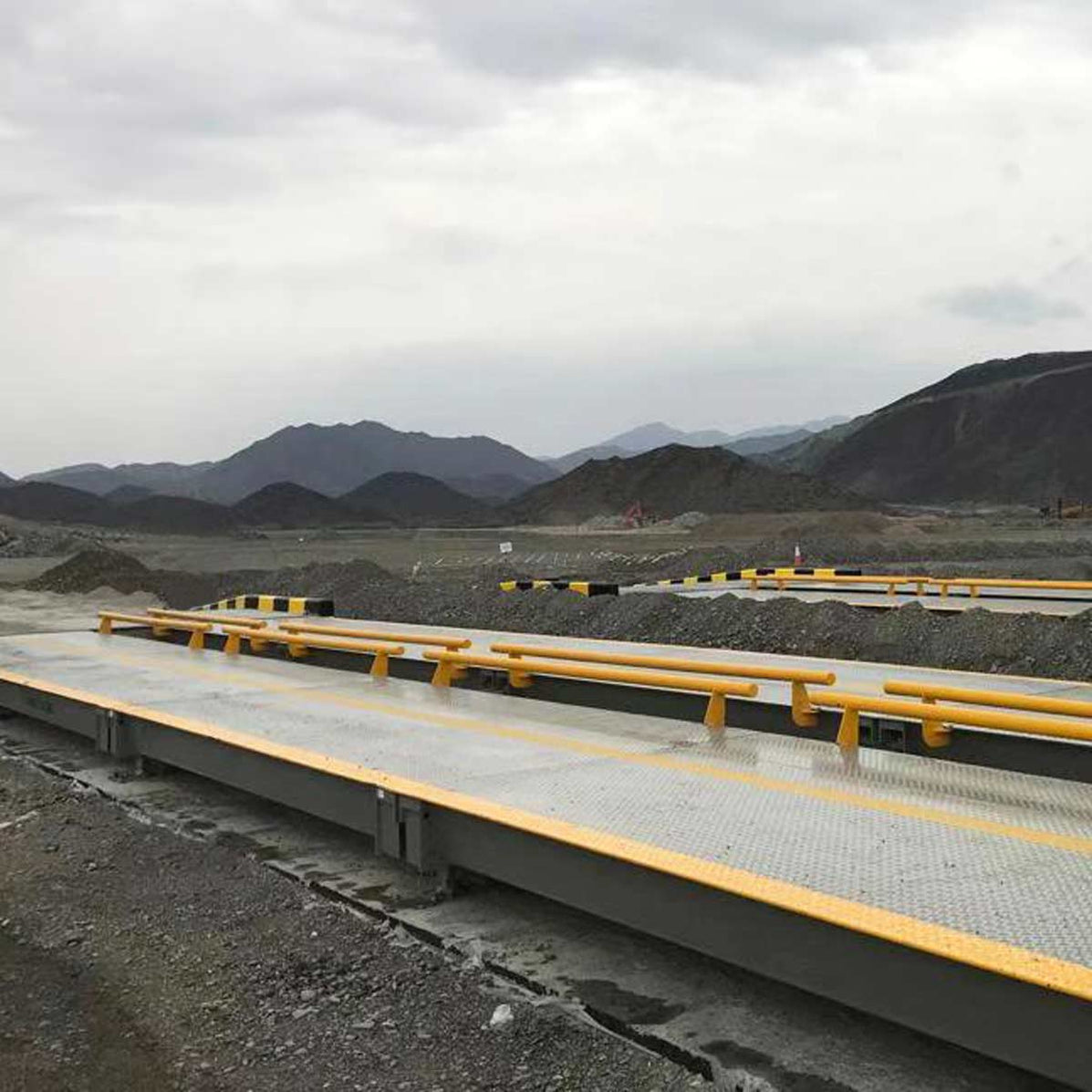

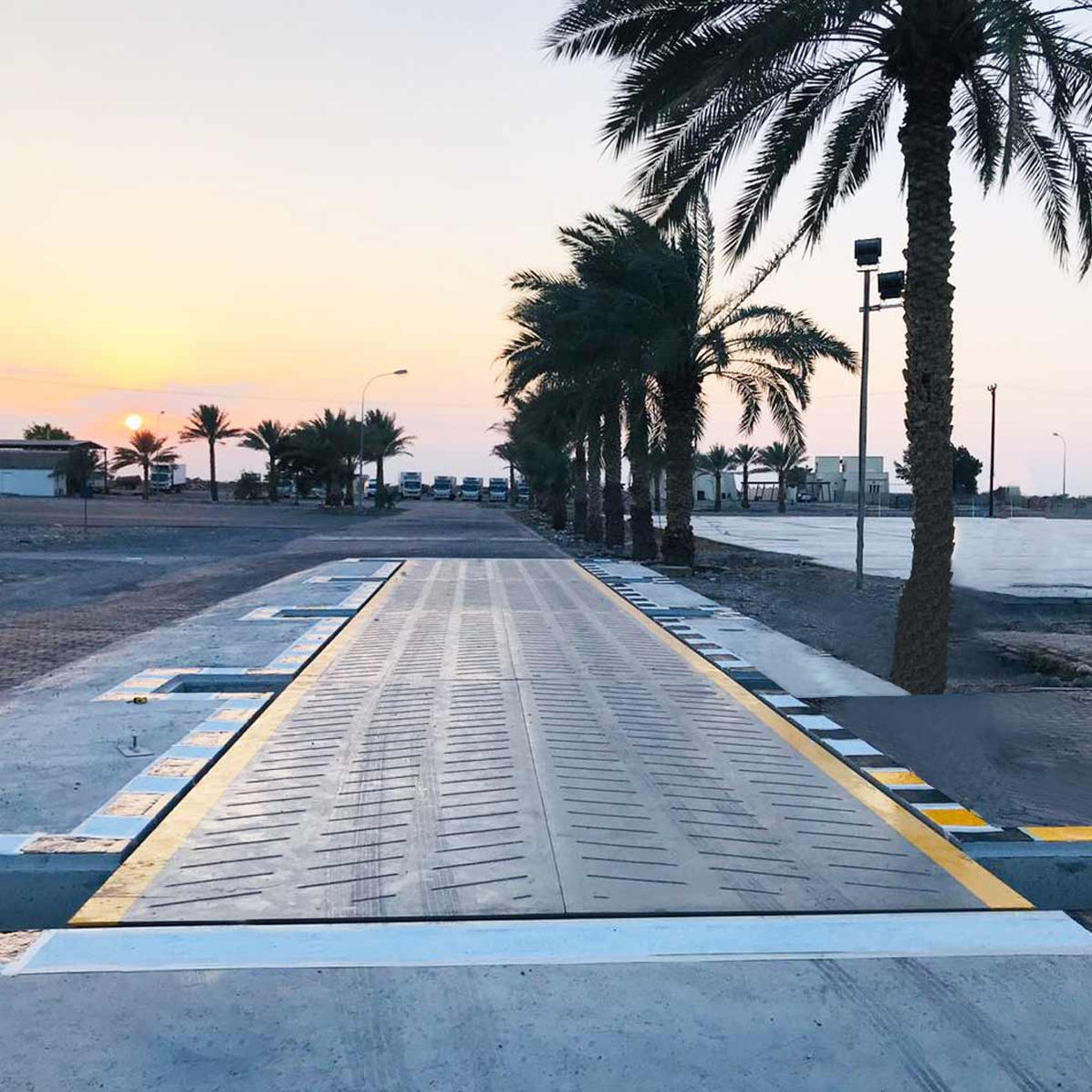

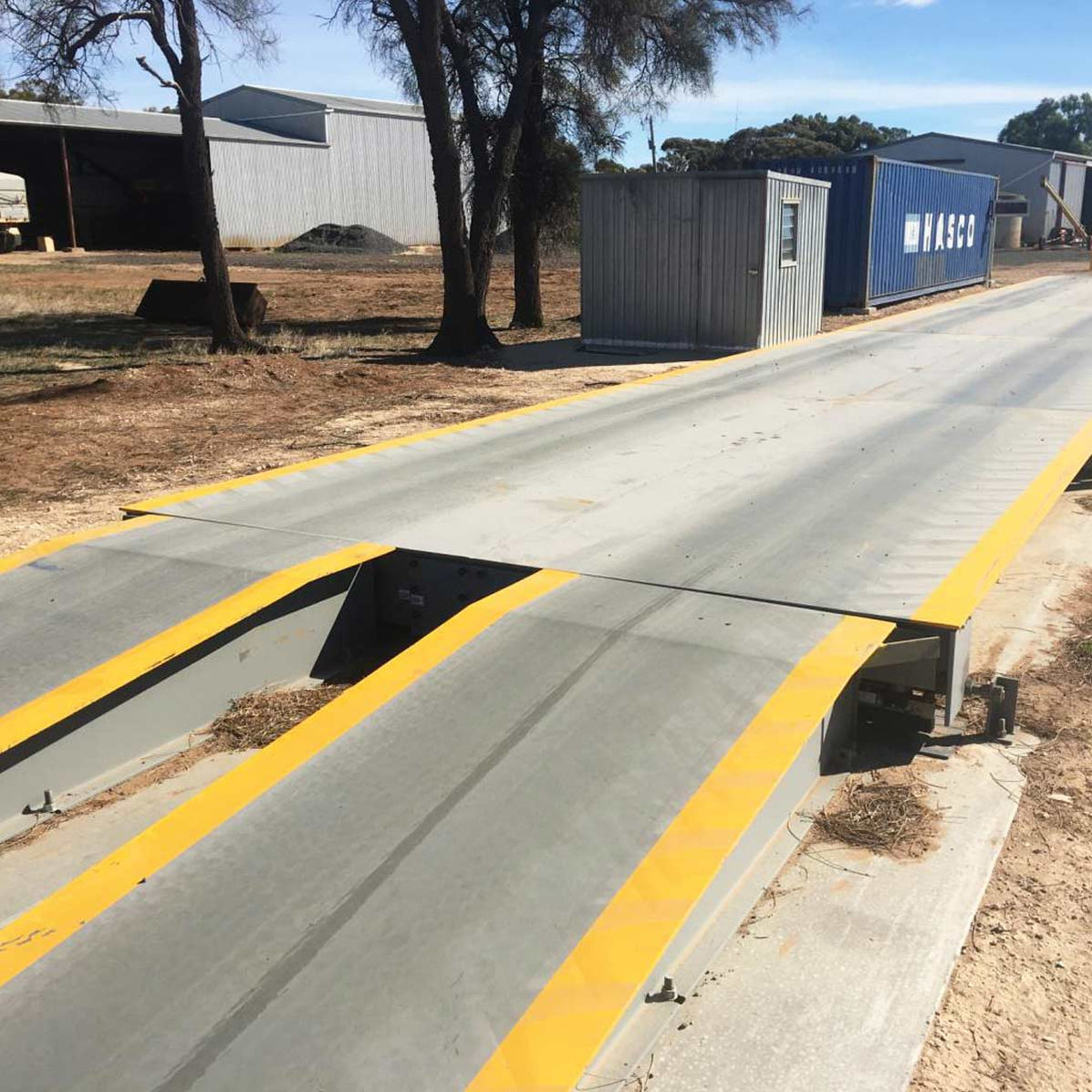

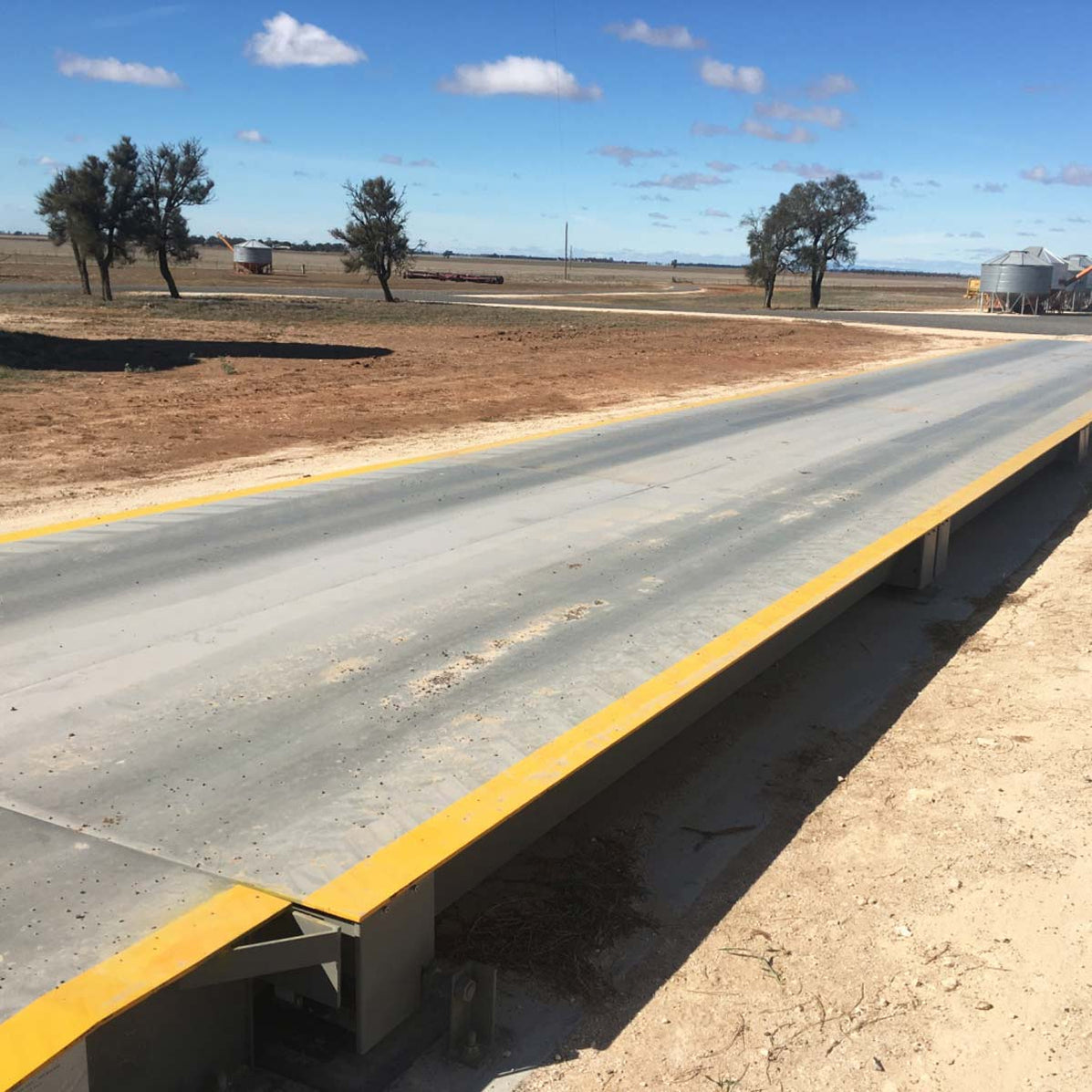

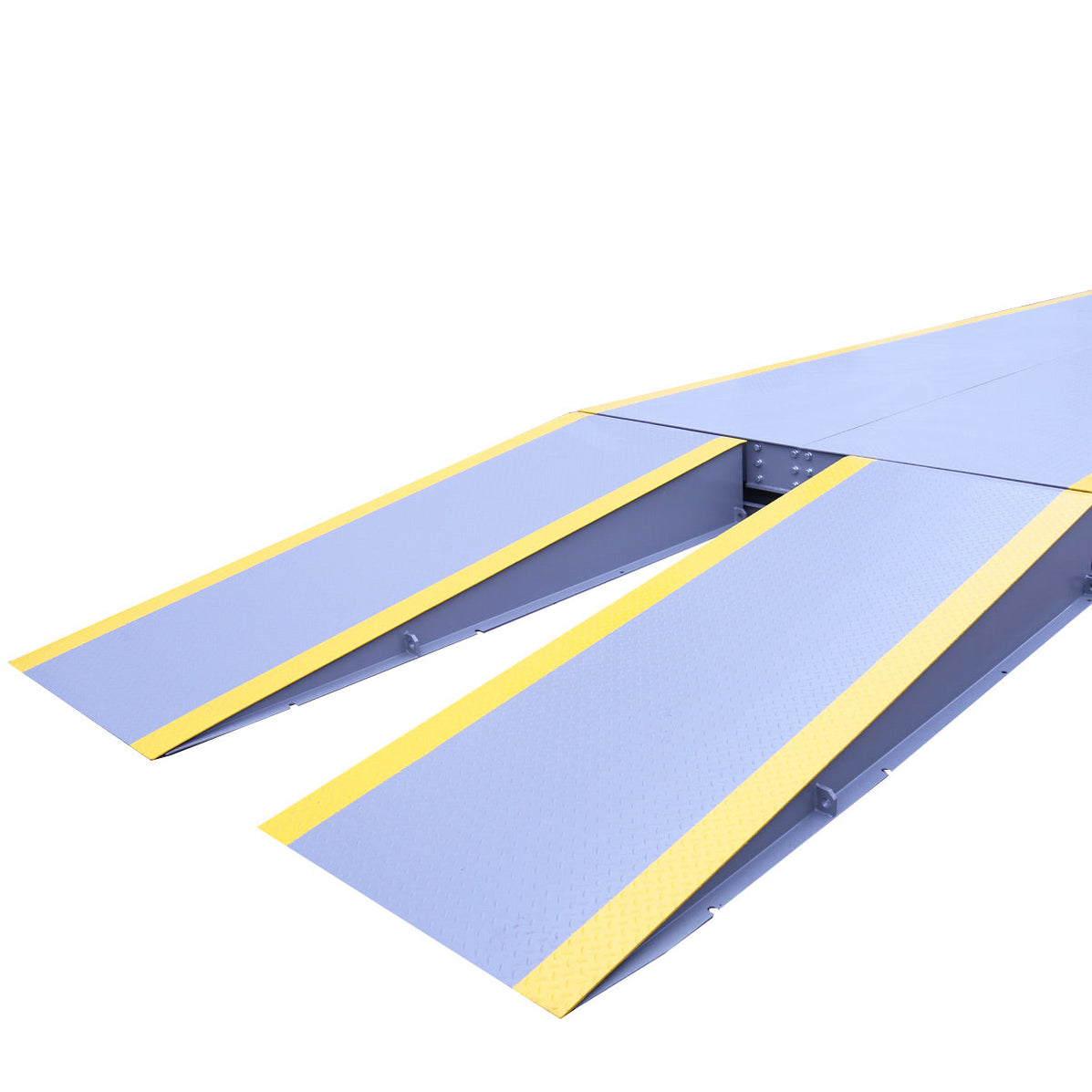

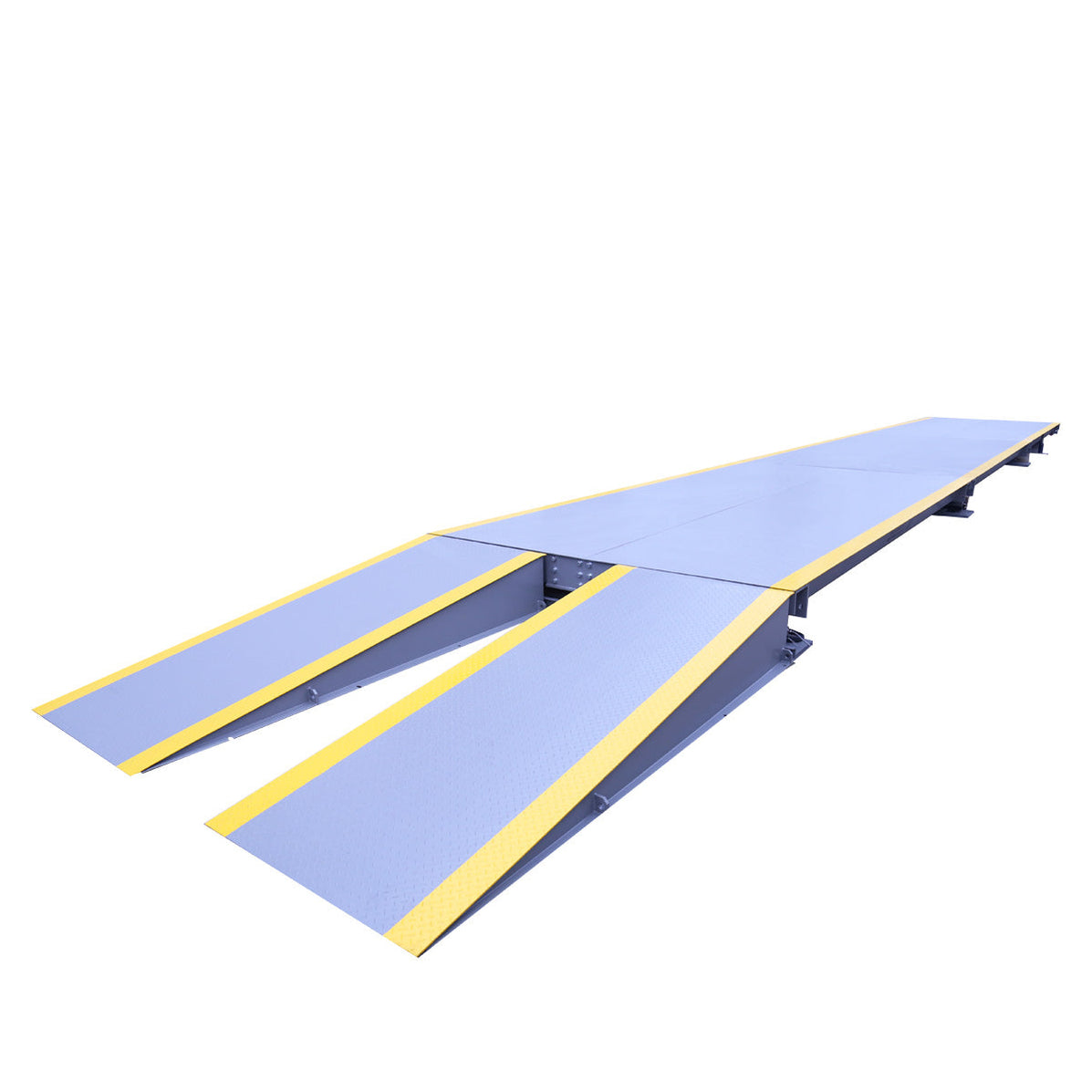

The TMG-FST80 80 ton Weighbridge Truck Scale has a measuring capacity of 80 tons. This truck scale can be installed in-ground or above-ground with ramps, and its industrial grade steel deck measures 10′ wide and 56′ long. The scale’s industrial load cells and digital indicator are included in the package, and it can weigh at temperatures ranging from -35℃ to +70℃. This is a reliable and accurate weighing solution that is widely used in industries such as logistics, trucking, transportation, agriculture, waste management, forestry, military and government agencies. Specifications
Capacity: 80 ton
Scale platform width (exact): 118″ (9.84′)
Scale platform exact length (exact): 675″ (56′)
Structure: U-shaped beam (6)
Steel: High-quality steel
Painting: Anti-rust & anti-corrosion painting

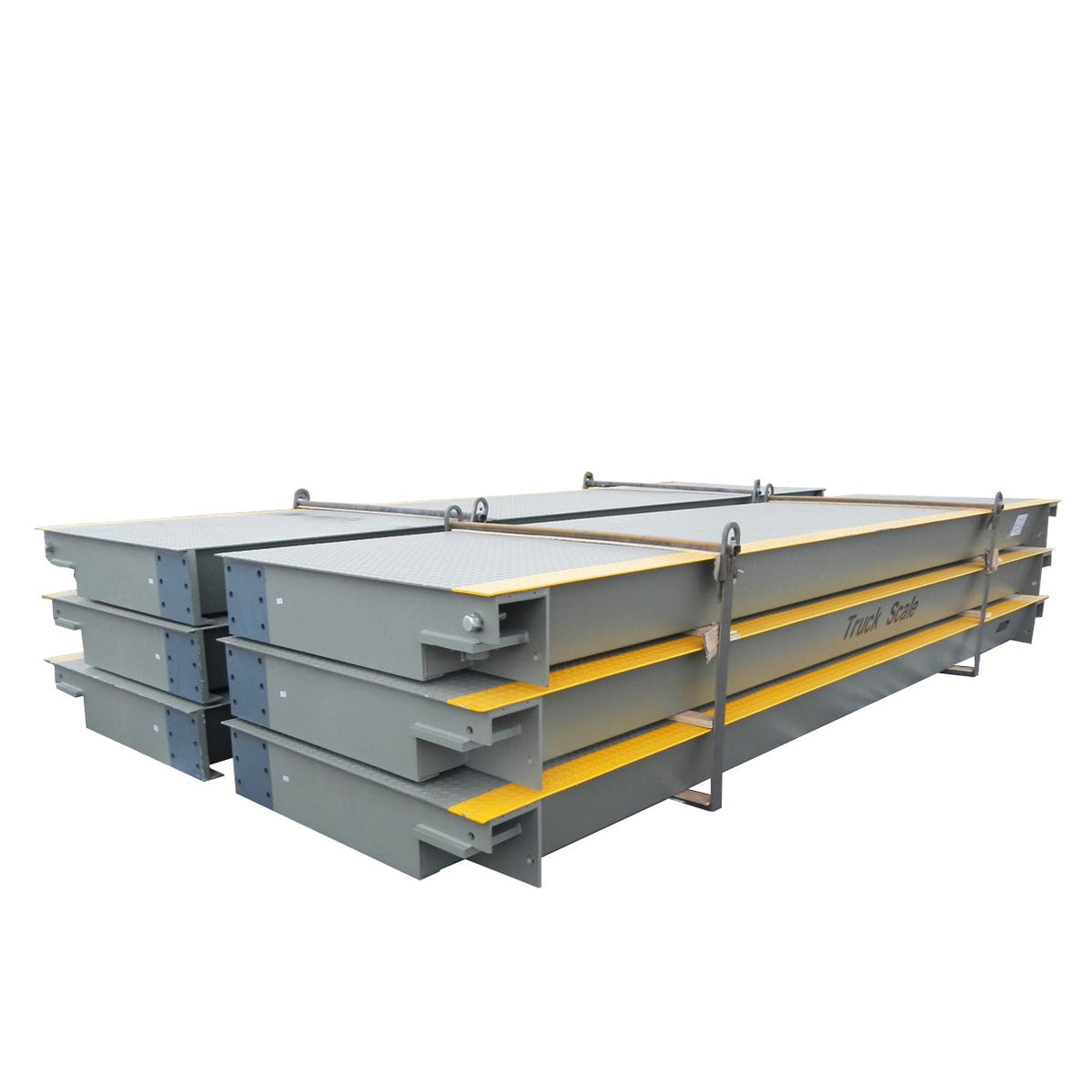

Truck scale consists of 6 modular pieces (59″ x 225″)
Top plate: 8 mm checker plate
Accuracy: OIML III
Working temperature: -35℃-+70℃
Relative humidity: 95%
Safe overloading: 120%
Anti-cheating technology to eliminate electronic interference
Can be connected to external devices such as printers, computers & large monitor displays

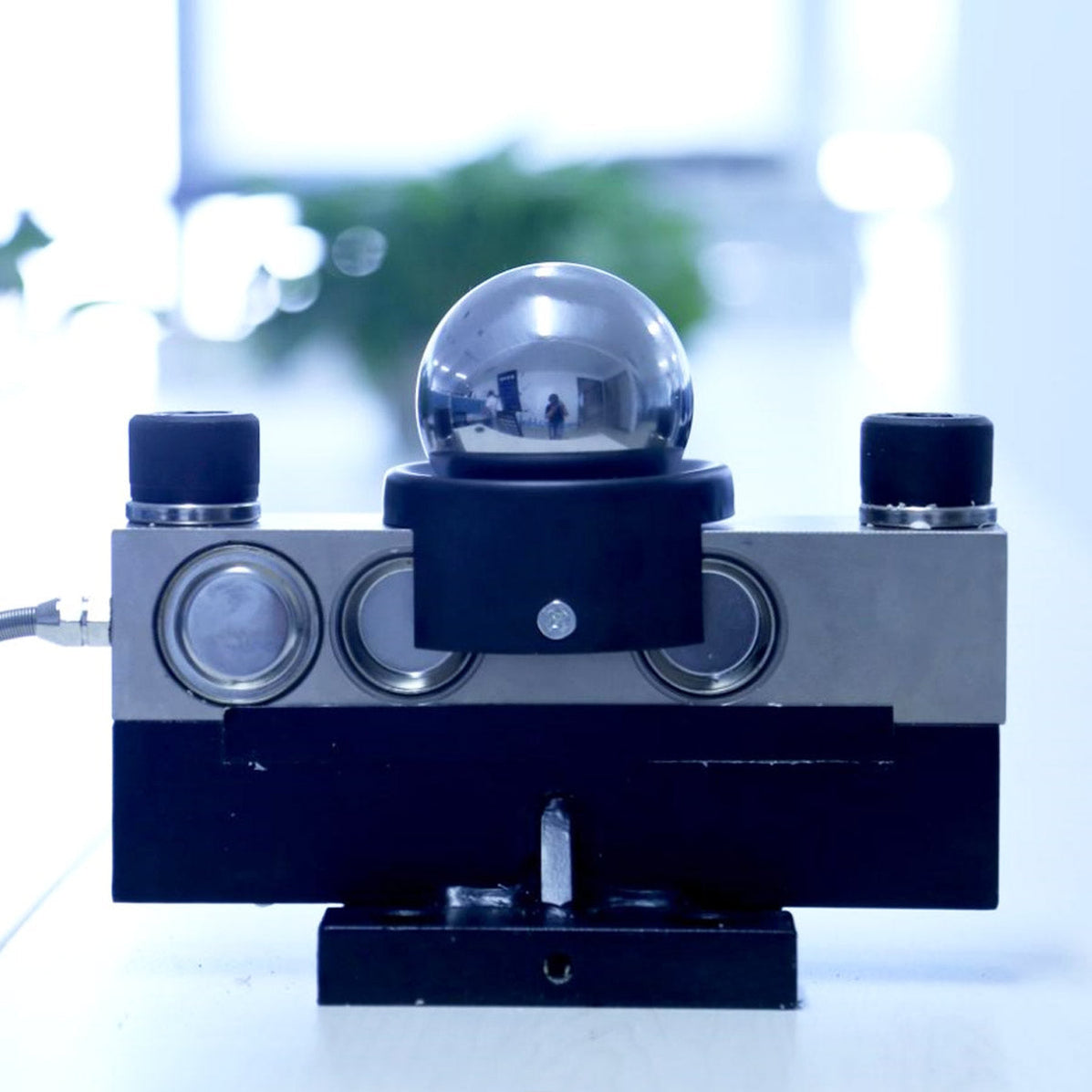

Load Cell
Working temperature range: -35℃-+70℃
Safe Overload: 150% (full scale)
Ultimate overload: 300% (full scale)
Hermetically sealed
Protection class: IP68

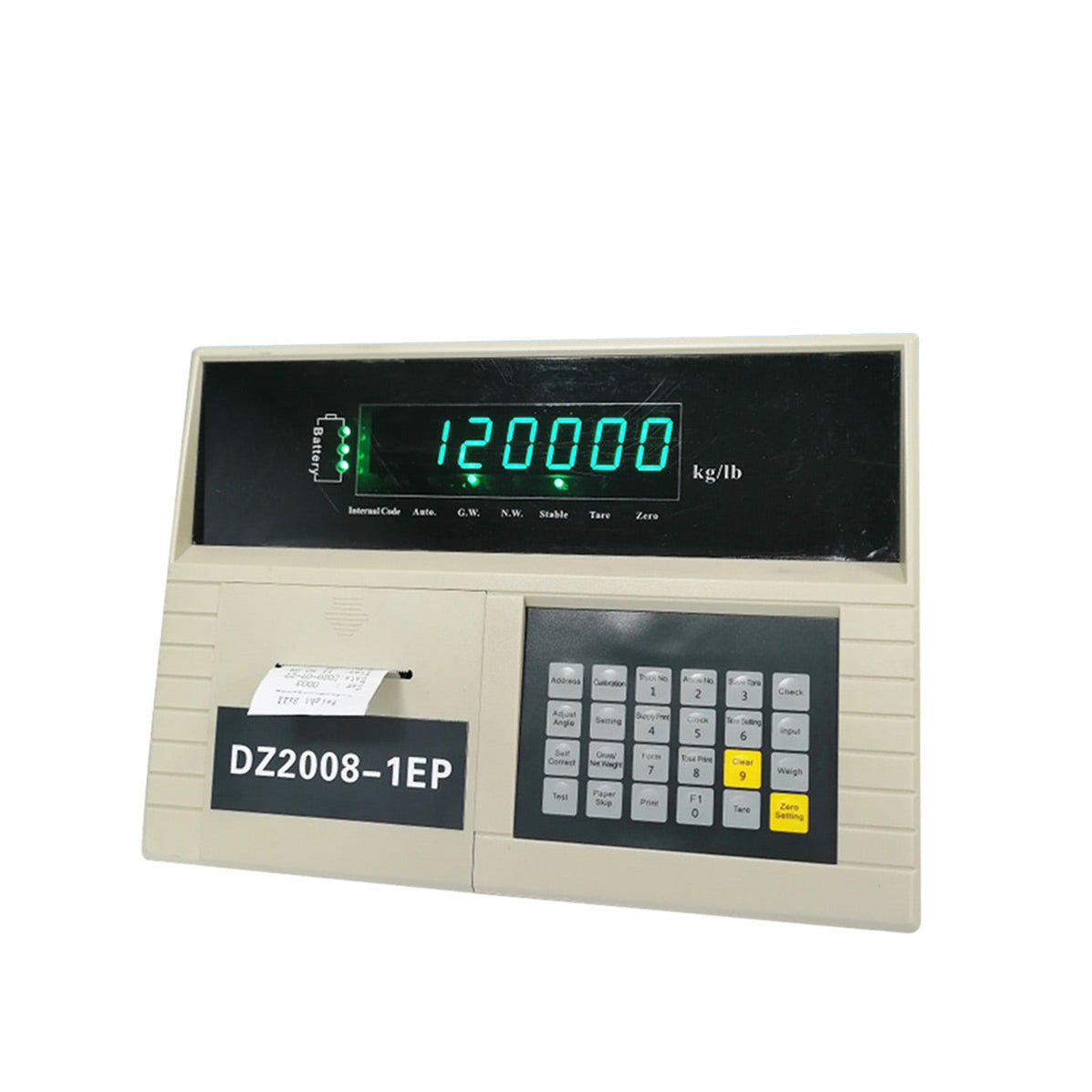

Weight Indicator
Operating temperature: 0℃~40℃
Relative humidity: ≤85%RH
Power supply: 220V/60Hz or 110V/60Hz
Transmission mode: RS232/RS422/485 (optional)
Baud rate: 600/1200/2400/4800/9600 (optional)
Weighing record storage/check/delete/power-off protection
Sound alert when over weight limit
Stainless Steel Junction Box
Waterproof seal joints
Resistance protection device
Stainless steel cover
P.S. The scale is not certified for legal trade business.
