4-Post Auto Lift, 9,000 lb Lift Capacity, 77″ Rise, Removable Ramp
$4,999.99
In stock
FREE SHIPPING on qualifying orders*
- *FREE Nationwide Freight Shipping on qualifying orders over $1000
*loading ramps, shipping containers, some oversize items, do not qualify for free shipping
*free ltl shipping to the lower 48 only
*Buyer is responsible for unloading
In Store Pick Up
FREE $200 CliffhouseBuildings.com Gift Card
-
- Choose FREE Local Pickup and get a $200 Cliffhouse Gift Card on all orders over $1000
- In store pick up by appointment only
- Loading asistance available

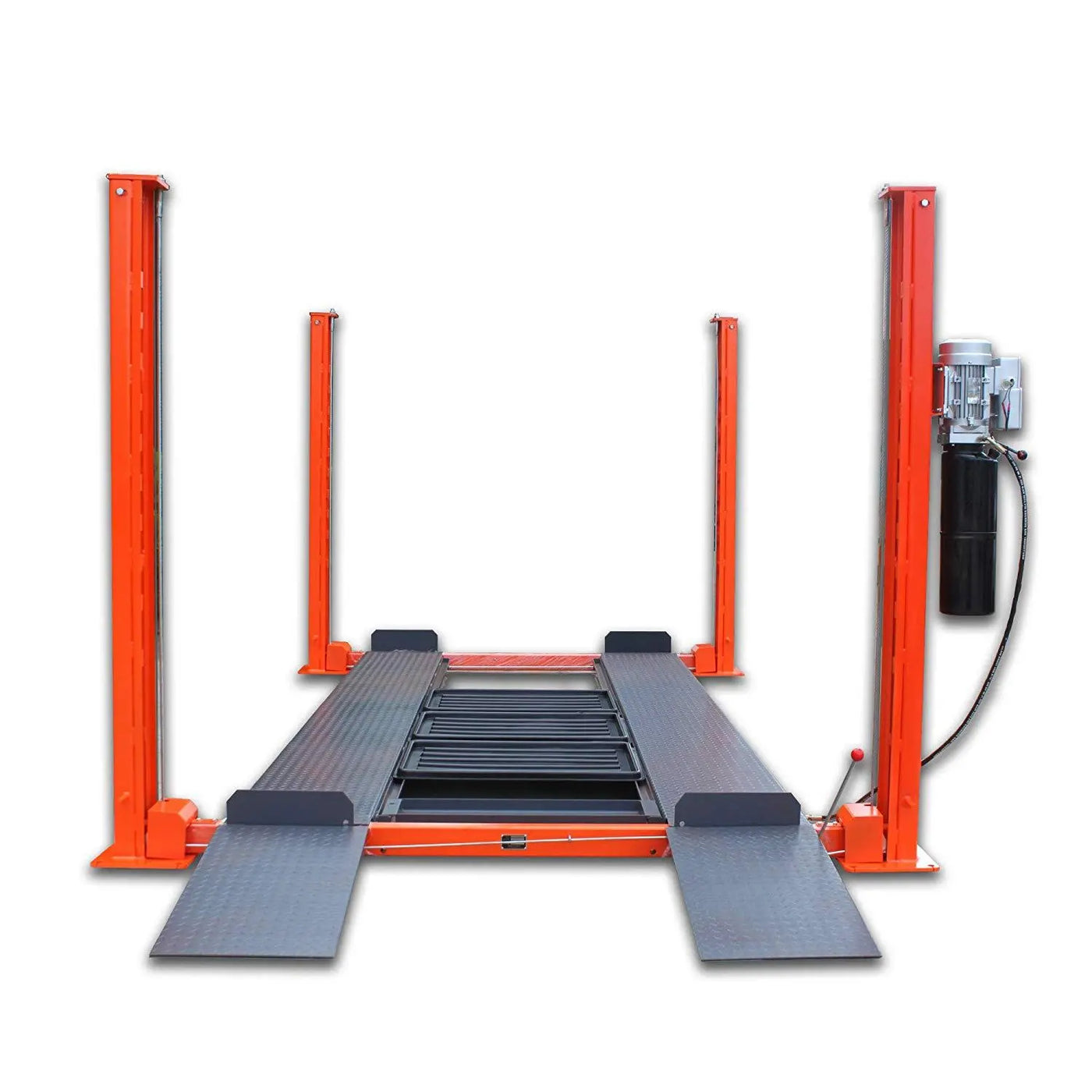

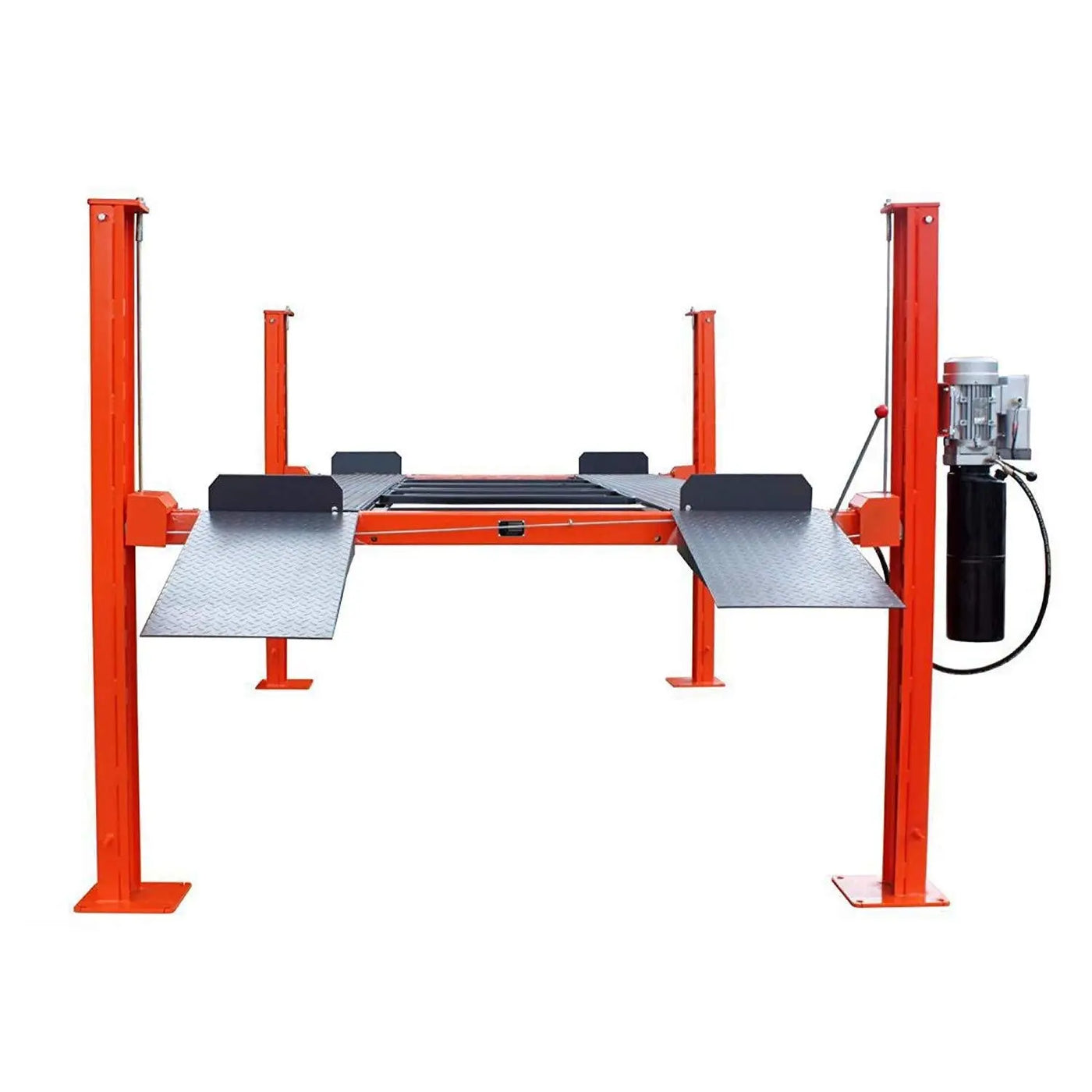

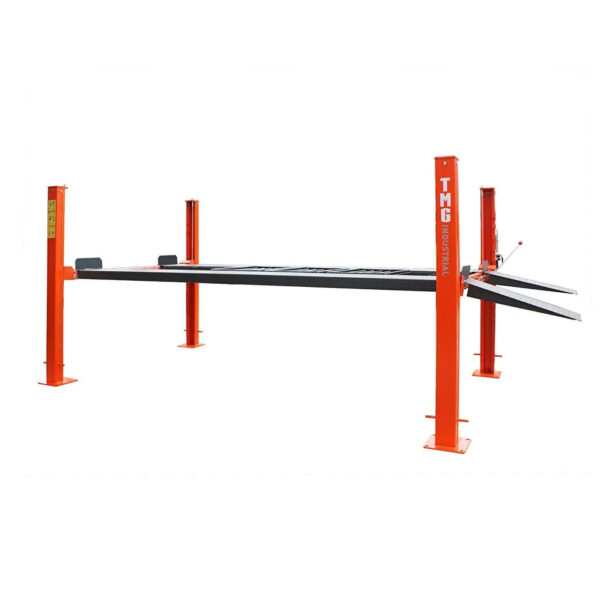

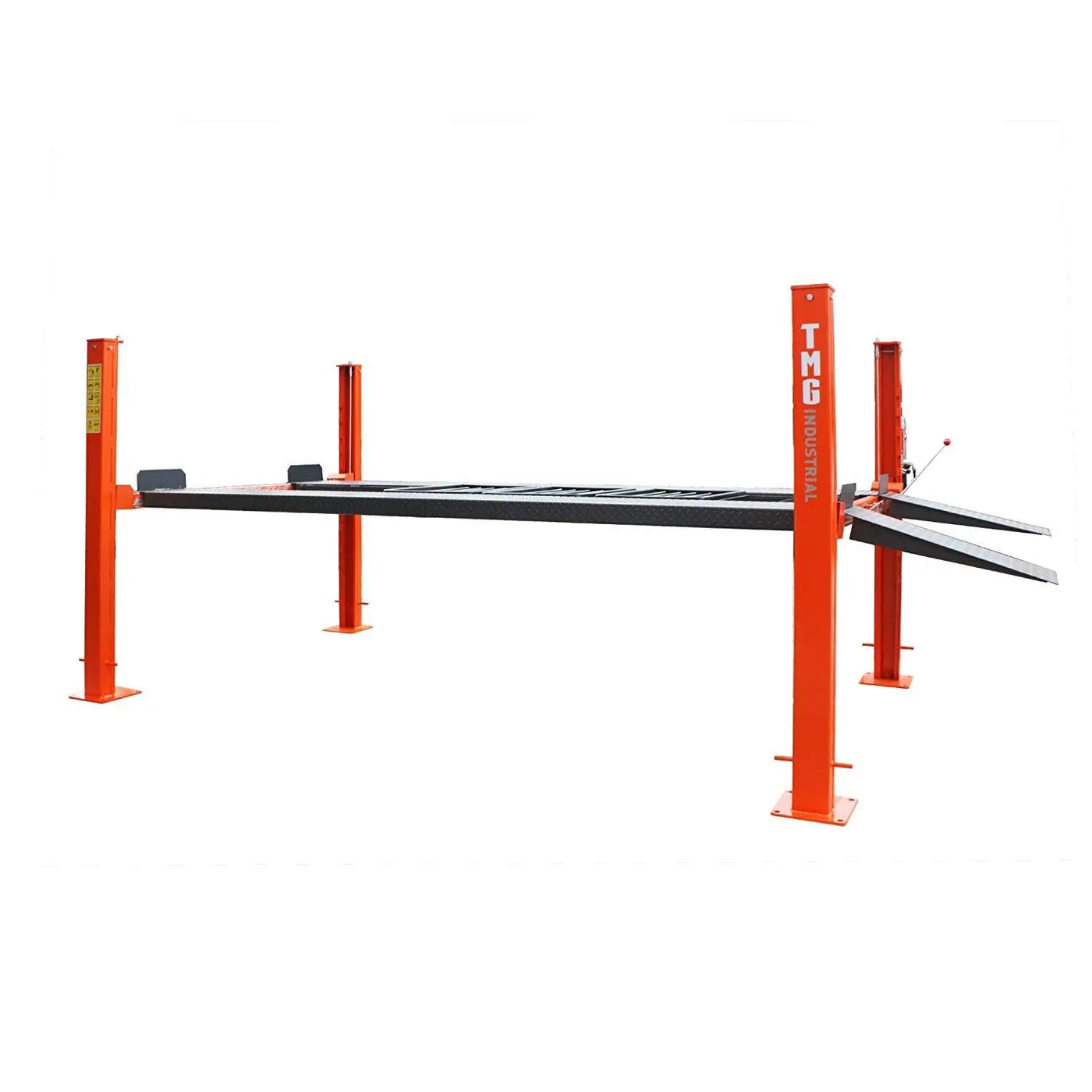

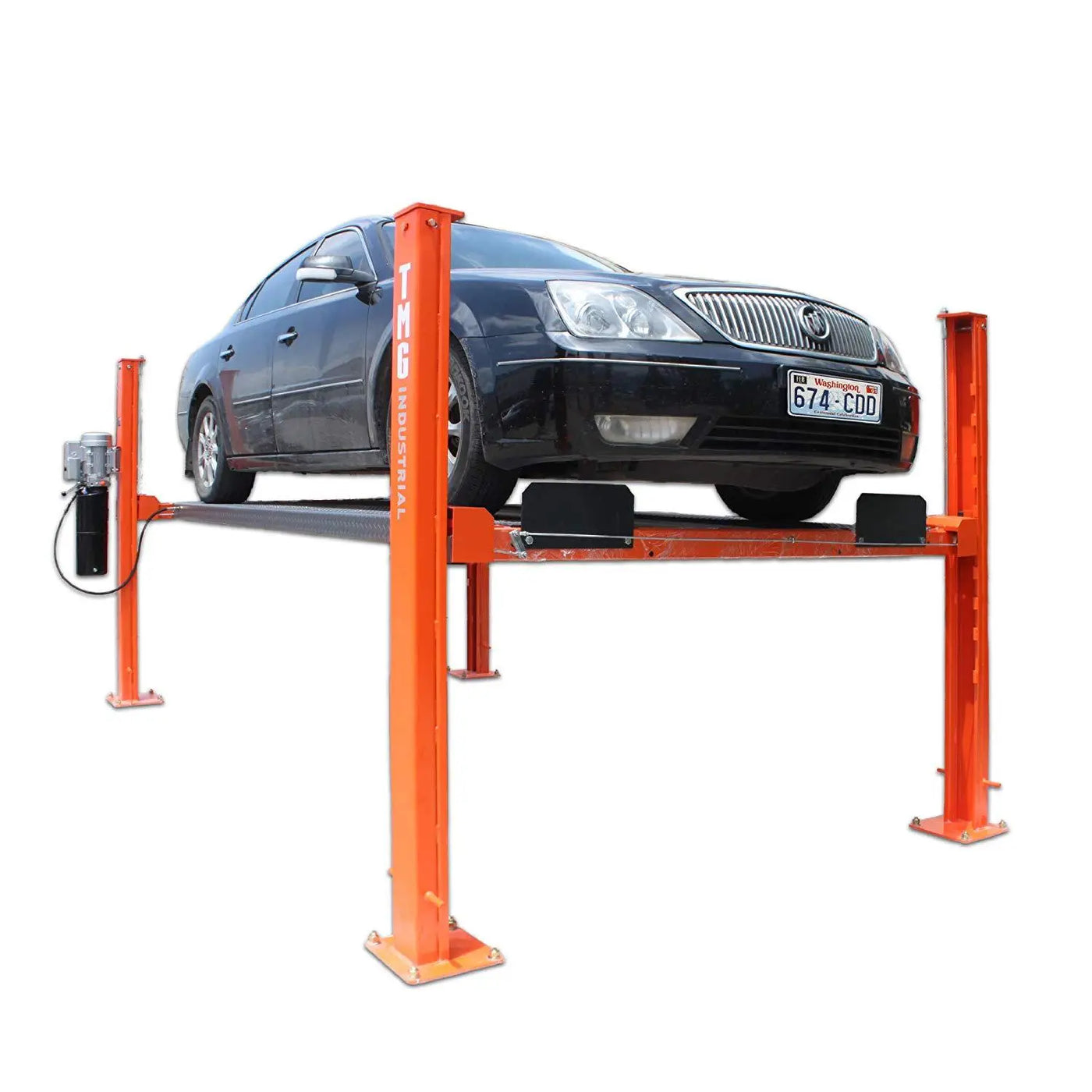

The TMG-ALF90 4-Post Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 9000 lb lifting capacity and 77" lift height you can easily lift most cars, trucks and SUVs to fit another underneath or for mechanical work of any kind. Several safety elements have been built in to ensure a secure, reliable automotive work and storage solution that is heavy-duty and built to last. Specifications
Max. lift capacity: 9,000 lb
Max lift height: 77"
Max lift clearance under runways: 73"
Overall length: 207" (with ramps), 175'' (w/o ramps)
Outside column width: 105"(without motor), 117" (with motor)
Length clearance between columns: 160''
Width clearance between columns: 92"
Column height: 84"
Column frame size: 6" x 2.75"
Column base: 12" x 12"
Column steel thickness: 8 gauge

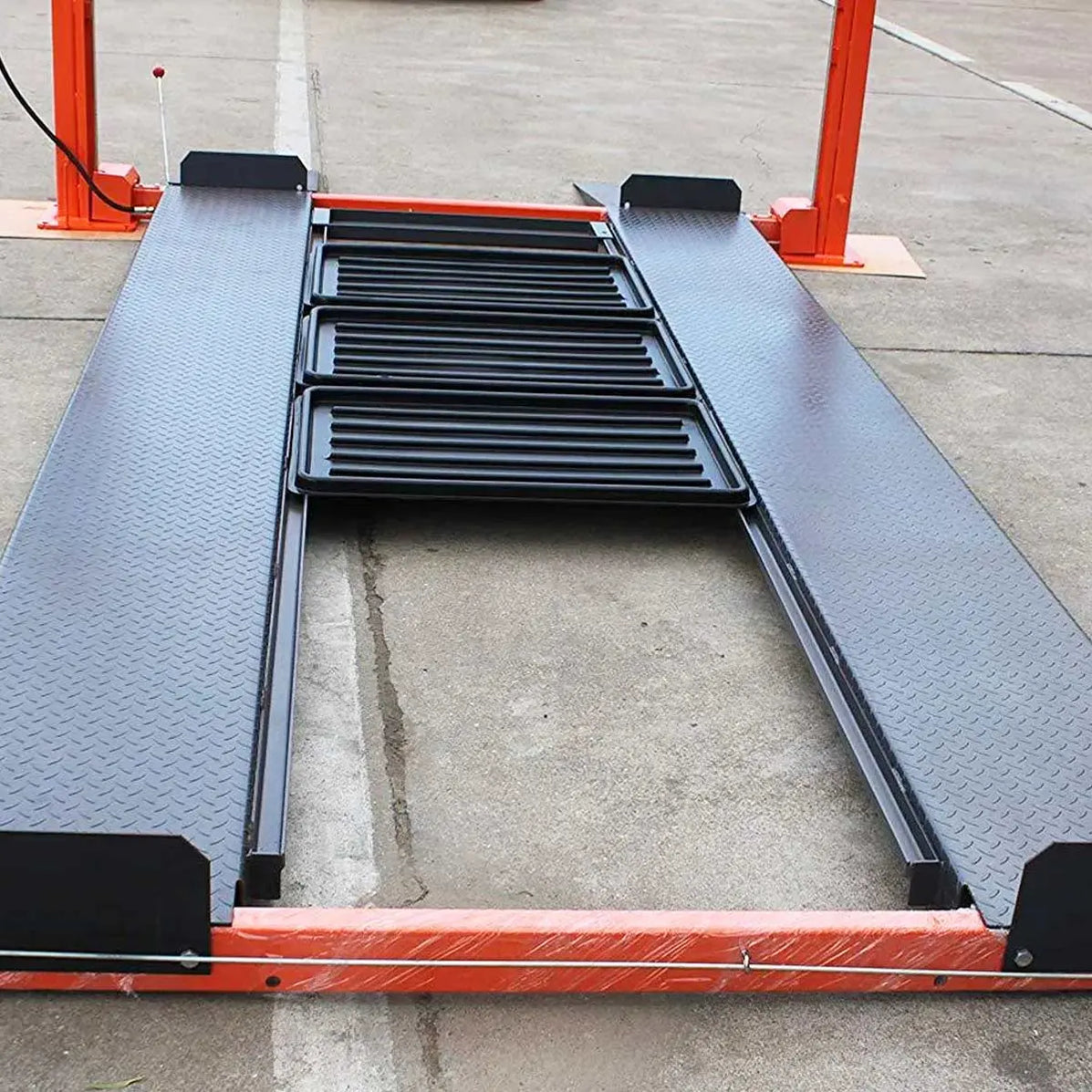

Runway length: 165"
Runway width: 18.5"
Runway thickness: 2''
Runway height on the ground: 4.5"
Width between runways(outside): 75"
Width between runways(inside): 37.5"
Runway thickness: ½''
Steel cable diameter: 3/8"

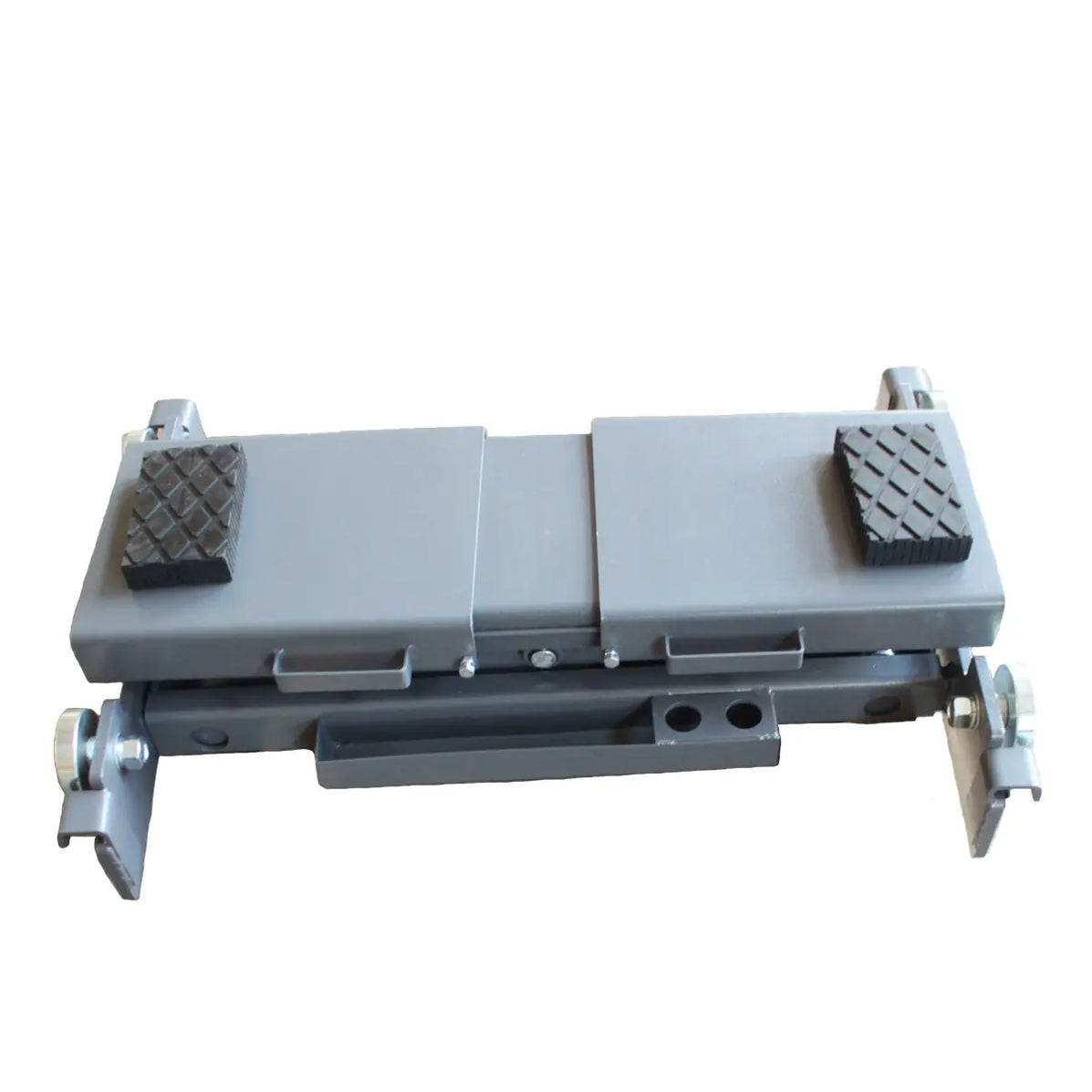

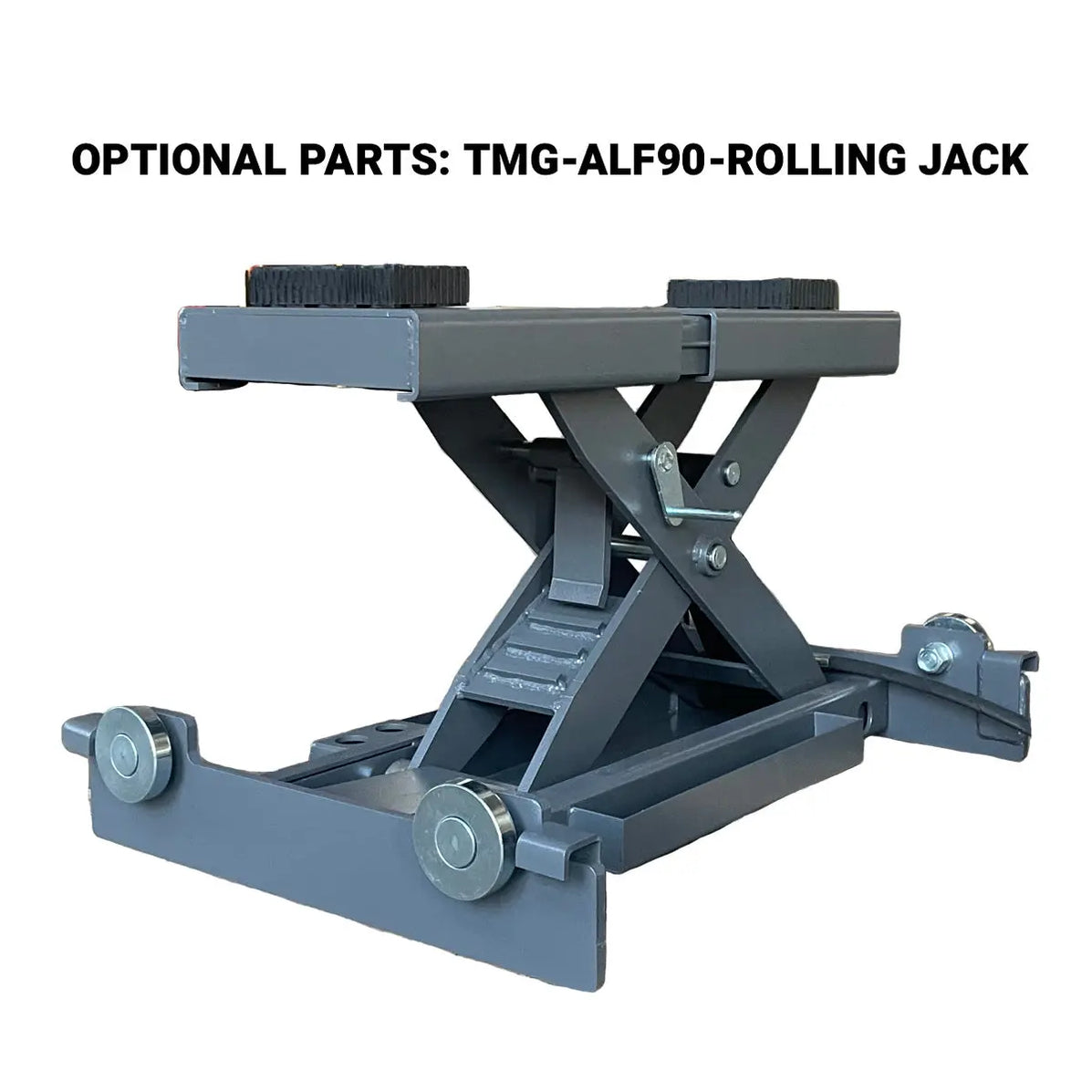

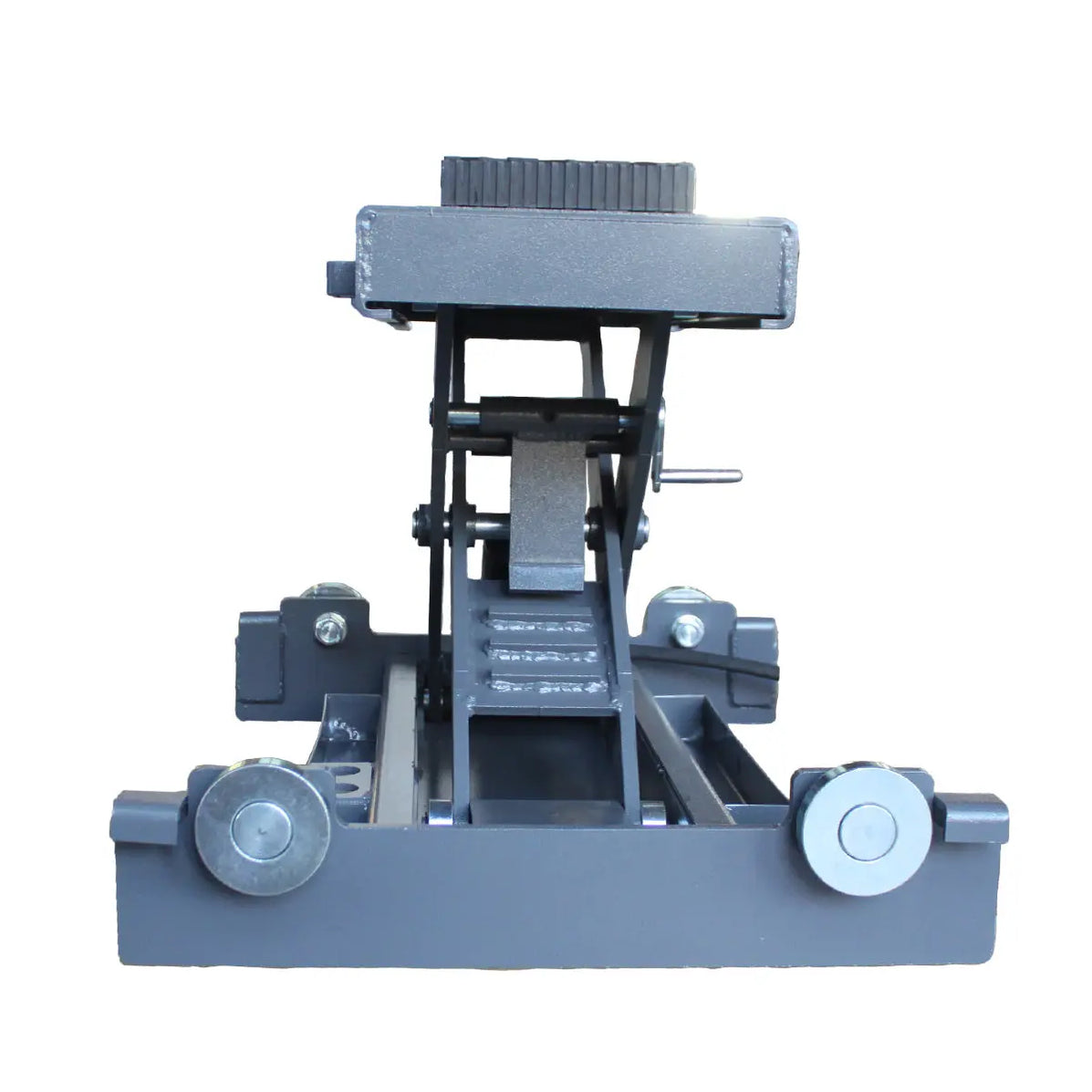

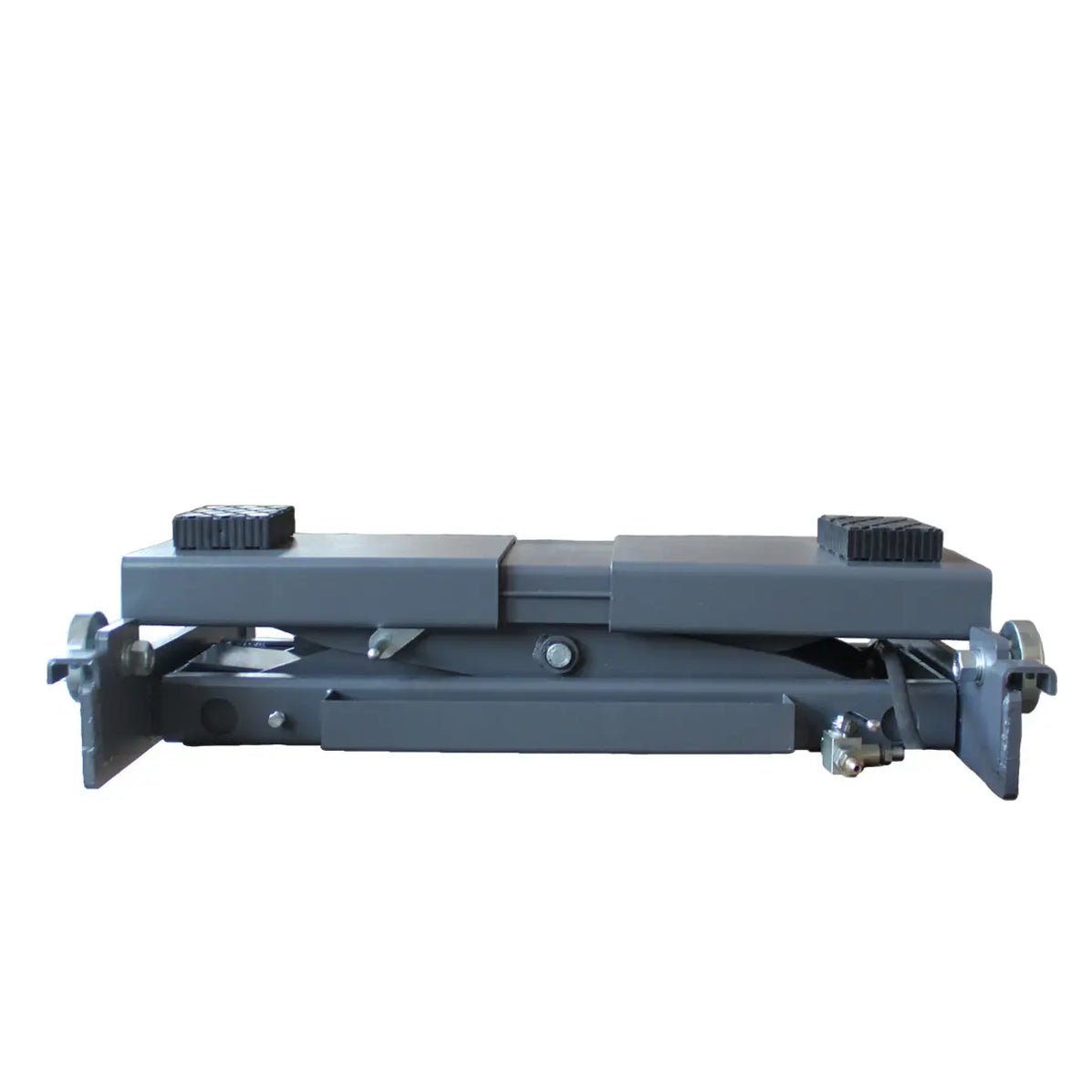

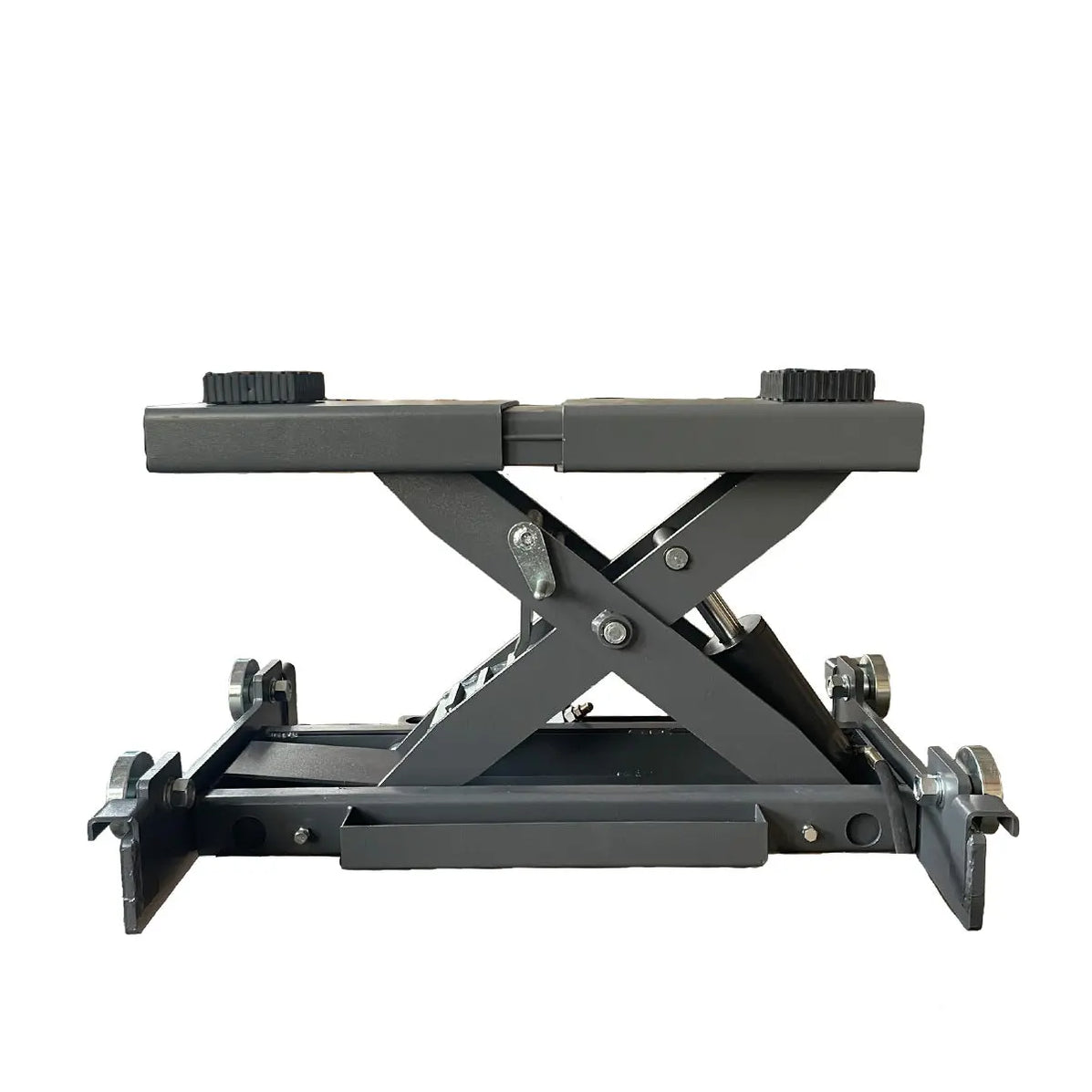

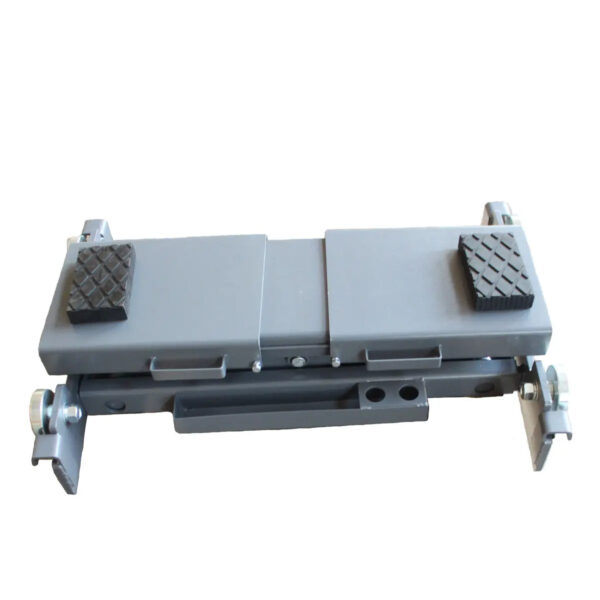

Optional parts: rolling jack
Width range: 690-1175mm, Max height: 455mm, including connector
Hydraulic Pump Power Unit:
220VAC, 3HP, single phase
No-load speed: 3360 RPM
Working pressure: 2600 PSI
Tank capacity: 2.5 US gallons
Pump oil required: AW32/AW46
ETL certified for Canada and the USA
