26″ Heavy Duty Truck Tire Changer, 63″ Tire Capacity
$7,499.99
In stock
FREE SHIPPING on qualifying orders*
- *FREE Nationwide Freight Shipping on qualifying orders over $1000
*loading ramps, shipping containers, some oversize items, do not qualify for free shipping
*free ltl shipping to the lower 48 only
*Buyer is responsible for unloading
In Store Pick Up
FREE $200 CliffhouseBuildings.com Gift Card
-
- Choose FREE Local Pickup and get a $200 Cliffhouse Gift Card on all orders over $1000
- In store pick up by appointment only
- Loading asistance available

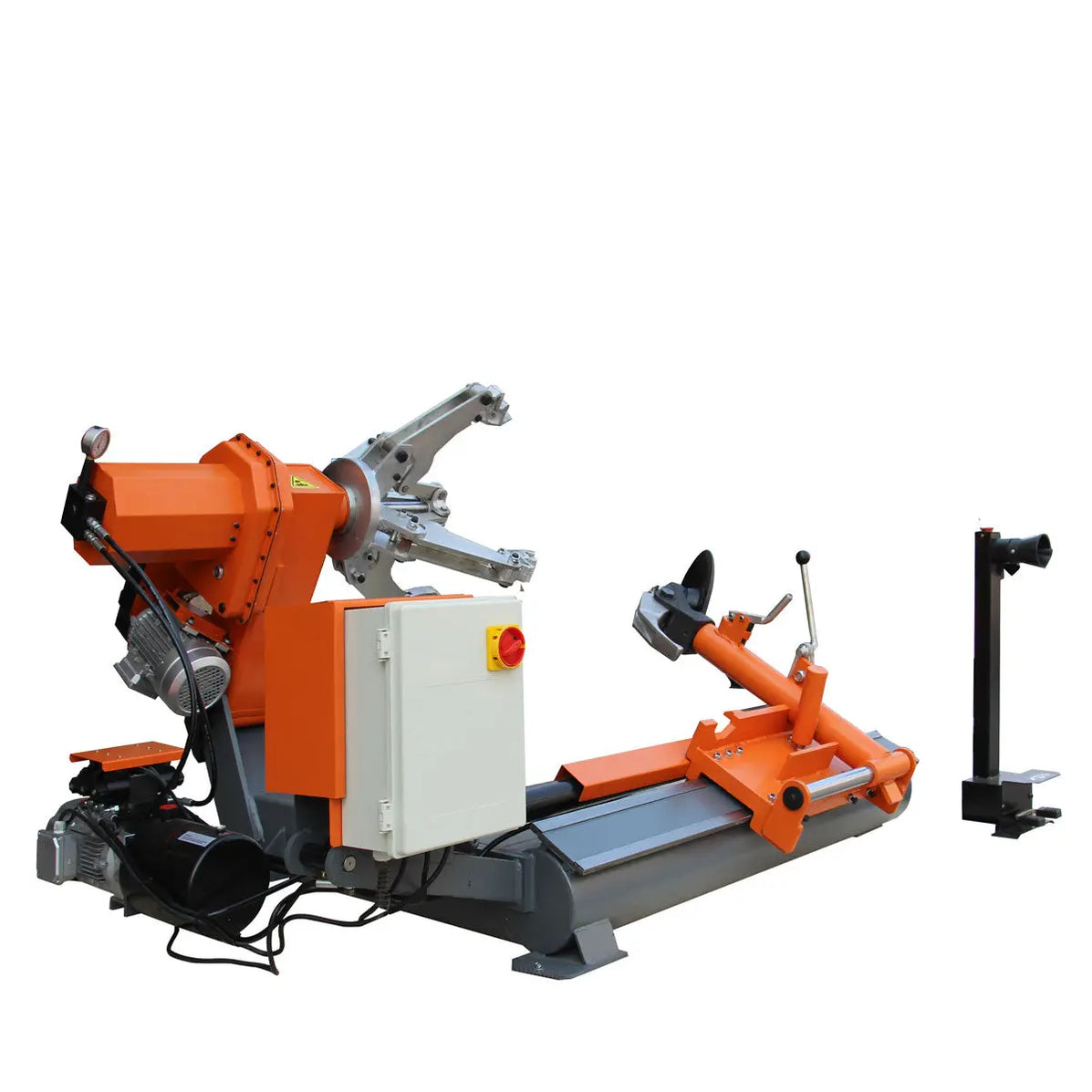

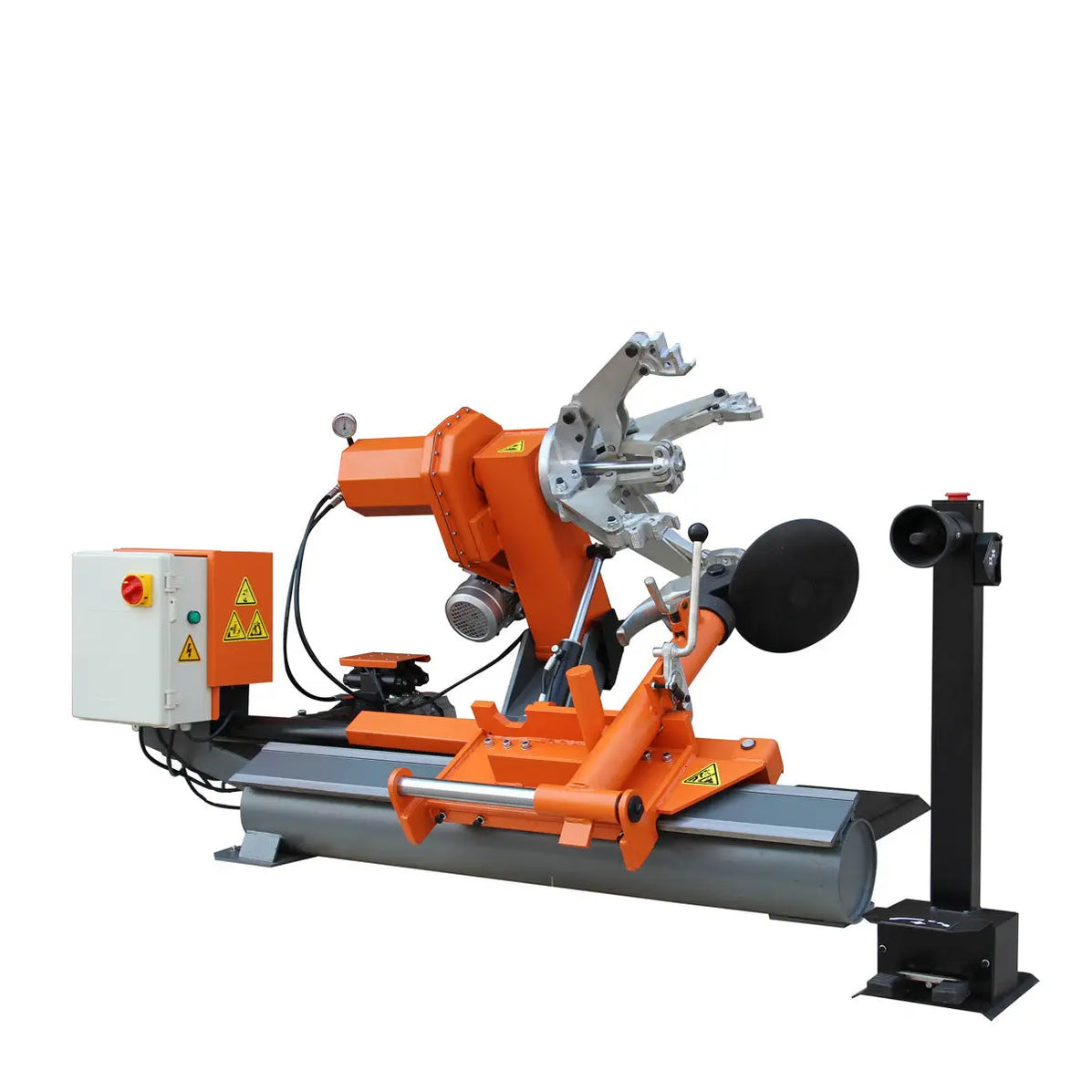

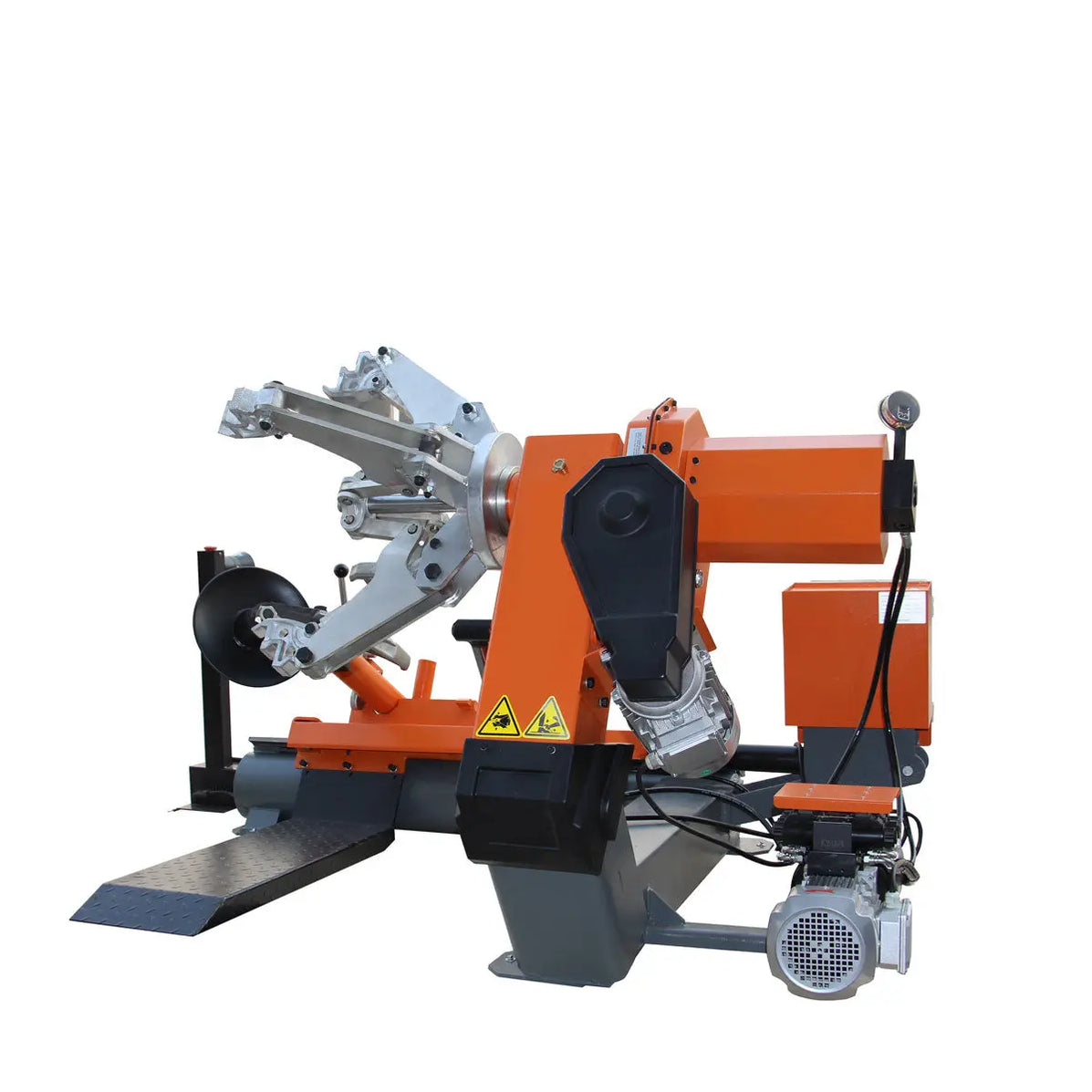

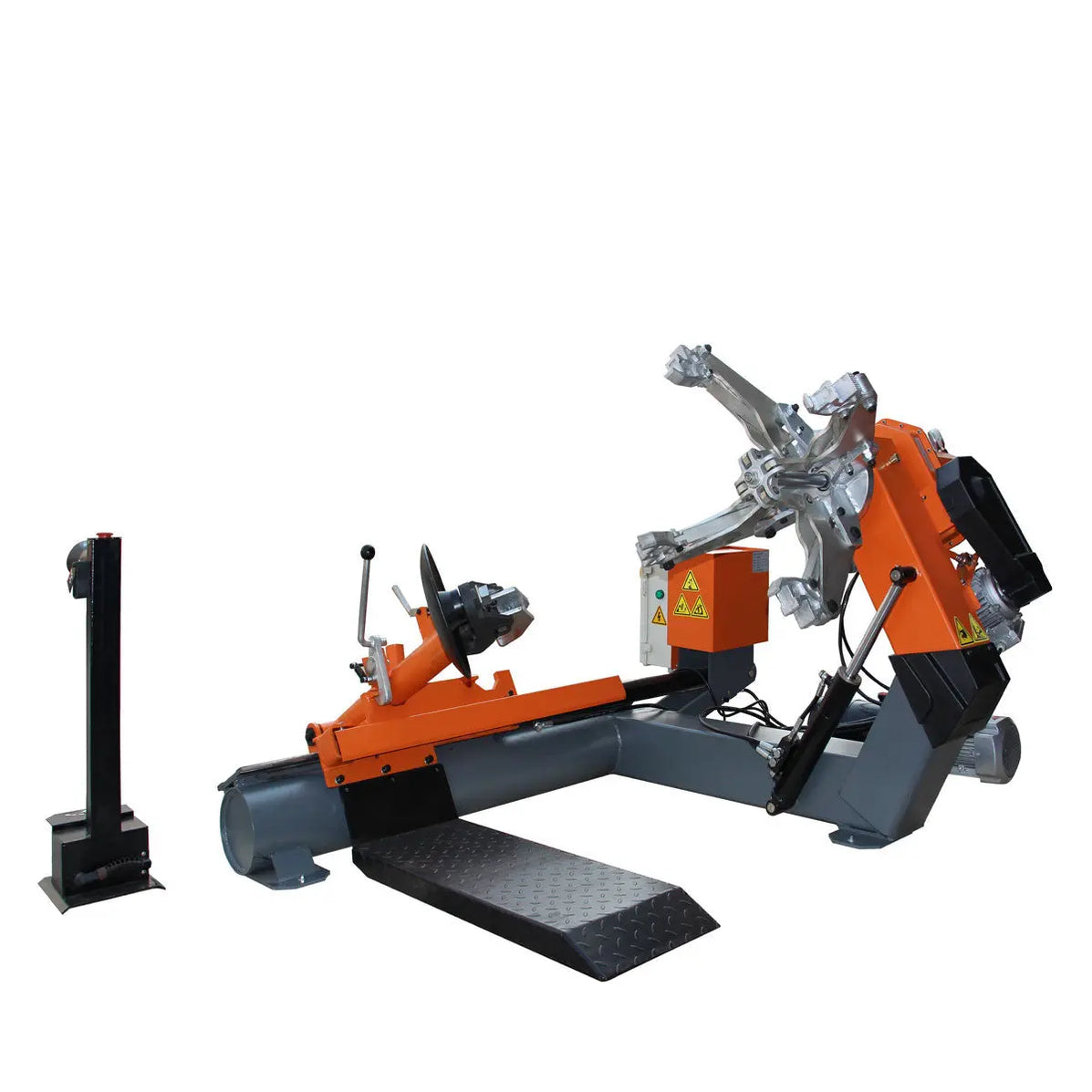

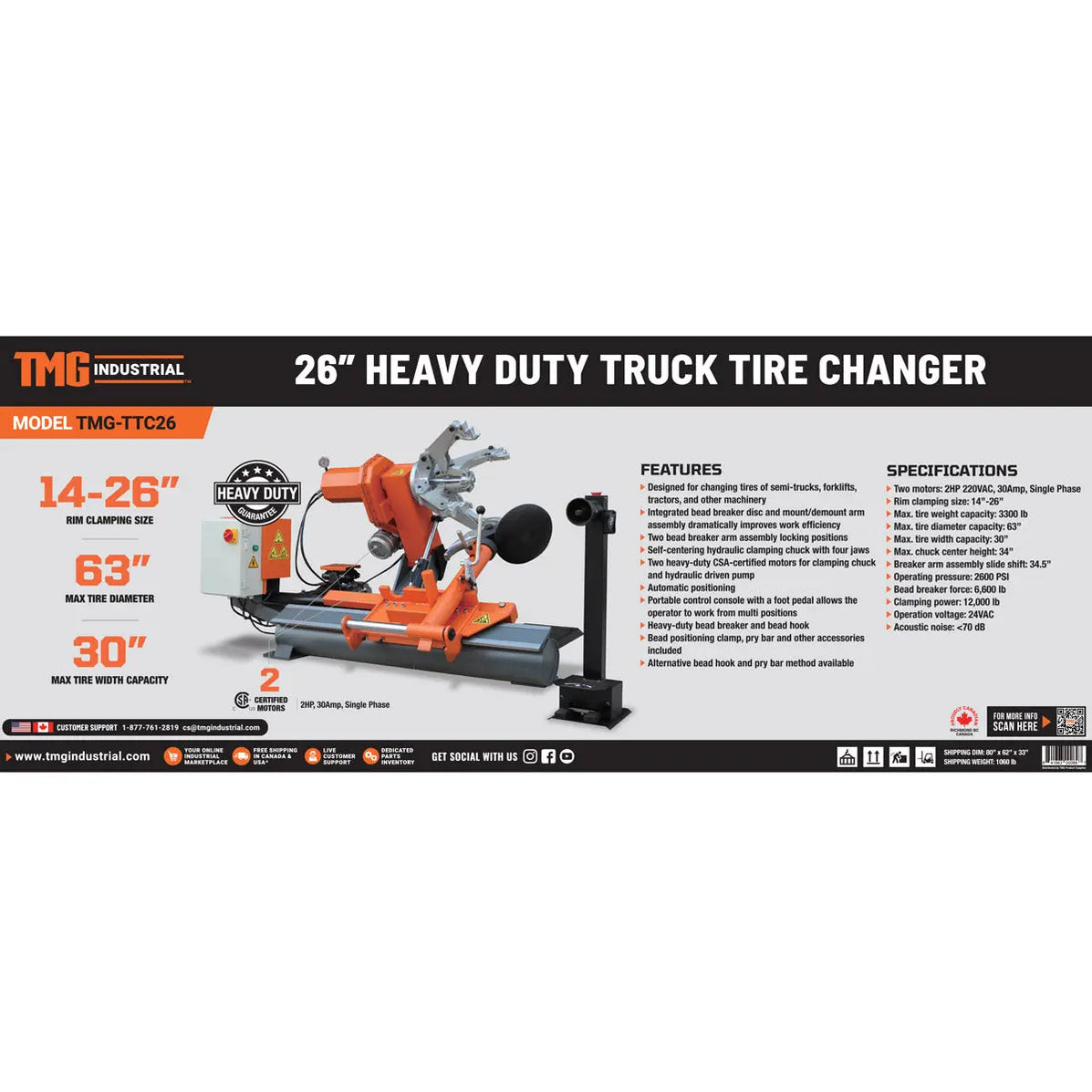

The TMG-TTC26 Heavy-Duty Truck Tire Changer is a fundamental machine for your tire shop or large scale automotive service department. Perfect for tubeless truck, off-road and agricultural tires up to 63″. With a maximum rim size of 26″ and 3300 lb weight capacity, this machine can easily change the tires of semi-trucks, trailers, forklifts, tractors and other machinery. Specifications
Two motors: 2 HP, 220 VAC, 30 A, Single Phase

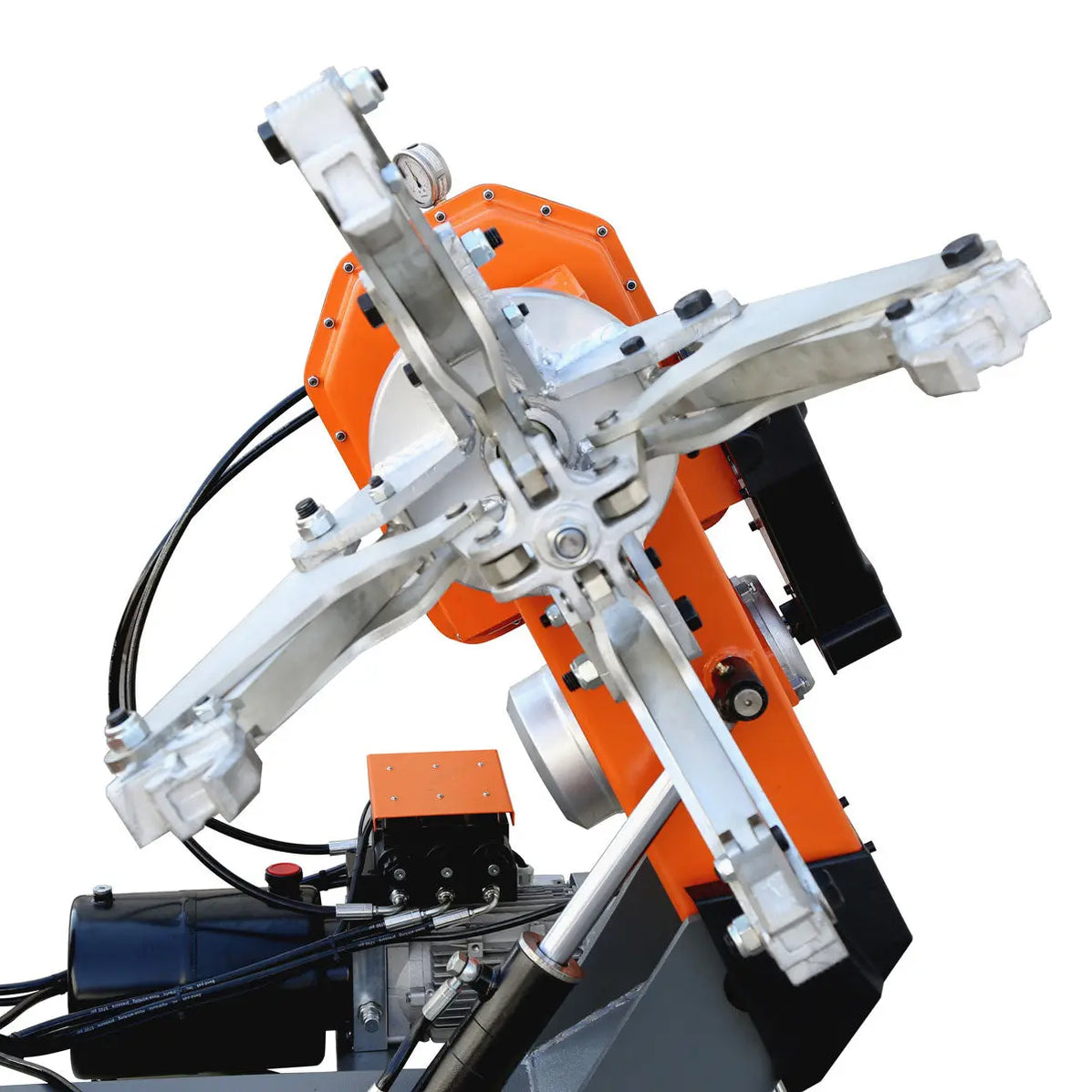

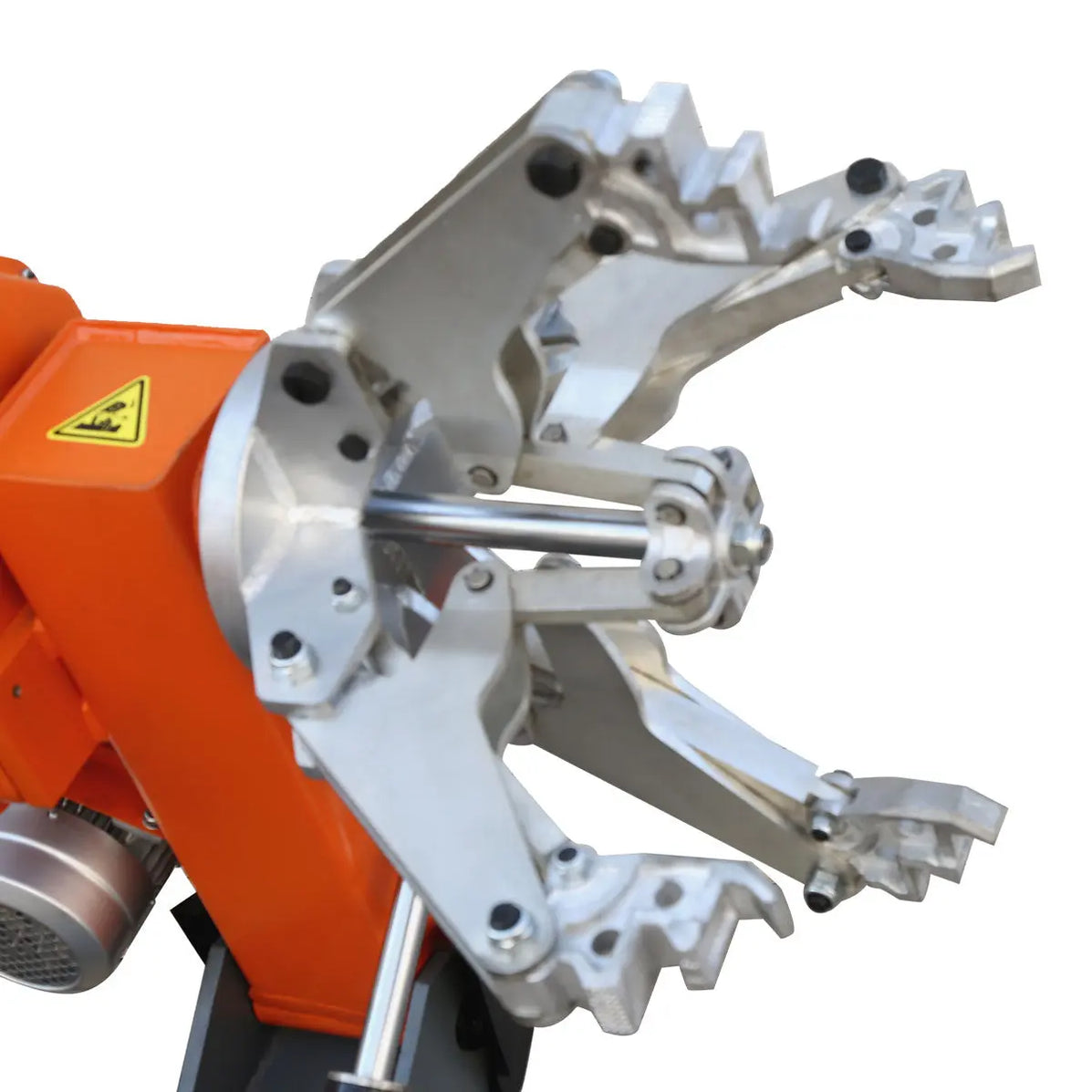

Rim clamping size: 14″ – 26″
Max. tire weight capacity: 3300 lb
Max. tire diameter capacity: 63″
Max. tire width capacity: 30″
Max. chuck centre height: 34″
Breaker arm assembly slide: 34-½”

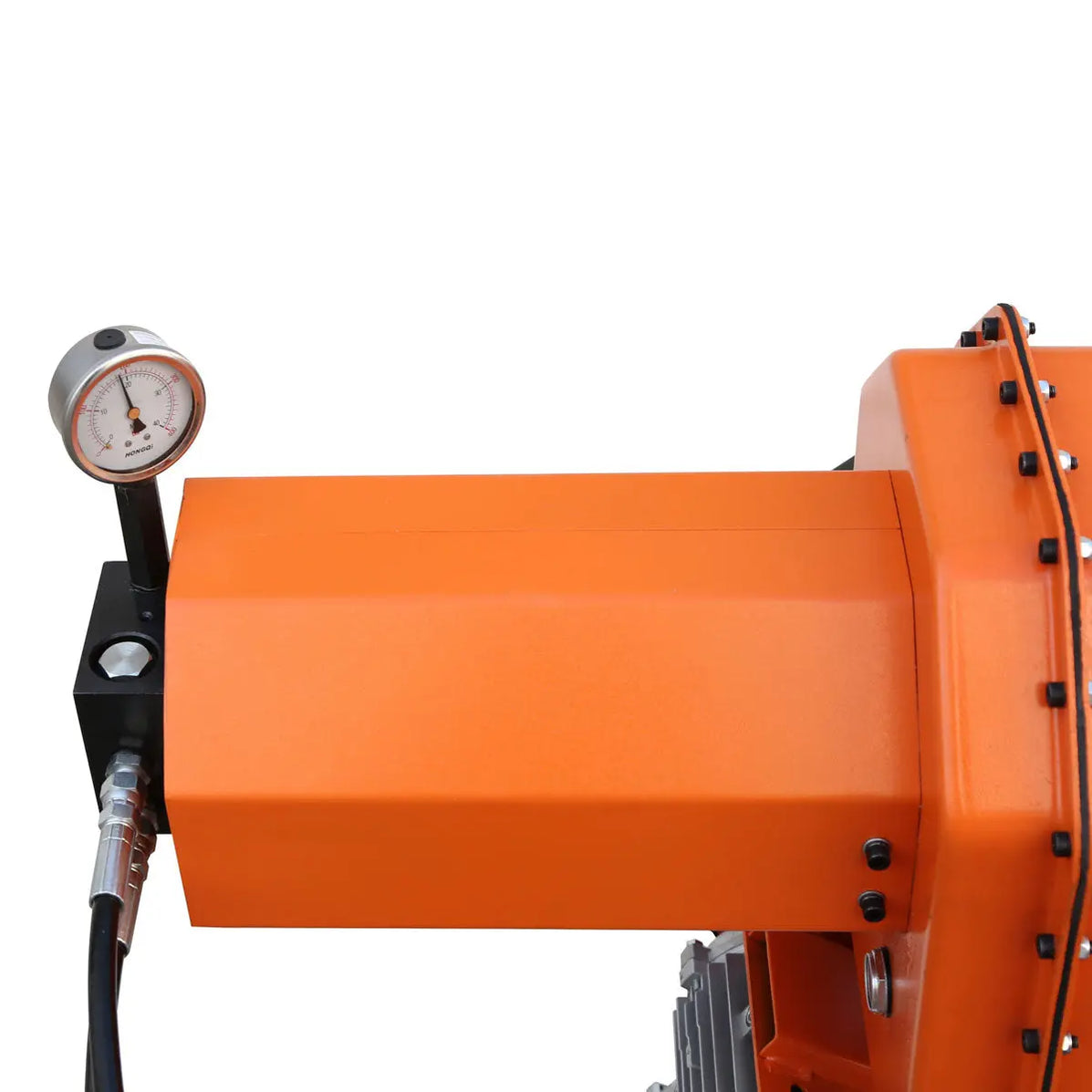

Max. operating pressure: 2000 PSI

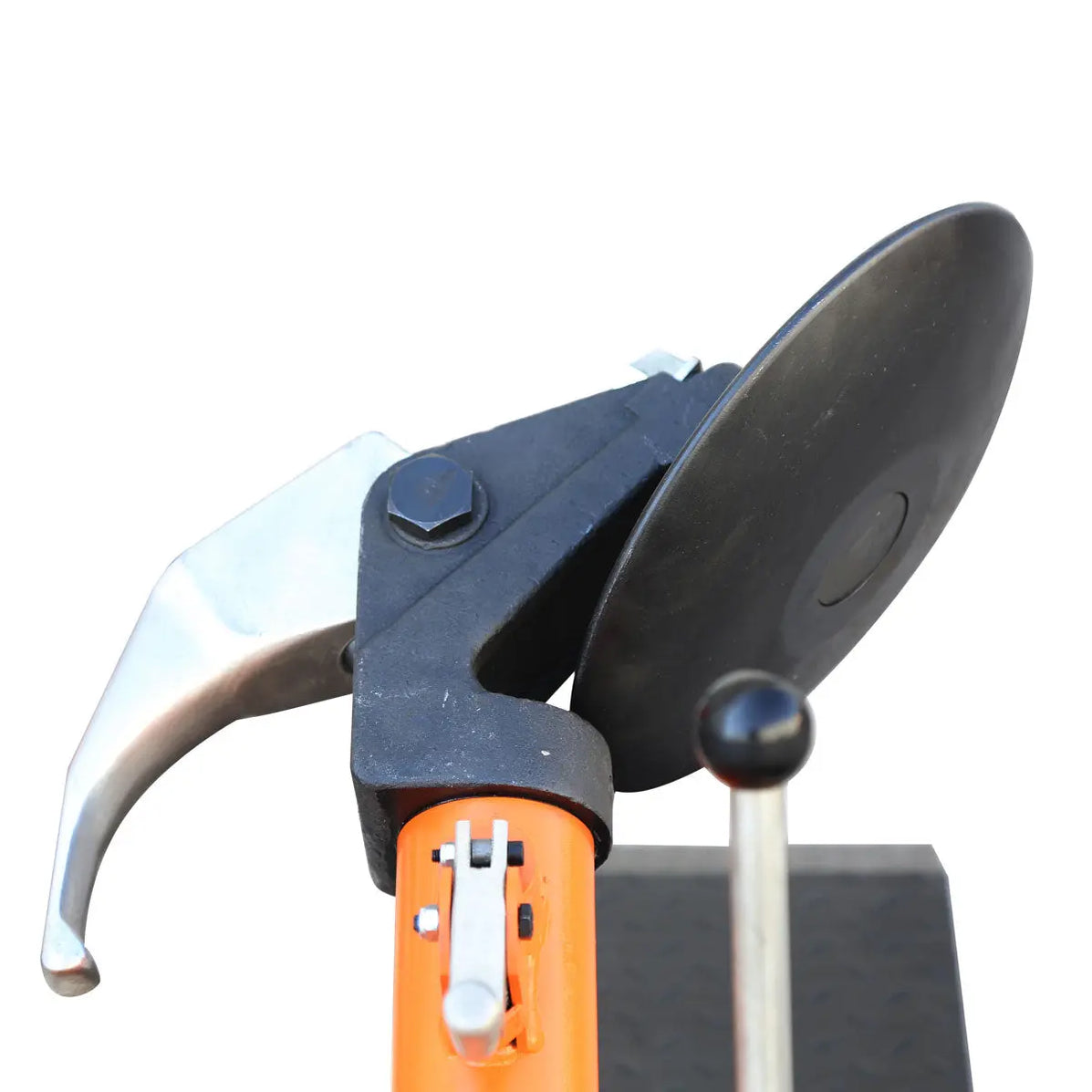

Bead breaker force: 6600 lb
Clamping power: 12000 lb
Operation voltage: 24 VAC
Acoustic noise: 70 dB
Bead positioning clamp included
Pry bar included
