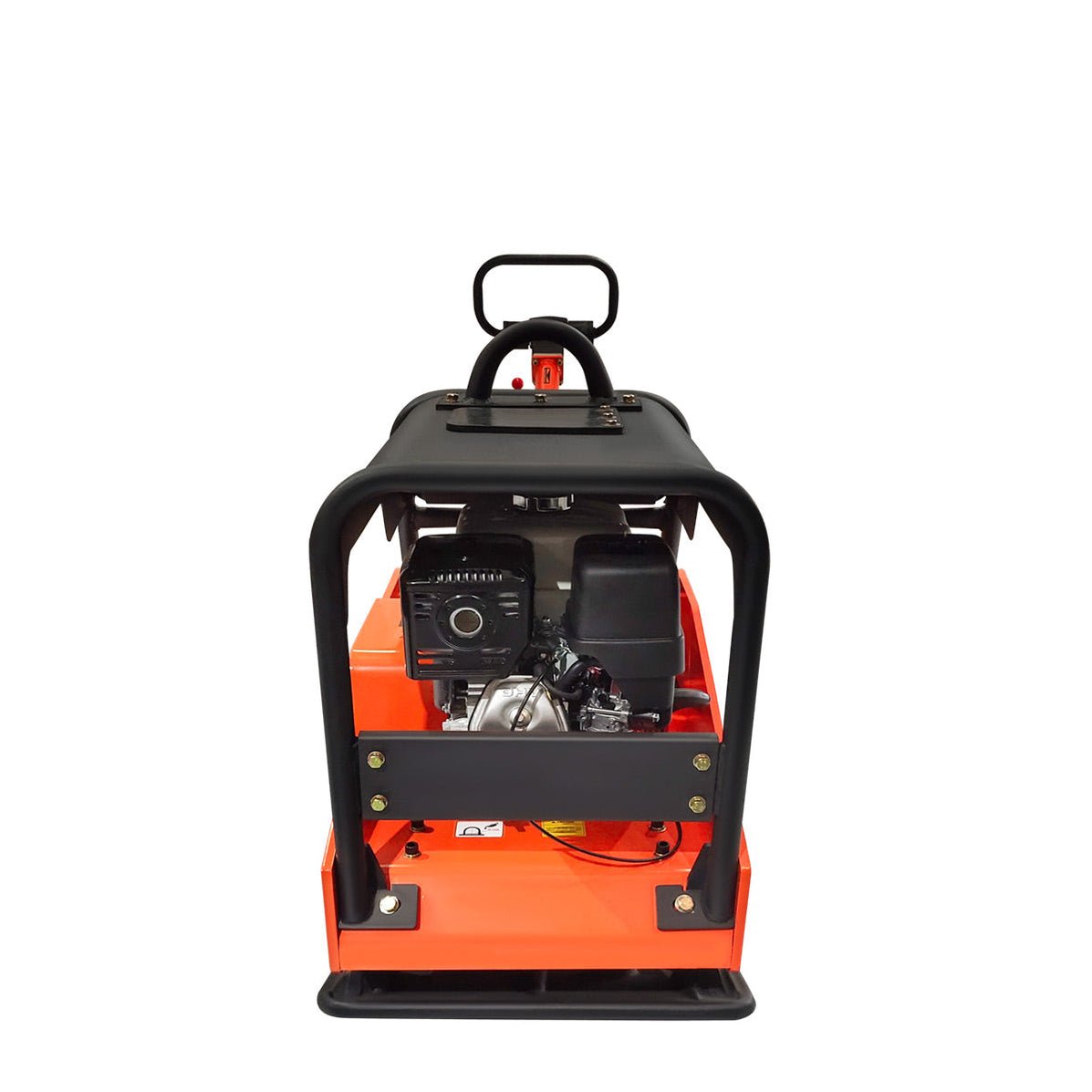

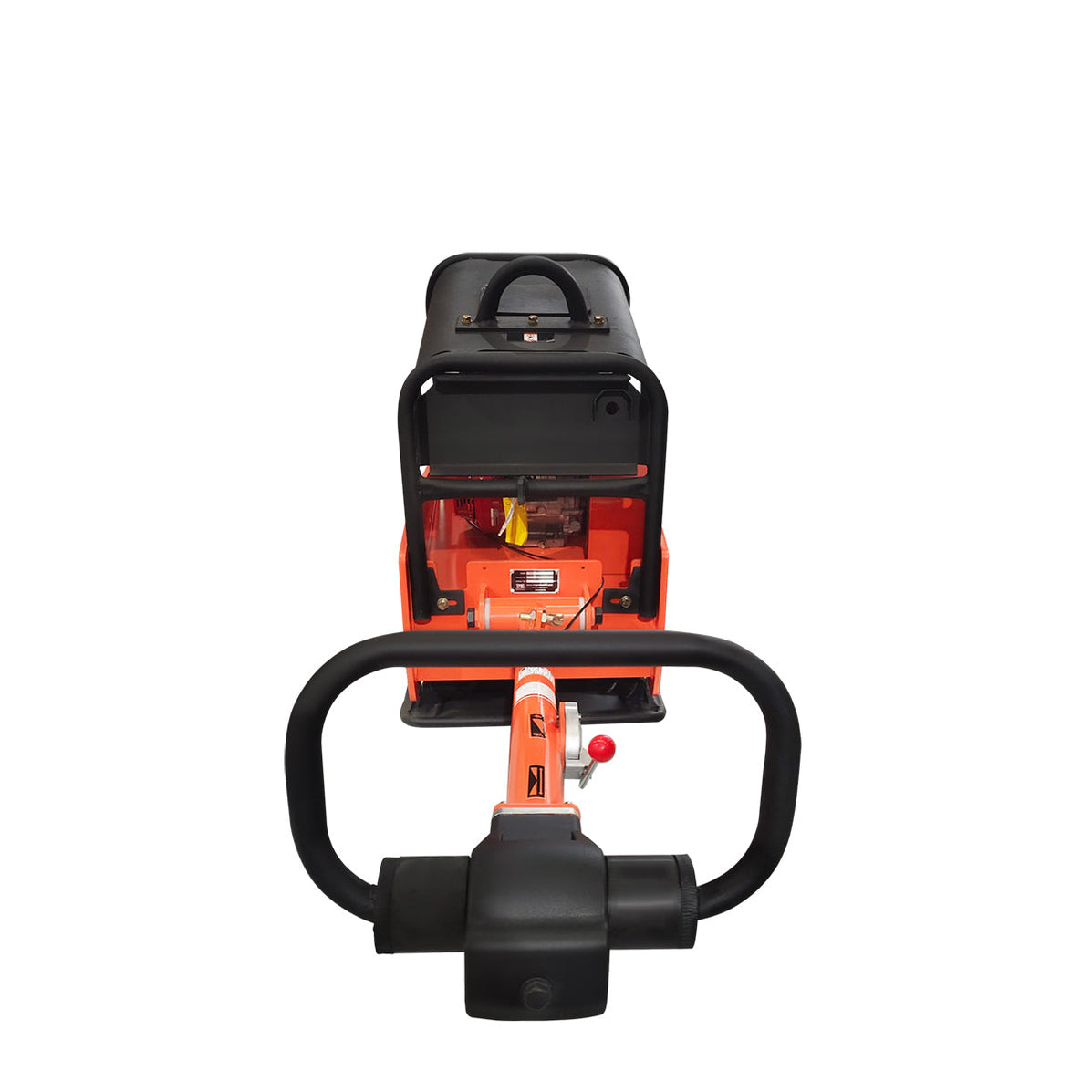

10,800-lb Reversible Hydraulic Plate Compactor, 13 HP Honda GX390 Engine
$11,999.99
In stock
FREE Shipping
- FREE* Nationwide Freight Shipping on all:
- TMG Industrial products
- Stinger Attachments
- Bucket Bunker Attachment Racks
- New Attachment Bundles
- Landhonor/Wolverine Attachments
- Fuel Tanks , Fuel Trailers
- qualifying orders over $1000
*Gates and loading ramps do not qualify for free shipping
*free shipping to the lower 48 only
*Buyer is responsible for unloading on some oversize products
In Store Pick Up
FREE $250 CliffhouseBuildings.com Gift Card
-
- Choose FREE Local Pickup and get a $250 Cliffhouse Gift Card on all orders over $1000
- Come meet our friendly staff
- Loading assistance
- Open (Winter Hours) M-F 8:30-5:30 Saturday 9-1

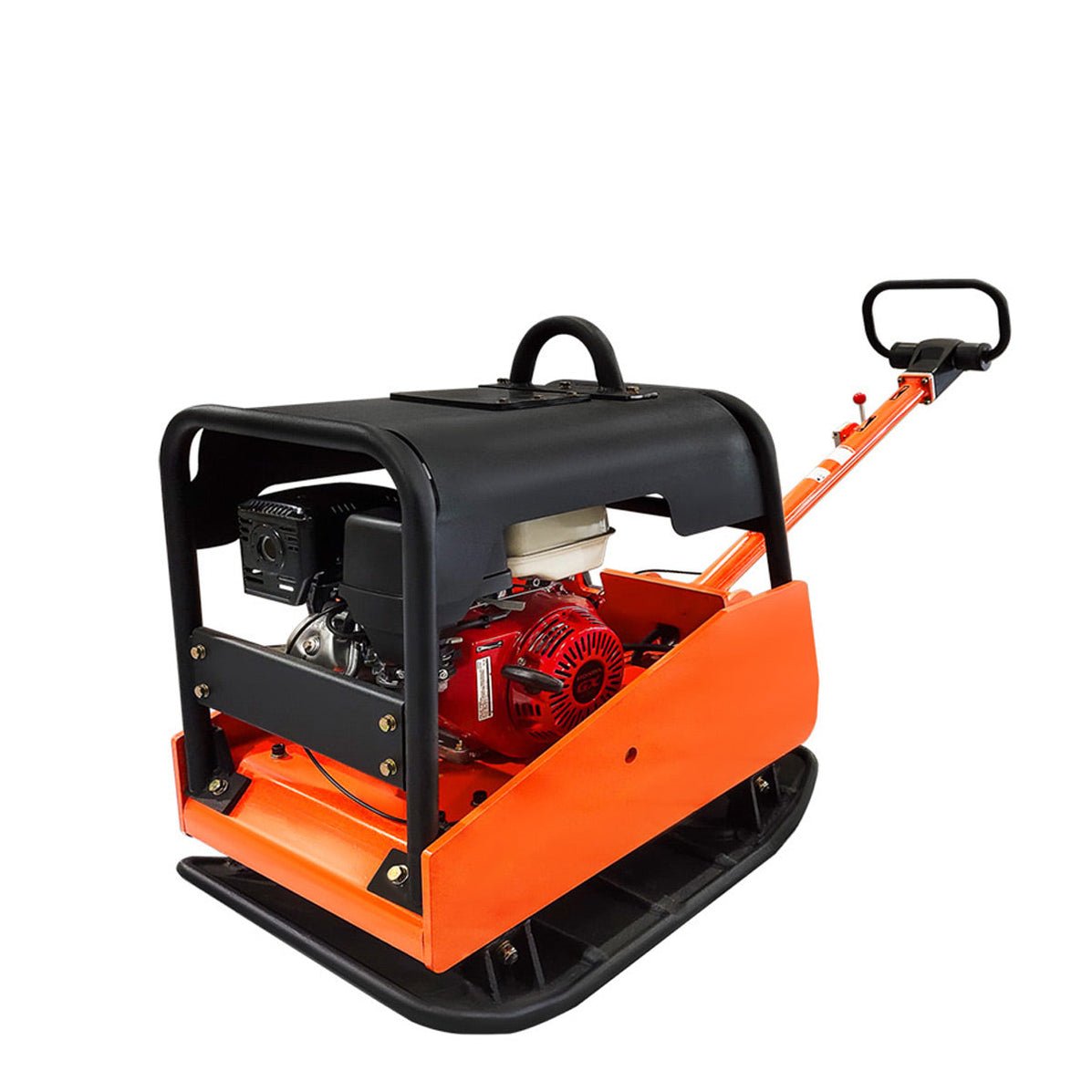

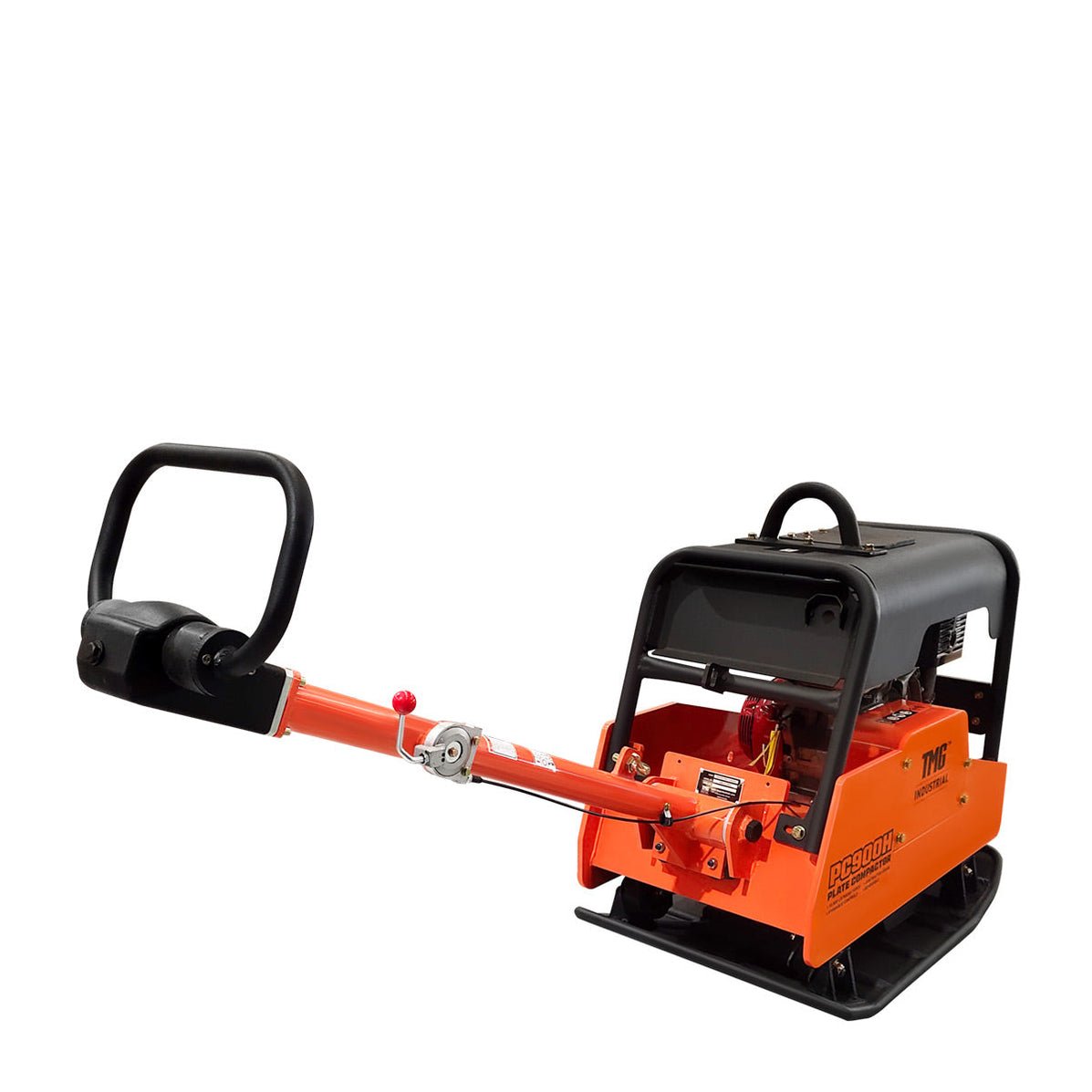

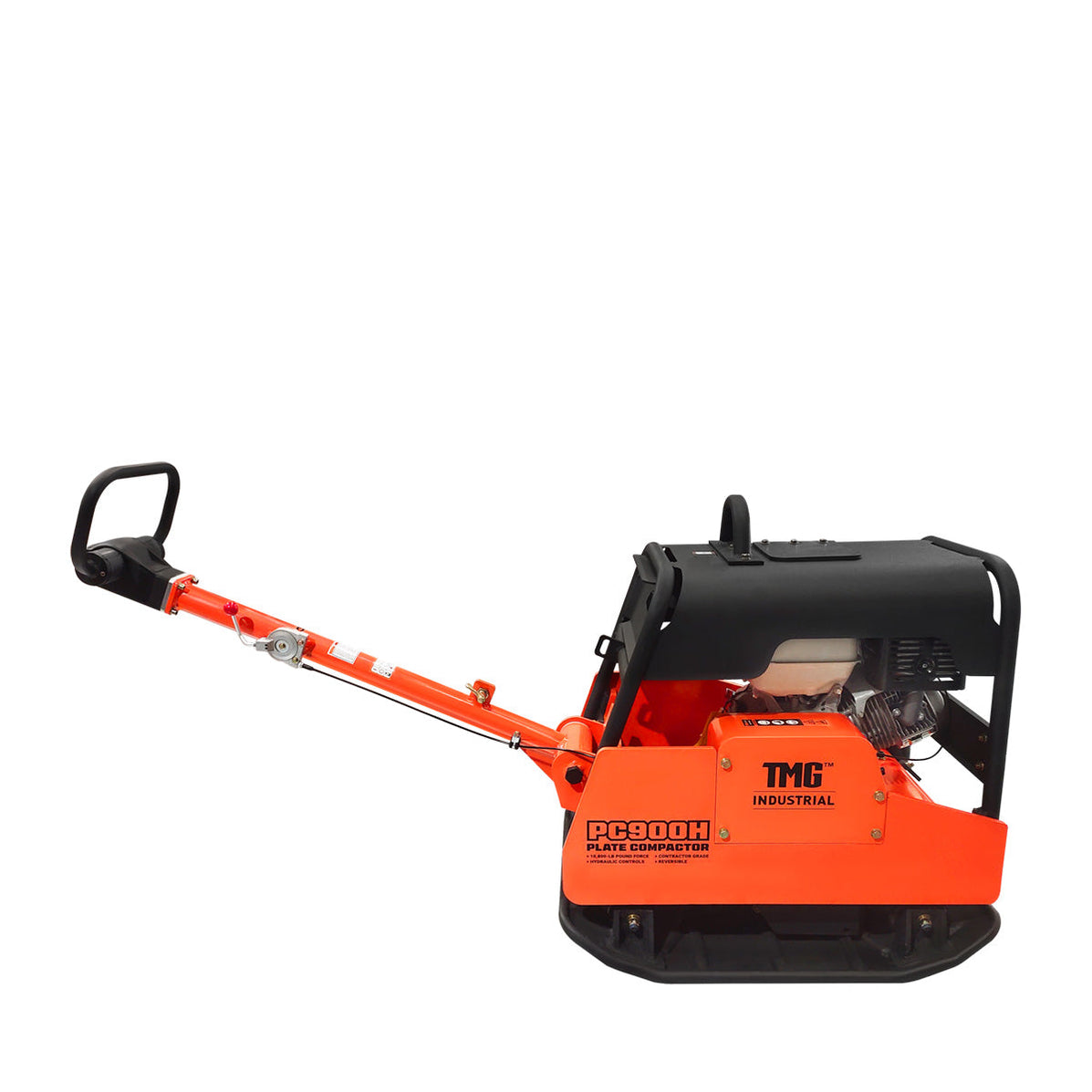

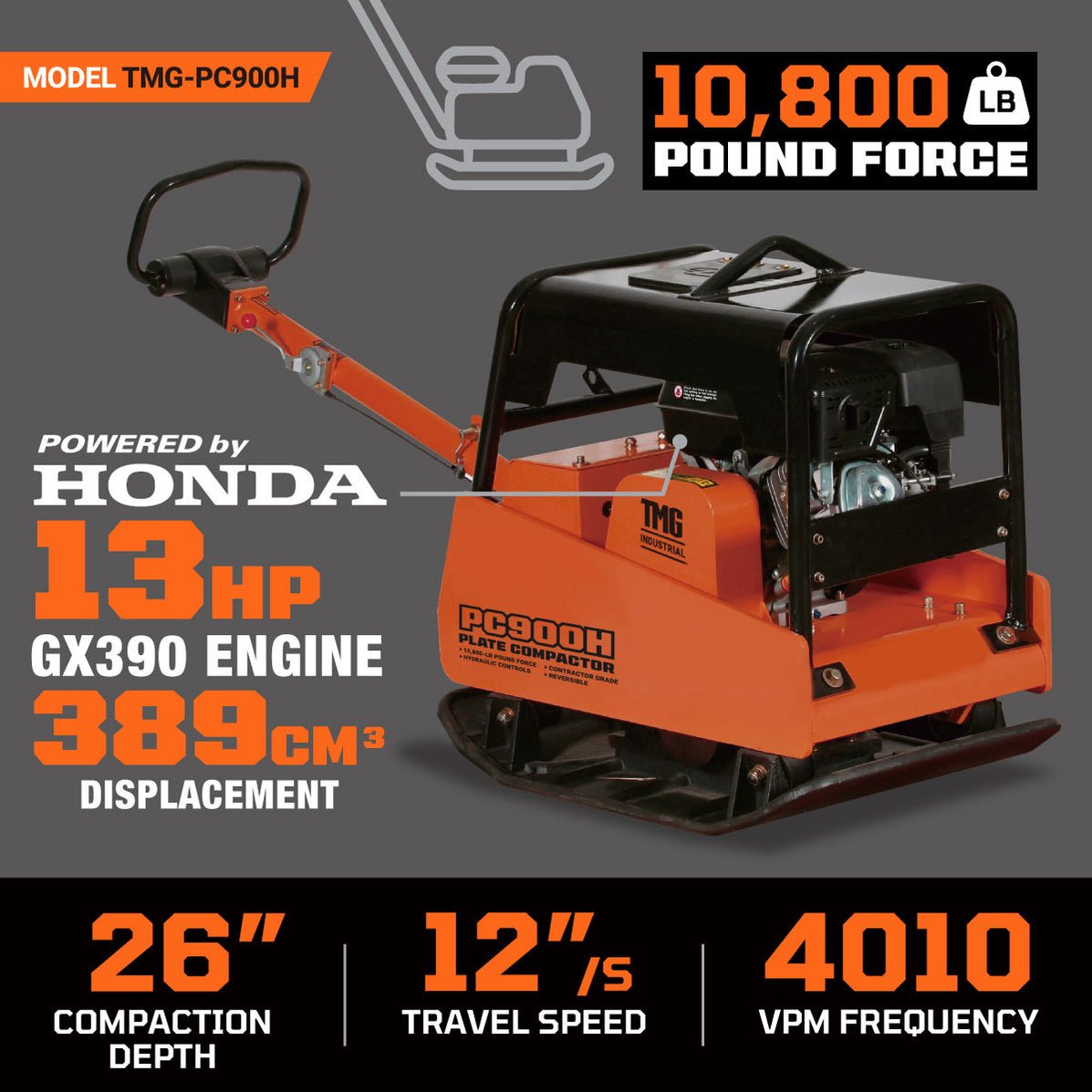

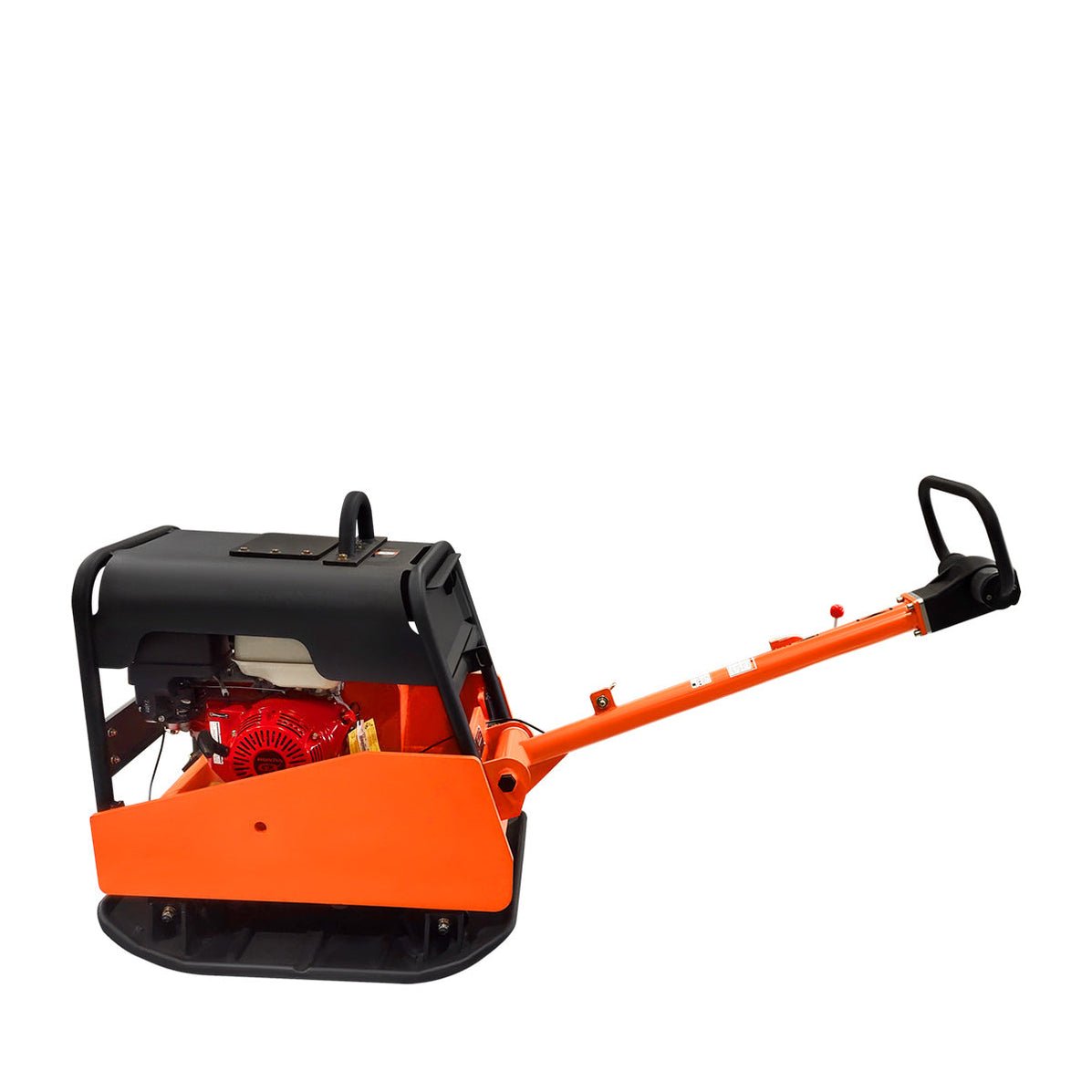

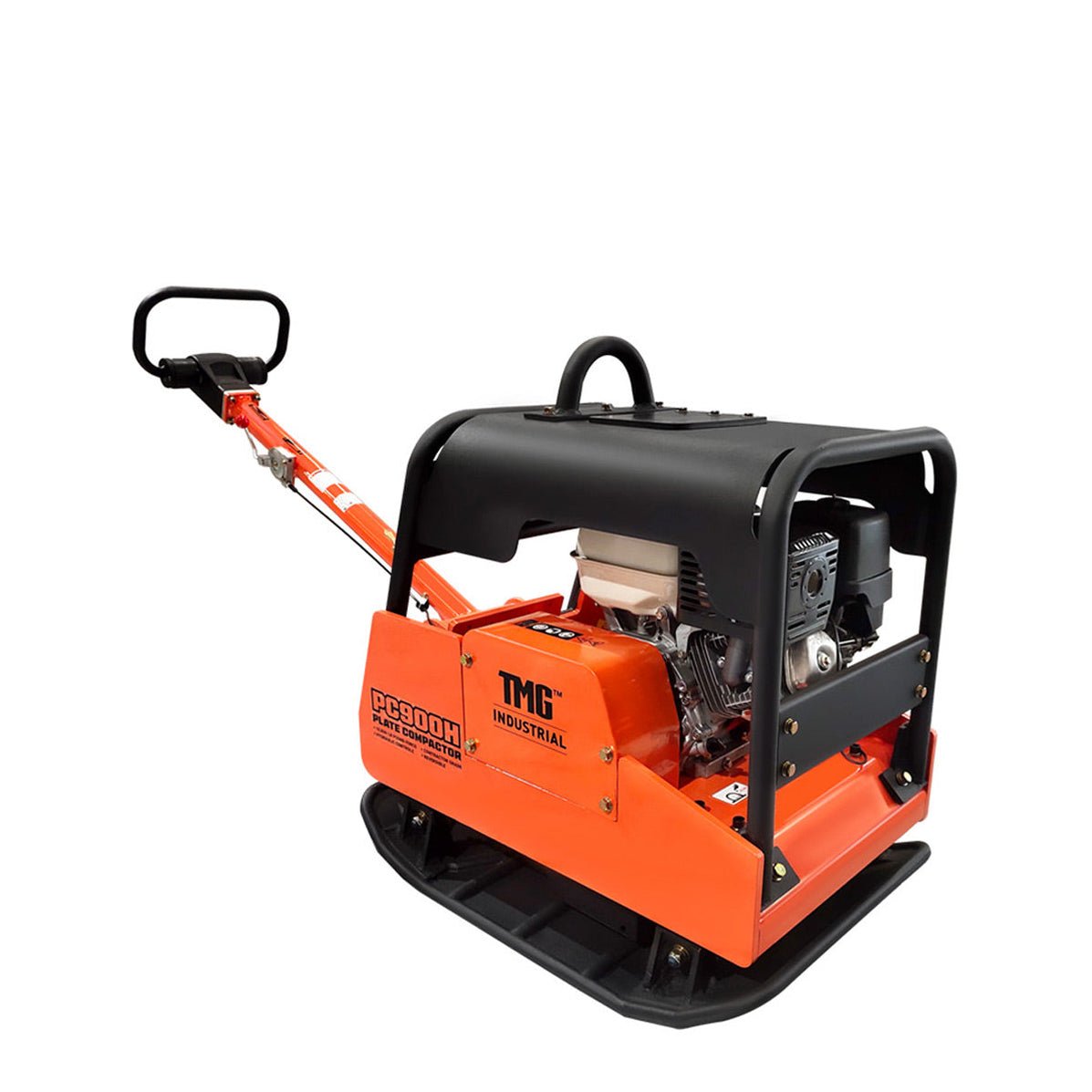

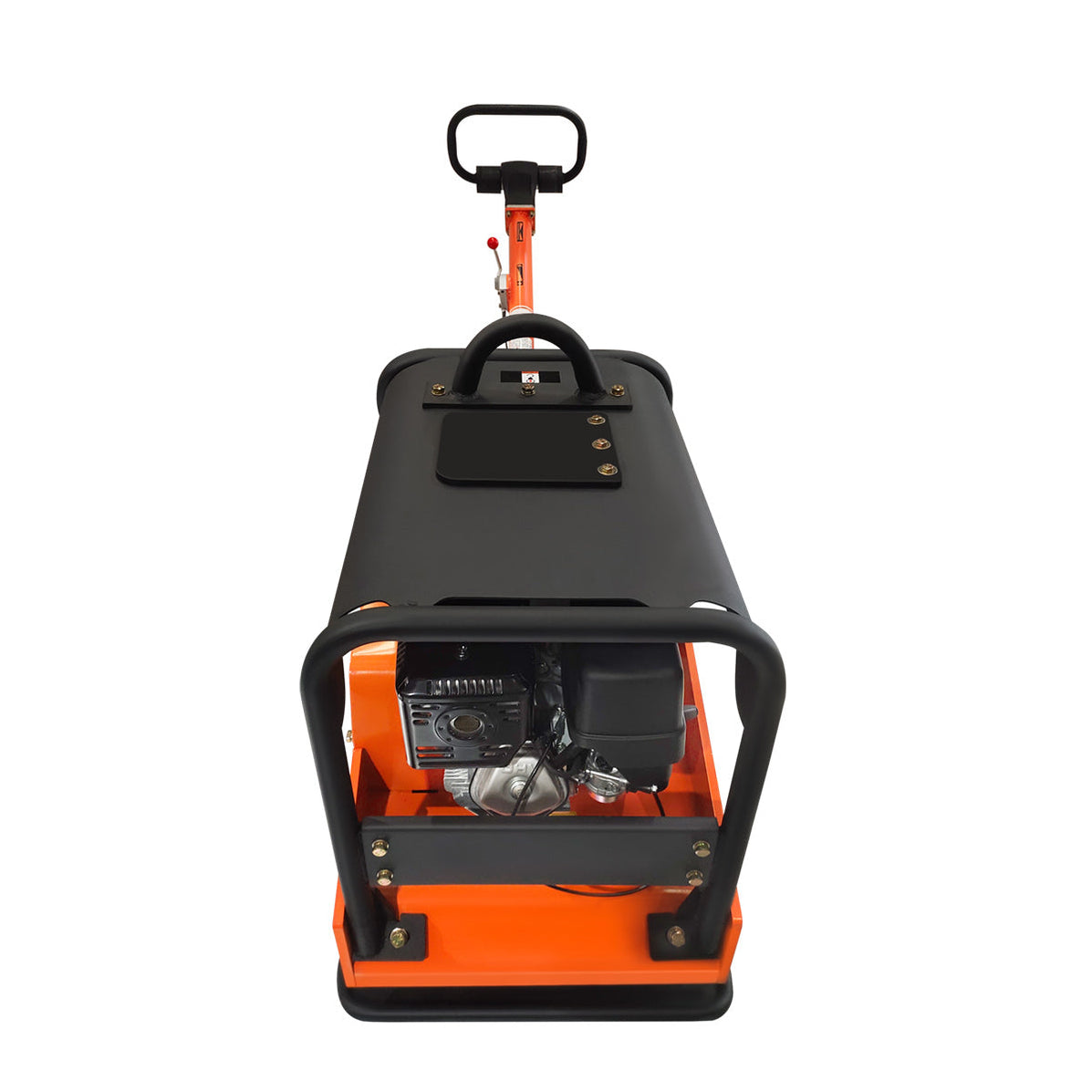

The TMG-PC900H 10,800-lb Reversible Hydraulic Plate Compactor is powered by a Honda GX390 EPA gasoline engine. With 13 horsepower at your fingertips, this compactor packs a serious punch. A pounding force of 10,800 lb and compaction depth of 26" inches means it can tackle even the most challenging surfaces and heavy-duty commercial jobs. Ideal for professional contractors who want to save time and money on large scale operations. Specifications
Pound force: 10,800 lb (48 kn)
Compaction depth: 26"
Travel speed: 12"/s
Frequency:4010 VPM
Plate size w/ extension side edges (included): 36" x 24" (L x W)
Net weight: 400 kg
Engine
Make: Honda GX390
Power: 13 HP
Engine Type: Air-cooled 4-stroke OHV
Bore x stroke: 3-½" x 2-½"
Displacement: 389 cm3
Net power output: 11.7 HP (8.7 kW) @ 3600 rpm
Net torque: 19.5 lb-ft (26.4 Nm) @ 2500 rpm
Fuel tank capacity: 6.1 liters (6.4 U.S. qts)
Starting system: Recoil
Lubrication system: Splash
Oil Capacity: 1.1 liters (1.16 U.S. qts)
