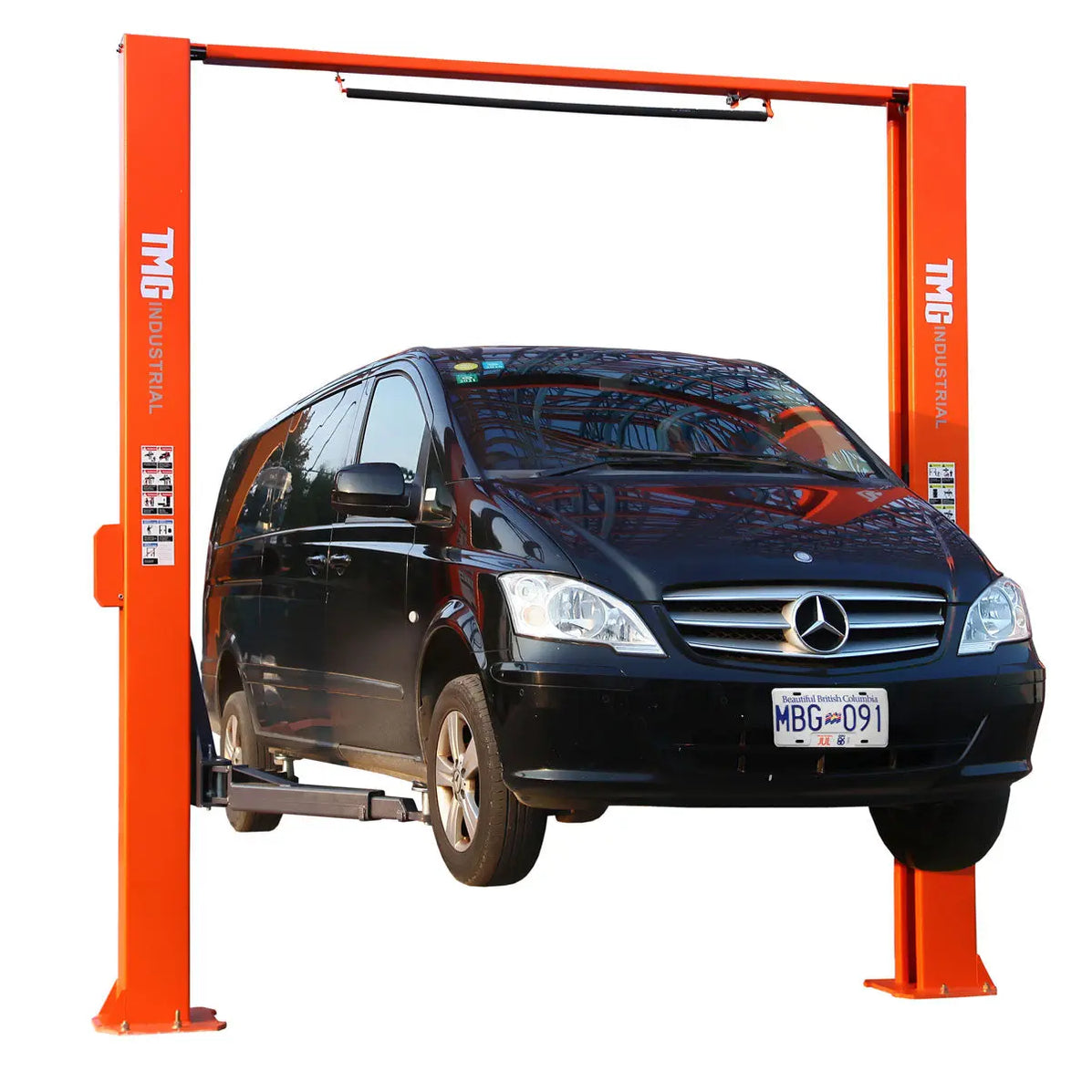

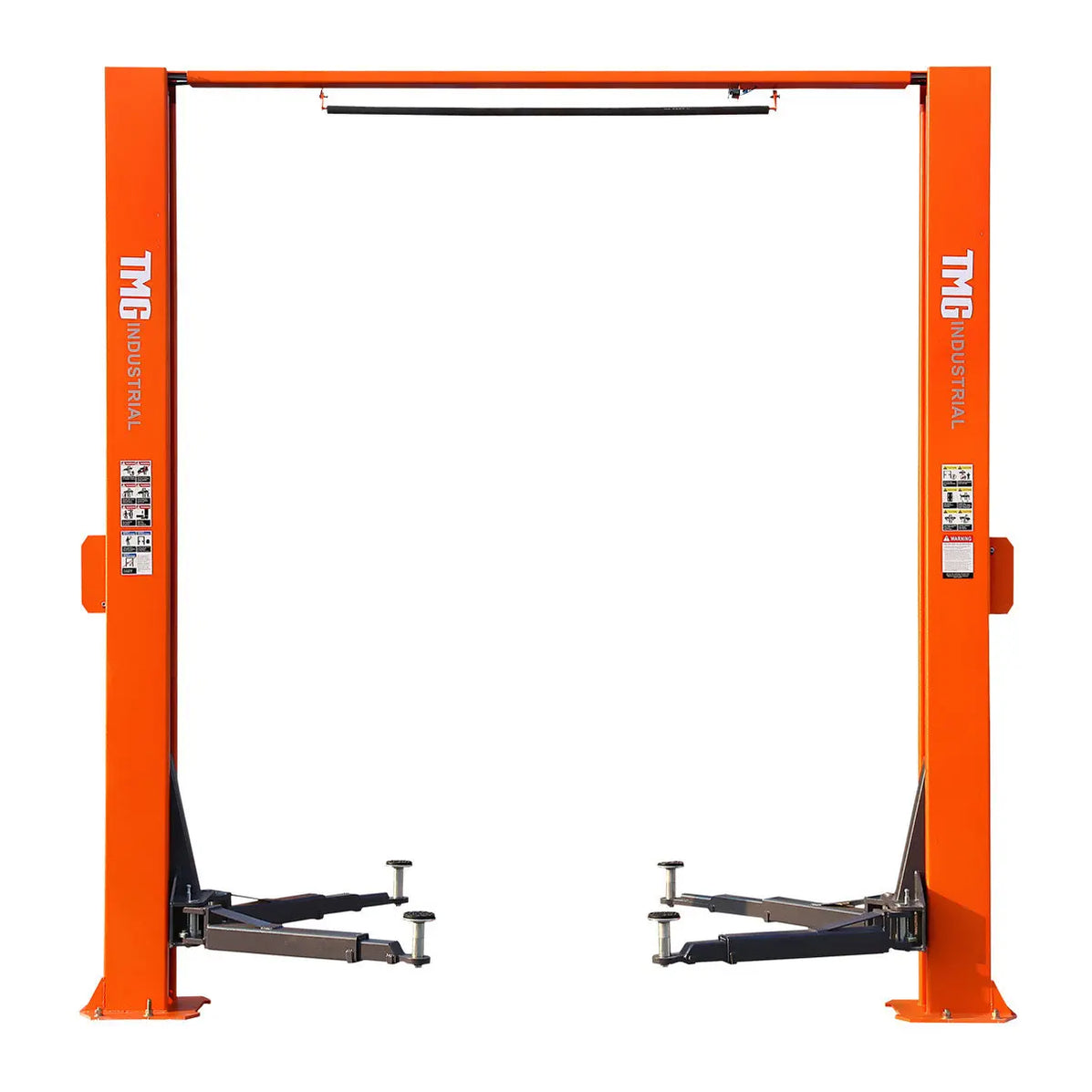

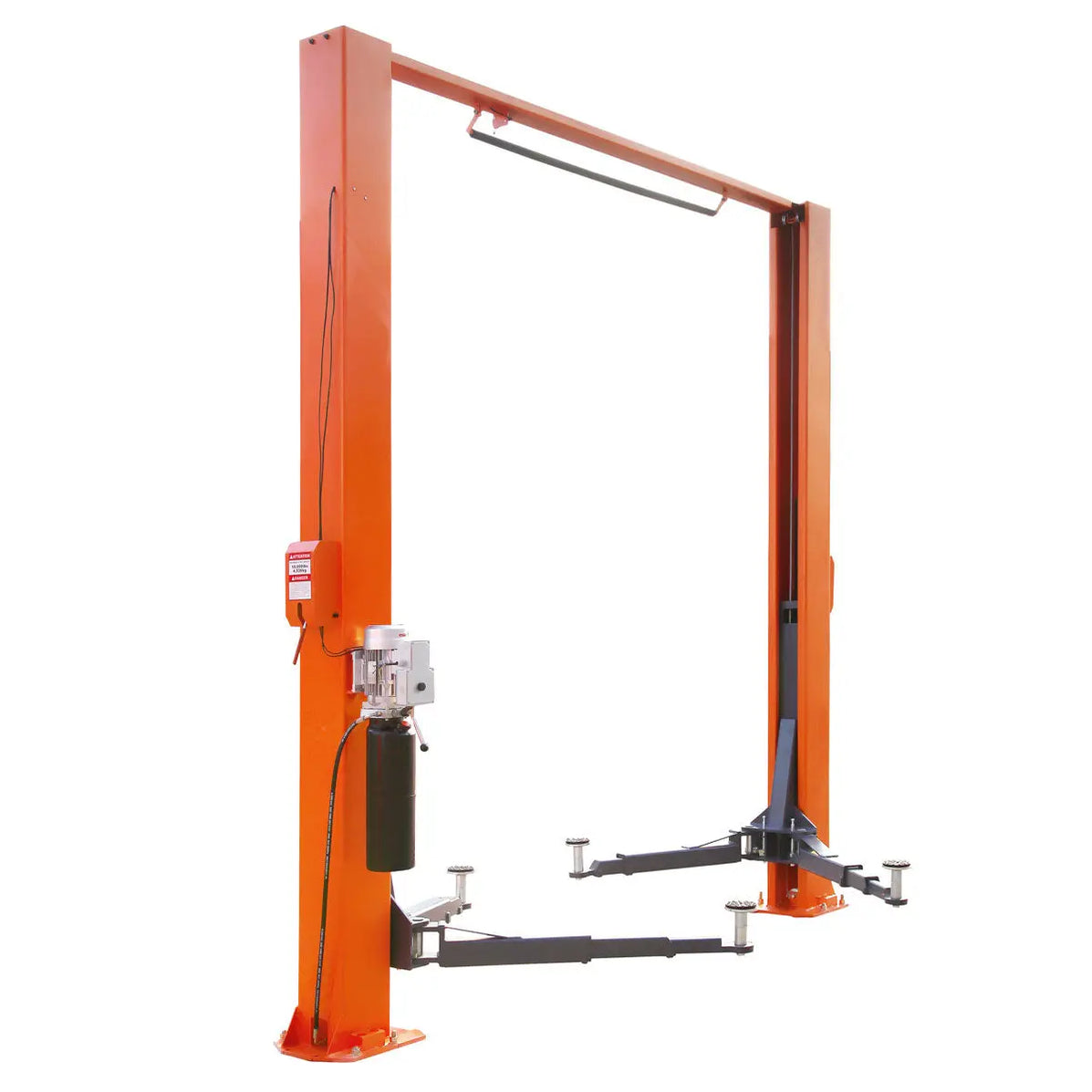

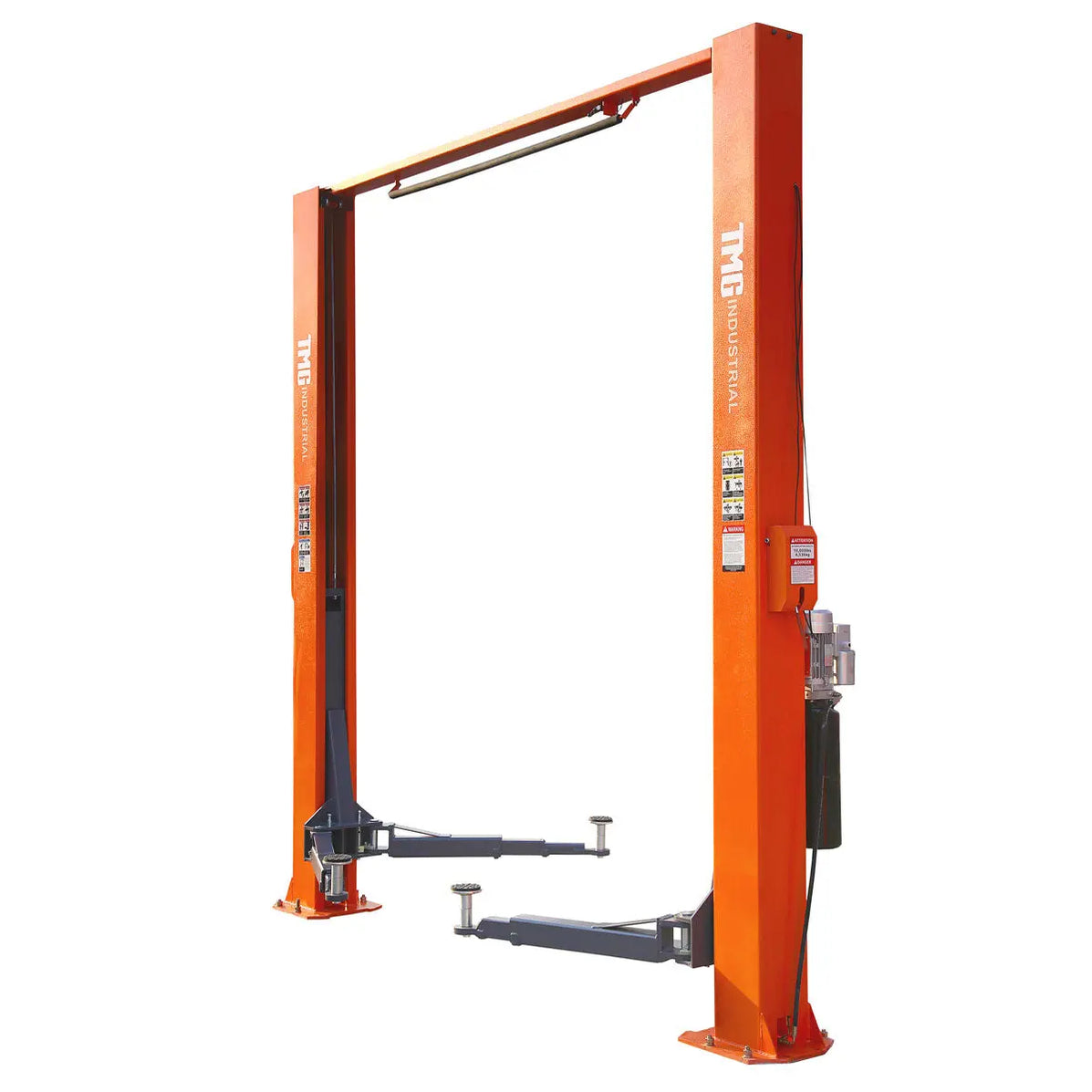

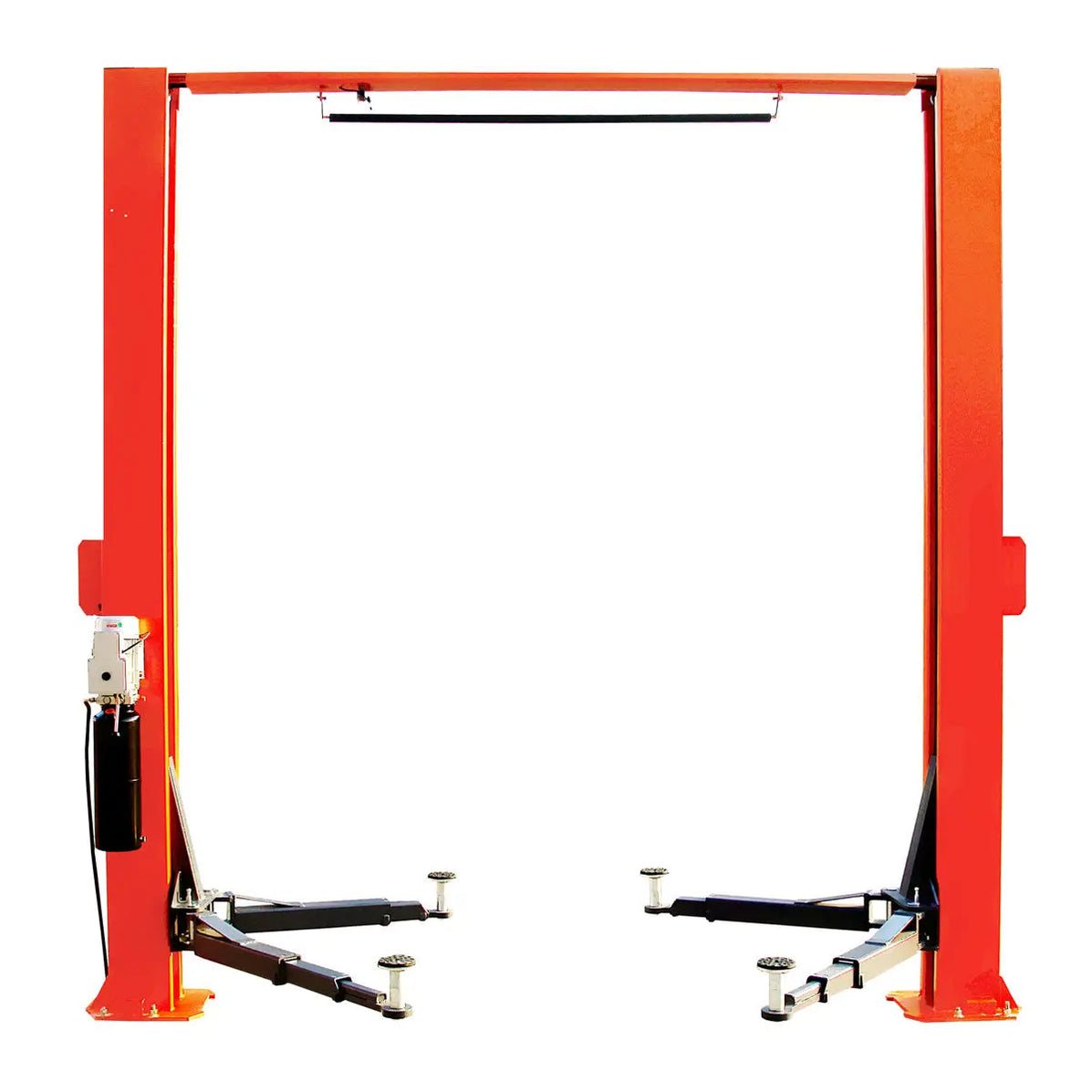

10,000-lb Two Post Overhead Auto Lift, Symmetric Arms, 72″ Lift Height
$5,799.99
In stock
FREE SHIPPING on qualifying orders*
- *FREE Nationwide Freight Shipping on qualifying orders over $1000
*loading ramps, shipping containers, some oversize items, do not qualify for free shipping
*free ltl shipping to the lower 48 only
*Buyer is responsible for unloading
In Store Pick Up
FREE $200 CliffhouseBuildings.com Gift Card
-
- Choose FREE Local Pickup and get a $200 Cliffhouse Gift Card on all orders over $1000
- In store pick up by appointment only
- Loading asistance available

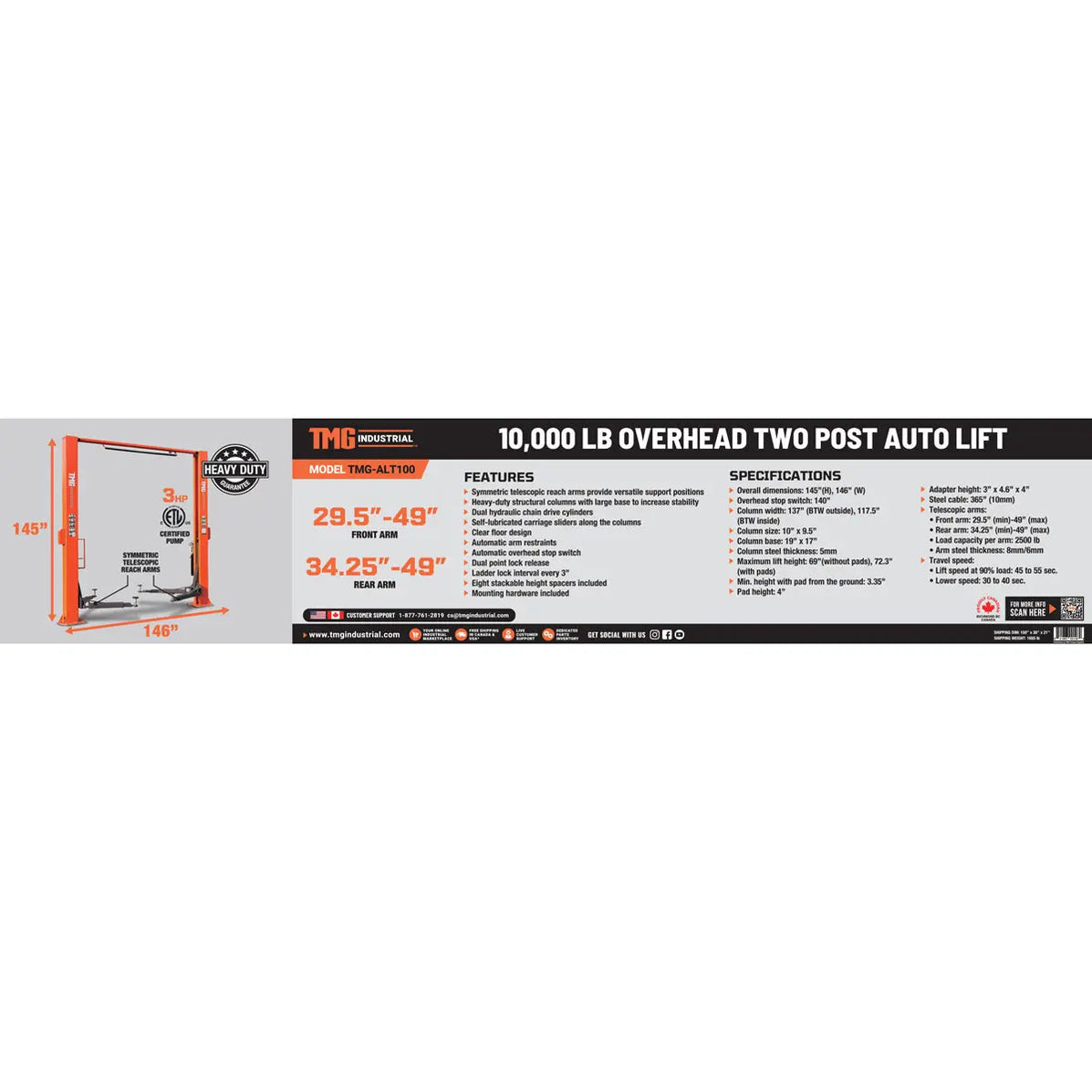

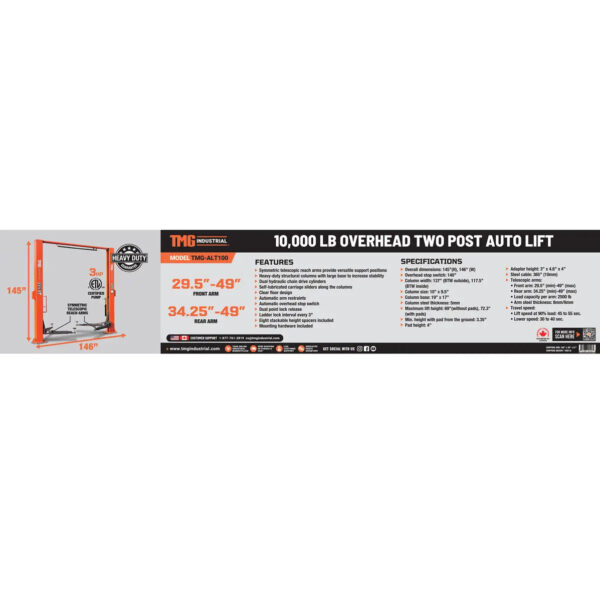

The TMG-ALT100 Two-Post Overhead Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 10,000 lb lifting capacity and 72" lift height you can easily lift most cars, trucks and SUVs for mechanical work of any kind. An overhead cross member design keeps all hydraulic, steel cable and electrical lines protected while clearing the bottom for free space between the columns. Specifications
Load capacity: 10,000 lb
Overall height: 145"
Overall width: 146"
Overhead stop switch: 140"
Column width: 137" (outsides), 118" (insides)
Column size: 10" x 9-½"
Column base: 19" x 17"
Column steel thickness: 5 mm
Max. lift height: 69" (without pads), 72" (with pads)
Min. height with pad from the ground: 3"
Drive through clearance: 107"
Adapter height: 3" (4 pieces), 6" (4 pieces)
Steel cable:
Length: 365"
Thickness: ?"
Retractable front arm: 30" – 49"
Retractable rear arm: 34" – 49"
Arm steel thickness: 8 mm/6 mm
Travel speed:
Rise up at 90% load: 45 to 55 seconds
Lower down: 30 to 40 seconds
Max. load capacity per arm: 2,500 lb
Automatic arm restraints
Dual point lock release
Mounting hardware included

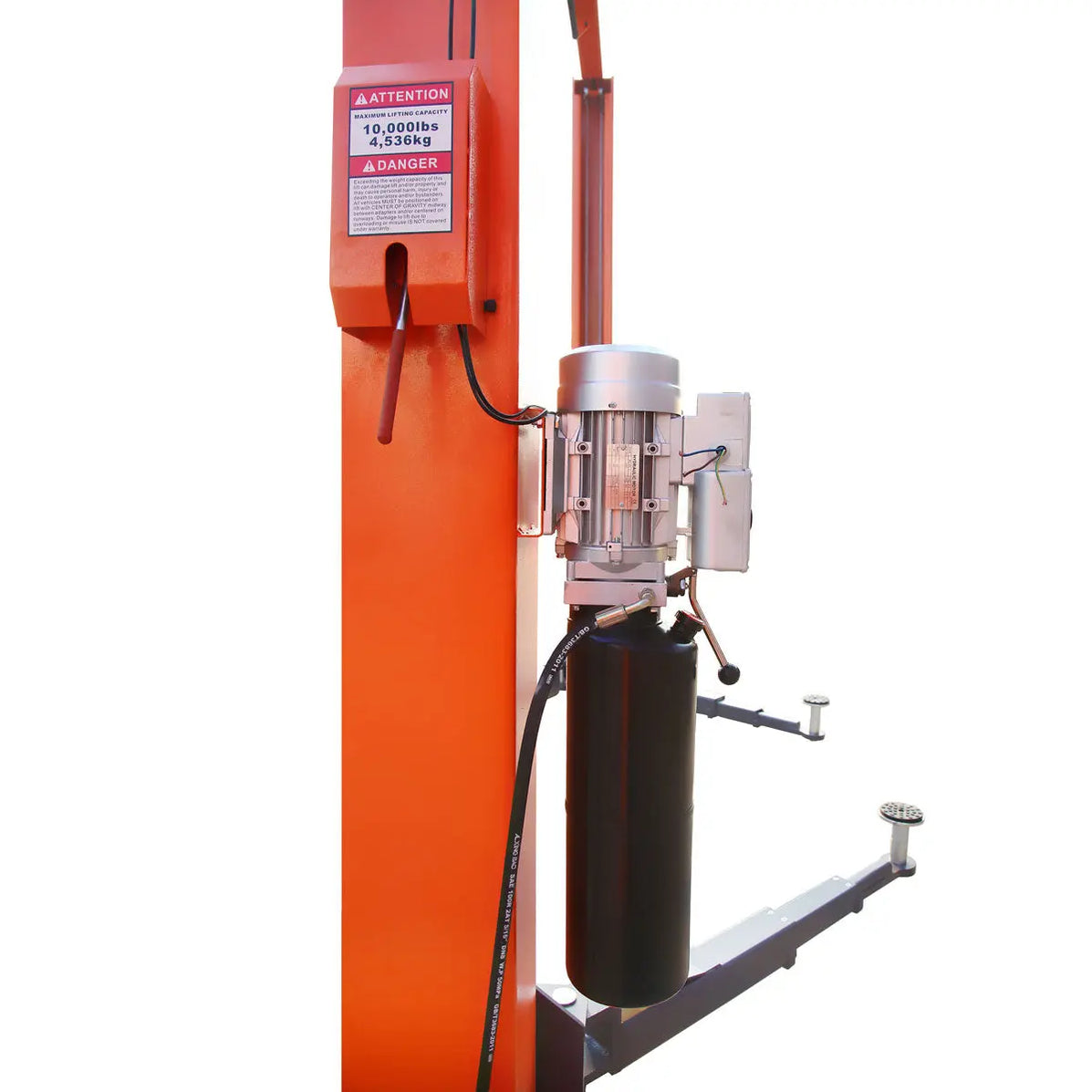

Hydraulic Motor Pump Power Unit:
220 VAC, 3 HP, single phase
No-load speed: 3360 RPM
Working pressure: 2600 PSI
Tank capacity: 2.5 US gal
Pump oil required: AW32/AW46
CETL certified
