10,000-lb Two Post Floor Plate Auto Lift, Symmetric Arms, 77″ Lift Height
$3,999.99
In stock
FREE SHIPPING on qualifying orders*
- *FREE Nationwide Freight Shipping on qualifying orders over $1000
*loading ramps, shipping containers, some oversize items, do not qualify for free shipping
*free ltl shipping to the lower 48 only
*Buyer is responsible for unloading
In Store Pick Up
FREE $200 CliffhouseBuildings.com Gift Card
-
- Choose FREE Local Pickup and get a $200 Cliffhouse Gift Card on all orders over $1000
- In store pick up by appointment only
- Loading asistance available

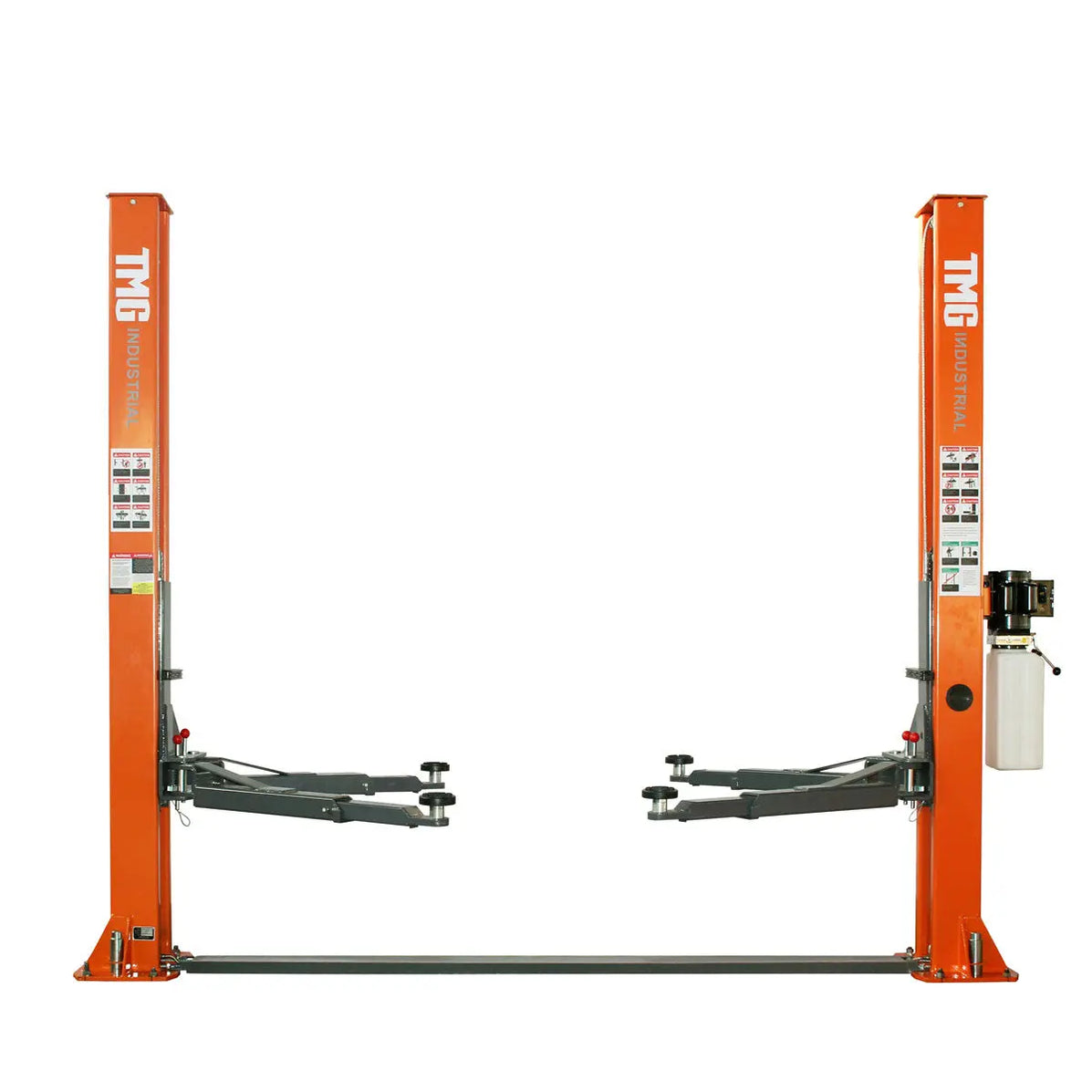

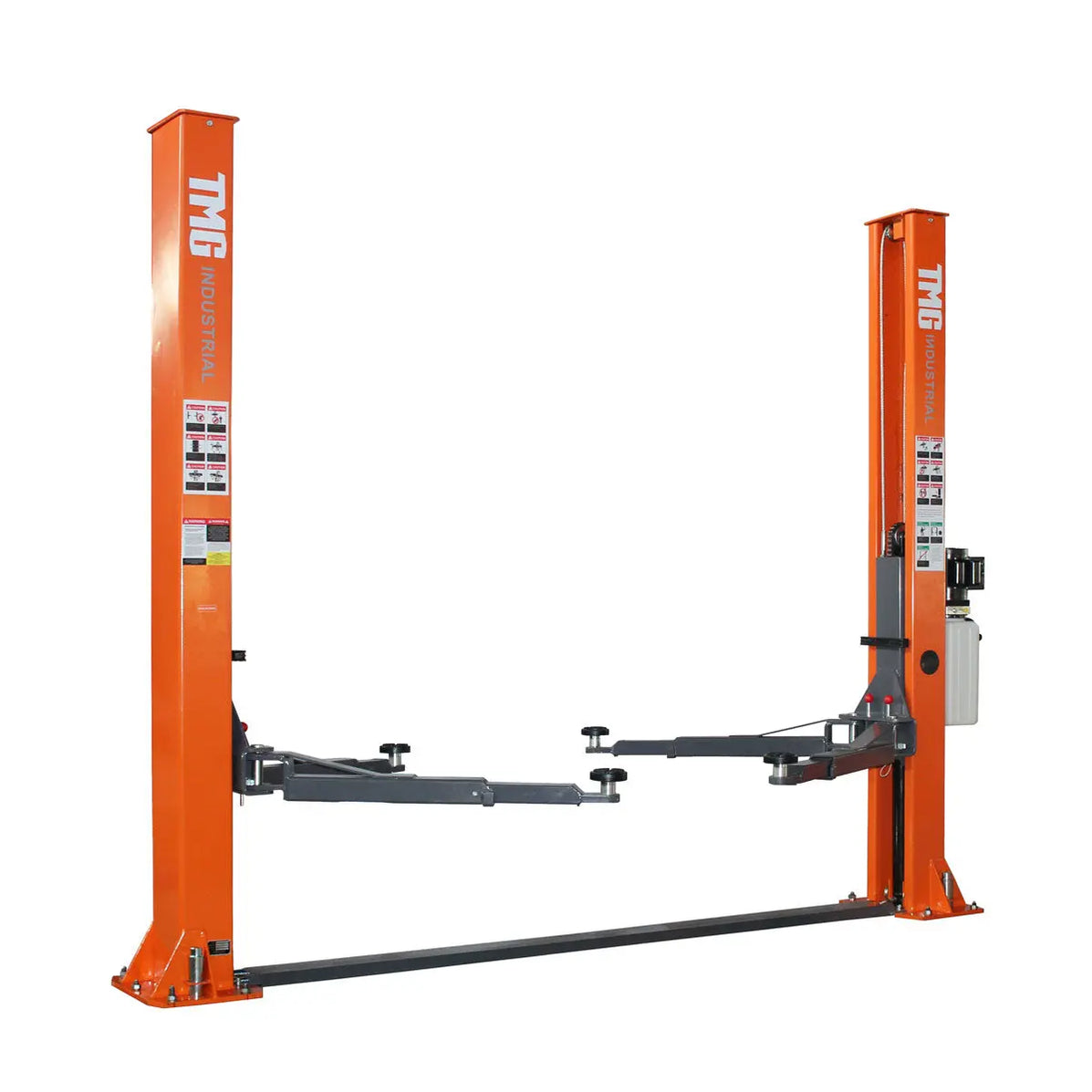

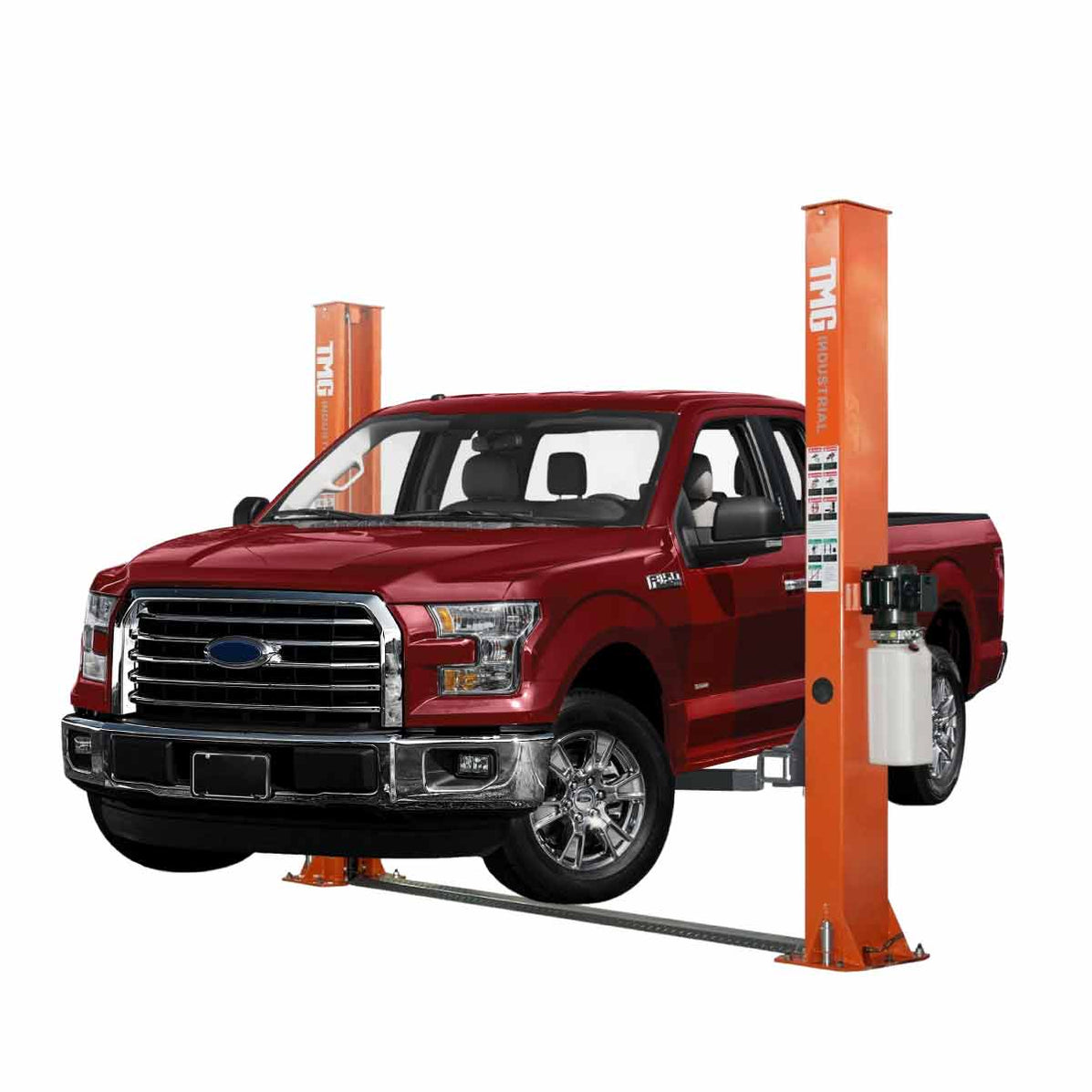

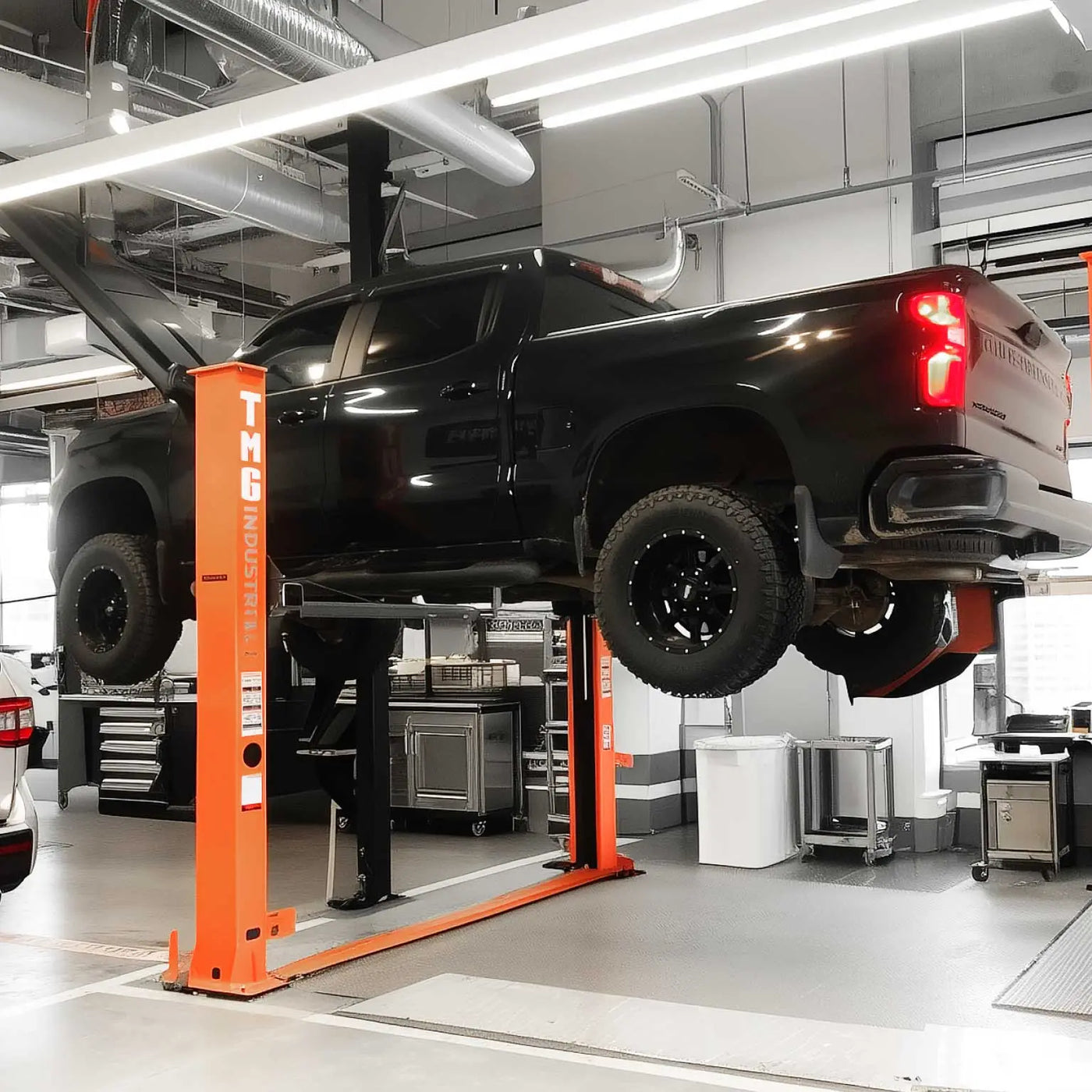

The TMG-TPL45 Two-Post Auto Lift is an excellent choice for personal garages, small shops or general automotive service departments. With a 10,000 lb lifting capacity and 77" lift height you can easily lift most cars, trucks and SUVs for mechanical work of any kind. A floor plate design keeps all hydraulic, steel cable and electrical lines protected while opening up the overhead for maximum vehicle clearance. Specifications

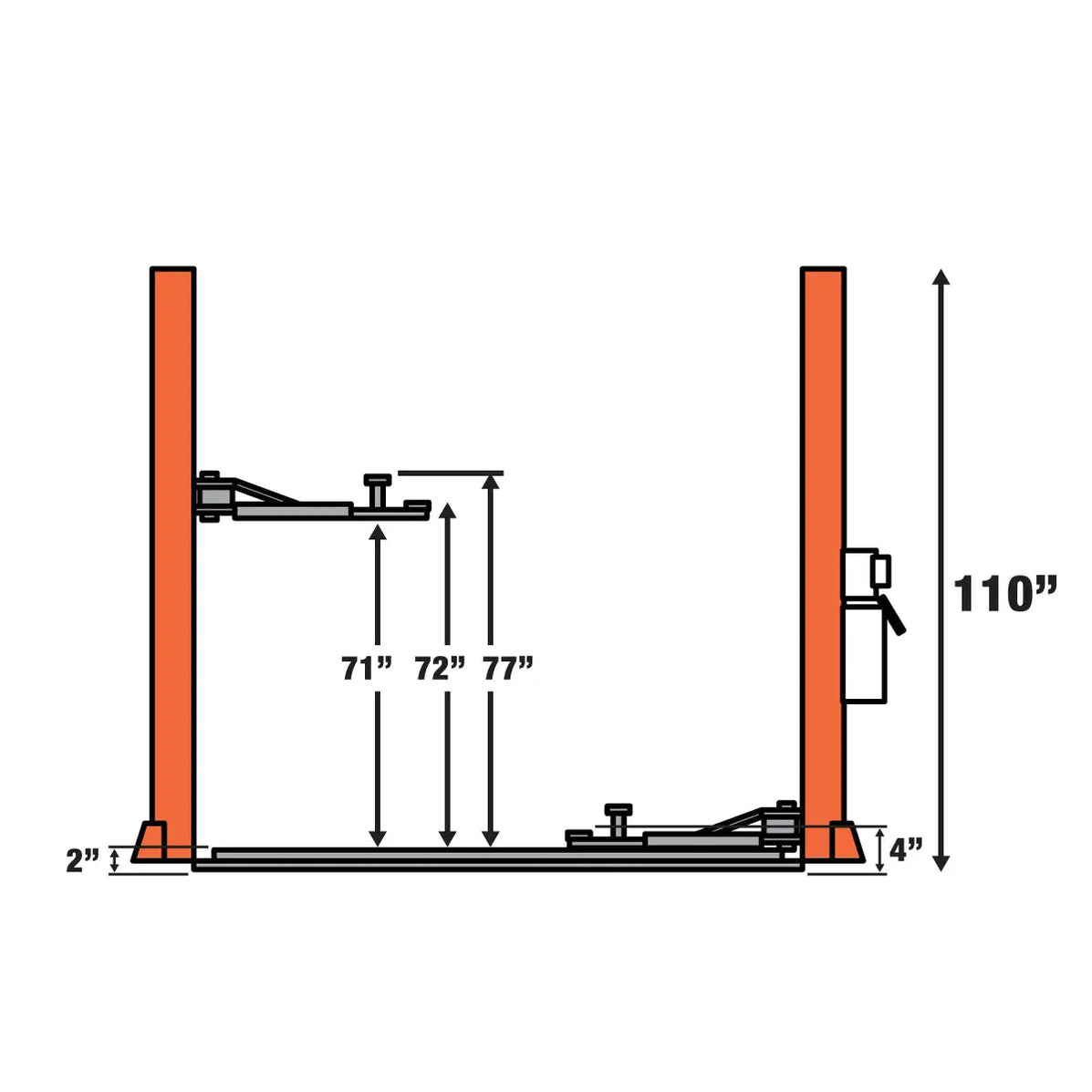

Lift capacity: 10,000 lb
Overall height: 110"

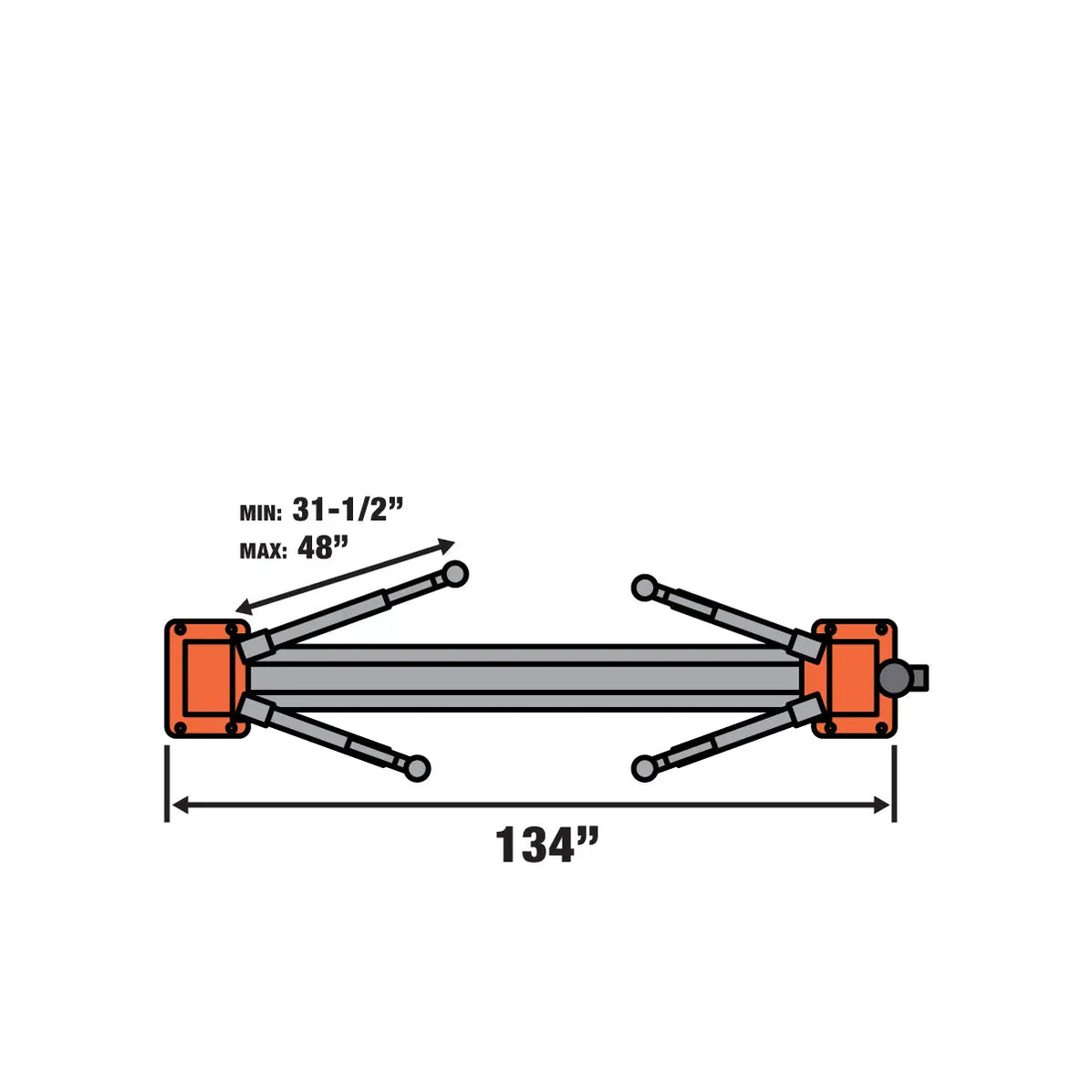

Overall width: 134"
Outside column width: 124"
Inside column width: 110"
Crossing floor plate height: 1-¼"
Column size: 10-1/2" x 7"
Column base: 20" x 15"
Column steel: 6 GA
Carriage steel: 4 GA
Cable diameter: ?"
Lift height (pad only): 72"

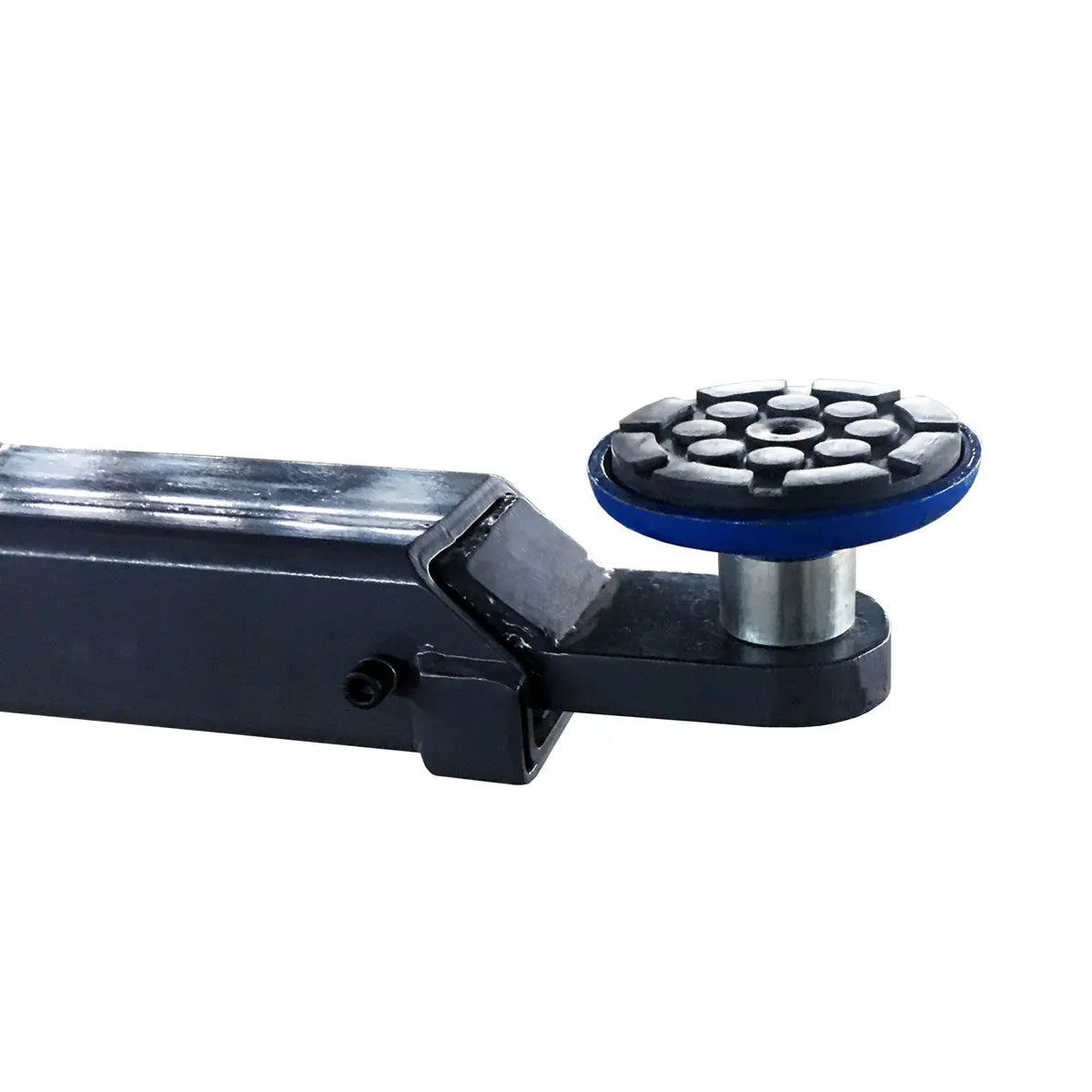

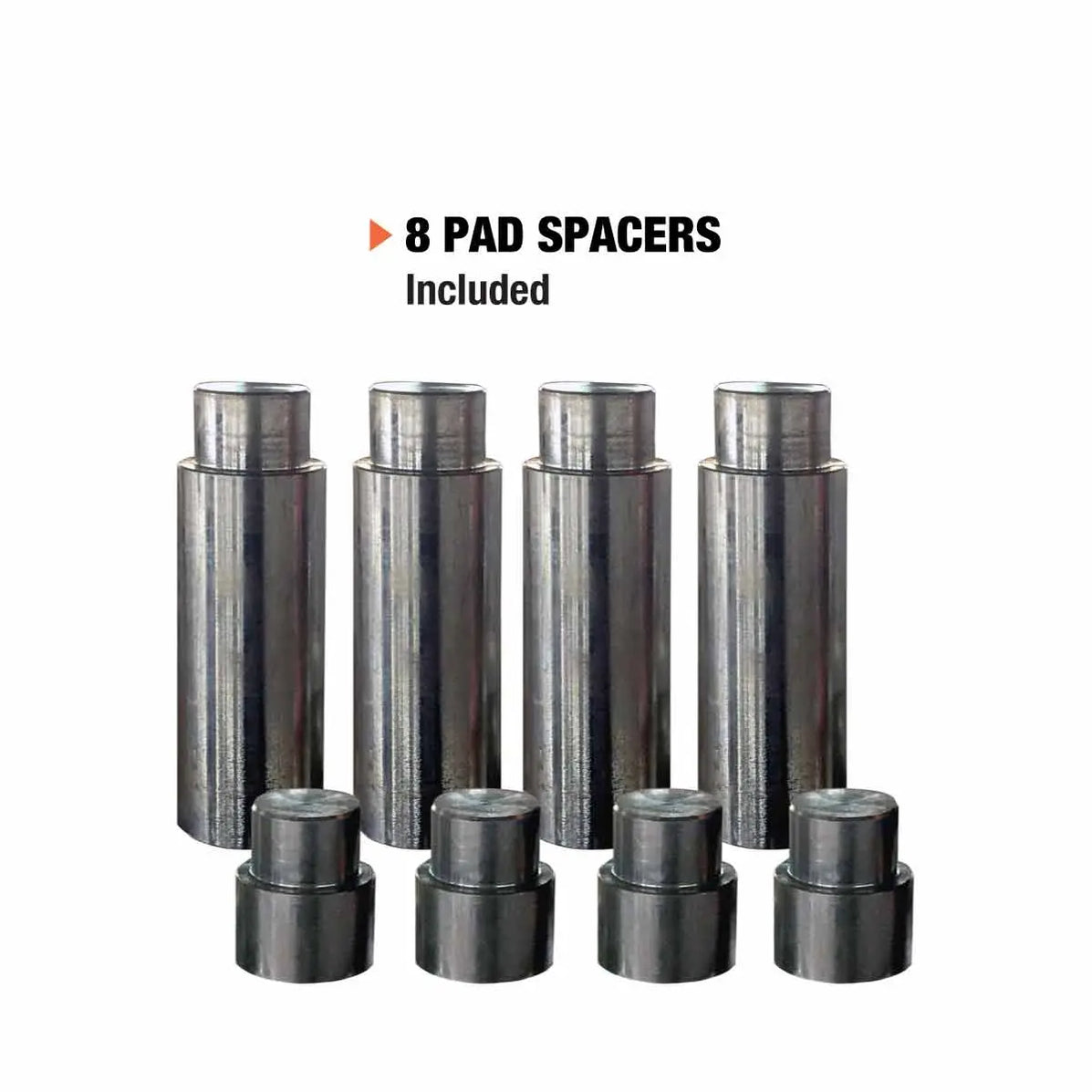

Lift height (with 5" adapter): 77"
Lift height clearance: 71"
Minimum height from the ground: 4-½"
Drive through clearance: 100"
Retractable front arm: 31-1/2" – 48"
Retractable rear arm: 31-1/2" to 48"
Travel speed:
Rise up at 90% load: 45 to 50 sec.
Lower down: 30 to 35 sec.
Max. load capacity per arm: 2,500 lb
Installation concrete slab required (minimum): 4-½" with 3000 PSI cured

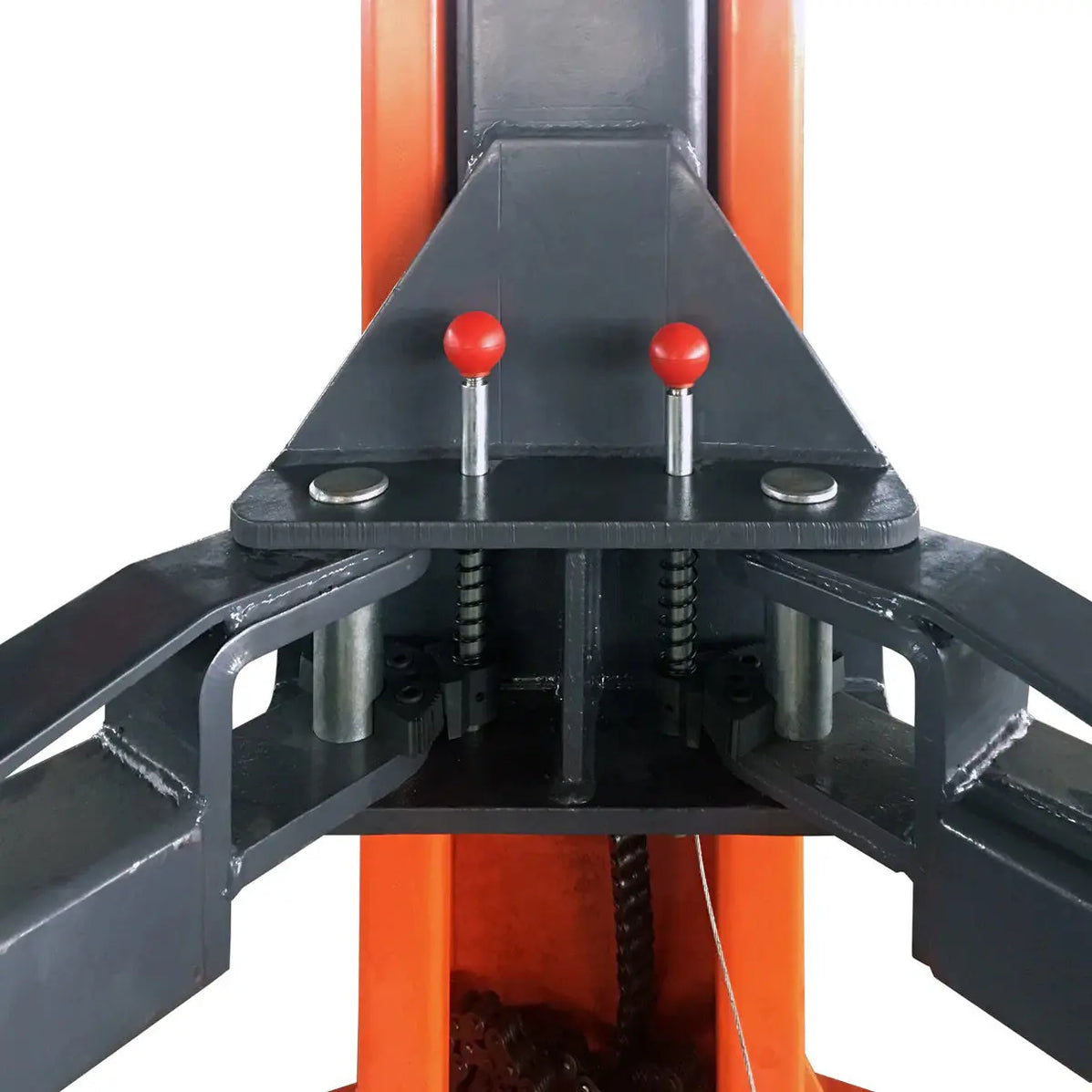

Automatic arm restraints
Dual point lock release
Mounting hardware included
Requires 25A breaker

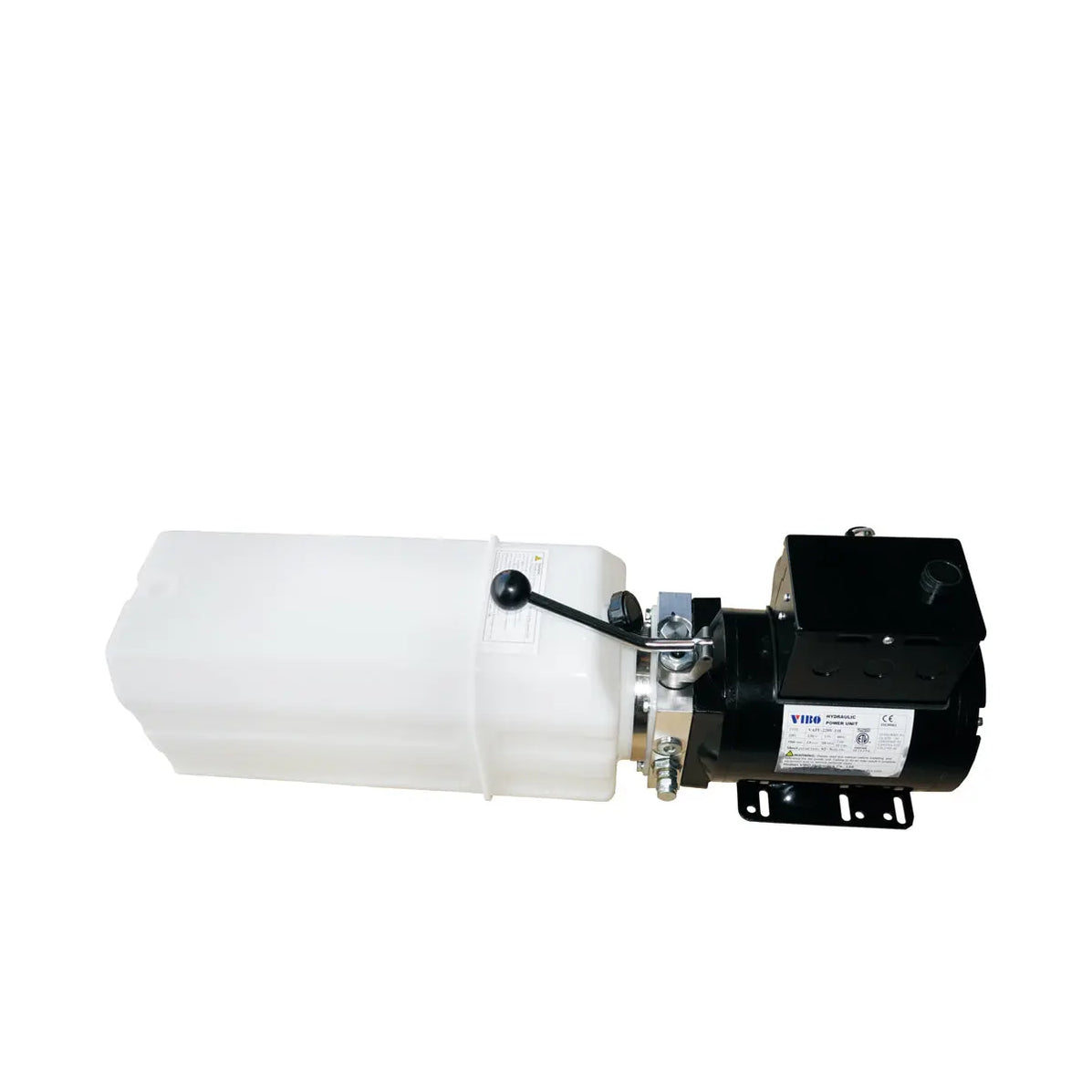

Hydraulic Motor Pump Power Unit:
220 VAC, 3 HP, single phase
No-load speed: 3360 RPM
Working pressure: 2600 PSI
Tank capacity: 2.5 US gal
Pump oil required: AW32/AW46
CETL certified
