100 ton Weighbridge Truck Scale, -35℃ to +70℃
$53,999.99
In stock
FREE SHIPPING on qualifying orders*
- *FREE Nationwide Freight Shipping on qualifying orders over $1000
*loading ramps, shipping containers, some oversize items, do not qualify for free shipping
*free ltl shipping to the lower 48 only
*Buyer is responsible for unloading
In Store Pick Up
FREE $200 CliffhouseBuildings.com Gift Card
-
- Choose FREE Local Pickup and get a $200 Cliffhouse Gift Card on all orders over $1000
- In store pick up by appointment only
- Loading asistance available

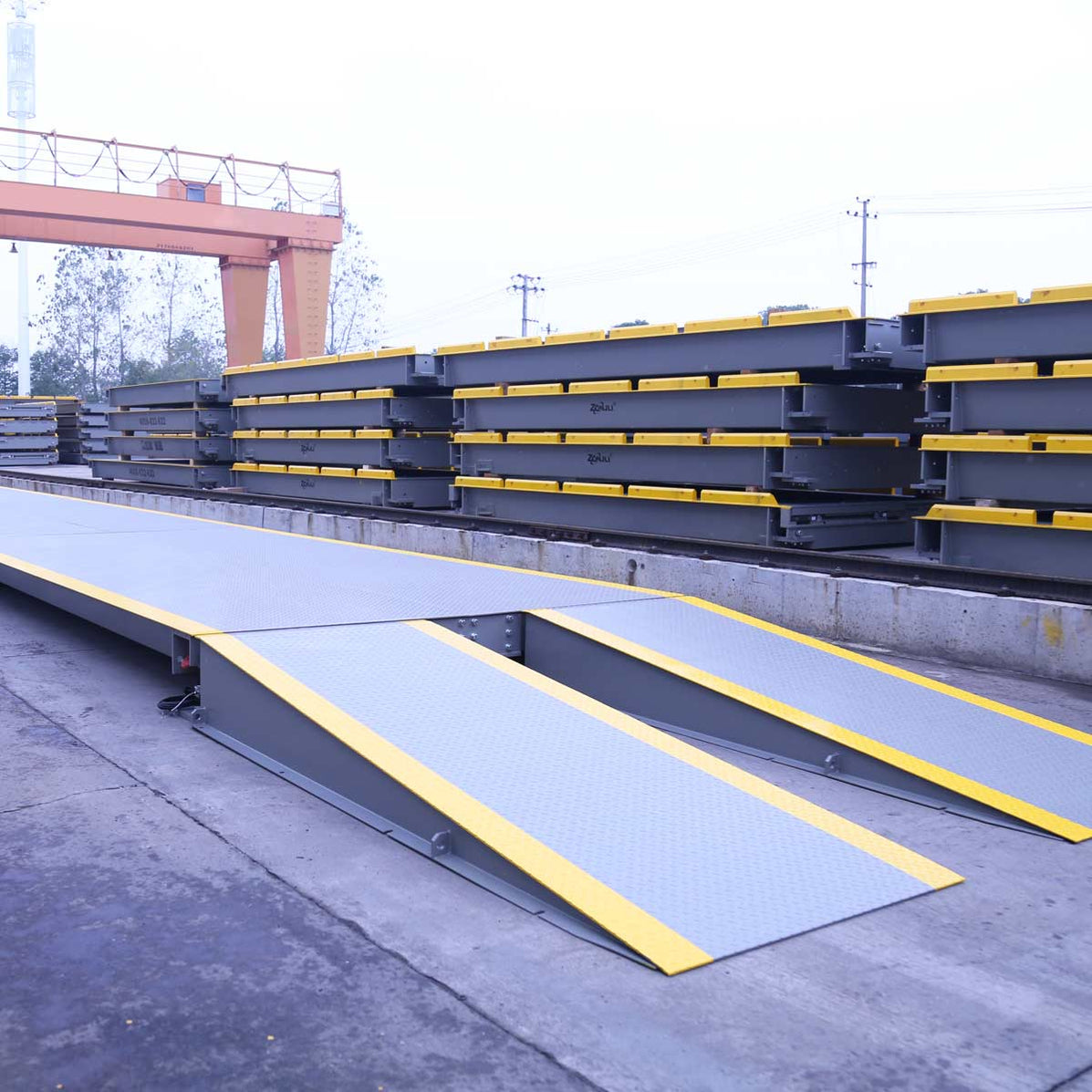

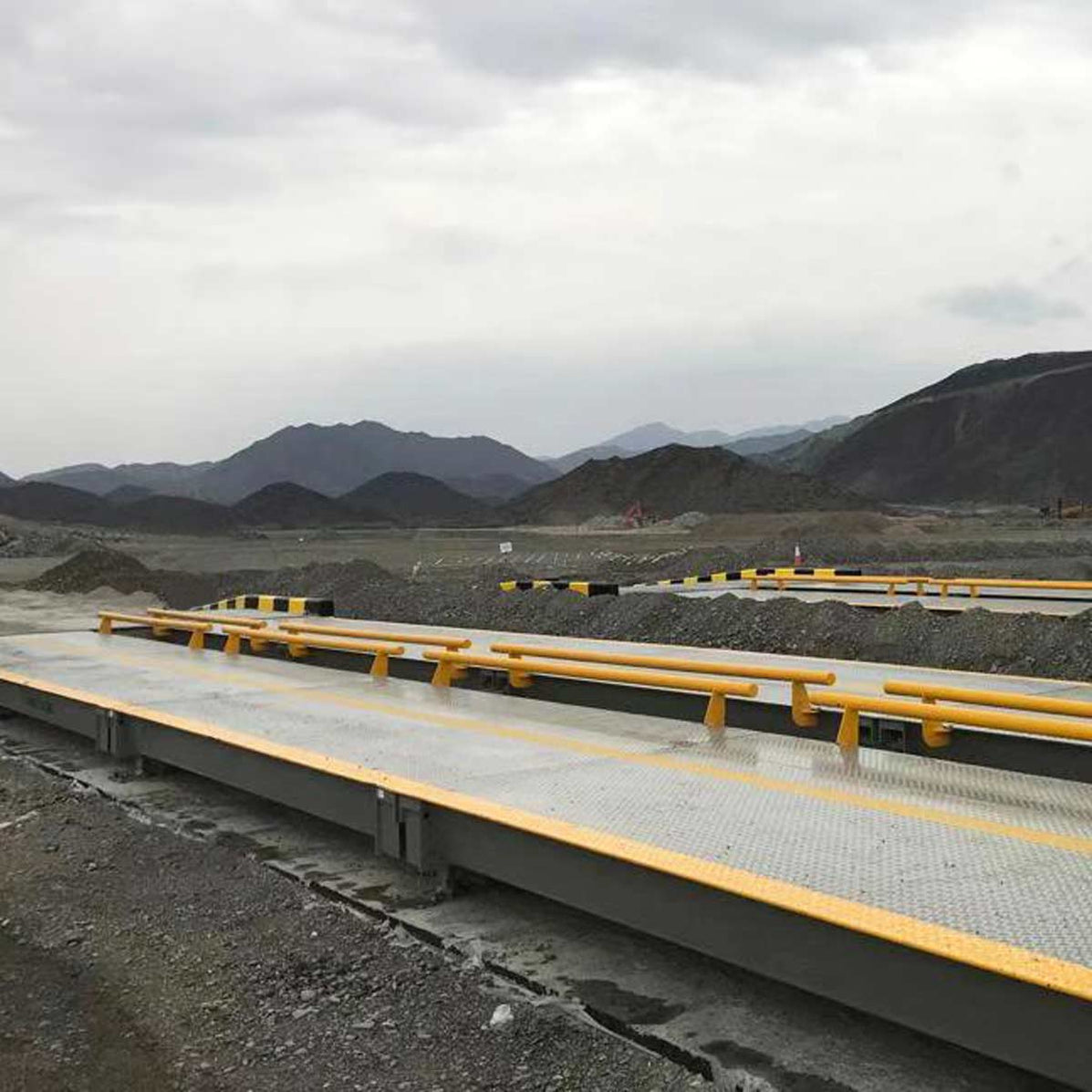

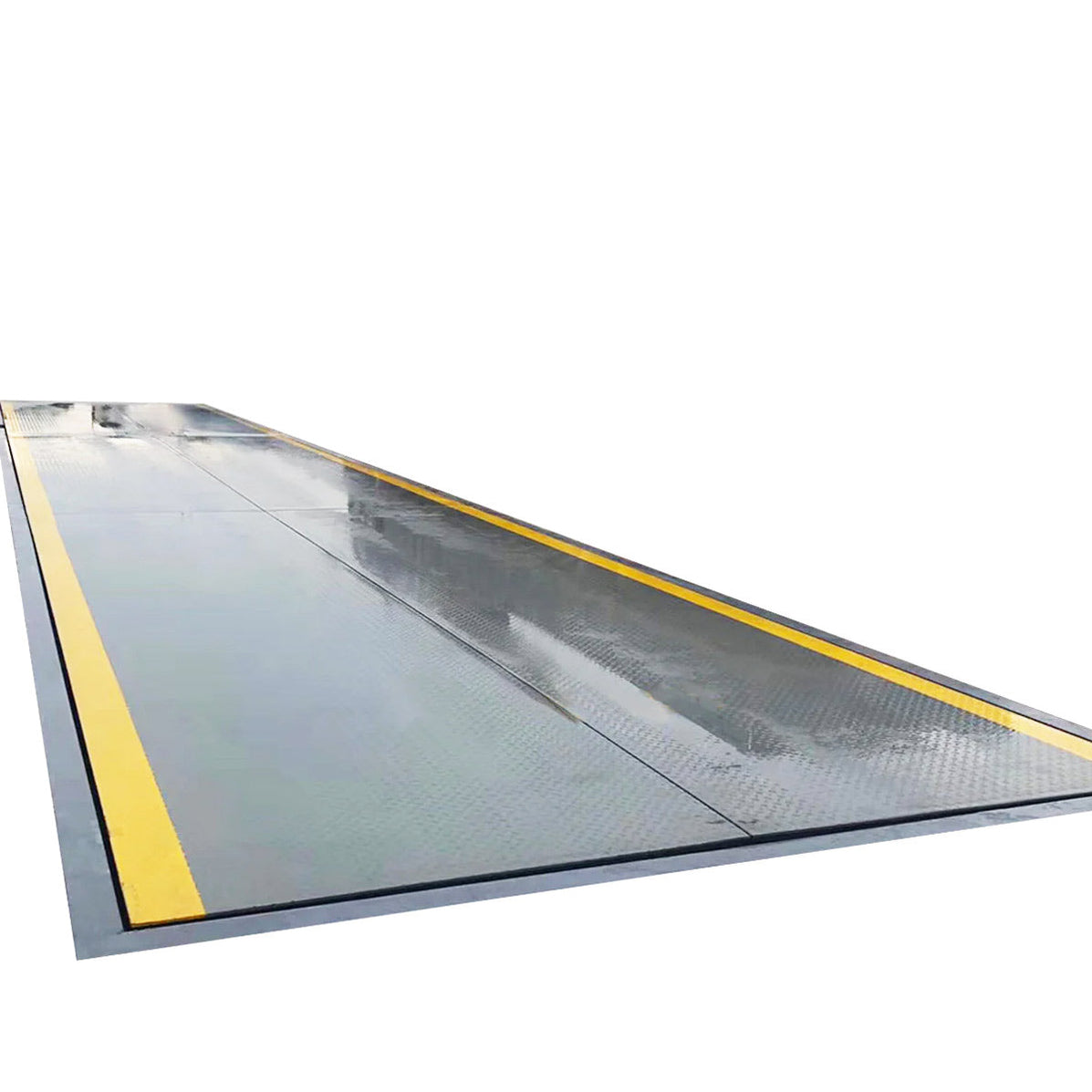

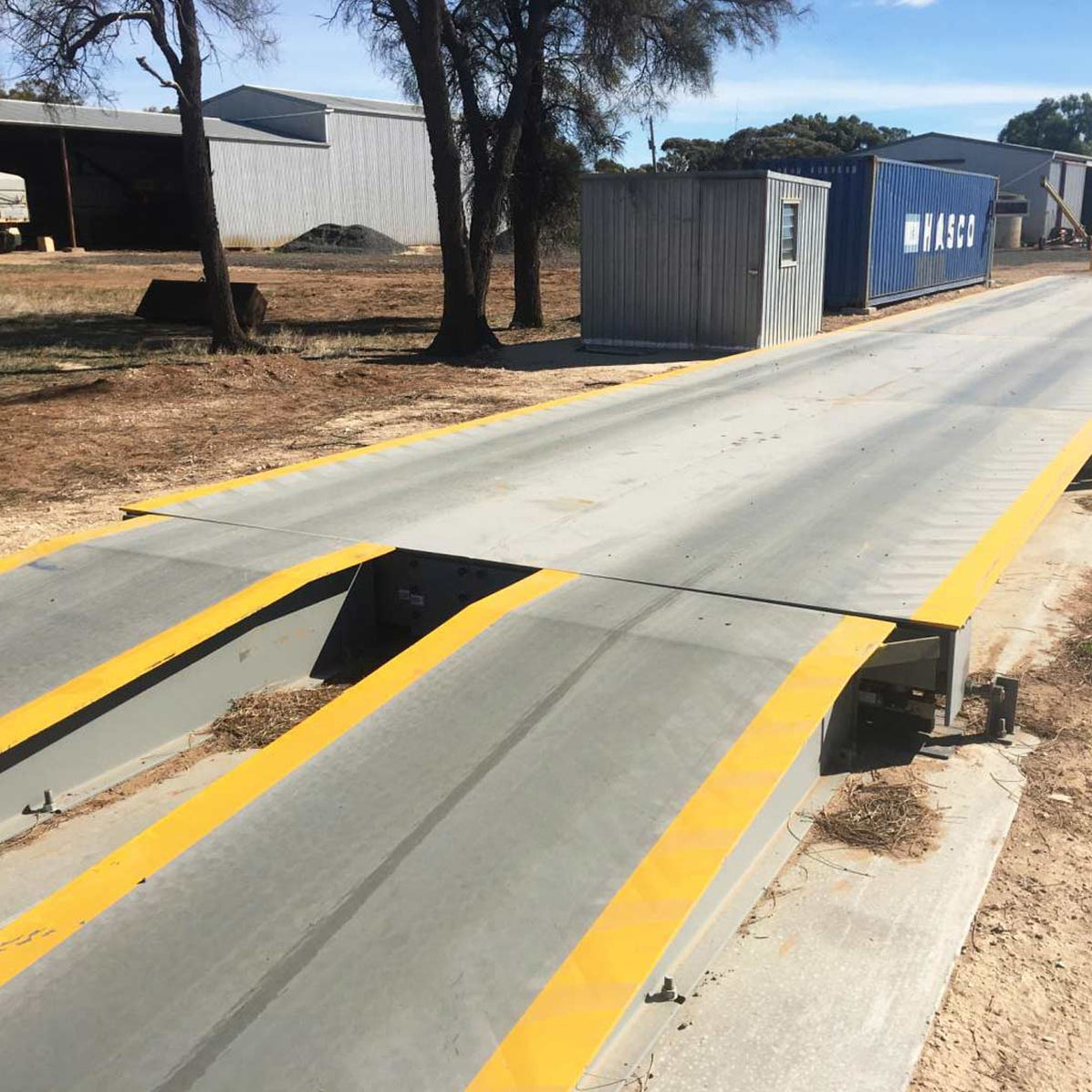

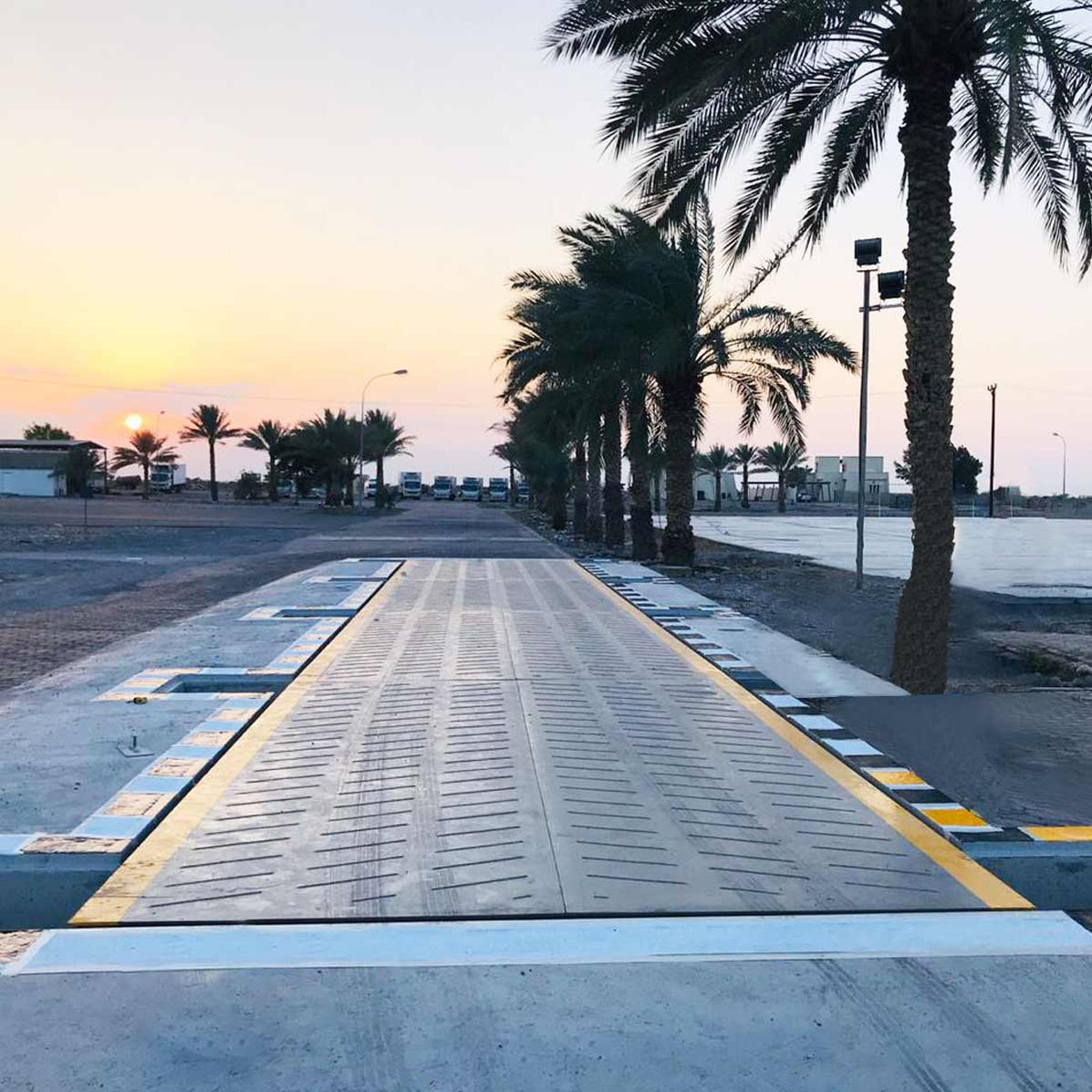

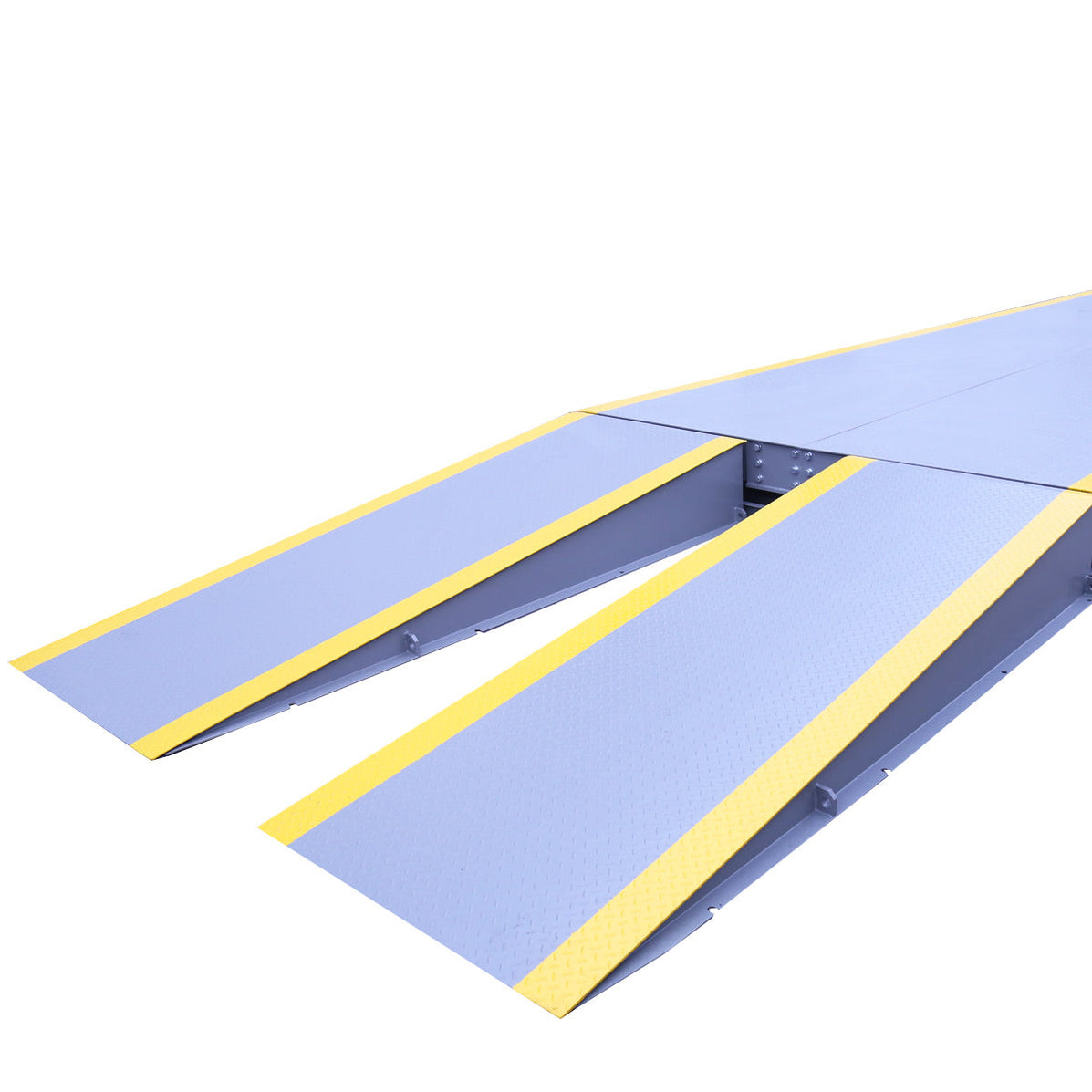

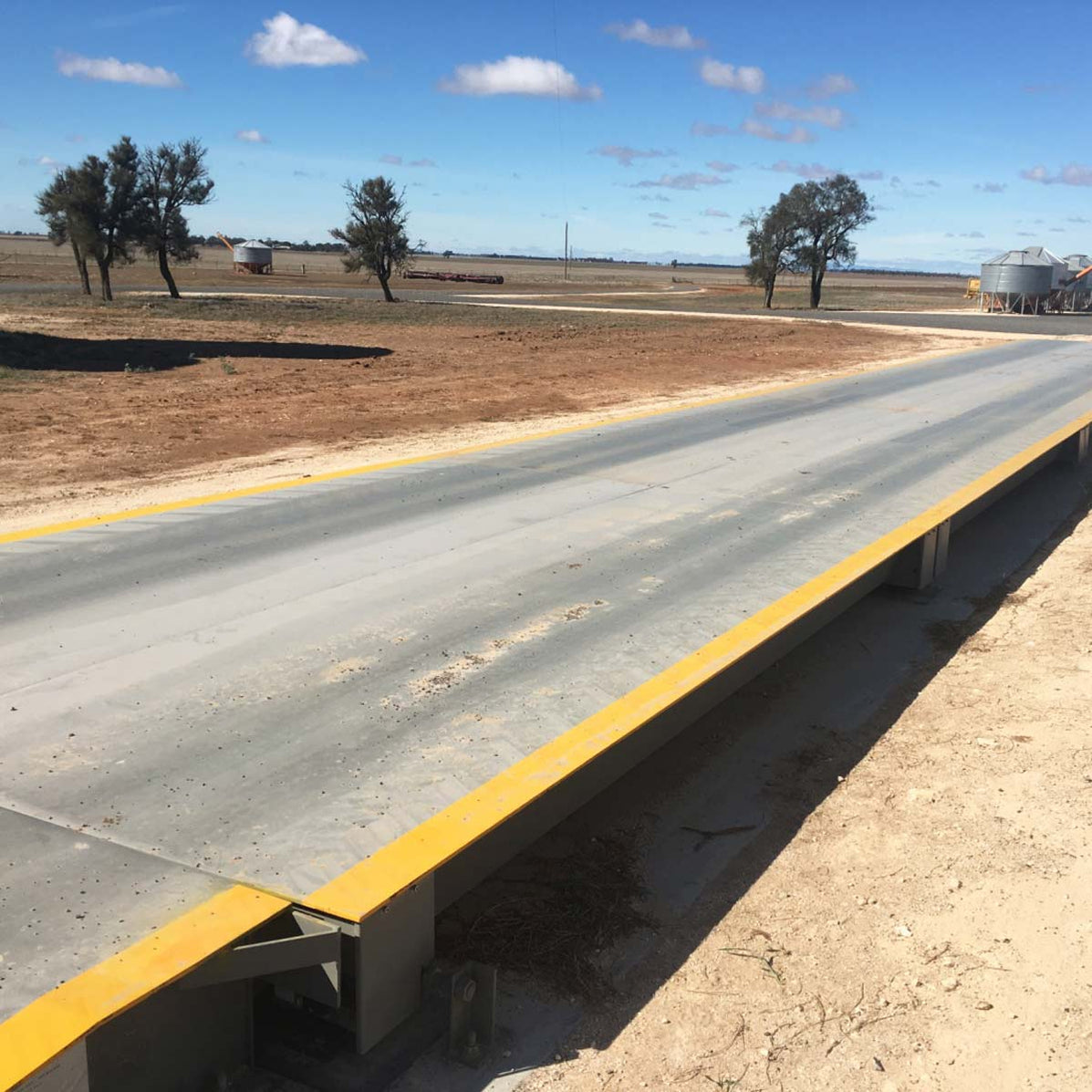

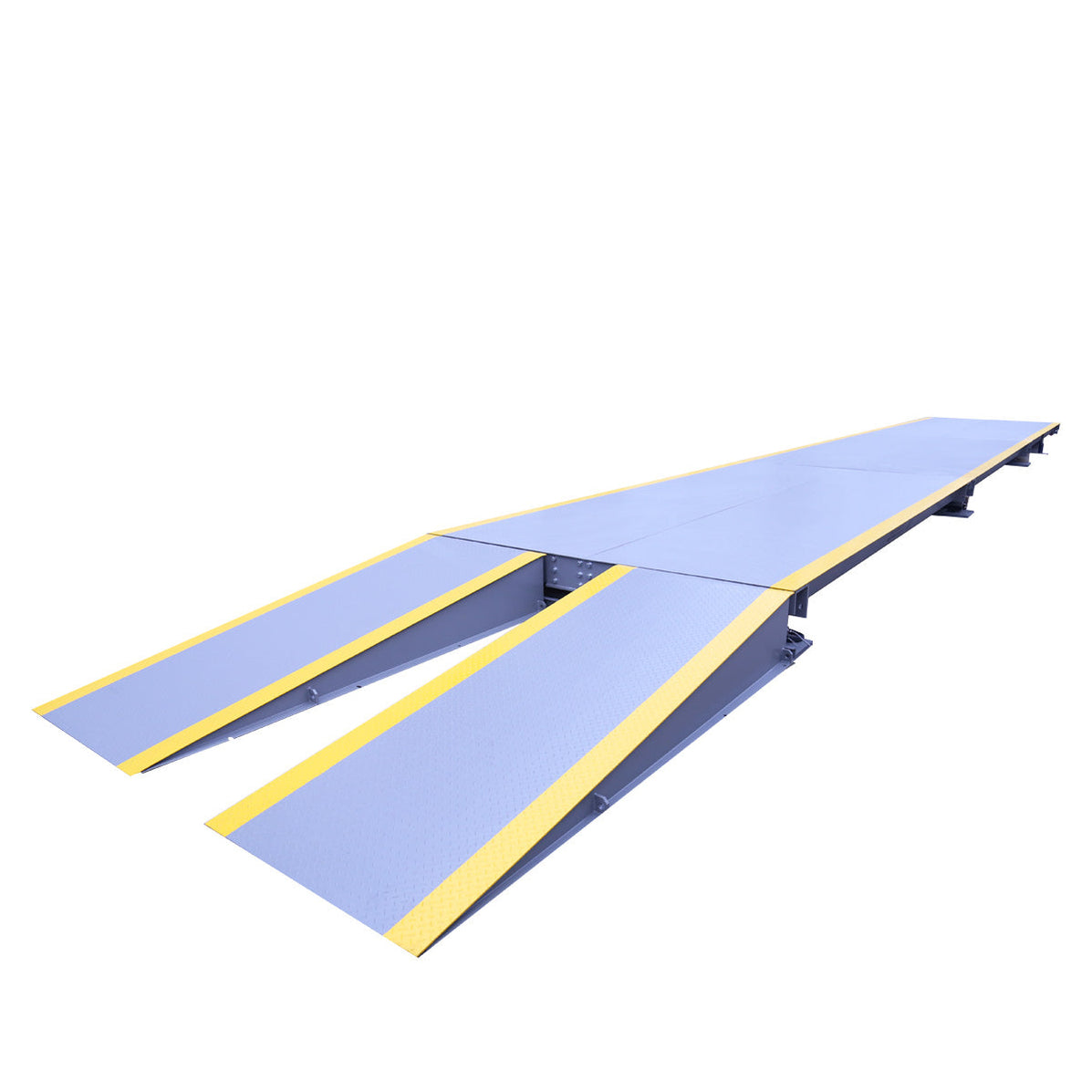

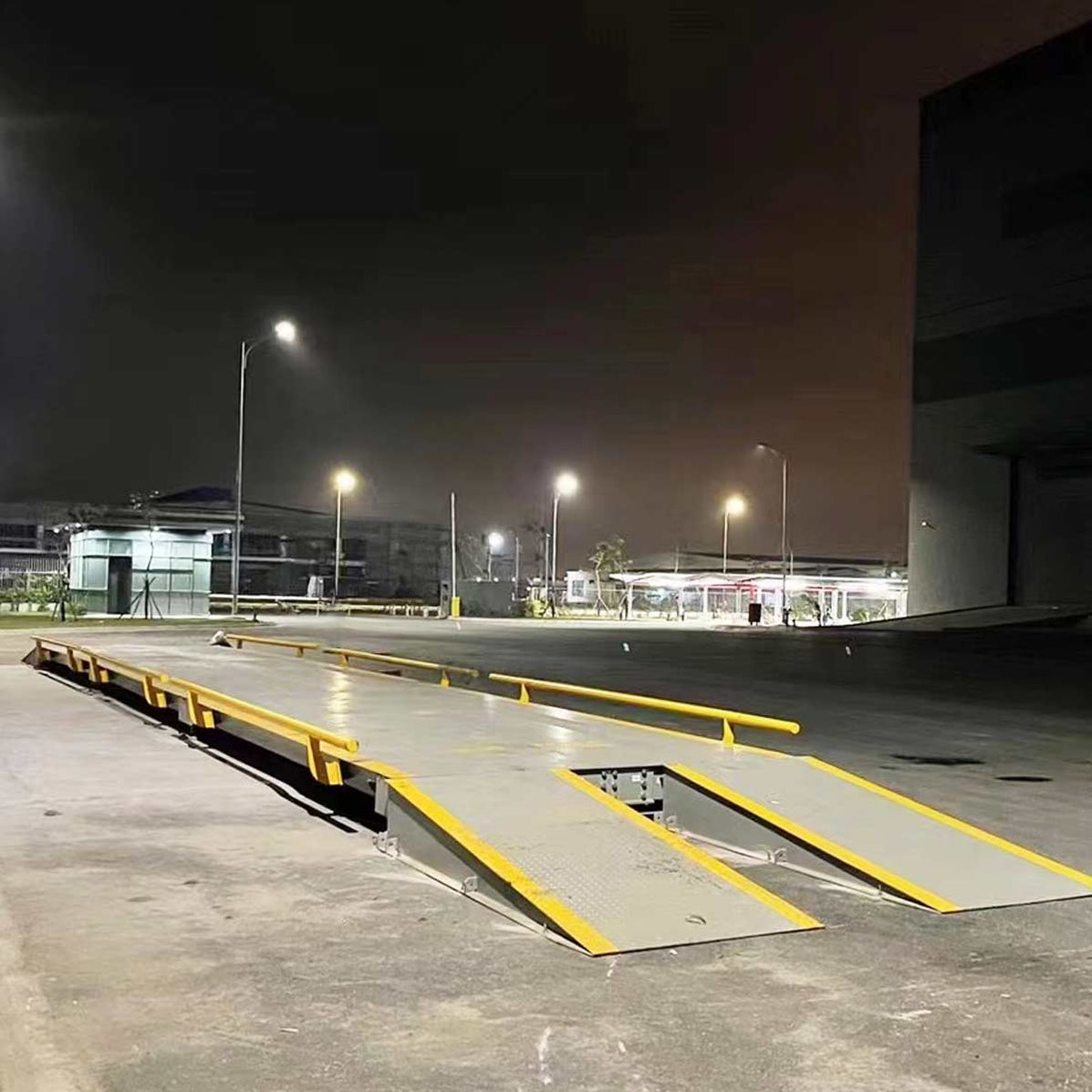

The TMG-FST100 100 ton Weighbridge Truck Scale has a measuring capacity of 100 tons. This truck scale can be installed in-ground or above-ground with ramps, and its industrial grade steel deck measures 10' wide and 56' long. The scale's industrial load cells and digital indicator are included in the package, and it can weigh at temperatures ranging from -35℃ to +70℃. This is a reliable and accurate weighing solution that is widely used in industries such as logistics, trucking, transportation, agriculture, waste management, forestry, military and government agencies. Specifications
Capacity: 100 ton
Scale platform width (exact): 118" (9.84')
Scale platform exact length (exact): 675" (56')
Structure: U-shaped beam (6)
Steel: High-quality steel
Painting: Anti-rust & anti-corrosion painting

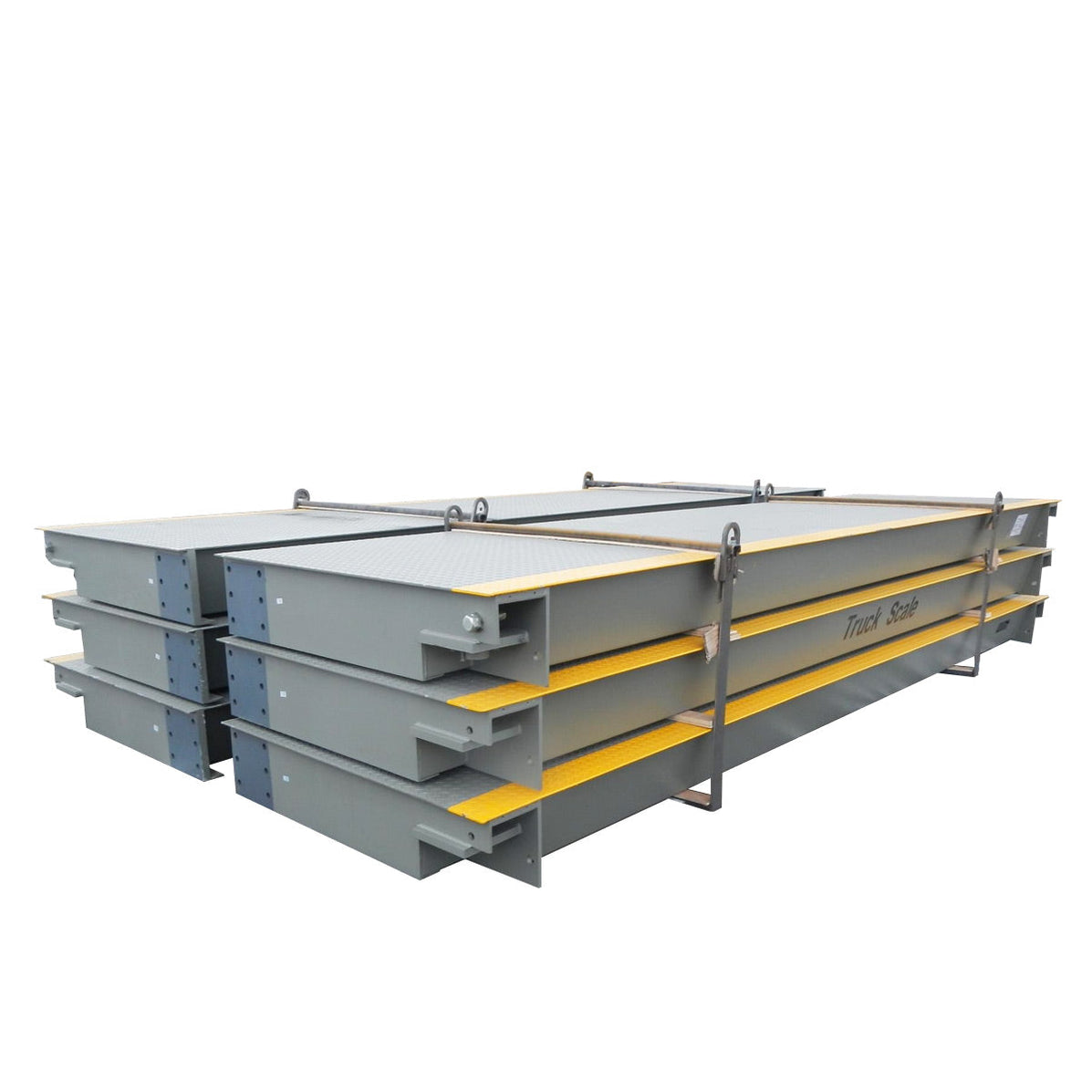

Truck scale consists of 6 modular pieces (59" x 225")
Top plate: 8 mm checker plate
Accuracy: OIML III
Working temperature: -35℃-+70℃
Relative humidity: 95%
Safe overloading: 120%
Anti-cheating technology to eliminate electronic interference
Can be connected to external devices such as printers, computers & large monitor displays

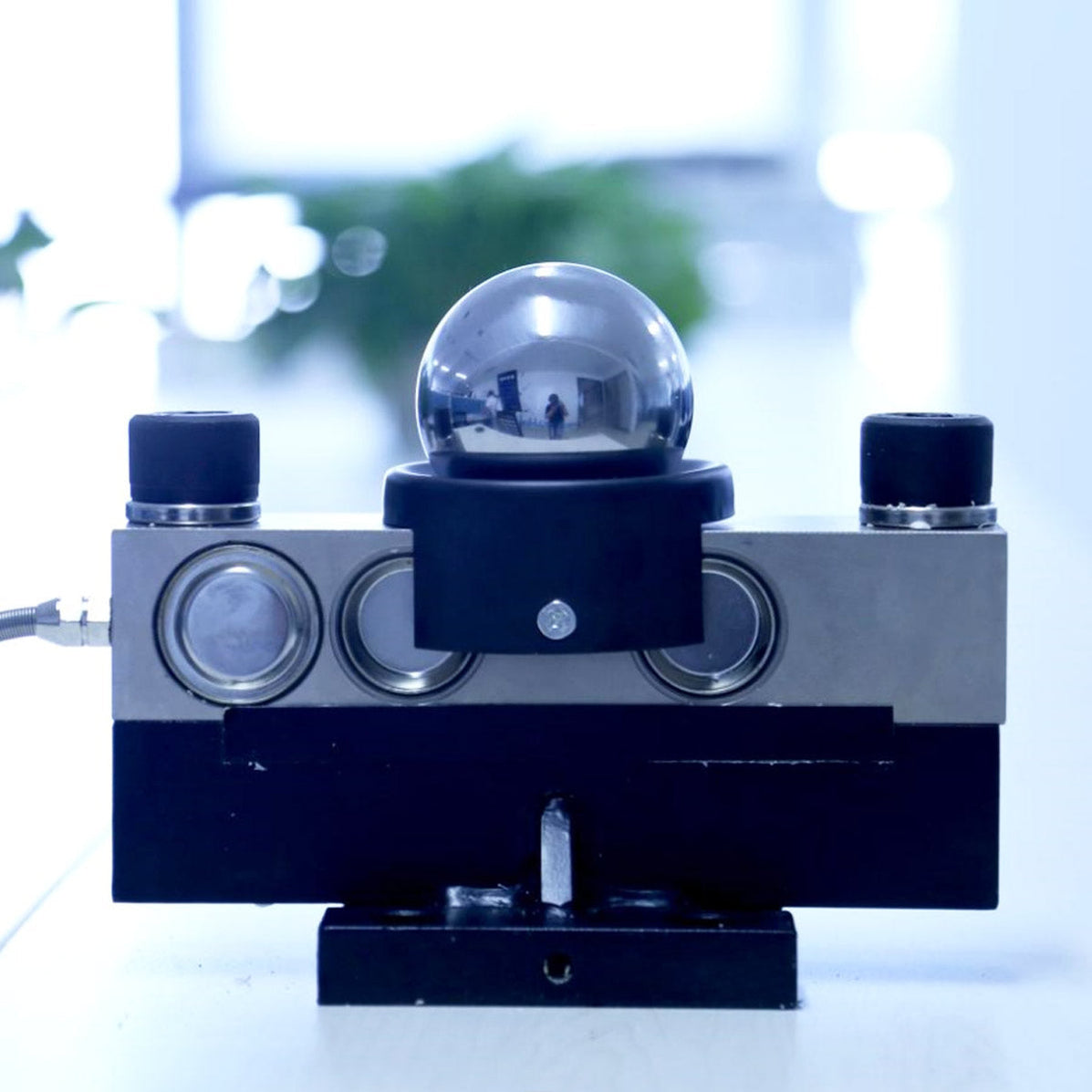

Load Cell
Working temperature range: -35℃-+70℃
Safe Overload: 150% (full scale)
Ultimate overload: 300% (full scale)
Hermetically sealed
Protection class: IP68

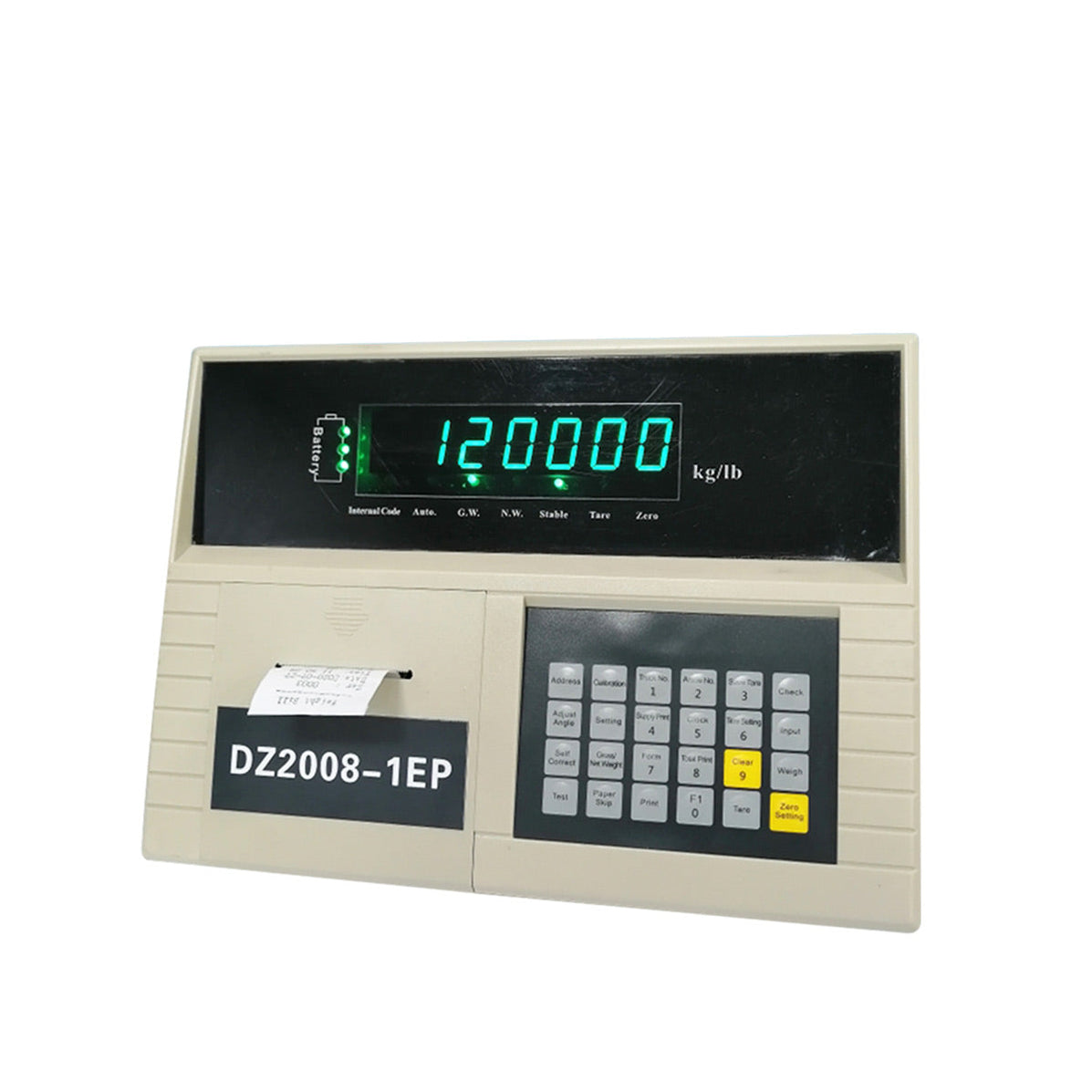

Weight Indicator
Operating temperature: 0℃~40℃
Relative humidity: ≤85%RH
Power supply: 220V/60Hz or 110V/60Hz
Transmission mode: RS232/RS422/485 (optional)
Baud rate: 600/1200/2400/4800/9600 (optional)
Weighing record storage/check/delete/power-off protection
Sound alert when over weight limit
Stainless Steel Junction Box
Waterproof seal joints
Resistance protection device
Stainless steel cover
P.S. The scale is not certified for legal trade business.
